53748-0704 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53748-0704

53748-0704: DescriptionBoard Stacking Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug; CategoryThe connector The connector; File Size978KB，17 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

53748-0704 Overview

Board Stacking Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug

53748-0704 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SLIMSTACK, SHROUDED
body width	0.169 inch
subject depth	0.094 inch
body length	0.838 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	50 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.8062 N
Insulation resistance	100000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	53748
Plug contact pitch	0.02 inch
Match contact row spacing	0.072 inch
Plug information	52991-0708
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.4036 mm
Plating thickness	4u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	70
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N
Base Number Matches	1

Preview

Download Datasheet

View All

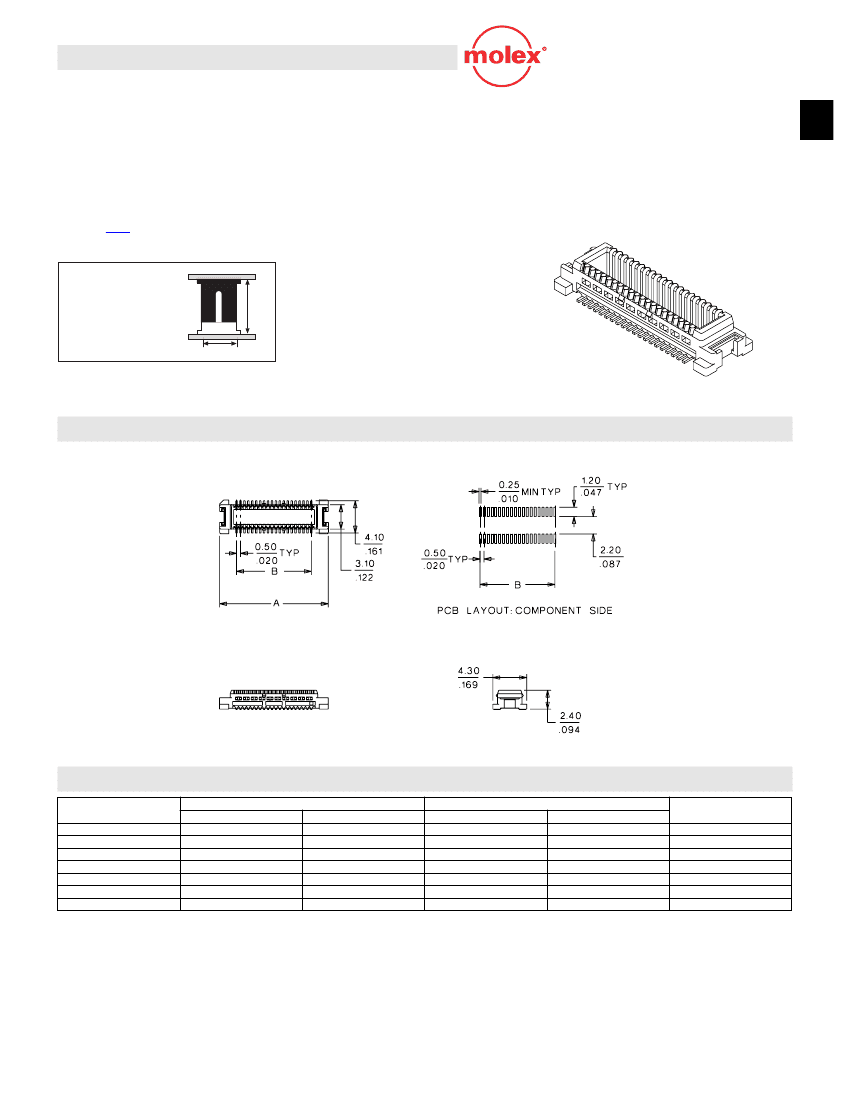

FEATURES AND SPECIFICATIONS

Reference Information

Packaging: Embossed tape

Mates With:

52991

Designed In: Millimeters

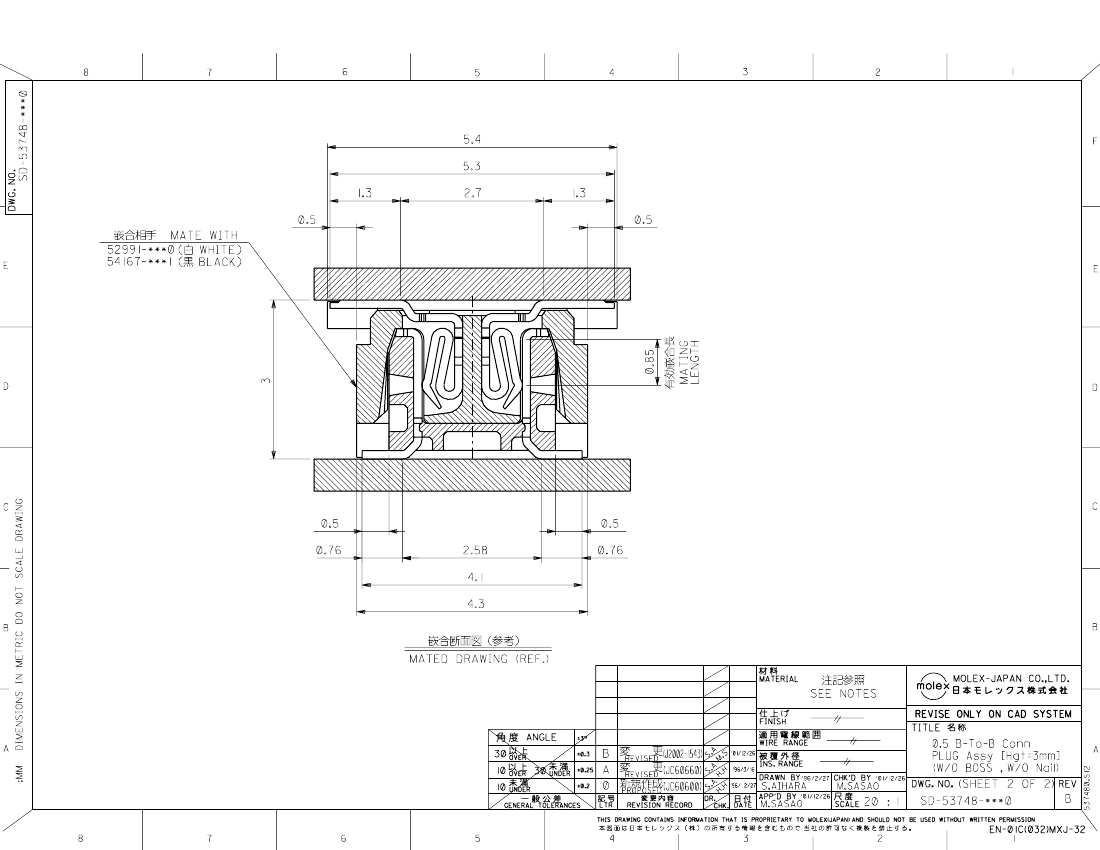

Mating Dimensions

53748 • 52991

H=3.0mm W=5.4mm

Physical

Housing: White glass-filled LCP plastic, UL 94V-0

Contact: Brass

Plating: Gold over Nickel

Operating Temperature: -40 to +105˚C

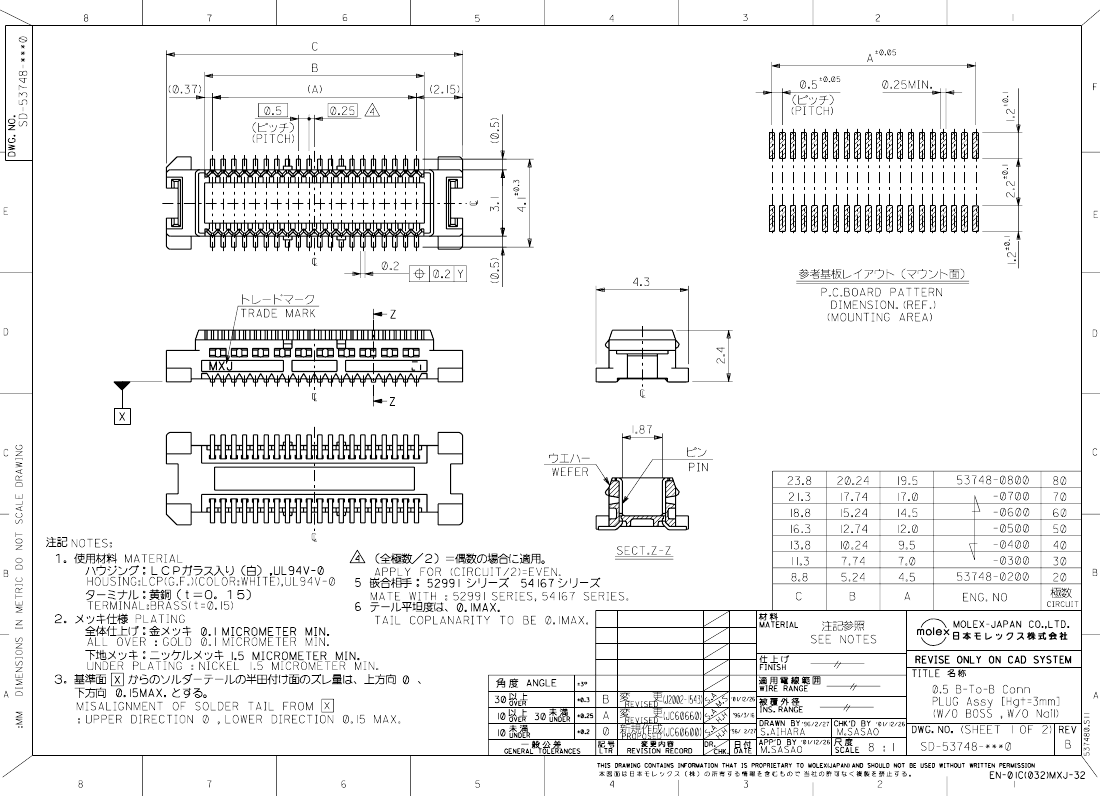

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

With Vacuum Pick-up Tape

Without

53748-0204

53748-0304

53748-0404

53748-0504

53748-0604

53748-0704

Dimension

Vacuum Pick-up Tape

53748-0208

53748-0308

53748-0408

53748-0508

53748-0608

53748-0708

53748-0808

8.80 (.346)

11.30 (.170)

13.80 (.444)

16.30 (.641)

18.80 (.740)

21.30 (.838)

23.80 (.937)

4.50 (.177)

7.00 (.275)

9.50 (.374)

12.00 (.472)

14.50 (.570)

17.00 (.669)

19.50 (.767)

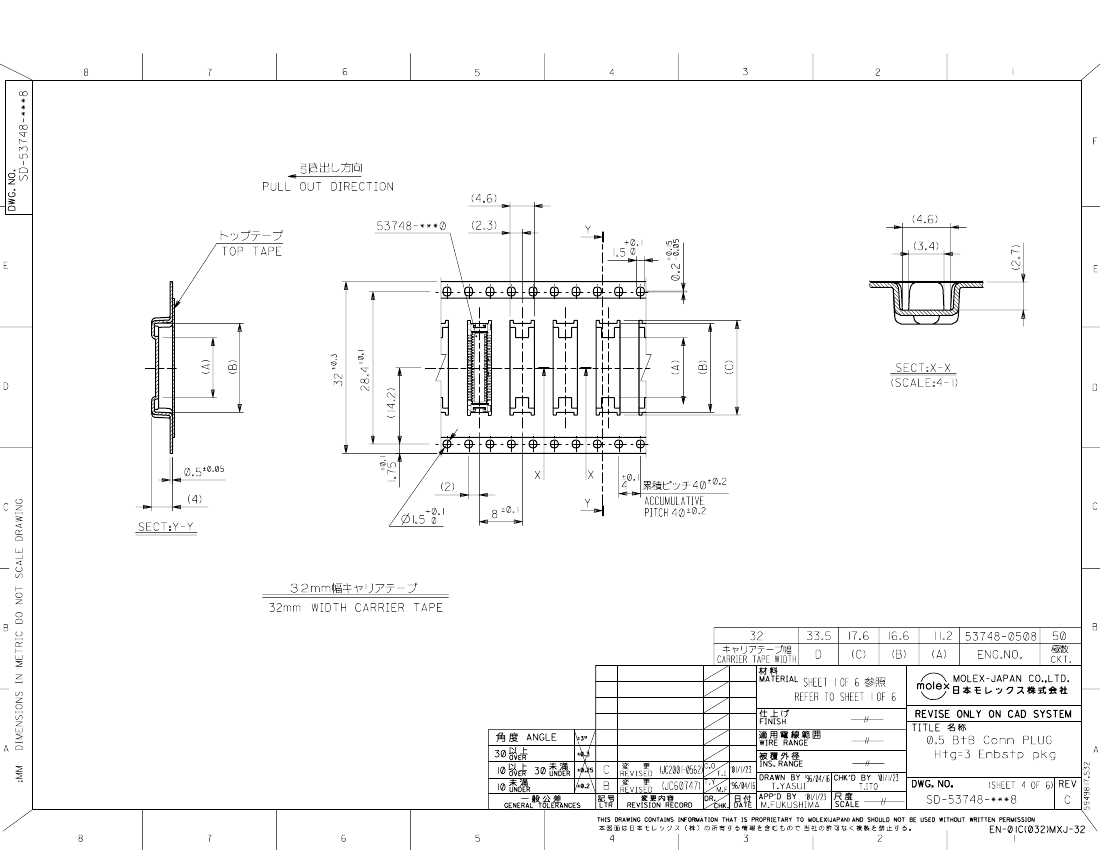

Carrier Tape Width

16.00

24.00

32.00

44.00

(.630)

(.945)

(1.260)

(1.732)

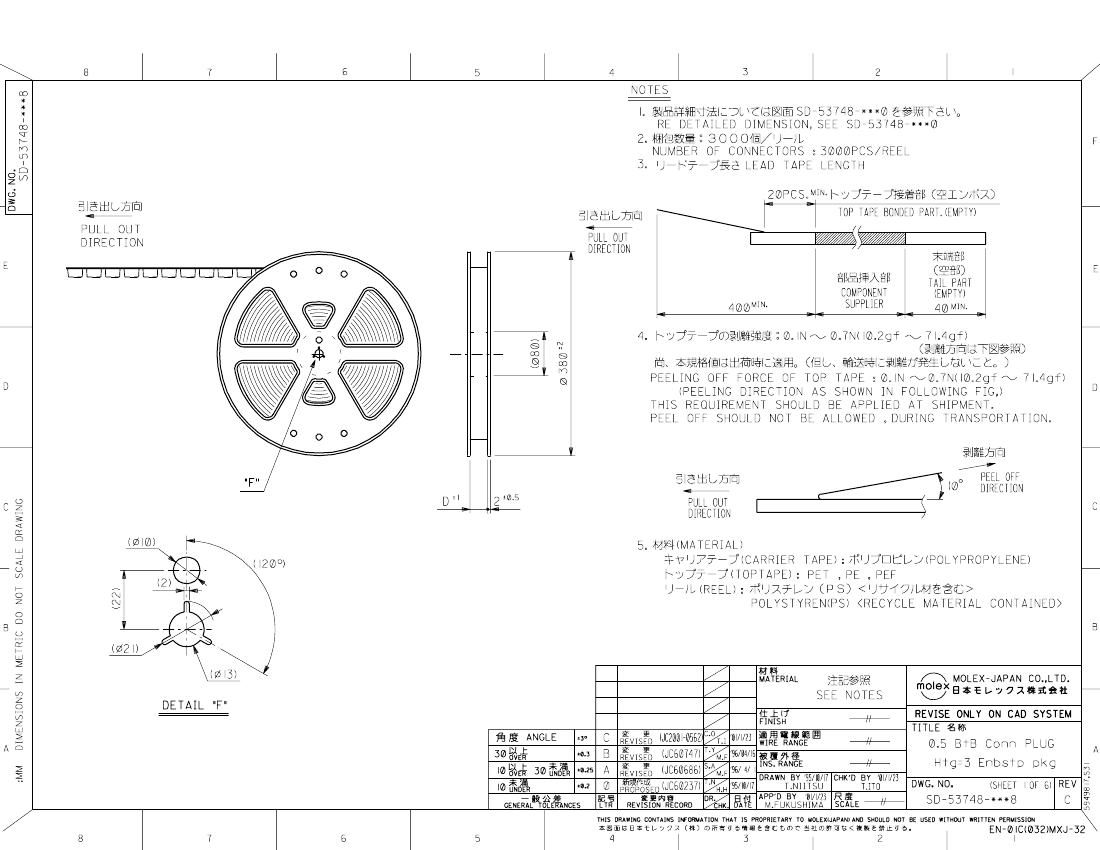

Note: Contact Molex for embossed tape speciﬁcations

Note: Use only one connector per daughterboard in order to insure proper mating alignment

MX01

A-23

0.40 to 1.60mm (.016 to .063") Pitch

Features and Beneﬁts

Stacking height: 3.0mm

Sizes 20 to 80 circuits

Locking feature provides secure mating

High temperature housing

Durable blade on beam contact interface

Anti-ﬂux design

Electrical

Voltage: 50V

Current: 0.5A

Contact Resistance: 50m

Ω

max.

Dielectric Withstanding Voltage: 500V AC

Insulation Resistance: 100 M

Ω

min.

0.50mm (.020") Pitch

Board-to-Board

Plug

53748

SMT, Dual Row

Vertical Stacking
