AMPMODU Interconnection System
AMP Mini-Tandem Spring Receptacle Housings and Contacts
Product Facts
s
Individual contacts mate
with .025 [0.64] sq. posts,
.125 [3.18] long
Crimp snap-in contacts
accept 32-22 AWG
[0.03-0.32 mm
2
] wire
Retention latch provides for
positive installation
No insertion tool required
High durability design
provides long life
Available with .000015
[0.00038] or .000030
[0.00076] thick gold inlay
in contact areas, or bright
tin plated
Closed-entry housings
Mini-contact box size:
.060 [1.52] sq.
Mini-Tandem Spring
Housings can be stacked
on .100 [2.54] centers in
either direction
Mini-Tandem
Spring Housings are
Recognized under the
Component Program of
Underwriters
Laboratories Inc.,
File No. E28476
Certified by Canadian
Standards
Association,
File No. LR 7189
AMP Mini-Tandem Spring
Receptacle Contacts are
designed to mate with .025
[0.64] posts. When used
individually, they will mate
with posts as short as .125
[3.18] and when used in a
housing, they will mate with
.140 [3.55] long posts.
These versatile contacts
may be used for
interconnecting posted
pc panels, I/O wiring and
cross-connecting pin
arrays.
The receptacle contact's
box configuration provides
for long contact life with
controlled contact mating
forces which minimize wear.
An external retention spring
facilitates quick assembly
and provides firm seating in
a contact housing.
AMP Mini-Tandem Spring
Receptacle Contacts are
used in single- or double-
row housings with .100
[2.54] centerline spacing.
Single-row housings can be
converted into double-row
connectors on .100 x .200
[2.54 x 5.08] centers with
the use of stacking clips.
Mini-Tandem Spring
Housings can be stacked
side-by-side or end-to-end
on .100 [2.54] centers.

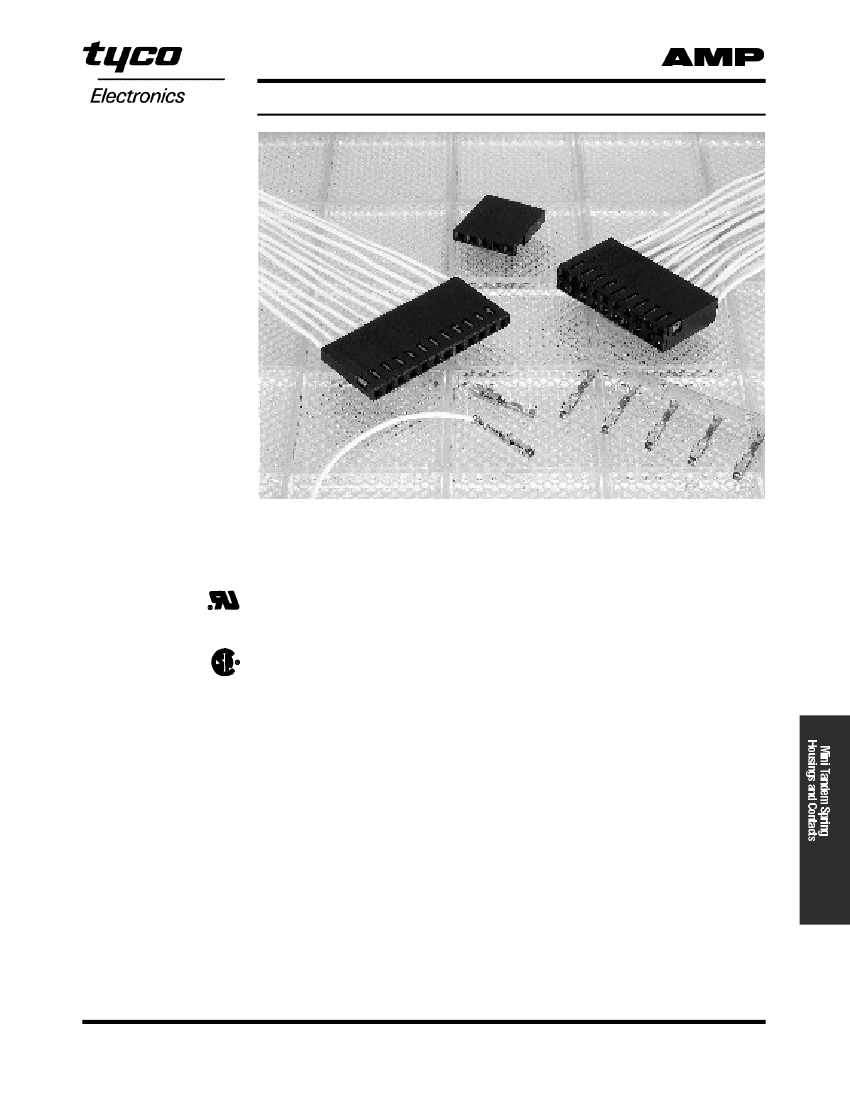

Photo 196196
s
s
s
s
s
s
s
s
s
Specifications
Contact Current Rating—3
amperes
Termination Resistance—
12 milliohms (max.)—gold plated
contacts
18 milliohms (max.)—tin plated
contacts
Durability—
Ref. AMP Product
Specification 108-25031
s
5
285
Catalog 1307819
Revised 6-04
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967

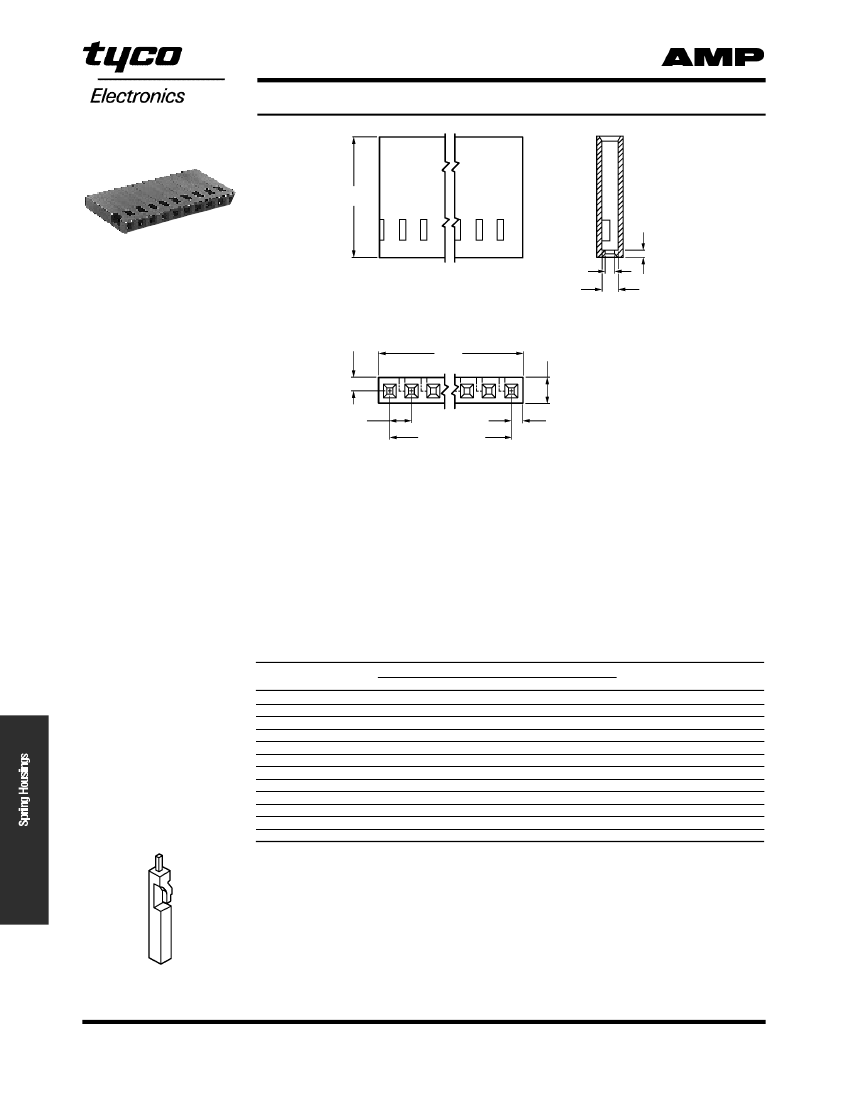

AMPMODU Interconnection System
AMP Mini-Tandem Spring Housings, Single-Row
.100 [2.54] Centerline
.550
[13.97]
.030
[0.76]
Material
—Black glass-filled
polyester, 94V-0 rated
.036
[0.91]
.066
[1.68]
Technical Documents
(page
295):
Product Specification
108-25031
Application Specification
114-25021
.050
[1.27]
A
Max.
.100
Max.
[2.54]
.100
[2.54]
B
Spaces
@
.100
[2.54] =
C
.050
[1.27]
Minimum mating post length is .140 [3.55].
Material—Natural
color nylon,
94V-2 rated
Dimensions
A
B
C
2
.200
[5.08]
1
.100
[2.54]
3
.300
[7.62]
2
.200
[5.08]
4
.400
[10.16]
3
.300
[7.62]
5
.500
[12.70]
4
.400
[10.16]
7
.700
[17.78]
6
.600
[15.24]
8
.800
[20.32]
7
.700
[17.78]
10
1.000
[25.40]
9
.900
[22.86]
12
1.200
[30.48]
11
1.100
[27.94]
16
1.600
[40.64]
15
1.500
[38.10]
18
1.800
[45.72]
17
1.700
[43.18]
20
2.000
[50.80]
19
1.900
[48.26]
22
2.200
[55.88]
21
2.100
[53.34]
Note:
AMP Mini-Tandem Spring contacts for use in these housings are shown on page 288.
No. of
Pos.
Housing
Part No.
530554-1
530554-2
530554-3
530554-4
530554-6
530554-7
530554-9
1-530554-1
1-530554-5
1-530554-7
1-530554-9
2-530554-1
5
Keying Plug
Part No. 531226-1
(Plugs directly into housing)
286
Catalog 1307819
Revised 6-04
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
