5471-2081

Description
Card Edge Connector, 16 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking
CategoryThe connector    The connector
File Size96KB,1 Pages
ManufacturerConexcon Group
Download Datasheet Parametric View All

5471-2081 Overview

Card Edge Connector, 16 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking

5471-2081 Parametric

Parameter NameAttribute value
MakerConexcon Group
Reach Compliance Codeunknown
body width0.362 inch
subject depth0.81 inch
body length1.06 inch
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationSN
Contact materialBRASS
contact modeRECTANGULAR
Contact styleBELLOWED TYPE
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number5471
Plug contact pitch0.1 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing5.08 mm
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts16
Base Number Matches1

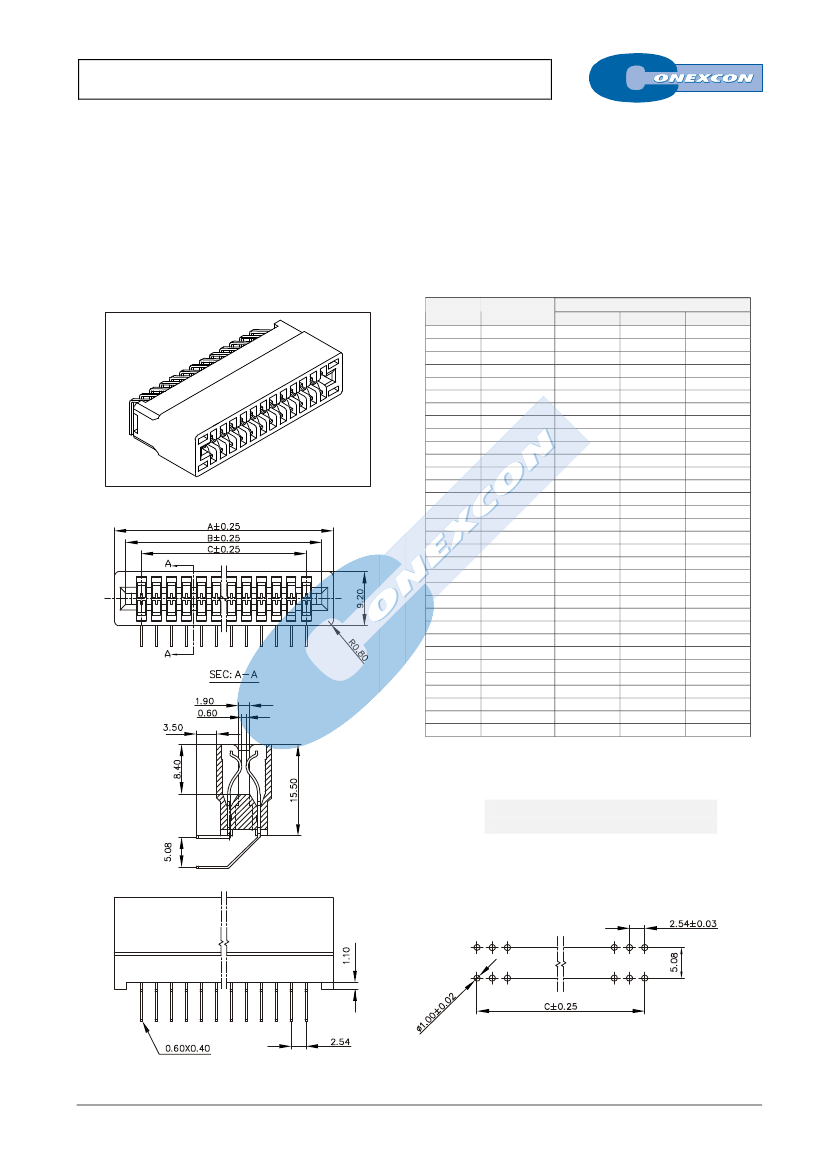

2.54mm EDGE CARD CONNECTOR
5471 SERIES.
2.54mm(0.100”). For PCB Solder.
Features
Available 6 to 98 circuits
Insulator Material: P.B.T. UL 94V-0
Contact Material: Brass
Bifurcated anti-lever beam type
Accept P.C. Board thickness: 1.40mm – 1.60mm
For easy insertion and extraction to P.C. Board
Current Rating: 3 Amps.
Dimensional Information
Ordering and Dimensional Information
Circuit Size
2/4
3/6
4/8
5/10
6/12
7/14
8/16
9/18
10/20
11/22
12/24
13/26
14/28
15/30
16/32
17/34
18/36
19/38
20/40
22/44
24/48
25/50
30/60
31/62
32/64
35/70
36/72
40/80
43/86
49/98
50/100
54/108
Part Number
5471 –
T021
5471 –
T031
5471 –
T041
5471 –
T051
5471 –
T061
5471 –
T071
5471 –
T081
5471 –
T091
5471 –
T101
5471 –
T111
5471 –
T121
5471 –
T131
5471 –
T141
5471 –
T151
5471 –
T161
5471 –
T171
5471 –
T181
5471 –
T191
5471 –
T201
5471 –
T221
5471 –
T241
5471 –
T251
5471 –
T301
5471 –
T311
5471 –
T321
5471 –
T351
5471 –
T361
5471 –
T401
5471 –
T431
5471 –
T491
5471 –
T501
5471 –
T541
Dimensions
A
11.68
14.22
16.76
19.31
21.84
24.38
26.92
29.46
32.00
34.54
37.18
39.62
42.16
44.70
47.24
49.78
52.32
54.86
57.41
62.48
67.56
70.10
82.80
85.34
87.88
95.50
98.04
108.20
115.82
138.68
133.60
143.76
B
7.82
10.36
12.90
15.44
17.98
20.52
23.06
25.61
28.14
31.68
33.22
35.76
38.30
40.84
43.38
45.92
48.46
51.11
53.54
58.62
63.70
66.24
78.94
81.48
84.12
91.64
94.18
104.34
111.96
134.82
129.74
139.90
C
2.54
5.18
7.62
11.16
12.71
15.24
17.78
20.32
22.86
25.40
27.94
31.48
33.02
35.56
38.10
40.64
43.18
45.72
48.26
53.34
58.42
60.96
73.66
76.20
78.74
86.36
88.90
99.06
106.68
129.54
124.46
134.62
T = Contact Plating
T =
2.
Tin plated.
T =
3.
Gold flash over 50µ" nickel.
Recommended Finish
T =
5.
15µ” gold over 50µ” nickel
T =
6.
30µ” gold over 50µ” nickel
RECOMMENDED HOLE PATTERN
FULL LINE CATALOGUE
N-XX
