350-10-1-11-00-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 350-10-1-11-00-001000

350-10-1-11-00-001000: Description11 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG, ROHS COMPLIANT; CategoryThe connector The connector; File Size367KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

350-10-1-11-00-001000 Overview

11 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG, ROHS COMPLIANT

350-10-1-11-00-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	350
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

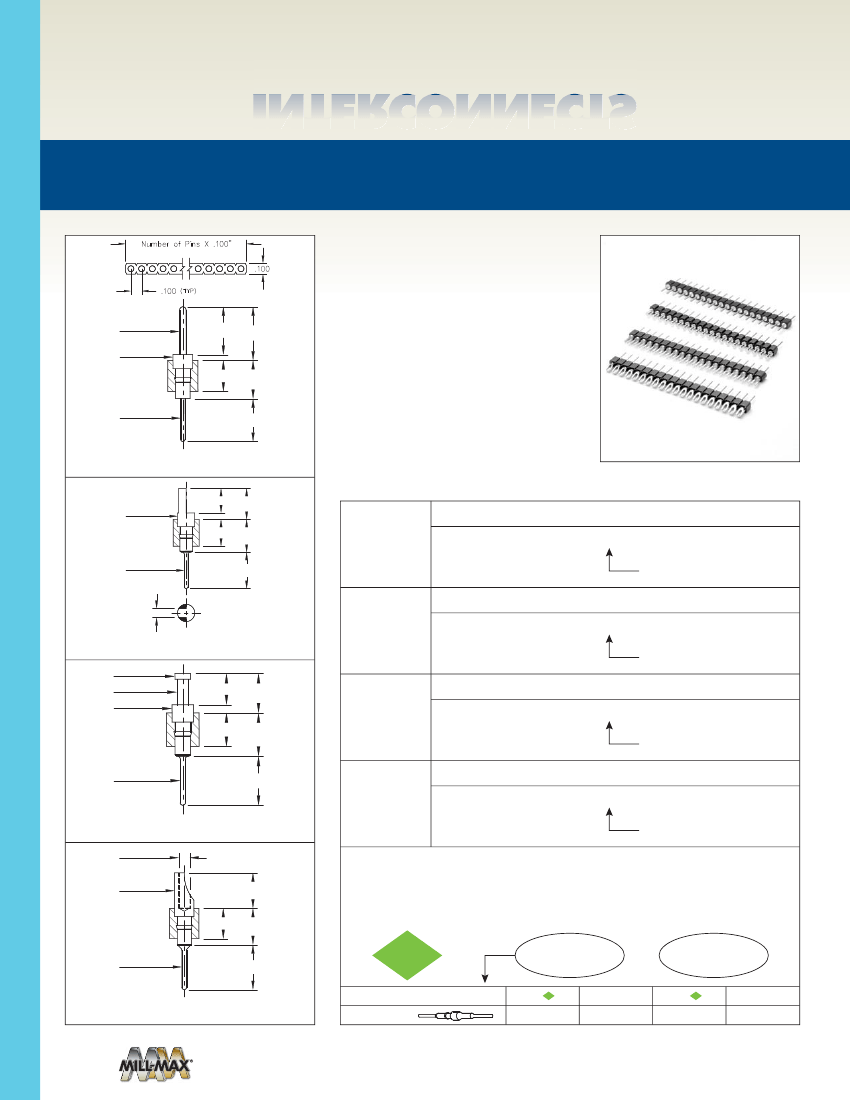

INTERCONNECTS

SERIES 350, 360, 370, 380 • .100” GRID SOLDER TAIL •

SINGLE ROW STRIPS

•

Series 350, 360, 370 & 380 single row header

strips come in various styles (pin, slotted,

head, turret and solder cup) with pluggable

solder tails

.025 DIA.

.072 DIA.

.110

.166

.187

.134

350...001 uses pin #0290

360...001 uses pin #0282

370...001 uses pin #0700

380...001 uses pin #8000

See pages 215 and 216 for details

.018 DIA.

.156

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

FIG. 1

ORDERING INFORMATION

.100

.072

DIA.

.110

.126

Series 350...001

.025” / .018” Dia. Solder Tails

350-XX-1_ _-00-001000

.134

FIG. 1

Series 360...001

.018 DIA.

.156

Specify number of pins

01-64

Slotted Head / Solder Tail

360-XX-1_ _-00-001000

.035

FIG. 2

.053

DIA.

.032

DIA.

.072

DIA.

.110

.100

.127

FIG. 2

Series 370...001

Specify number of pins

01-64

Turret / Solder Tail

370-XX-1_ _-00-001000

FIG. 3

.134

Specify number of pins

01-64

.020

DIA.

.156

Series 380...001

Solder Cup / Solder Tail

380-XX-1_ _-00-001000

FIG. 4

FIG. 3

.039 DIA.

Specify number of pins

01-64

PAGE 84 | INTERCONNECTS

.072 DIA.

.127

.110

.124

RoHS - 2

.020 DIA.

2011/65/EU

.166

XX=Plating Code

See Below

”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

SPECIFY PLATING CODE XX=

200

”

Sn/Pb

200

”

FIG. 4

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

350-10-1-11-00-001000 Related Products

	350-10-1-11-00-001000	350-10-1-54-00-001000	350-10-1-43-00-001000	350-10-1-03-00-001000
Description	11 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG, ROHS COMPLIANT	54 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG, ROHS COMPLIANT	43 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG, ROHS COMPLIANT	3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Mill-Max	Mill-Max	Mill-Max	Mill-Max
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)	GOLD (10) OVER NICKEL (150)	GOLD (10) OVER NICKEL (150)	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)	GOLD (10) OVER NICKEL (150)	GOLD (10) OVER NICKEL (150)	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	350	350	350	350
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	11	54	43	3
Base Number Matches	1	1	1	1
