Preview

5-6447141-8: Description10 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET, LEAD FREE; CategoryThe connector The connector; File Size227KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-6447141-8 Overview

10 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET, LEAD FREE

5-6447141-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	LEAD FREE
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	6447141
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

8

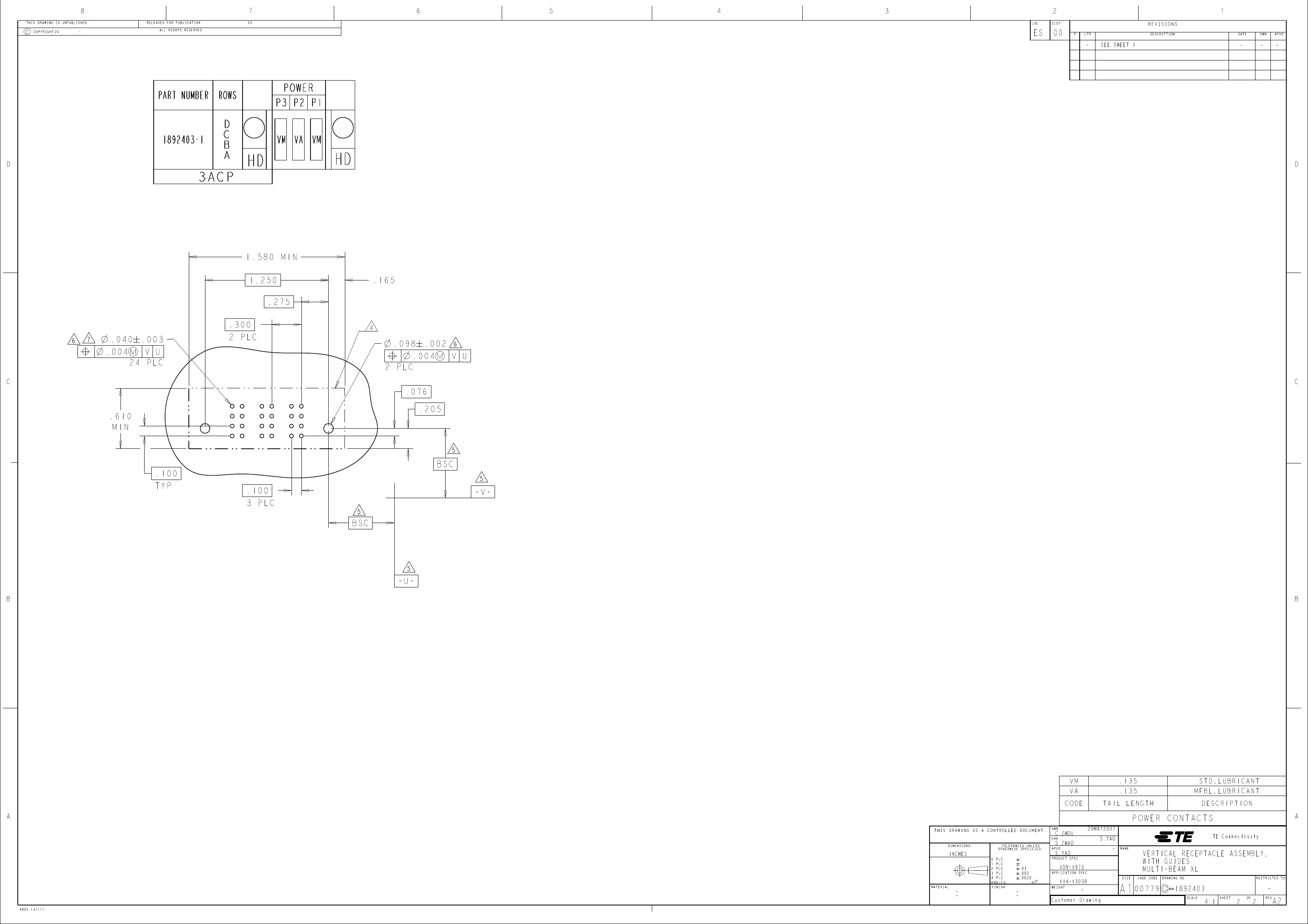

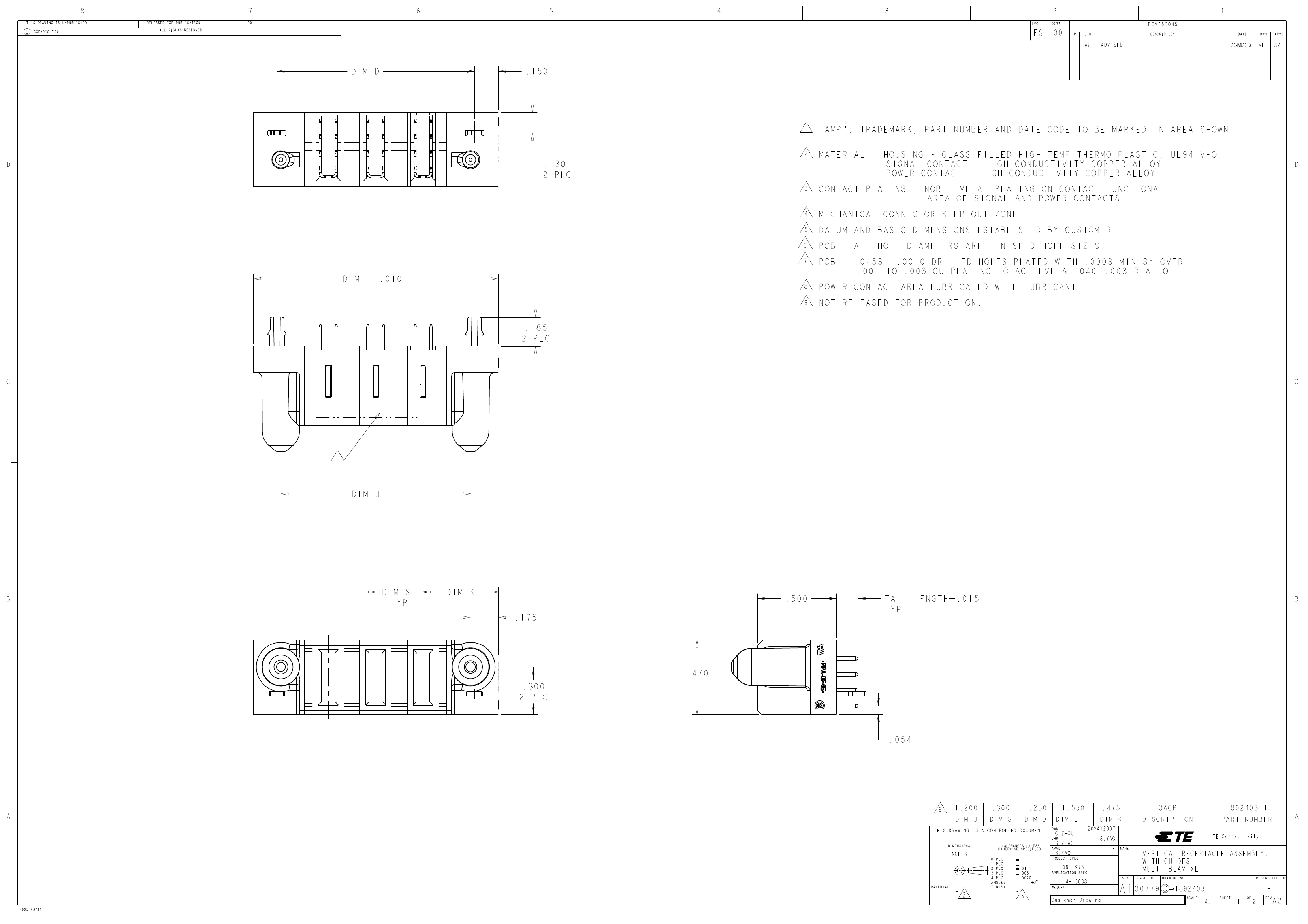

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

ES

00

A2

ADVISED

20MAR2013

ML

SZ

DIM D

.150

1

2

"AMP", TRADEMARK, PART NUMBER AND DATE CODE TO BE MARKED IN AREA SHOWN

MATERIAL:

HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL94 V-O

SIGNAL CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

NOBLE METAL PLATING ON CONTACT FUNCTIONAL

AREA OF SIGNAL AND POWER CONTACTS.

D

.130

2 PLC

D

3

4

5

6

7

CONTACT PLATING:

MECHANICAL CONNECTOR KEEP OUT ZONE

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER

PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES

PCB - .0453 # .0010 DRILLED HOLES PLATED WITH .0003 MIN Sn OVER

.001 TO .003 CU PLATING TO ACHIEVE A .040 # .003 DIA HOLE

POWER CONTACT AREA LUBRICATED WITH LUBRICANT

NOT RELEASED FOR PRODUCTION.

DIM L # .010

8

9

.185

2 PLC

C

1

DIM U

B

DIM S

TYP

DIM K

.175

.500

TAIL LENGTH # .015

TYP

B

.300

2 PLC

.470

.054

A

9

1.200

DIM U

.300

DIM S

1.250

DIM D

DWN

CHK

1.550

DIM L

C.ZHOU

S.ZHAO

S.YAO

.475

20MAY2007

3ACP

DESCRIPTION

1892403-1

PART NUMBER

TE Connectivity

DIM K

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

S.YAO

-

NAME

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

108-1973

2 $

-

2

-

3

WEIGHT

114-13038

-

Customer Drawing

A1

00779

SIZE

CAGE CODE

VERTICAL RECEPTACLE ASSEMBLY,

WITH GUIDES

MULTI-BEAM XL

DRAWING NO

RESTRICTED TO

1892403

SCALE

4805 (3/11)

4:1

SHEET

1

OF

2

REV

-

A2

5-6447141-8 Related Products

	5-6447141-8	787141-1	787424-1	787590-1	787802-1	6450529-1	6612002-1	787415-1
Description	10 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET, LEAD FREE	5 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	5 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	PCB CONNECTOR, RECEPTACLE	PCB CONNECTOR	8 CONTACT(S), MALE, POWER CONNECTOR, PRESS FIT	8 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET, LEAD FREE	5 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible	incompatible	conform to	conform to	incompatible
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	compliant	unknown	unknown	compliant	compliant	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	PCB CONNECTOR	PCB CONNECTOR	RECTANGULAR POWER CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NICKEL	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	BRASS	BRASS	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED	BRASS
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Base Number Matches	1	1	1	1	1	1	1	1
Contact point gender	FEMALE	MALE	MALE	-	-	MALE	FEMALE	MALE
Filter function	NO	NO	NO	-	-	NO	NO	NO
Manufacturer's serial number	6447141	787141	787424	787590	-	-	6612002	787415
Mixed contacts	NO	NO	NO	-	-	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	-	-	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	-	-	BOARD	BOARD	BOARD
Number of rows loaded	1	2	2	-	-	-	1	1
Terminal pitch	2.5 mm	5 mm	5 mm	-	-	-	2.5 mm	5 mm
Termination type	SOLDER	SOLDER	SOLDER	-	-	PRESS FIT	SOLDER	SOLDER
Total number of contacts	10	5	5	-	-	8	8	5
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead	Lead free	-	Contains lead
ECCN code	-	EAR99	EAR99	EAR99	EAR99	-	-	EAR99
