The DG201B, DG202B analog switches are highly improved
versions of the industry-standard DG201A, DG202. These
devices are fabricated in Vishay Siliconix’ proprietary silicon
gate CMOS process, resulting in lower on-resistance, lower
leakage, higher speed, and lower power consumption.
These quad single-pole single-throw switches are designed
for a wide variety of applications in telecommunications,
instrumentation, process control, computer peripherals, etc.
An improved charge injection compensation design
minimizes switching transients. The DG201B and DG202B
can handle up to ± 22 V input signals, and have an improved
continuous current rating of 30 mA. An epitaxial layer
prevents latchup.
All devices feature true bi-directional performance in the on
condition, and will block signals to the supply voltages in the
off condition.
The DG201B is a normally closed switch and the DG202B is
a normally open switch. (see Truth Table.)
FEATURES
•
•
•
•
•
•
•
•
± 22 V supply voltage rating
TTL and CMOS compatible logic
Low on-resistance - R
DS(on)
: 45
Low leakage - I
D(on)
: 20 pA
Single supply operation possible
Extended temperature range
Fast switching - t
ON
: 120 ns
Low glitching - Q: 1 pC
BENEFITS
•
•
•
•
•
•
Wide analog signal range
Simple logic interface
Higher accuracy
Minimum transients
Reduced power consumption
Superior to DG201A, DG202
APPLICATIONS
•
•
•
•
•
•
•
•
Industrial instrumentation
Test equipment
Communications systems
Disk drives
Computer peripherals
Portable instruments
Sample-and-hold circuits
Hi-Rel systems
FUNCTIONAL BLOCK DIAGRAM AND PIN CONFIGURATION
DG201B/DG202B
Dual-In-Line, CerDIP
IN
1
D
1
S
1
V-
GND
S
4
D
4
IN
4
1
2
3
4
5
6
7
8
Top View
16
15
14
13
12
11
10
9
IN
2
D
2
S
2
V+
NC
S
3
D
3
IN
3
DG201B/DG202B
LCC
TRUTH TABLE
Logic
0
1
Notes
• Logic “0”
0.8 V
• Logic “1”
2.4 V
S12-0631-Rev. A, 19-Mar-12
Document Number: 63374
1
For technical questions, contact:
AnalogSwitchtechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DG201B
On
Off
DG202B
Off
On
DG201BMIL, DG202BMIL
www.vishay.com
Vishay Siliconix
ORDERING INFORMATION
(Hi-Rel)
PART
CONFIGURATION
TEMP. RANGE
PACKAGE
ORDERING PART
DG201BAK
16-pin CerDIP
DG201B
SPST x 4, NC
- 55 °C to 125 °C
DG201BAK-E3
DG201BAK/883
GENERIC
DG201BAK
DG201BAK-E3
DG201BAK/883
DSCC NUMBER
-
-
5962-8671604MEA
(Vishay qualified, DSCC
approval in progress)
5962-8671604M2A
(Vishay qualified, DSCC
approval in progress)
-
-
5962-8671605MEA
(Vishay qualified, DSCC
approval in progress)
5962-8671605M2A
(Vishay qualified, DSCC
approval in progress)
LCC-20
DG201BAZ/883
DG202BAK
DG201BAZ/883
DG202BAK
DG202BAK-E3
DG202BAK/883
16-pin CerDIP
DG202B
SPST x 4, NO
- 55 °C to 125 °C
DG202BAK-E3
DG202BAK/883
LCC-20
DG202BAZ/883
DG202BAZ/883
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Voltages Referenced to V-
GND
Digital
Inputs
a
,
V
S
, V
D
LIMIT
44
25
(V-) - 2 to (V+) + 2
or 30 mA, whichever occurs first
30
100
- 65 to 150
900
750
UNIT
V
Current (any terminal)
Peak Current, S or D (pulsed at 1 ms, 10 % duty cycle max.)
Storage Temperature
(A suffix)
16-pin CerDIP
c
Power Dissipation (Package)
b
LCC-20
d
mA
°C
mW
Notes
a. Signals on S
X
, D
X
or IN
X
exceeding V+ or V- will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads soldered or welded to PC board.
c. Derate 12 mW/°C above 75 °C.
d. Derate 10 mW/°C above 75 °C.
SCHEMATIC DIAGRAM
(typical channel)
V+
5
V
Reg
Level
Shift/
Drive
IN
X
V-
V+
S
X
D
X
GND
V-
Fig. 1
S12-0631-Rev. A, 19-Mar-12
Document Number: 63374
2
For technical questions, contact:
AnalogSwitchtechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DG201BMIL, DG202BMIL
www.vishay.com
Vishay Siliconix
TEST CONDITIONS UNLESS
OTHERWISE SPECIFIED
A SUFFIX
- 55 °C to 125 °C
UNIT
MIN.
d
MAX.
d
SPECIFICATIONS
a
PARAMETER
SYMBOL
TEMP.
b
TYP.
c
V+ = 15 V, V- = - 15 V
V
IN
= 2.4 V, 0.8 V
f
Analog Switch
Analog Signal Range
e
Drain-Source
On-Resistance
R
DS(on)
Match
Source Off Leakage Current
Drain Off Leakage Current
Drain On Leakage Current
Digital Control
High Input Voltage
Low Input Voltage
Input Current
Input Capacitance
Dynamic Characteristics
Turn-On Time
Turn-Off Time
Charge Injection
Source Off Capacitance
Drain Off Capacitance
Channel On Capacitance
Off Isolation
Channel-to-Channel Crosstalk
Power Supply
Positive Supply Current
Negative Supply Current
Power Supply Range for
Continuous Operation
I+
V
IN
= 0 V or 5 V
I-
V
OP
Room
Full
Room
Full
Full
-
-
-
-
-
-
-
-1
-5
± 4.5
50
100
-
-
± 22
V
μA
t
ON
t
Off
Q
C
S(off)
C
D(off)
C
D(on)
OIRR
X
TALK
C
L
= 1000 pF, V
g
= 0 V, R
g
= 0
V
S
= 0 V, f = 1 MHz
V
D
= V
S
= 0 V, f = 1 MHz
C
L
= 15 pF, R
L
= 50
,
V
S
= 1 V
RMS
, f = 100 kHz
Room
V
S
= 2 V
see switching time test circuit
Full
Room
Full
Room
Room
Room
Room
Room
Room
120
-
65
-
1
5
5
16
90
95
-
-
-
-
-
-
-
-
-
-
300
-
200
-
-
-
-
-
-
-
dB
pF
pC
ns
V
INH
V
INL
I
INH
or I
INL
C
in
V
INH
or V
INL
Full
Full
Full
Room
-
-
-
5
2.4
-
-1
-
-
0.8
1
-
V
μA
pF
V
ANALOG
R
DS(on)
R
DS(on)
I
S(off)
I
D(off)
I
D(on)
V
S
= ± 14 V, V
D
= ± 14 V
V
S
= ± 14 V, V
D
= ± 14 V
V
S
= ± 14 V, V
D
= ± 14 V
V
D
= ± 10 V, I
S
= 1 mA
Full
Room
Full
Room
Room
Full
Room
Full
Room
Full
-
45
-
2
± 0.01
-
± 0.01
-
± 0.02
-
- 15
-
-
-
- 0.5
- 20
- 0.5
- 20
- 0.5
- 40
15
85
100
-
0.5
20
0.5
20
0.5
40
nA
V
S12-0631-Rev. A, 19-Mar-12
Document Number: 63374
3
For technical questions, contact:
AnalogSwitchtechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DG201BMIL, DG202BMIL
www.vishay.com
Vishay Siliconix
SPECIFICATIONS
a
(Single Supply)
TEST CONDITIONS UNLESS
OTHERWISE SPECIFIED
PARAMETER
SYMBOL
V+ = 12 V, V- = 0 V
V
IN
= 2.4 V, 0.8 V
f
Analog Switch
Analog Signal Range
e
Drain-Source
On-Resistance
Dynamic Characteristics
Turn-On Time
Turn-Off Time
Charge Injection
Power Supply
Positive Supply Current
Negative Supply Current
Power Supply Range for
Continuous Operation
I+
V
IN
= 0 V or 5 V
I-
V
OP
Room
Full
Room
Full
Full
-
-
-
-
-
-
-
-1
-5
4.5
50
100
-
-
25
V
μA
t
ON
t
OFF
Q
V
S
= 8 V
see switching time test circuit
C
L
= 1 nF, V
gen
= 6 V, R
gen
= 0
Room
Room
Room
120
60
4
-
-
-
300
200
-
ns
pC
V
ANALOG
R
DS(on)
V
D
= 3 V, 8 V, I
S
= 1 mA
Full
Room
Full
-
90
-
0
-
-
12
160
200
V
TEMP.
b
TYP.
c
A SUFFIX
- 55 °C to 125 °C
UNIT
MIN.
d
MAX.
d
Notes
a. Refer to PROCESS OPTION FLOWCHART.
b. Room = 25 °C, full = as determined by the operating temperature suffix.
c. Typical values are for DESIGN AID ONLY, not guaranteed nor subject to production testing.
d. The algebraic convention whereby the most negative value is a minimum and the most positive a maximum, is used in this datasheet.
e. Guaranteed by design, not subject to production test.
f. V
IN
= input voltage to perform proper function.
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation
of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum
rating conditions for extended periods may affect device reliability.
S12-0631-Rev. A, 19-Mar-12
Document Number: 63374
4
For technical questions, contact:
AnalogSwitchtechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DG201BMIL, DG202BMIL
www.vishay.com

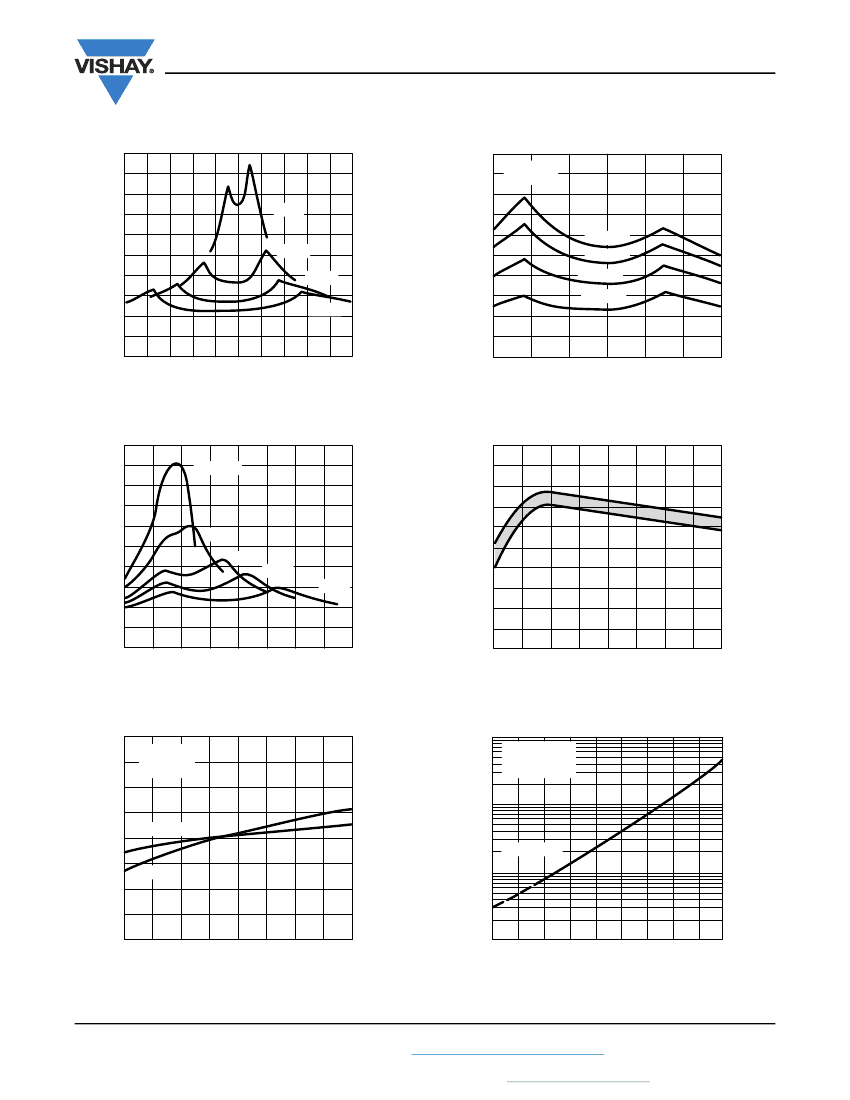

TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted)
110
100
90
80
±5
V
Vishay Siliconix
100
90
80
70
R
DS(on)
()
60
50
40
30
± 20
V
20
10
-
8
-4
0
4
8
12
16
20
0
- 15
- 10
-5
0
5
10
15
V+
= 15
V
V-
= - 15
V
R
DS(on)
()
70
60
50
40
30
20
10
- 20 - 16 - 12
± 10
V
± 15
V
125 °C
85
°C
25 °C
- 55 °C
V
D
- Drain
Voltage
(V)
V
D
- Drain
Voltage
(V)
R
DS(on)
vs. V
D
and Power Supply Voltages
250
225
200
175
R
DS(on)
()
V
TH
(V)
150
125
10
V
100
75
50
25
0
0
2
4
6
8
10
12
14
16
V
D
- Drain
Voltage
(V)
12
V
15
V
7
V
V+
= 5
V
R
DS(on)
vs. V
D
and Temperature
2.5
2
1.5
1
0.5
0
4
6
8
10
12
14
16
1
8
20
V+
Positive Supply (V)
R
DS(on)
vs. V
D
and Single Power Supply Voltages
80
60
40
I
S,
I
D
- Current (pA)
V+
= 22
V
V-
= - 22
V
T
A
= 25 °C
1 nA
Input Switching Threshold vs. Supply Voltage
V+
= 15
V
V-
= - 15
V
V
S,
V
D
= ± 14
V
0
- 20
- 40
- 60
-
80
- 20
I
S(off)
, I
D(off)
I
S
, I
D
- Current
20
100 pA
I
S(off)
, I
D(off)
10 pA
I
D(on)
- 15
- 10
-5
0
5
10
15
20
1 pA
- 55
- 35
- 15
5
25
45
65
85
105 125
Temperature (°C)
Temperature (°C)
Leakage Currents vs. Analog Voltage
Leakage Currents vs. Temperature
S12-0631-Rev. A, 19-Mar-12
Document Number: 63374
5
For technical questions, contact:
AnalogSwitchtechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
