Datasheet> All Categories > Power/power management> The power supply circuit> 325ST

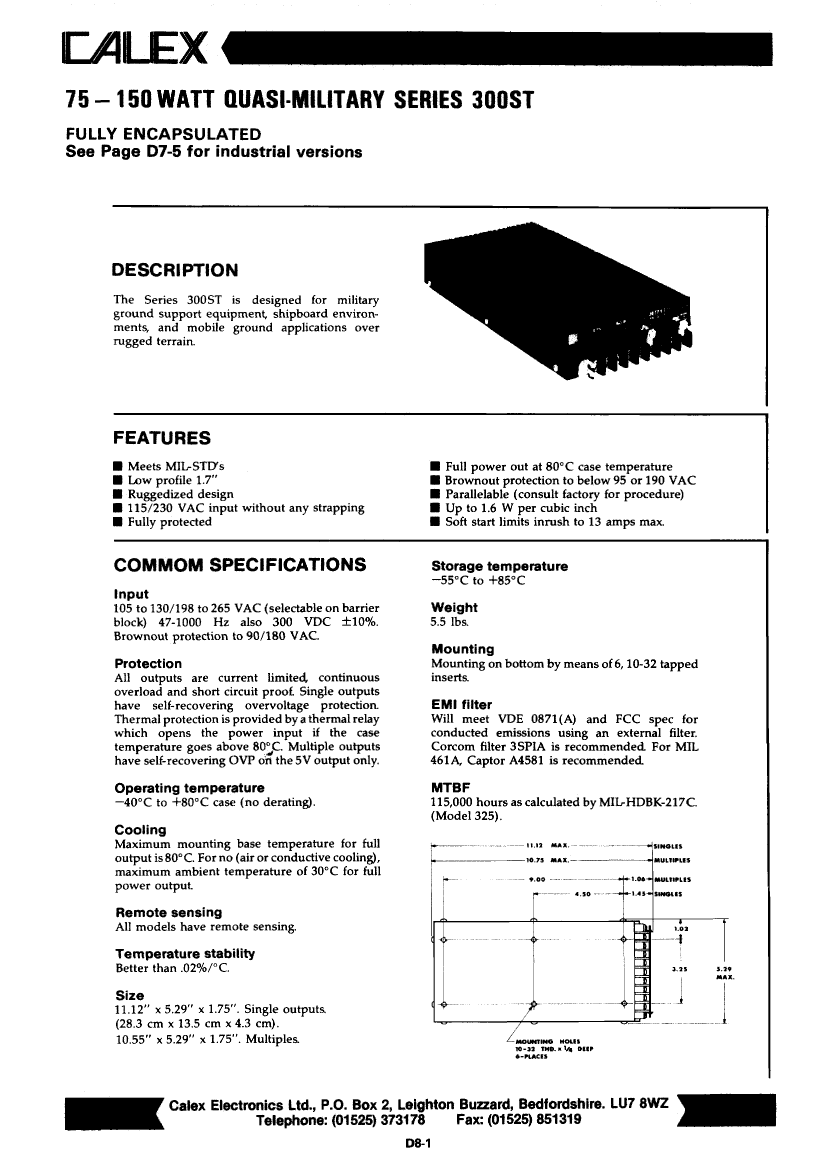

Preview

325ST: DescriptionAC-DC Regulated Power Supply Module, 1 Output; CategoryPower/power management The power supply circuit; File Size94KB，2 Pages; ManufacturerCalex Mfg Co Inc.

Download Datasheet Parametric Compare View All

325ST Overview

AC-DC Regulated Power Supply Module, 1 Output

325ST Parametric

Parameter Name	Attribute value
Maker	Calex Mfg Co Inc.
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	130 V
Minimum input voltage	105 V
JESD-30 code	R-XXMA-X
Maximum load regulation	0.1%
Number of functions	1
Output times	1
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
Temperature level	OTHER
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Fine-tuning/adjustable output	NO
Base Number Matches	1

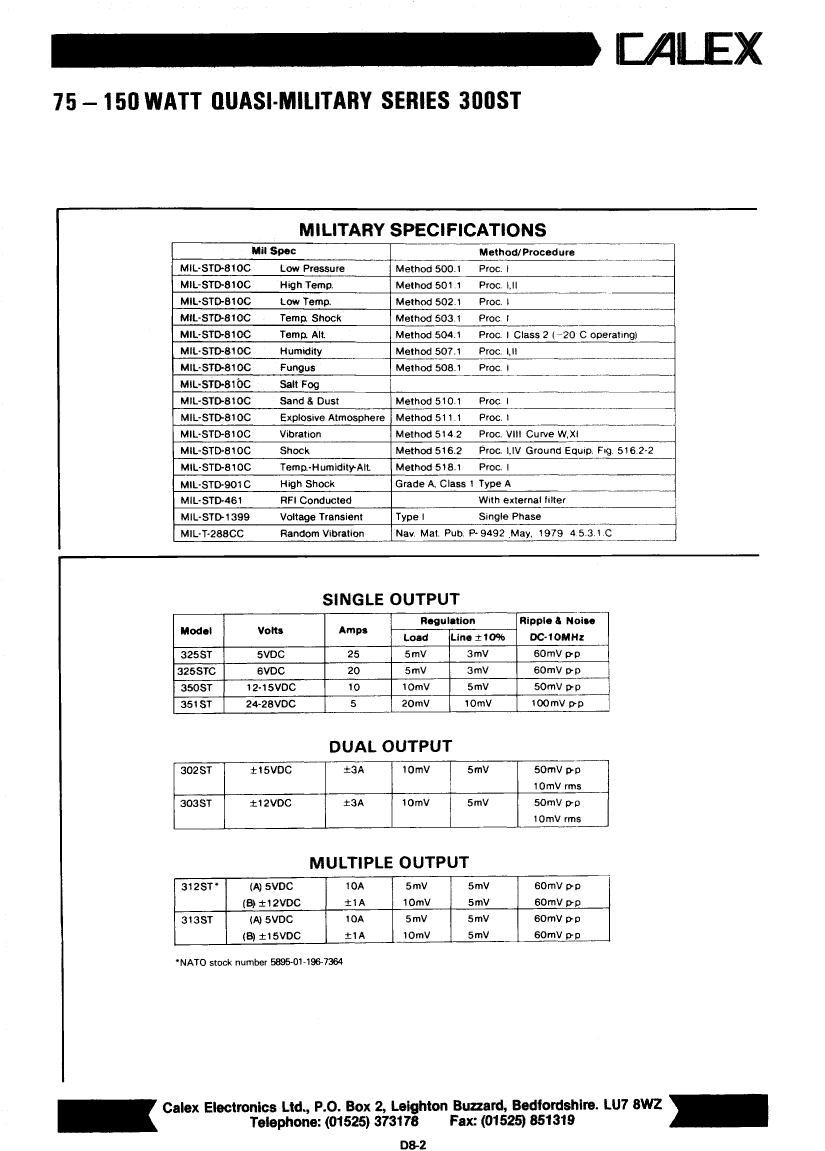

Preview

Download Datasheet

View All

325ST Related Products

	325ST	303ST	312ST	325STC	351ST	313ST	302ST	350ST
Description	AC-DC Regulated Power Supply Module, 1 Output	AC-DC Regulated Power Supply Module, 2 Output	AC-DC Regulated Power Supply Module, 3 Output	AC-DC Regulated Power Supply Module, 1 Output	AC-DC Regulated Power Supply Module, 1 Output	AC-DC Regulated Power Supply Module, 3 Output	AC-DC Regulated Power Supply Module, 2 Output	AC-DC Regulated Power Supply Module, 1 Output
Maker	Calex Mfg Co Inc.	Calex Mfg Co Inc.	Calex Mfg Co Inc.	Calex Mfg Co Inc.	Calex Mfg Co Inc.	Calex Mfg Co Inc.	Calex Mfg Co Inc.	Calex Mfg Co Inc.
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	130 V	130 V	130 V	130 V	130 V	130 V	130 V	130 V
Minimum input voltage	105 V	105 V	105 V	105 V	105 V	105 V	105 V	105 V
JESD-30 code	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X
Number of functions	1	1	1	1	1	1	1	1
Output times	1	2	3	1	1	3	2	1
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	1	1	1
Maximum load regulation	0.1%	0.083%	0.1%	0.083%	-	0.1%	0.067%	-
Nominal output voltage	5 V	12 V	5 V	6 V	-	5 V	15 V	-
