MAXIMUM
solutions
TO-5 and TO-100 Through-Hole and Surface Mount Transistor Sockets

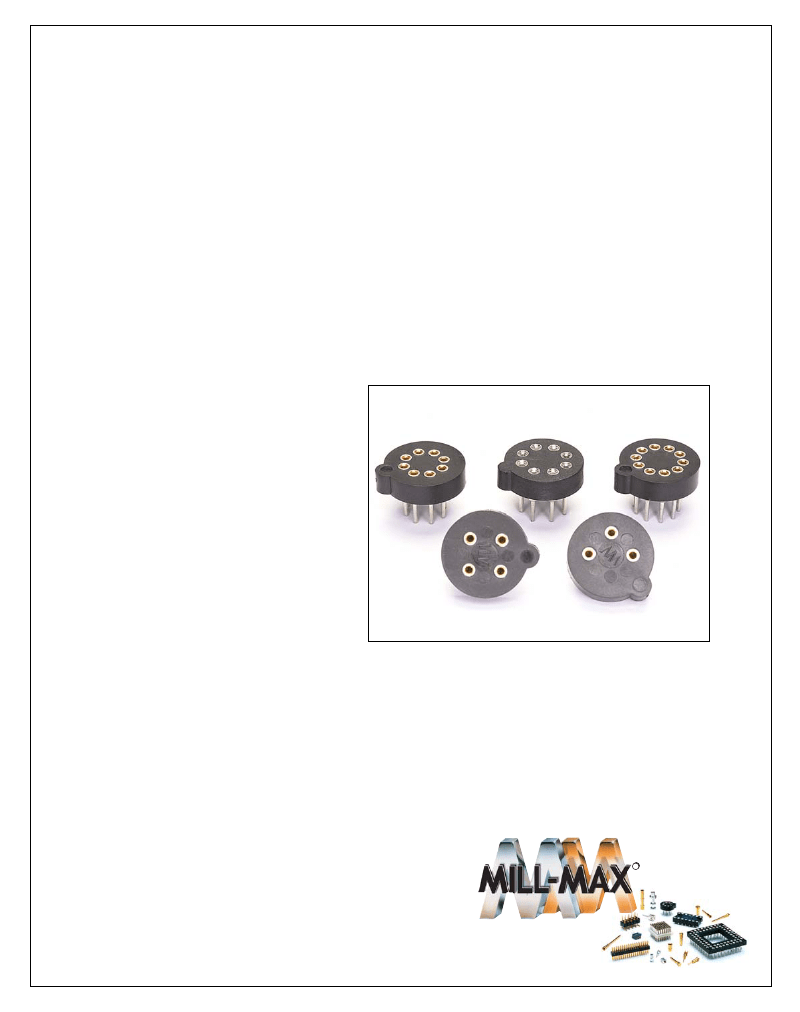

TO-5 and TO-100 transistor sockets make field insertion and removal easy and convenient. Inside each
transistor socket are precision-machined, brass alloy receptacles assembled with a Mill-Max, 4-finger
#30 contact.
The #30 contact provides a hi-rel mechanical and electrical connection to the mated transistor lead.
Mill-Max #30 contacts have a pin diameter acceptance range of .015”-.025”. Their current rating is 3
AMPs per position.
Both the through-hole and surface mount
transistor sockets utilize high temperature
thermoplastic suitable for both wave-solder-
ing and reflow soldering.
Series 917 TO package sockets are available
in 3, 4, 8 and 10 positions. Two 8-pin ver-
sions feature pin centers on .200” and .230”
diameter circles.
Through-hole and SMT TO-5 and TO-100
sockets are currently packaged in bulk.
However, tape and reel packaging options
can be quoted. Contact our engineers at techsupport@mill-max.com for assistance with your tape and
reel requirements.
(1/09 -- 591)
R
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771-0300
516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
Maximum Interconnect Solutions

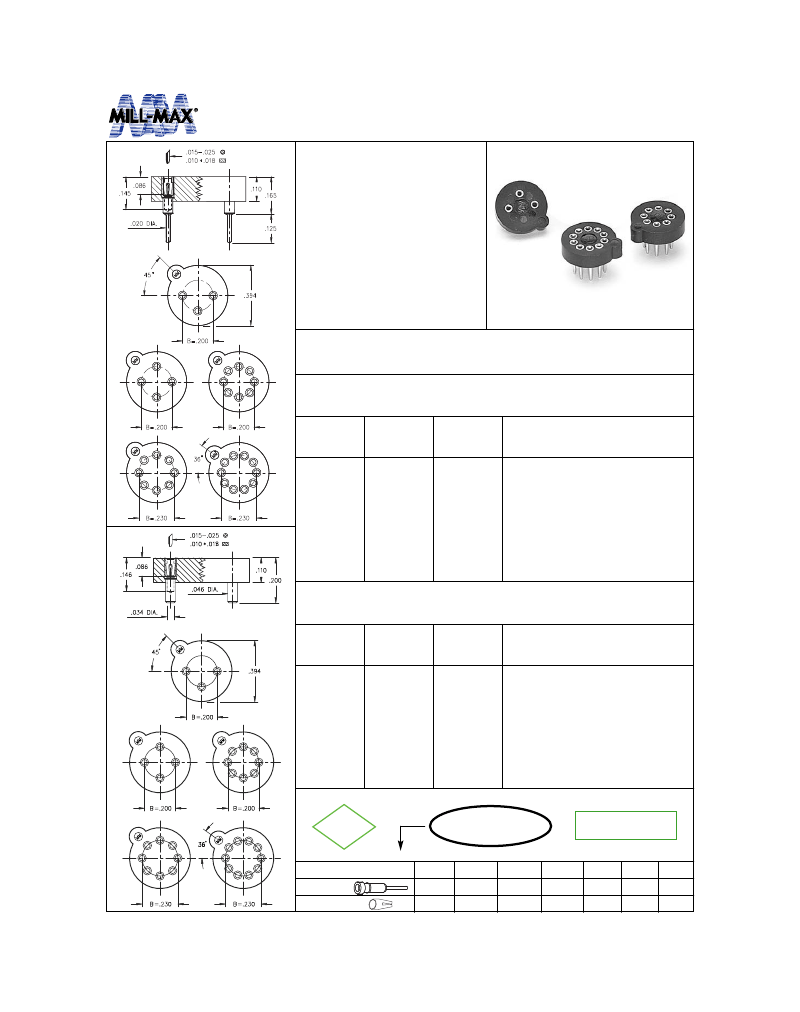

TRANSISTOR SOCKETS
Surface Mount & Thru-Hole Mount
•
Series 917 TO package sockets are
available in 3, 4, 8 and 10 positions.
•
Two 8 pin versions feature pin centers
on .200” or .230” circle.
•
Series 917_005 use MM #1705 pins,
see page 137 for details. Receptacles
use Hi-Rel, 6 finger #35 contact rated
at 3 amps. See page 209 for details.
•
Series 917_001 use MM #1701 pins,
see page 140 for details. Receptacles
use Hi-Rel, 4 finger #30 contact rated
at 3 amps. See page 208 for details.
•
Insulators are high temp. thermoplastic.
Series 917
Ordering Information
Transistor Sockets (Thru-Hole Mount)
Type
TO-5
TO-5
TO-5
.015-.025
.010 * .018
Circle
Dia.
0.200
0.200
0.200
0.230
0.230
No. of
Pins
3
4
8
8
10
Ordering Information
917-XX-103-41-005000
917-XX-104-41-005000
917-XX-108-41-005000
917-XX-208-41-005000
917-XX-210-41-005000
TO-100
.110
.200
.086
.146
.046 DIA.
TO-100
.034 DIA.
Transistor Sockets (Surface Mount)
MM
45
Type
.394
Circle
Dia.
0.200
0.200
0.200
0.230
0.230
No. of
Pins
3
4
8
8
10
Ordering Information
917-43-103-41-001000
917-43-104-41-001000
917-43-108-41-001000
917-43-208-41-001000
917-43-210-41-001000
TO-5
TO-5
B=.200
TO-5
MM
MM
TO-100
TO-100
B=.200
B=.200
36
MM
XX= Plating Code
See Below
SPECIFY PLATING CODE XX=
MM
For RoHS compliance
select plating code.
13
10 μ” Au
30 μ” Au
91
93
30 μ” Au
99
200μ”Sn/Pb
41
43
44
Sleeve (Pin)
B=.230
B=.230
200μ” Sn/Pb 200μ”Sn/Pb
200μ”Sn
200μ”Sn 200μ”Sn
30 μ” Au 200μ”Sn
Contact (Clip)
