52043-1410 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 52043-1410

Preview

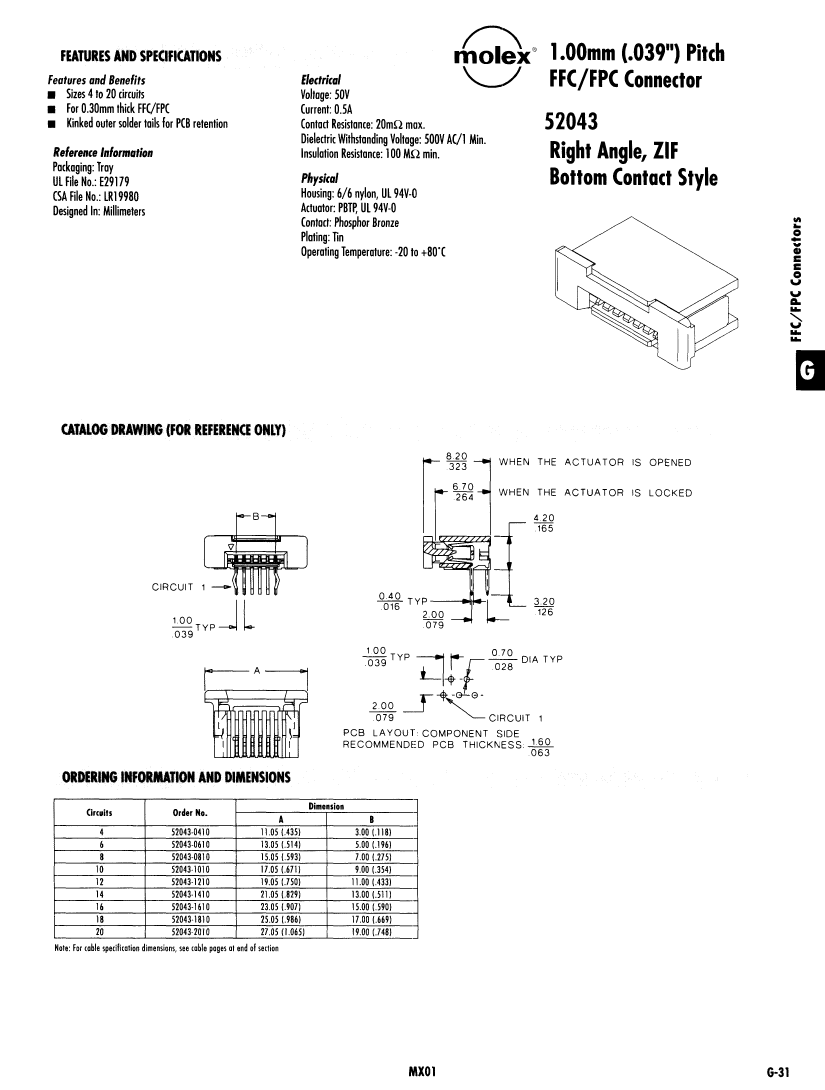

52043-1410: DescriptionCard Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal, Fcc Retnn Dvc,; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52043-1410 Overview

Card Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal, Fcc Retnn Dvc,

52043-1410 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Description	FFC & FPC Connectors
Other features	ZIF, BOTTOM CONTACT STYLE, STAGGERED CONFIGURATION
body width	0.165 inch
subject depth	0.264 inch
body length	0.829 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	FCC RETNN DVC
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

Preview

Download Datasheet

View All

52043-1410 Related Products

	52043-1410	52043-1210	52043-1610	52043-1810	52043-0410
Description	Card Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal, Fcc Retnn Dvc,	Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal, Fcc Retnn Dvc,	Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal, Fcc Retnn Dvc,	Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal, Fcc Retnn Dvc	Card Edge Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal, Fcc Retnn Dvc,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ZIF, BOTTOM CONTACT STYLE, STAGGERED CONFIGURATION	ZIF, BOTTOM CONTACT STYLE, STAGGERED CONFIGURATION	ZIF, BOTTOM CONTACT STYLE, STAGGERED CONFIGURATION	ZIF, BOTTOM CONTACT STYLE, STAGGERED CONFIGURATION	ZIF, BOTTOM CONTACT STYLE, STAGGERED CONFIGURATION
body width	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
subject depth	0.264 inch	0.264 inch	0.264 inch	0.264 inch	0.264 inch
body length	0.829 inch	0.75 inch	0.907 inch	0.986 inch	0.435 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
MIL compliance	NO	NO	NO	NO	NO
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	FCC RETNN DVC	FCC RETNN DVC	FCC RETNN DVC	FCC RETNN DVC	FCC RETNN DVC
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	14	12	16	18	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Base Number Matches	1	1	1	1	1
Is Samacsys	-	N	N	N	N
