5962-8670511RX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5962-8670511RX

5962-8670511RX: DescriptionStandard SRAM, 4KX4, 25ns, CMOS, CDIP20, 0.300 INCH, CERDIP-20; Categorystorage storage; File Size243KB，9 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-8670511RX Overview

Standard SRAM, 4KX4, 25ns, CMOS, CDIP20, 0.300 INCH, CERDIP-20

5962-8670511RX Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	25 ns
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
length	25.3365 mm
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of terminals	20
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	4KX4
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

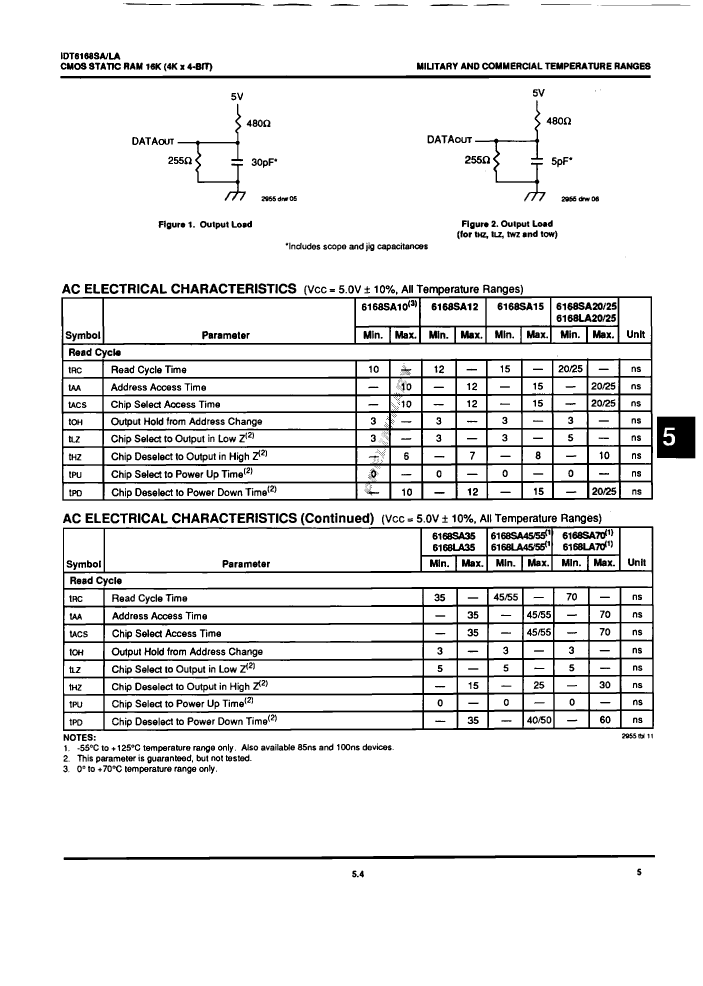

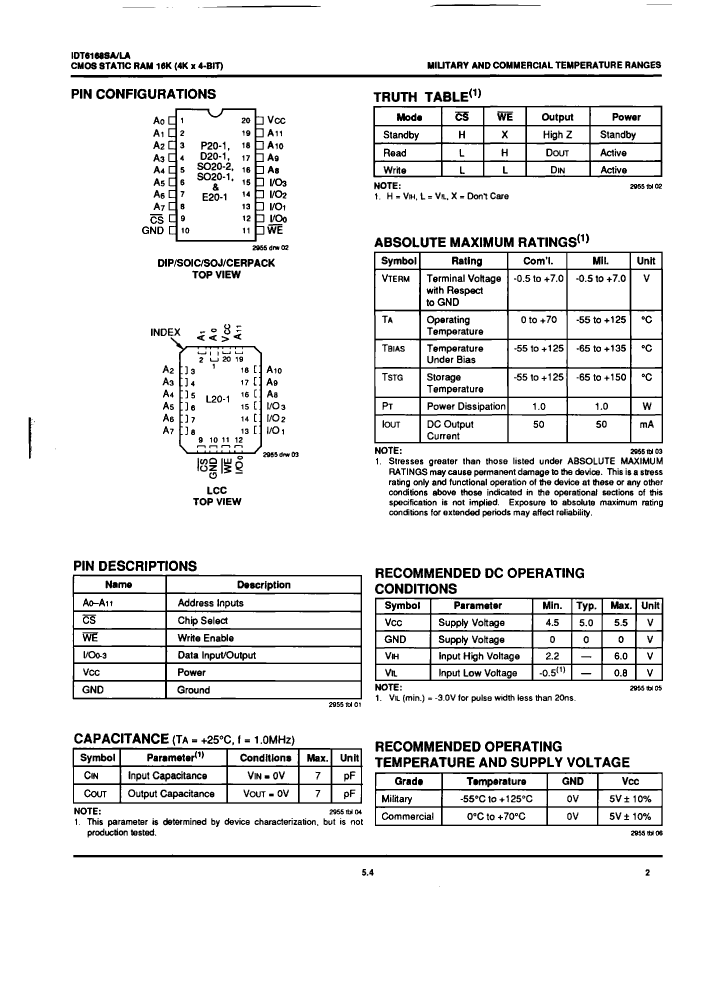

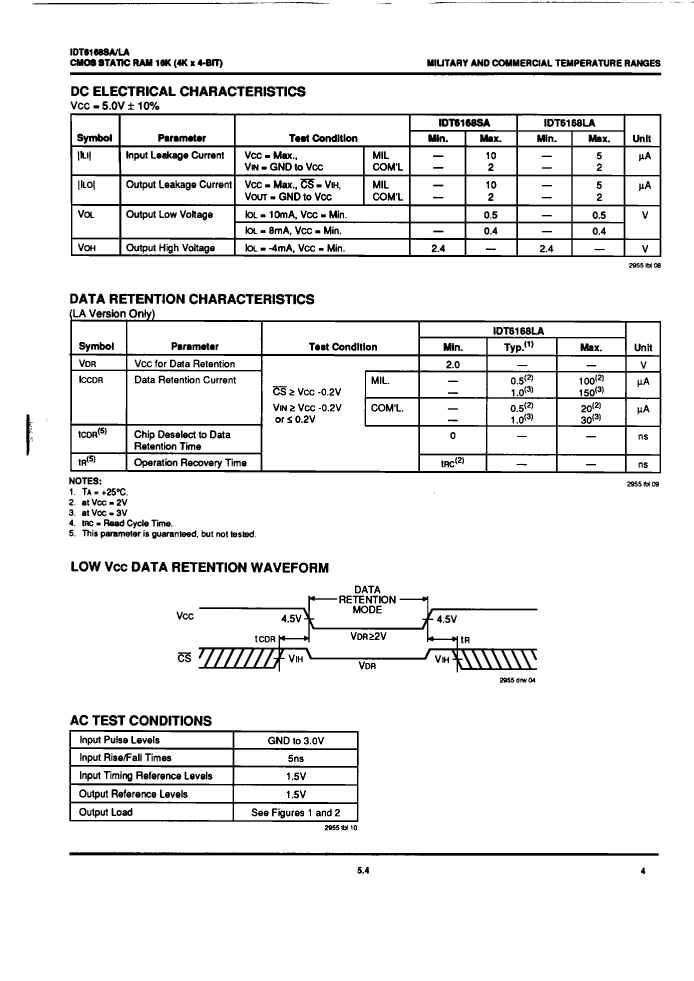

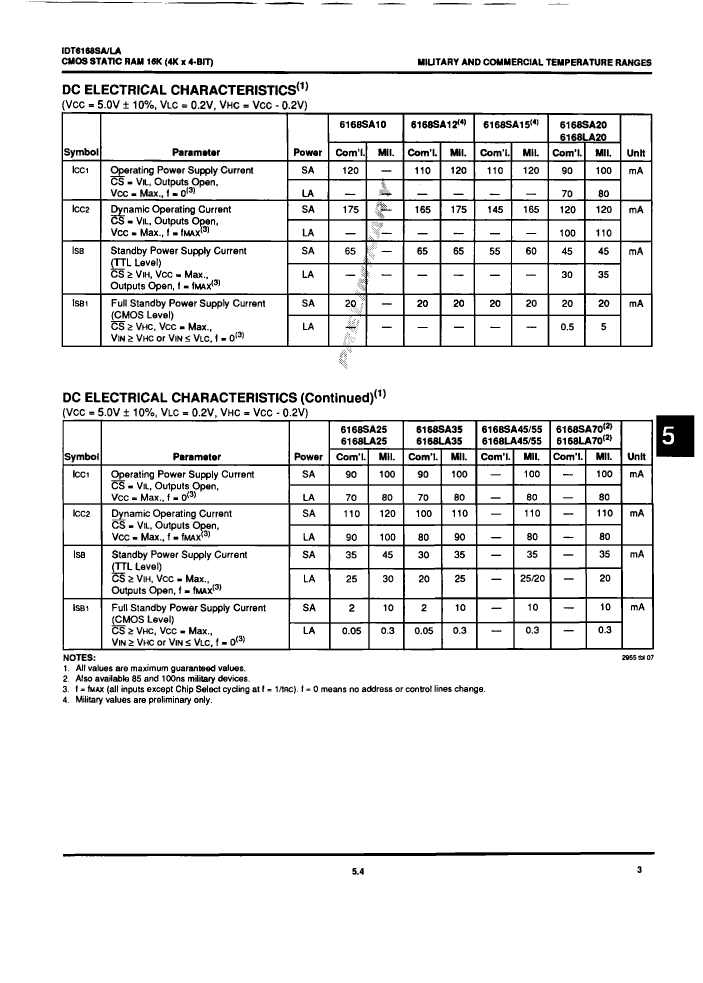

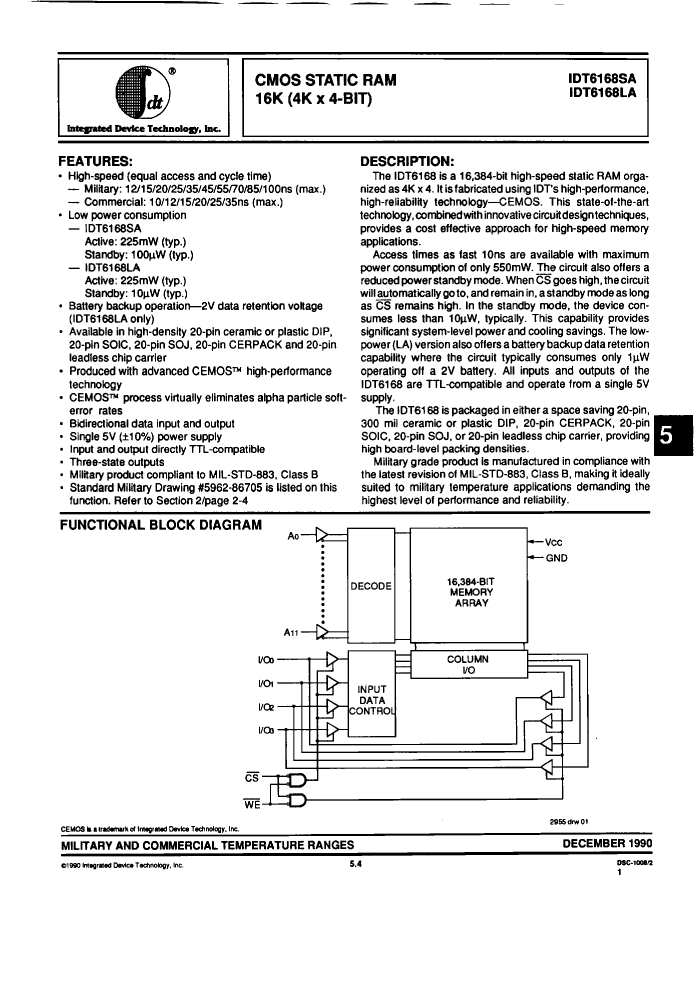

Preview

Download Datasheet

View All

5962-8670511RX Related Products

	5962-8670511RX	5962-8670502RX	5962-8670506RX	5962-8670513RX
Description	Standard SRAM, 4KX4, 25ns, CMOS, CDIP20, 0.300 INCH, CERDIP-20	Standard SRAM, 4KX4, 25ns, CMOS, CDIP20, 0.300 INCH, CERDIP-20	Standard SRAM, 4KX4, 45ns, CMOS, CDIP20, 0.300 INCH, CERDIP-20	Standard SRAM, 4KX4, 45ns, CMOS, CDIP20, 0.300 INCH, CERDIP-20
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,	DIP,
Contacts	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	25 ns	25 ns	45 ns	45 ns
JESD-30 code	R-GDIP-T20	R-GDIP-T20	R-GDIP-T20	R-GDIP-T20
JESD-609 code	e0	e0	e0	e0
length	25.3365 mm	25.3365 mm	25.3365 mm	25.3365 mm
memory density	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4
Number of functions	1	1	1	1
Number of terminals	20	20	20	20
word count	4096 words	4096 words	4096 words	4096 words
character code	4000	4000	4000	4000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
organize	4KX4	4KX4	4KX4	4KX4
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1	1
