3627-D302

Description
48 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size522KB,5 Pages
Manufacturer3M
Websitehttp://3M.com/esd
Download Datasheet Parametric View All

3627-D302 Overview

48 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

3627-D302 Parametric

Parameter NameAttribute value
Maker3M
Reach Compliance Codeunknown
Other features3M, POLARIZED
Board mount optionsHOLE .099-.111
body width0.62 inch
subject depth0.89 inch
body length1.965 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN LEAD (200) OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorGRAY
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number3000
Plug contact pitch0.1 inch
Mixed contactsNO
Installation option 1LATCH & EJECT
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsTWO
PCB row number2+2
Number of rows loaded4
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.112 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts48
UL Flammability Code94V-0
Base Number Matches1
3M

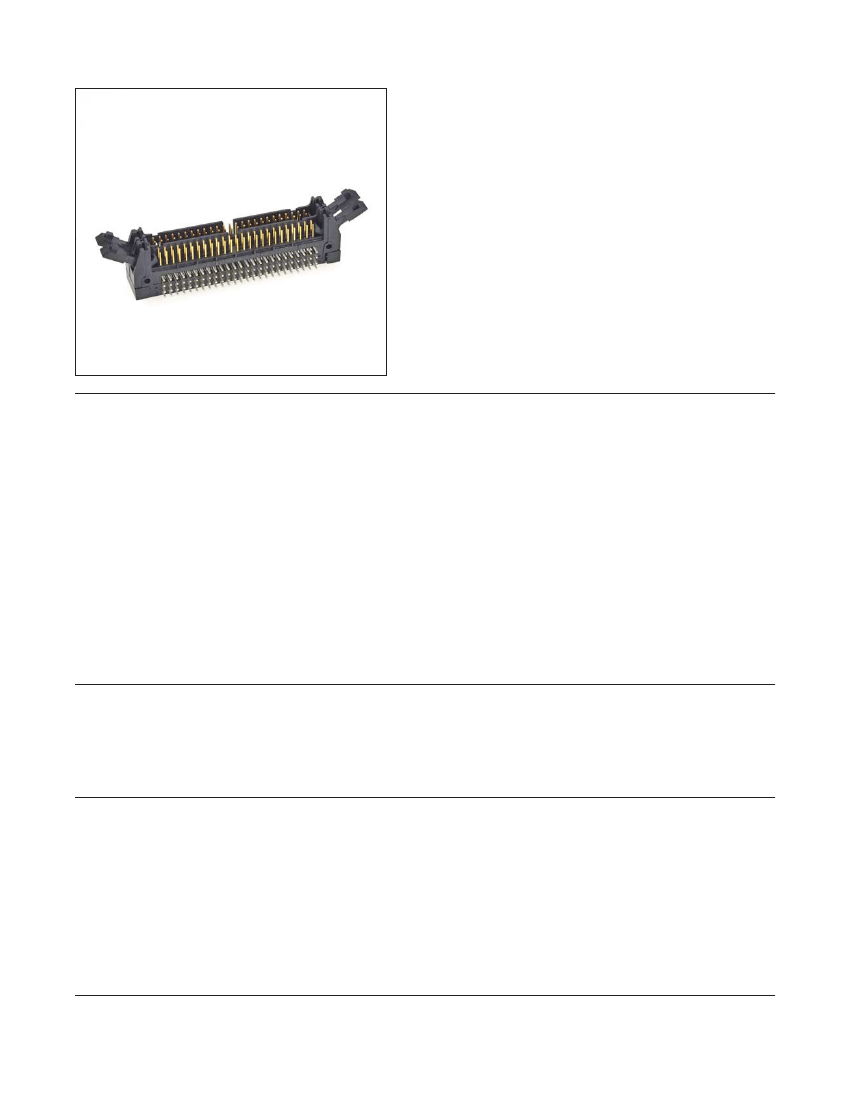

Three-Wall Condo Header

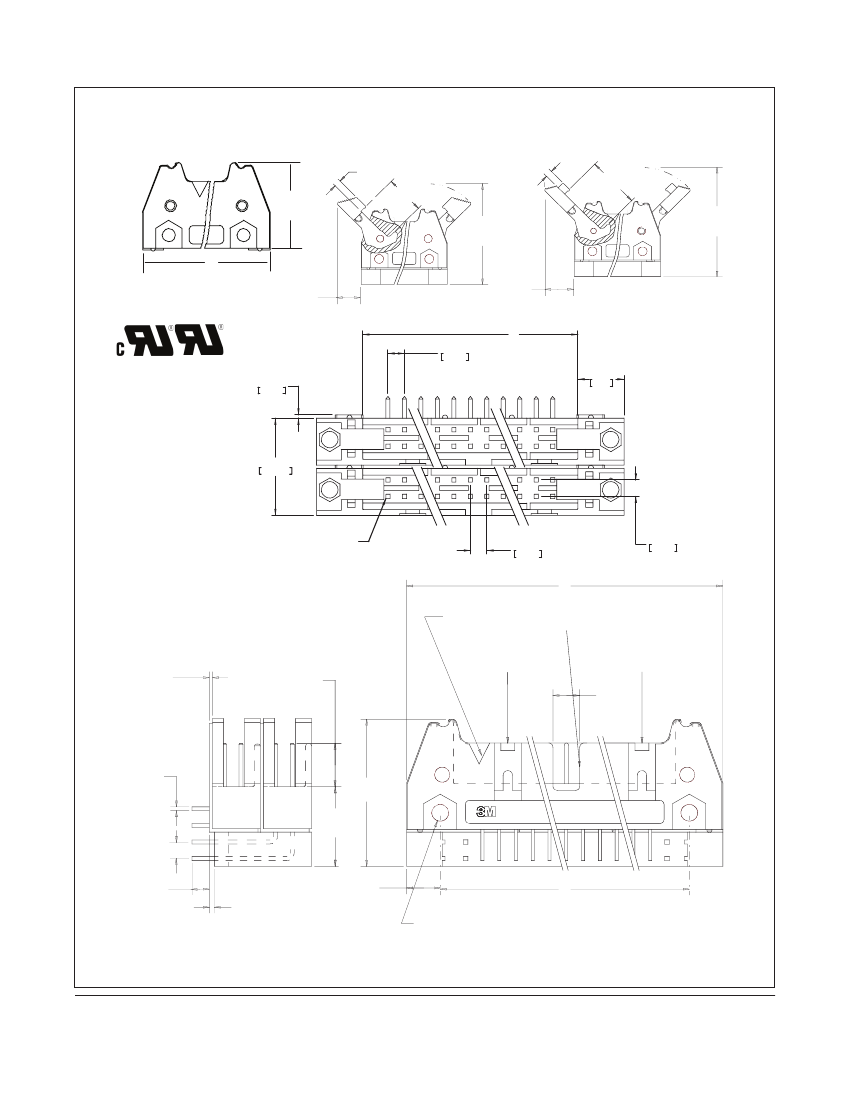

.100 × .100 Right Angle
• Stacked pins conserve space on the circuit board allowing
higher density packaging
• Pin quantity to 128 gives design flexibility with latching
• “HDI’’ alternative
• Three-wall fits in VME board stacking criteria
• Accepts standard IDC sockets
• Mates with standard flat cable harnesses
• Optional high temperature insulator suitable for “no lead”
soldering operations
• High temperature option suitable for reflow soldering using
“paste in hole” techniques
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: October 15, 2013
TS-0773-H
Sheet 1 of 3

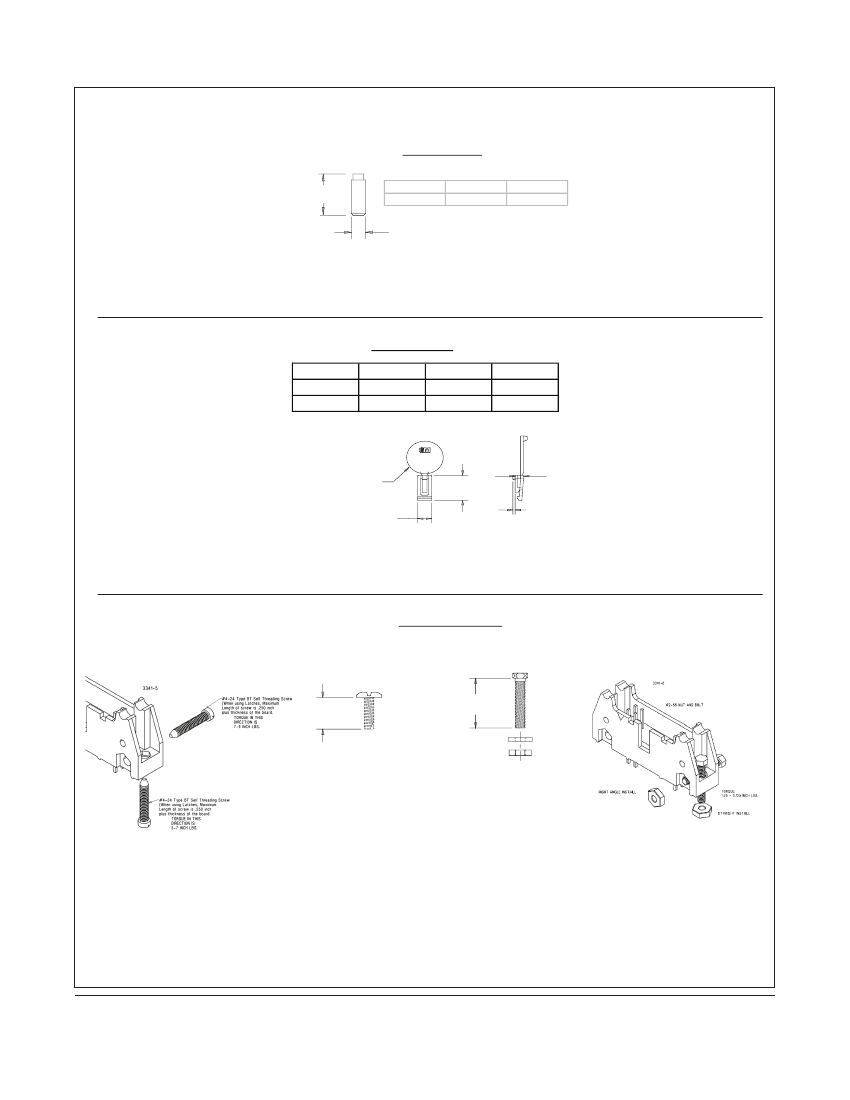

3000 Series
Physical
Insulation:
Flammability: UL 94V-0
Material: Glass Filled Polyester (PBT), Glass Filled Polyester (PCT) - High Temp Option
Color: Gray (PBT), Black (PCT)
Contact:
Underplating: 100 μ” [ 2.54 μm ] Nickel - Overall
Wiping Area: 30 μ” [ 0.76 μm ] Gold
Solder Tails: 200 μ” [ 5.08 μm ] Tin Lead or Matte Tin (See Ordering Information)
Plating:
Material: Copper Alloy
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Electrical
Current Rating:
2 A (EIA 364-70)
Insulation Resistance:
>1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1,000 V
RMS
at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
Process Rating:
260°C (High Temp. PCT insulator) single pass (per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C) High Temp. (PCT) versions only
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
PBT gray insulator, maximum insulator temperature 191°C (solder
wave process only)
