Part Number

Search

74164DCQM

Description
Shift Register, 8-Bit, TTL, CDIP14,
Categorylogic    logic
File Size217KB,6 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

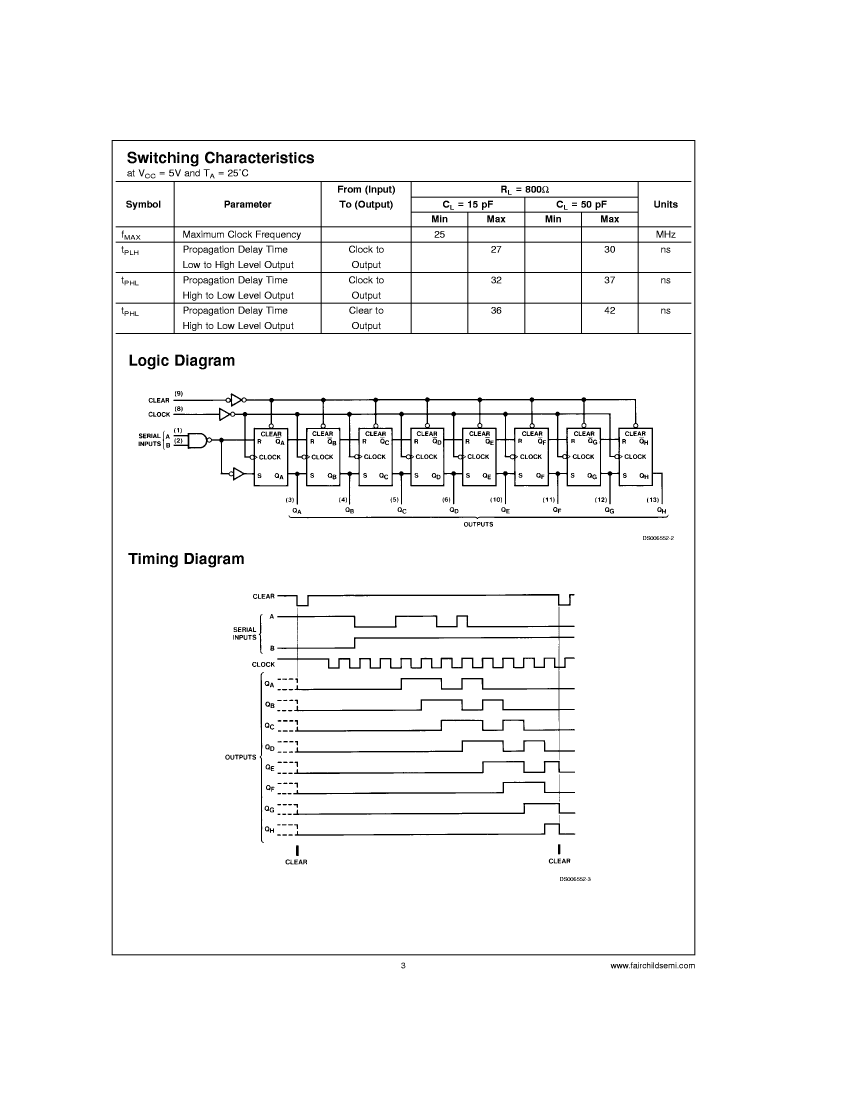

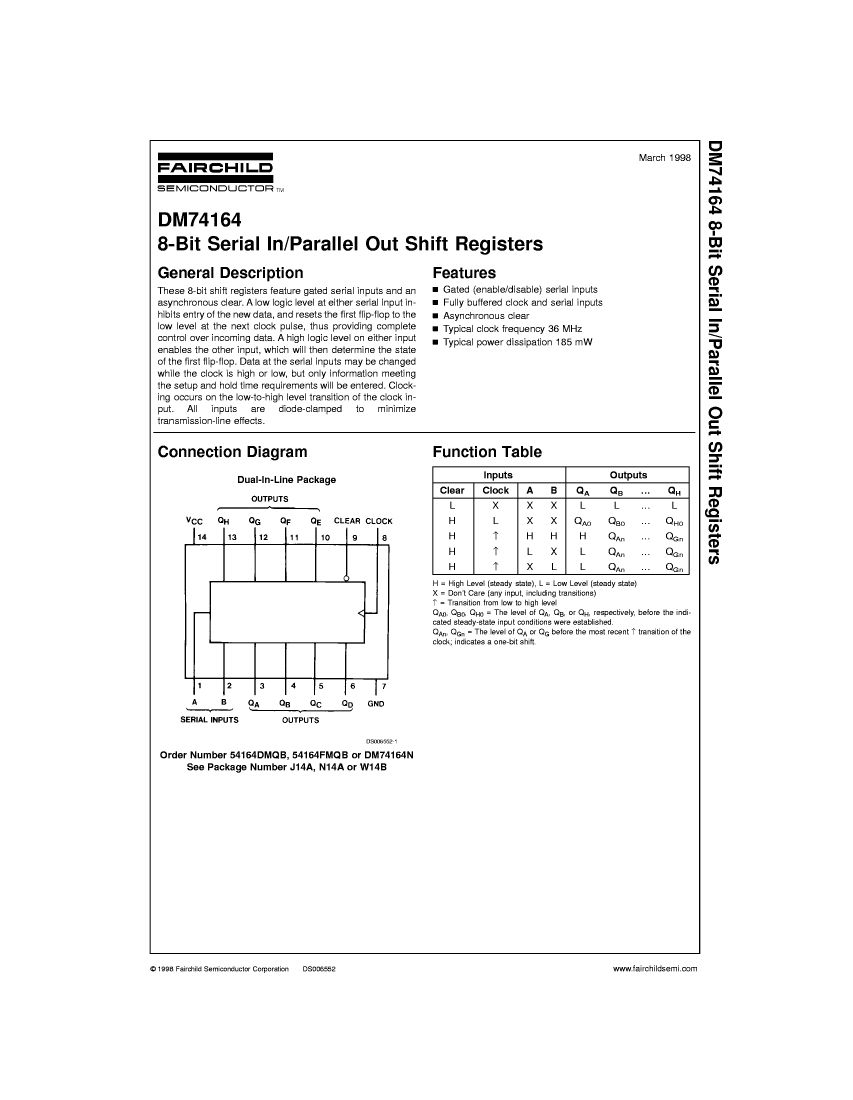

74164DCQM Overview

Shift Register, 8-Bit, TTL, CDIP14,

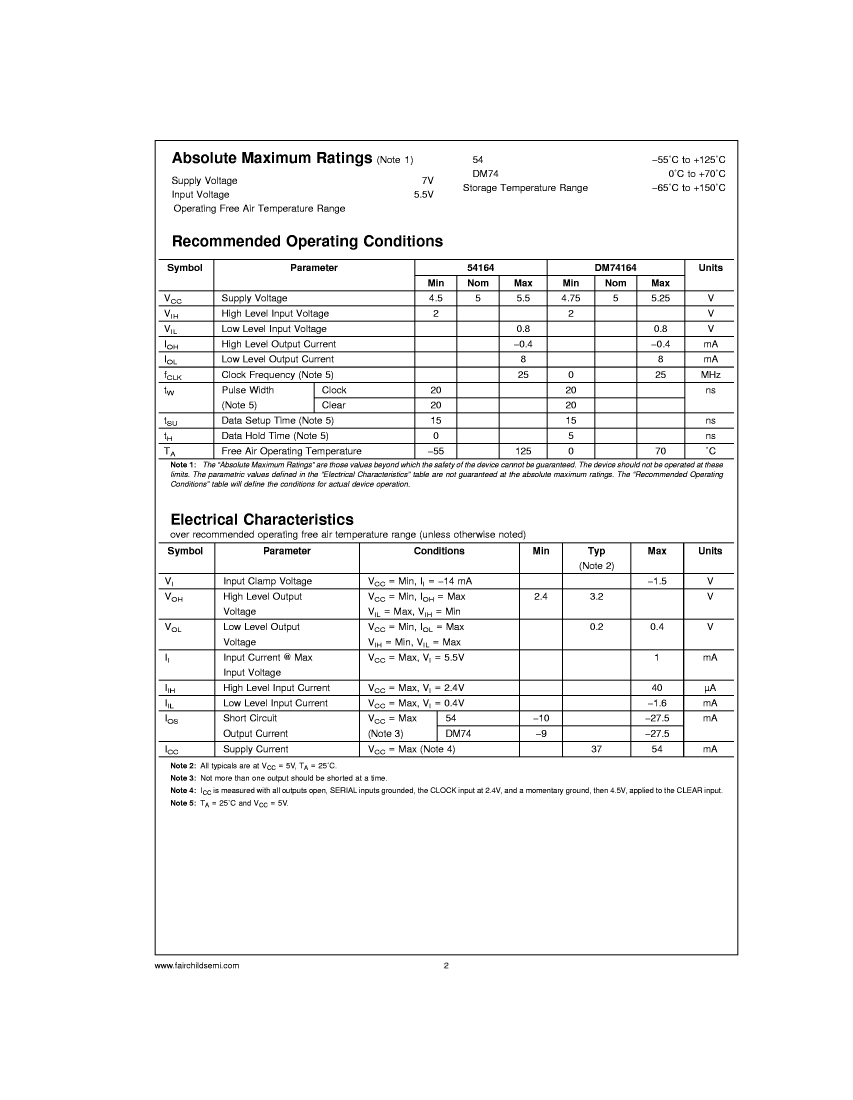

74164DCQM Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerFairchild

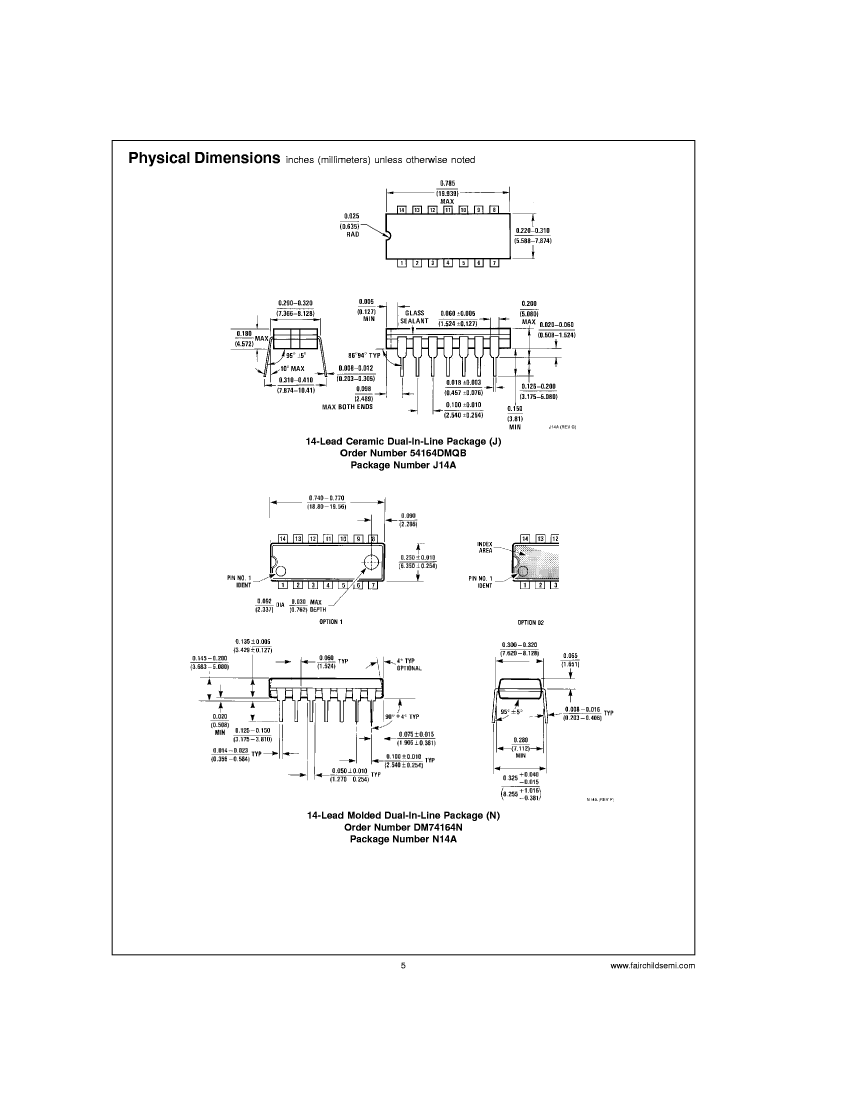

package instructionDIP, DIP14,.3
Reach Compliance Codecompliant
JESD-30 codeR-XDIP-T14
JESD-609 codee0
Number of digits8
Number of functions1
Number of terminals14
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

74164DCQM Related Products

74164DCQM 54164DM 74164FCQR 74164PCQR
Description Shift Register, 8-Bit, TTL, CDIP14, Shift Register, 8-Bit, Right Direction, TTL, CDIP14, Shift Register, 8-Bit, TTL, CDFP14, Shift Register, 8-Bit, TTL, PDIP14,
Is it Rohs certified? incompatible incompatible incompatible incompatible
Maker Fairchild Fairchild Fairchild Fairchild
Reach Compliance Code compliant unknown compliant unknown
JESD-30 code R-XDIP-T14 R-XDIP-T14 R-XDFP-F14 R-PDIP-T14
JESD-609 code e0 e0 e0 e0
Number of digits 8 8 8 8
Number of functions 1 1 1 1
Number of terminals 14 14 14 14
Maximum operating temperature 70 °C 125 °C 70 °C 70 °C
Package body material CERAMIC CERAMIC CERAMIC PLASTIC/EPOXY
encapsulated code DIP DIP DFP DIP
Encapsulate equivalent code DIP14,.3 DIP14,.3 FL14,.3 DIP14,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE FLATPACK IN-LINE
power supply 5 V 5 V 5 V 5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V
surface mount NO NO YES NO
technology TTL TTL TTL TTL
Temperature level COMMERCIAL MILITARY COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE FLAT THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 1.27 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL
Base Number Matches 1 1 1 1
Is it lead-free? Contains lead - Contains lead Contains lead
package instruction DIP, DIP14,.3 - DFP, FL14,.3 DIP, DIP14,.3
Peak Reflow Temperature (Celsius) NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED
Maximum time at peak reflow temperature NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED
