CY74FCT16244CTPAC datasheet, PDF

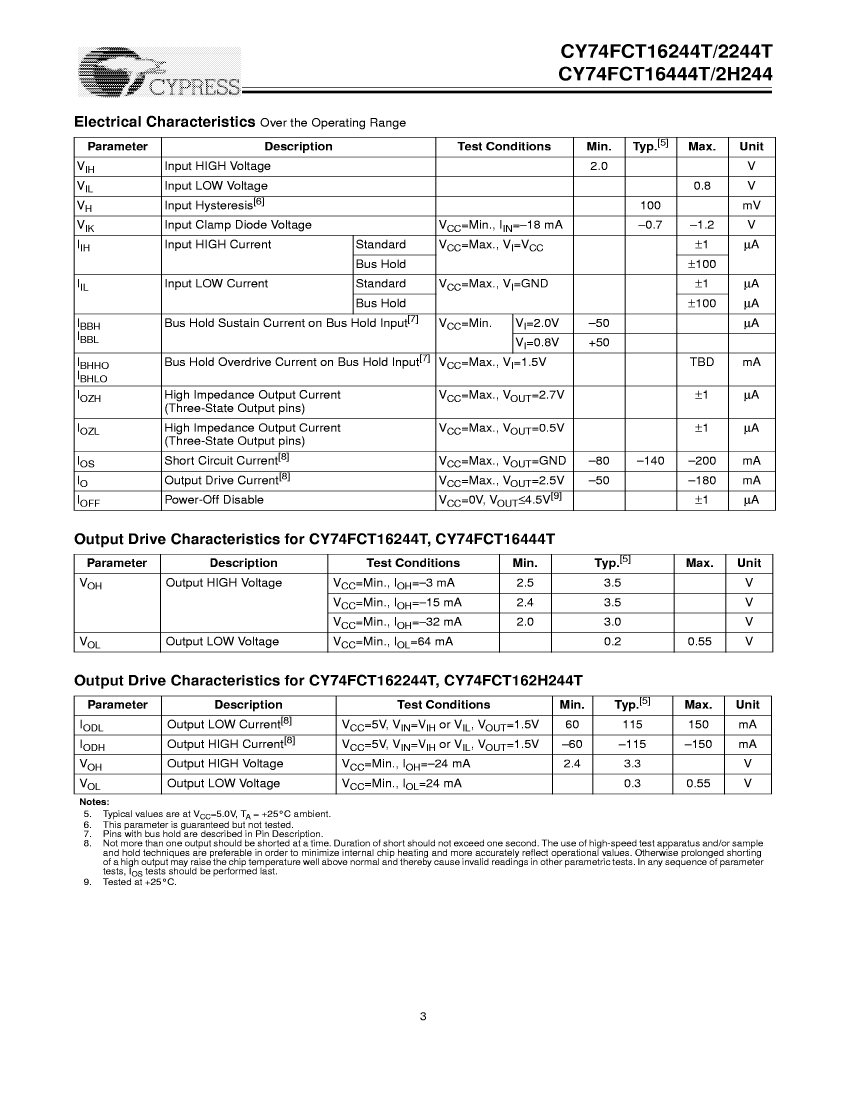

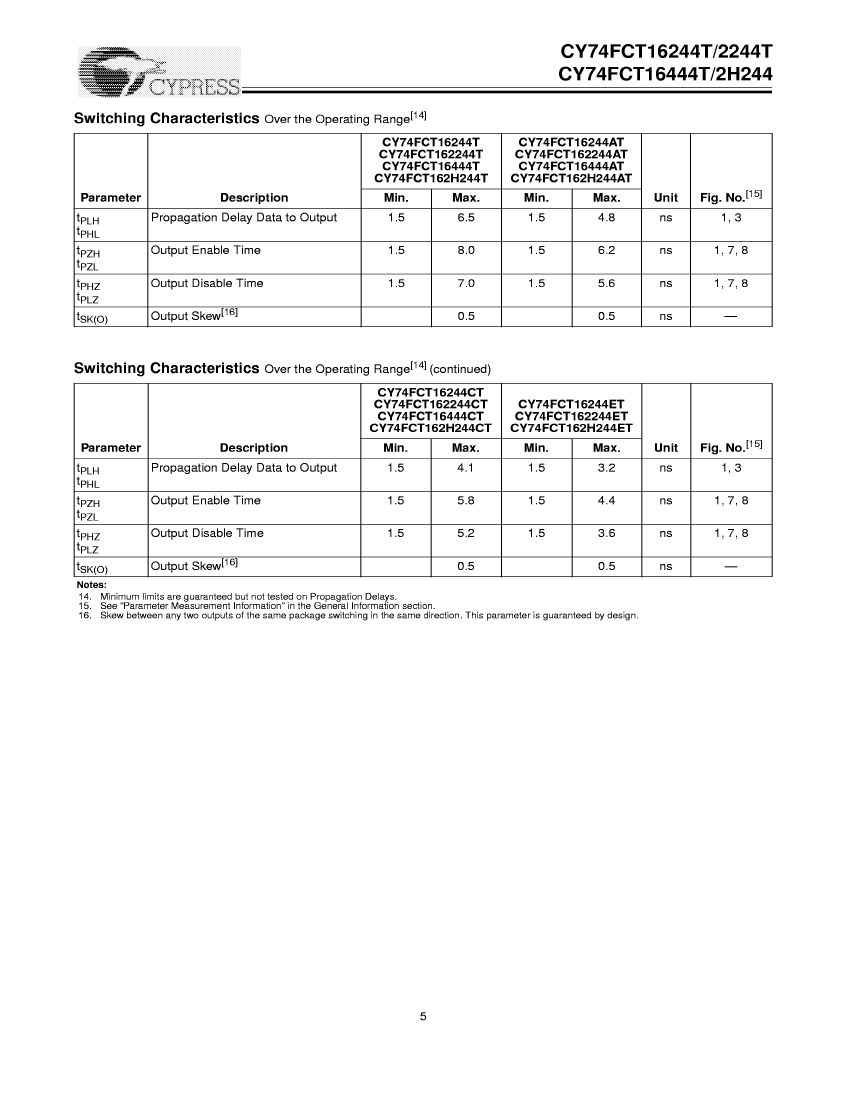

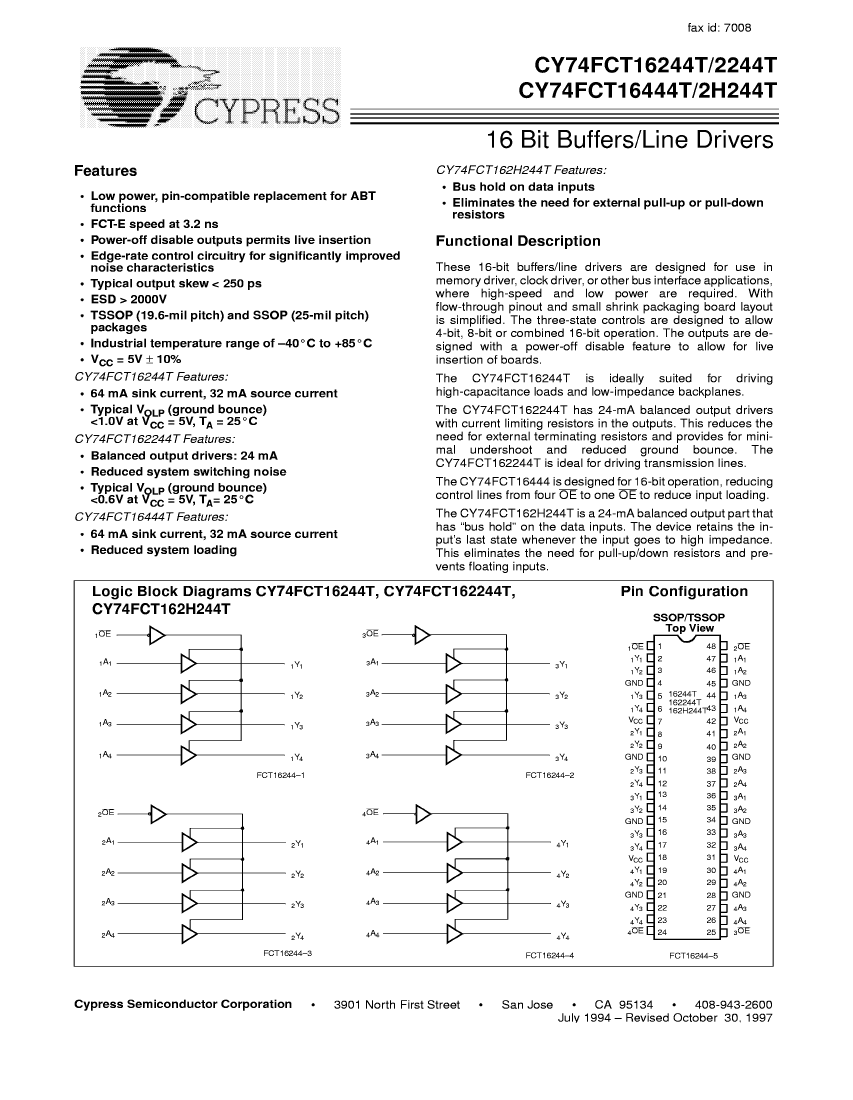

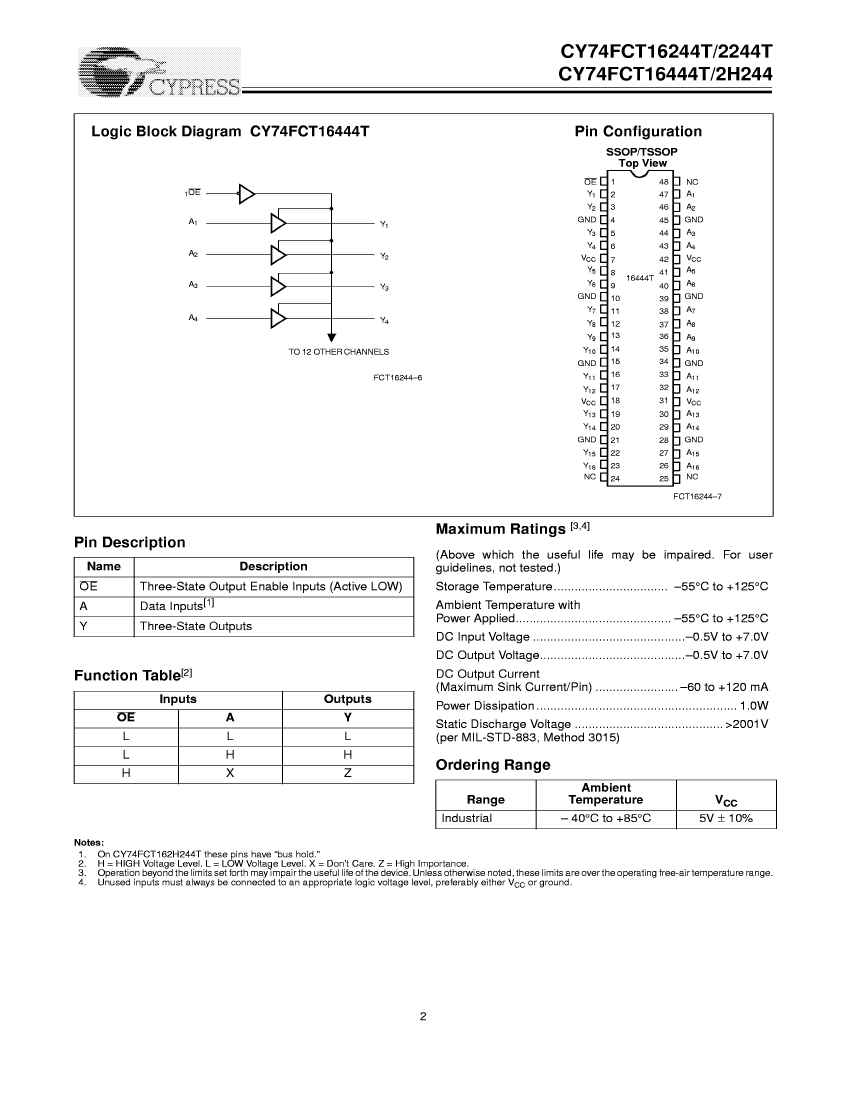

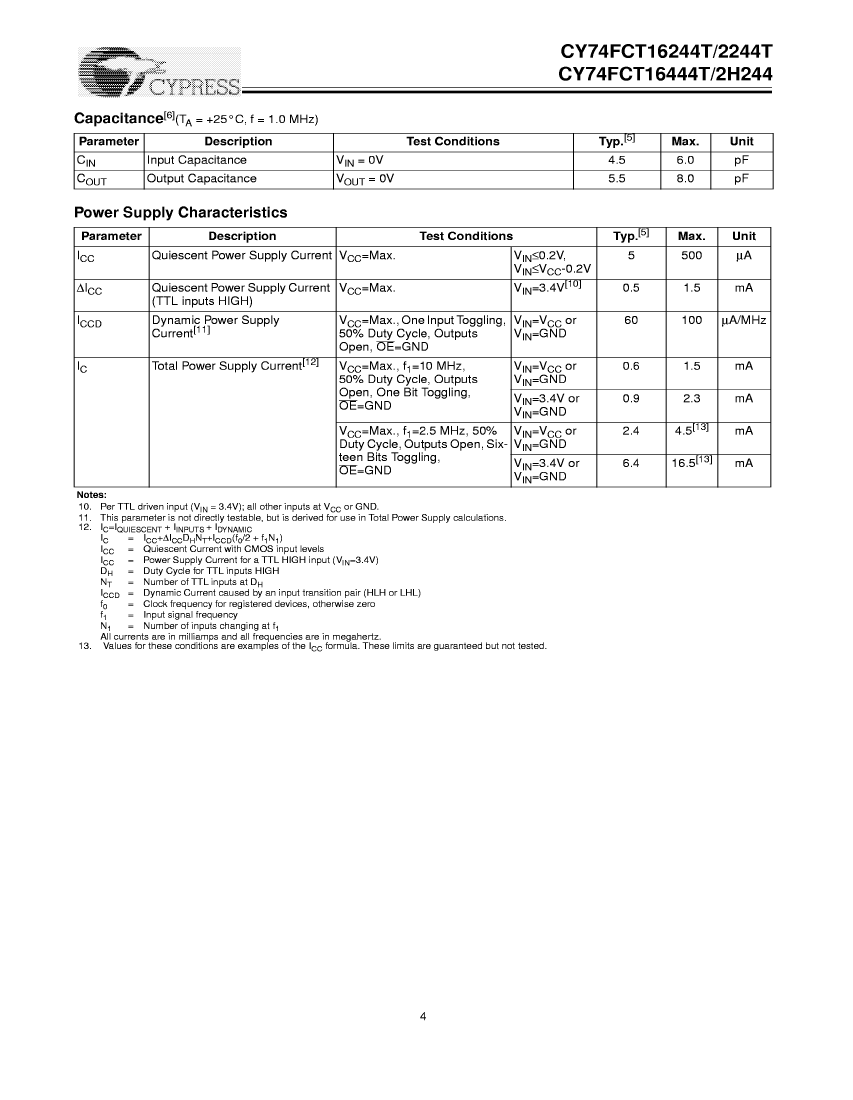

CY74FCT16244CTPAC: DescriptionBus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48; Categorylogic logic; File Size289KB，7 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

CY74FCT16244CTPAC Overview

Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP48,.3,20
Contacts	48
Reach Compliance Code	not_compliant
Control type	ENABLE LOW
series	FCT
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	12.5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.064 A
Humidity sensitivity level	1
Number of digits	4
Number of functions	4
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP48,.3,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	220
power supply	5 V
Prop。Delay @ Nom-Sup	4.1 ns
propagation delay (tpd)	4.1 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.1 mm
Base Number Matches	1
