87577-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87577-7

87577-7: Description20 MODII HDR DRRA SHRD .100CL; CategoryThe connector The connector; File Size215KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

87577-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87577-7	-	-	View	Buy Now

87577-7 Overview

20 MODII HDR DRRA SHRD .100CL

87577-7 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	AMPMODU
body width	0.413 inch
subject depth	0.596 inch
body length	1.28 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	200u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

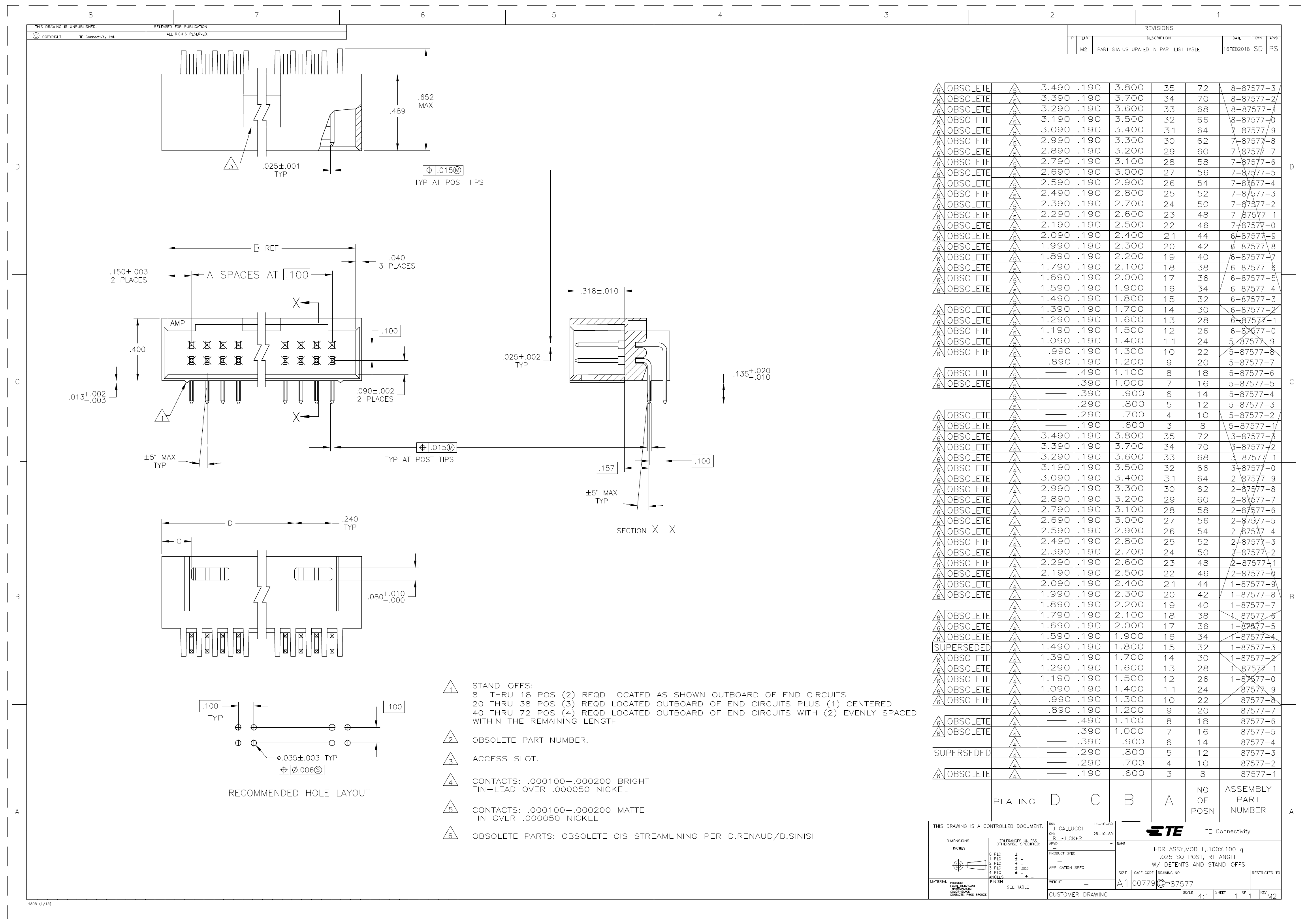

Preview

Download Datasheet

View All

87577-7 Related Products

	87577-7	87577-2	87577-4
Description	20 MODII HDR DRRA SHRD .100CL	10 MODII HDR DRRA SHRD .100CL	14 MODII HDR DRRA SHRD .100CL
Brand Name	AMP	AMP	AMP
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	AMPMODU	AMPMODU	AMPMODU
body width	0.413 inch	0.413 inch	0.413 inch
subject depth	0.596 inch	0.596 inch	0.596 inch
body length	1.28 inch	0.78 inch	0.98 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3	e3	e3
MIL compliance	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm
Plating thickness	200u inch	200u inch	200u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch	0.135 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	20	10	14
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
