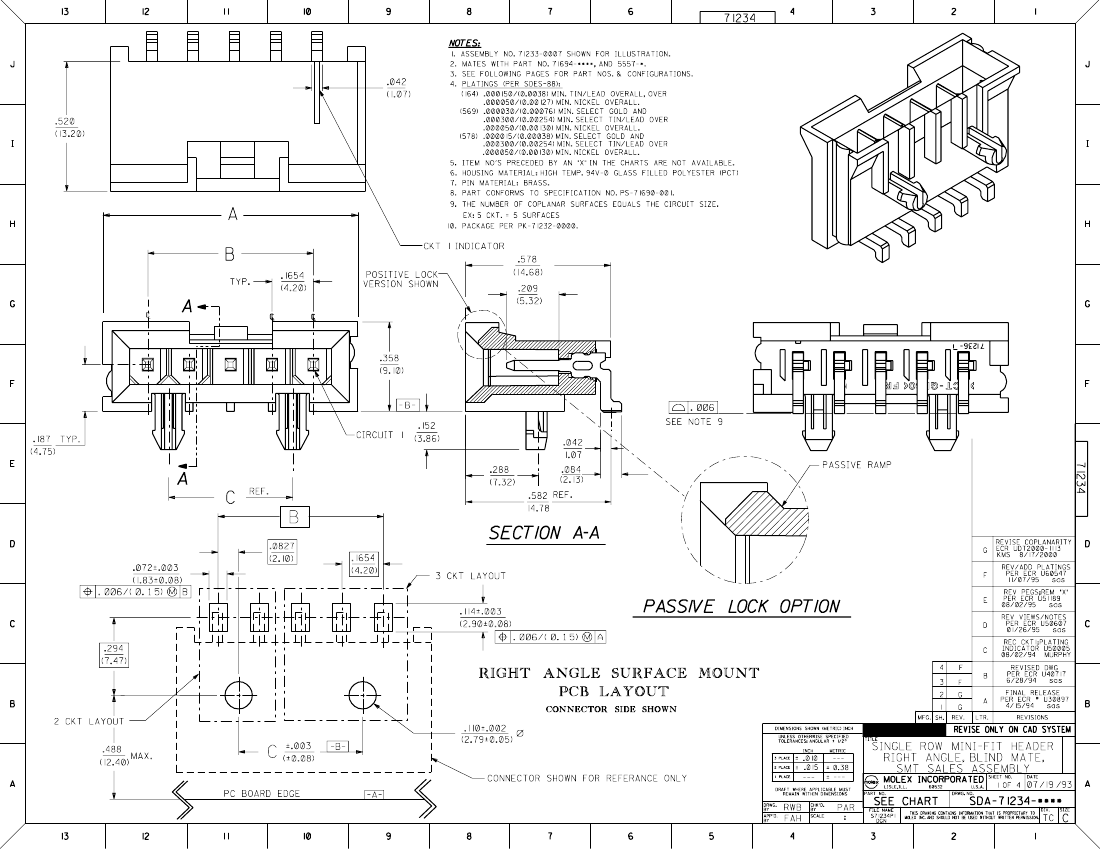

Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.165 inch Pitch, Surface Mount Terminal, Receptacle

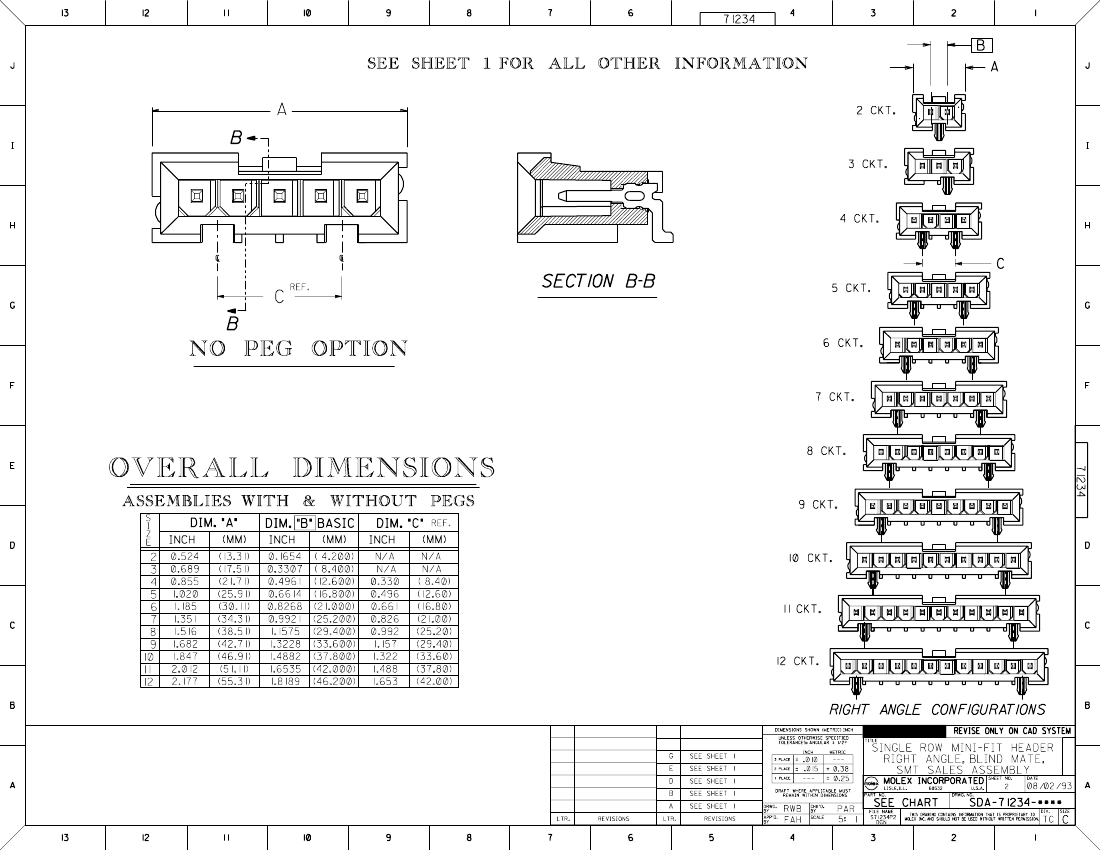

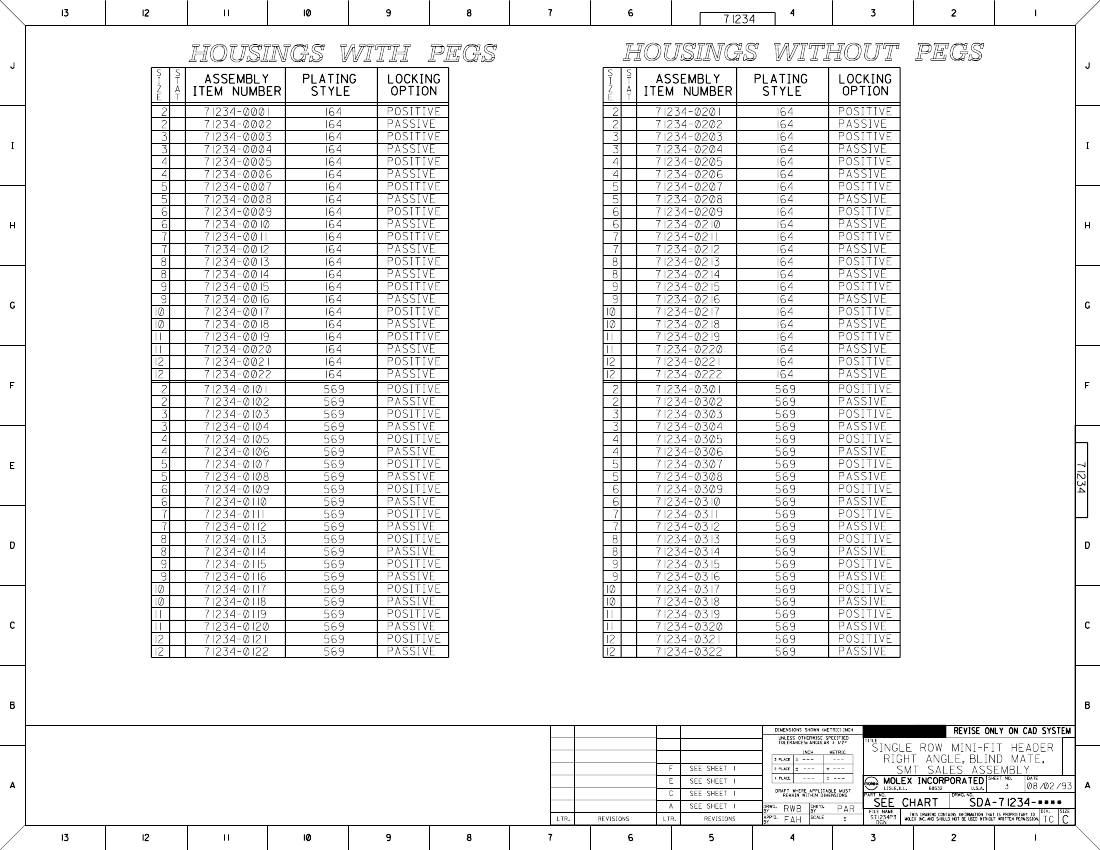

| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| Other features | WITH PASSIVE LOCKING |
| body width | 0.358 inch |
| subject depth | 0.578 inch |
| body length | 1.682 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN-PB ON NI |
| Contact completed and terminated | TIN/LEAD OVER NICKEL |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 2200VAC V |
| Durability | 30 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 6.672 N |
| Insulation resistance | 1000000000 Ω |
| insulator material | GLASS FILLED POLYESTER |
| MIL compliance | NO |
| Manufacturer's serial number | 71234 |
| Plug contact pitch | 0.165 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 5.715 mm |
| Plating thickness | 150u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 7 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | |
| Terminal pitch | 4.2 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 9 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | 3.9198 N |
| Base Number Matches | 1 |
