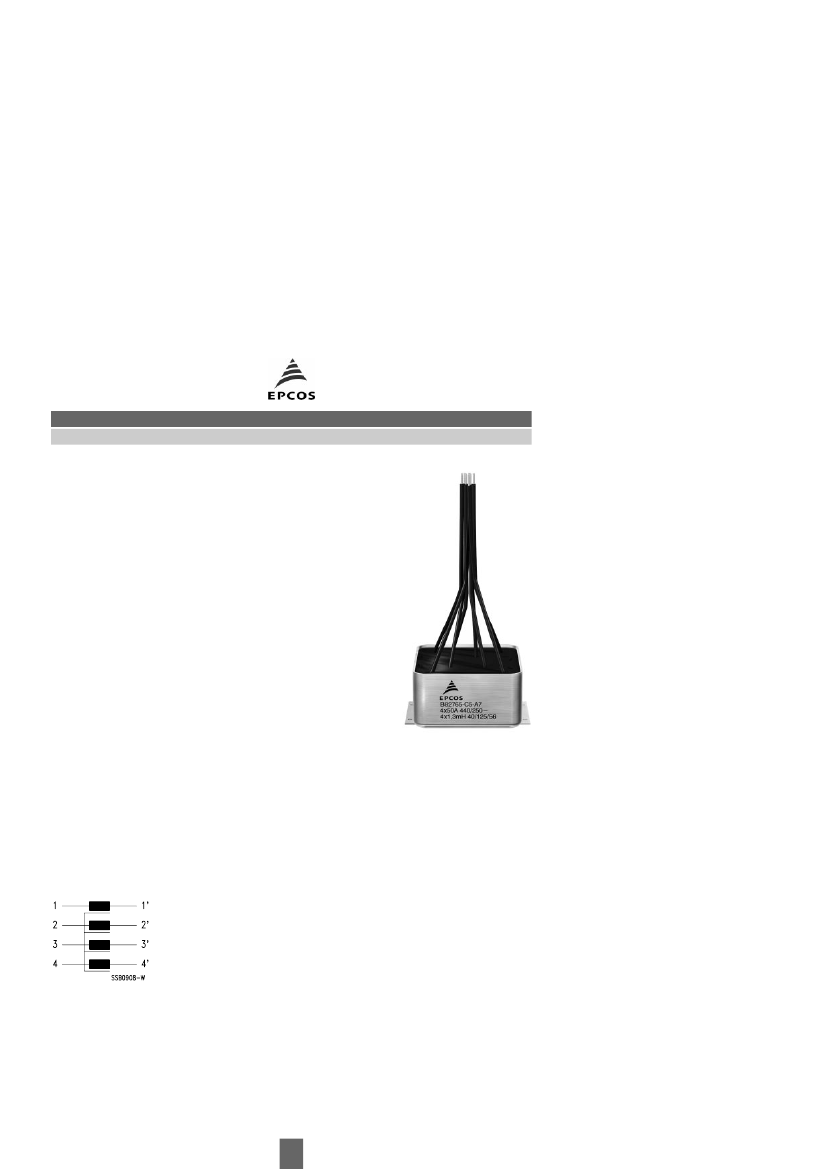

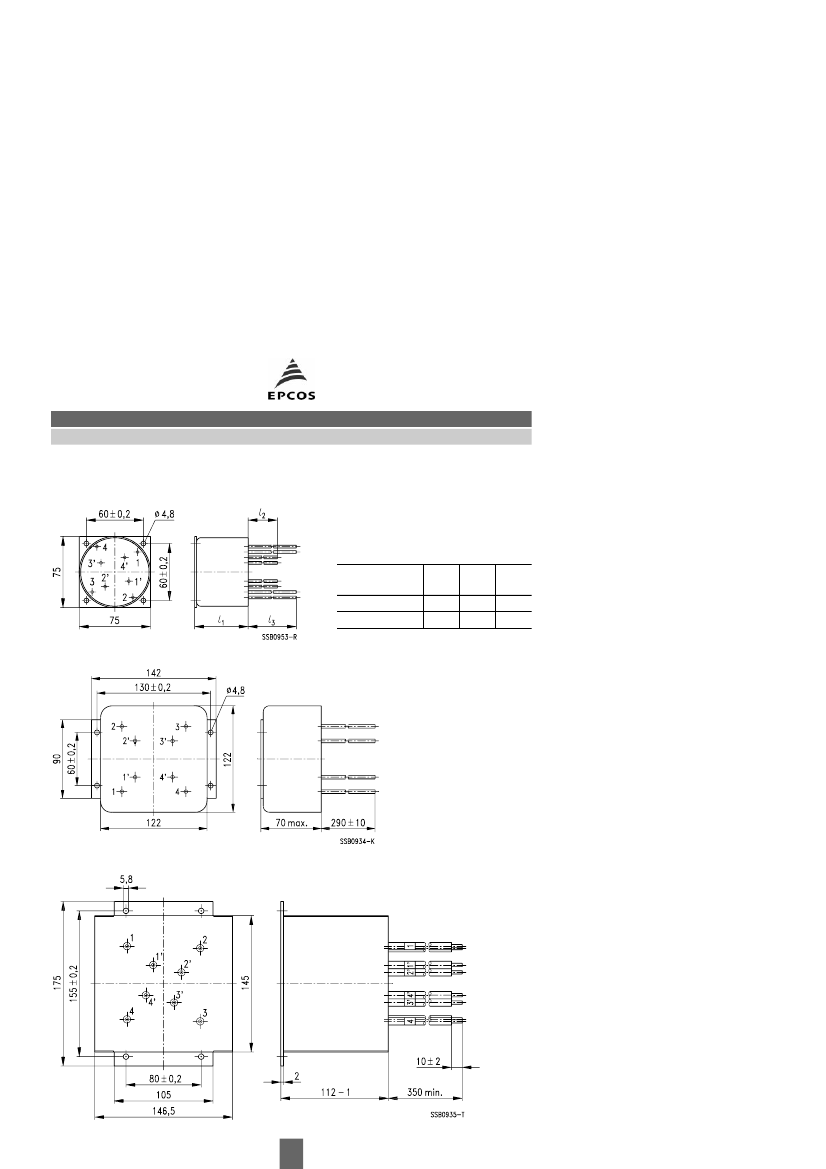

Chokes for Power Lines Current-Compensated Ring Core Quad Chokes
| B82765 | B82765-C1-A5 | B82765-C5-A7 | B82765-C2-A6 | B82765-C6-A11 | |
|---|---|---|---|---|---|
| Description | Chokes for Power Lines Current-Compensated Ring Core Quad Chokes | Chokes for Power Lines Current-Compensated Ring Core Quad Chokes | Chokes for Power Lines Current-Compensated Ring Core Quad Chokes | Chokes for Power Lines Current-Compensated Ring Core Quad Chokes | Chokes for Power Lines Current-Compensated Ring Core Quad Chokes |
| Is it lead-free? | - | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | - | conform to | conform to | conform to | conform to |
| Maker | - | EPCOS (TDK) | EPCOS (TDK) | EPCOS (TDK) | EPCOS (TDK) |
| Reach Compliance Code | - | compli | compli | compli | compli |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 |
| core material | - | FERRITE | FERRITE | FERRITE | FERRITE |
| DC Resistance | - | 0.02 Ω | 0.00375 Ω | 0.007 Ω | 0.0025 Ω |
| Nominal inductance(L) | - | 1800 µH | 1300 µH | 1300 µH | 900 µH |
| Inductor Applications | - | POWER INDUCTOR | POWER INDUCTOR | POWER INDUCTOR | POWER INDUCTOR |
| Inductor type | - | GENERAL PURPOSE INDUCTOR | GENERAL PURPOSE INDUCTOR | GENERAL PURPOSE INDUCTOR | GENERAL PURPOSE INDUCTOR |
| Number of functions | - | 4 | 4 | 4 | 4 |
| Number of terminals | - | 8 | 8 | 8 | 8 |
| Maximum operating temperature | - | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | - | -40 °C | -40 °C | -40 °C | -40 °C |
| Maximum rated current | - | 16 A | 50 A | 25 A | 75 A |
| Shape/Size Description | - | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE |
| shield | - | NO | NO | NO | NO |
| surface mount | - | NO | NO | NO | NO |
| Terminal surface | - | Tin (Sn) | Copper (Cu) | Copper (Cu) | Copper (Cu) |
| Terminal location | - | RADIAL | RADIAL | RADIAL | - |
| Terminal shape | - | FLEXIBLE LEAD | FLEXIBLE LEAD | FLEXIBLE LEAD | FLEXIBLE LEAD |
| Test frequency | - | 0.01 MHz | 0.01 MHz | 0.01 MHz | - |
| Tolerance | - | 30% | 30% | 30% | 30% |
