829394-6 datasheet, PDF - EEWORLD Datasheet

829394-6: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,12 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,GREEN; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

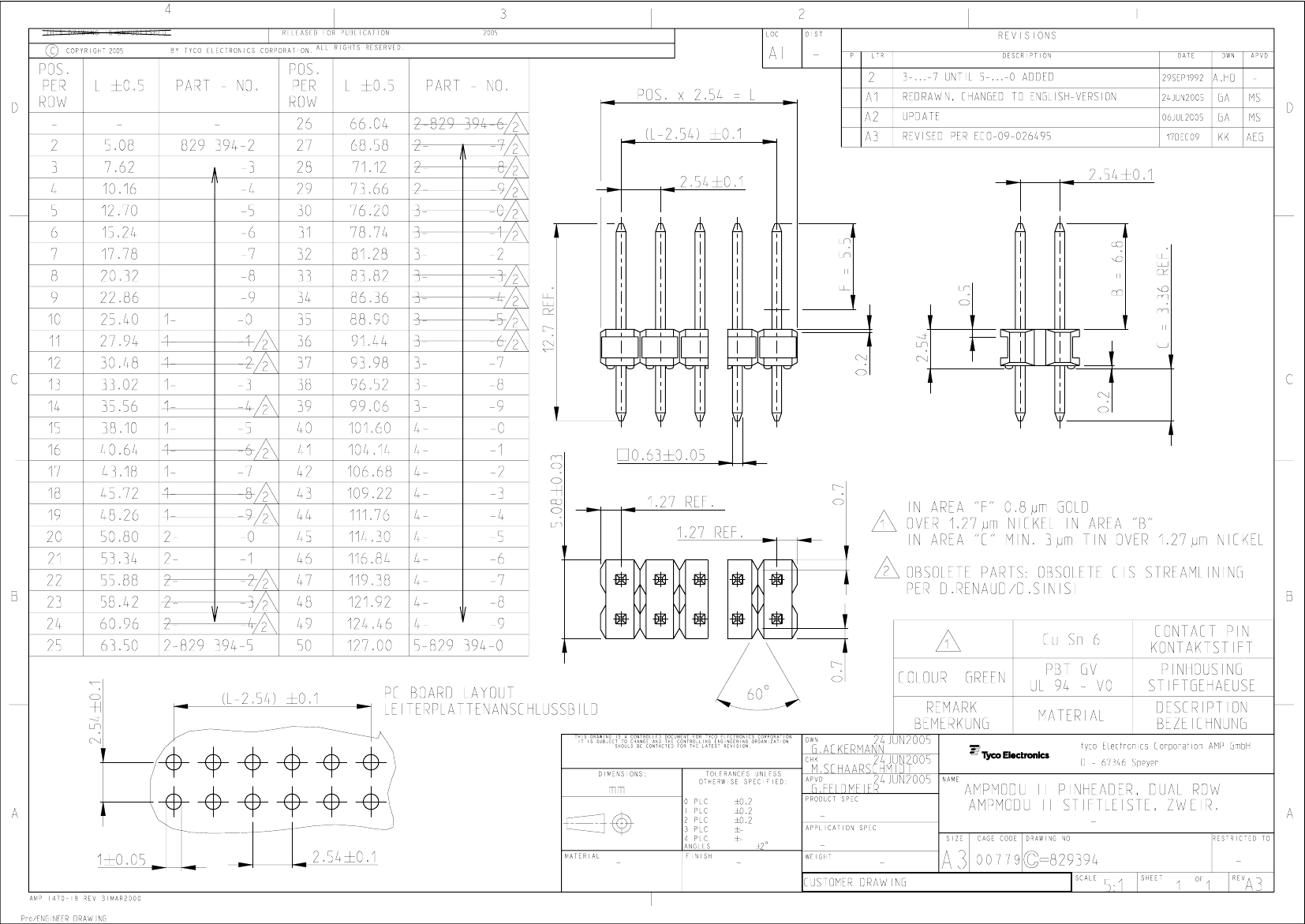

829394-6 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,12 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,GREEN

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Other features	BEAKAWAY HEADER
body width	0.2 inch
subject depth	0.1 inch
body length	0.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Insulation resistance	5000000000 Ω
Insulator color	GREEN
Manufacturer's serial number	829394
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	31u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.132 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

	829394-6	1-829394-3
Description	HEADER CONNECTOR,PCB MNT,RECEPT,12 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,GREEN
Is it Rohs certified?	conform to	conform to
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	compliant
Other features	BEAKAWAY HEADER	BEAKAWAY HEADER
body width	0.2 inch	0.2 inch
subject depth	0.1 inch	0.1 inch
body length	0.6 inch	1.3 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	750VAC V	750VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	GREEN
Manufacturer's serial number	829394	829394
Plug contact pitch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm
Plating thickness	31u inch	31u inch
Rated current (signal)	3 A	3 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.132 inch	0.132 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	12	26
Base Number Matches	1	1
