8528A-8F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 8528A-8F

8528A-8F: DescriptionFixed Attenuator, 10MHz Min, 2000MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size40KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

8528A-8F Overview

Fixed Attenuator, 10MHz Min, 2000MHz Max, ROHS COMPLIANT PACKAGE

8528A-8F Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	F-F
Nominal attenuation	8 dB
Characteristic impedance	75 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	2000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

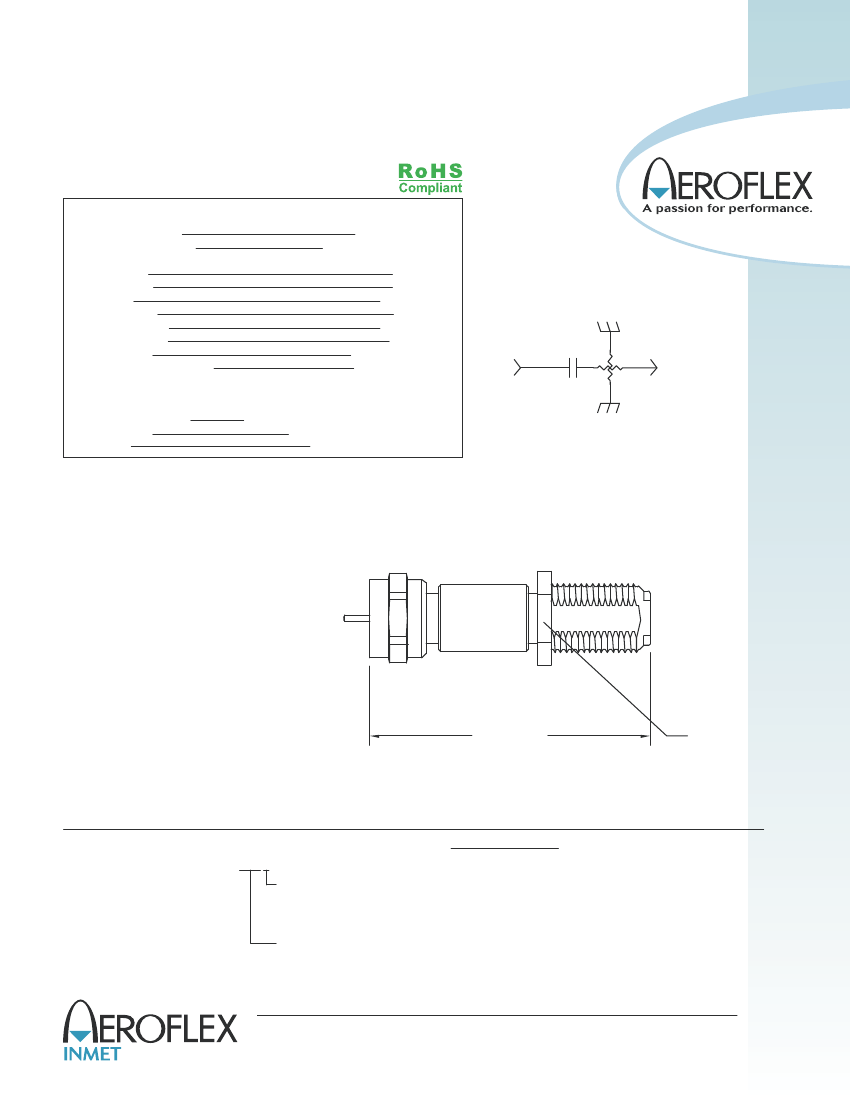

DC BLOCKING ATTENUATOR

Type F, 10 MHz - 2 GHz, 200 Volts

SPECIFICATIONS:

Models: 8528A-XX

Electrical:

Frequency Range

Standard dB Values*

Accuracy of Attenuation:

1 - 6 dB

7 - 20 dB

VSWR:

Impedance:

DC Block Type

Voltage Rating

Input Power

Operating Temp. Range

10 MHz - 2 GHz

0 - 10, 1 15 & 20 dB

In 1 dB Increments

± 0.3 dB

± 0.5 dB

1.35:1 Max.

75 Ohms

Inner Only

200 Volts

2 Watts Average

-65°C to +125°C

RF in

RF out

Mechanical:

Type F Connectors:

Conductors:

Bodies:

Bright Acid Tin and Nickel Plated Brass

Nickel and Gold Plated Brass

Passivated Stainless Steel

Schematic Diagram

Unit is a unidirectional device. Input shall be at male port unless otherwise specified.

Model Number:

8528A-XX

Male/Female Connectors

Length: 1.50 ±.05 [38. ±1.3]

As Pictured

Model Number:

8528A-XXM

Male/Male Connectors

Length: 1.22 ±.05 [3 ±1.3]

1.0

Model Number:

8528A-XXF

Female/Female Connectors

Length: 1.79 ±.05 [45.5 ±1.3]

1.50 ±.05

[38.1 ±1.3]

7/16 HEX

[11.1]

HOW TO ORDER:

Model Number:

8528A-XXY

Connector Configuration

= Male/Female

F = Fem/Fem

M = Male/Male

dB Value

Ordering Examples:

Model Number:

8528A-20

20 dB; F - Male/Fem

Model Number:

8528A-10M

10 dB; F - Male/Male

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

*Other dB values, connectors and/or DC Block configurations are also available.

8528A: REV E

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex-.com
