H30D10C Overview

30A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER

H30D10C Parametric

Parameter Name	Attribute value
Maker	Won-Top Electronics Co., Ltd.
Parts packaging code	TO-3P
package instruction	PLASTIC, TO-3P, 3 PIN
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LOW LEAKAGE CURRENT
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	300 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	30 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

WTE

POWER SEMICONDUCTORS

H30D05C – H30D60C

30A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER

Features

Glass Passivated Die Construction

Ultra-Fast Switching

Low Forward Voltage Drop

Low Reverse Leakage Current

High Surge Current Capability

Plastic Material has UL Flammability

Classification 94V-O

TO-3P

Dim

Min

Max

3.20

3.50

4.70

5.30

—

23.00

19.00

—

2.80

3.20

0.45

0.85

—

16.20

1.70

2.70

3.15 Ø

3.65 Ø

—

4.50

5.25

5.65

1.10

1.40

—

2.50

11.70

12.70

5.00

6.00

All Dimensions in mm

PIN1

Mechanical Data

Case: TO-3P, Molded Plastic

Terminals: Plated Leads Solderable per

MIL-STD-750, Method 2026

Polarity: See Diagram

Weight: 5.6 grams (approx.)

Mounting Position: Any

Mounting Torque: 11.5 cm-kg (10 in-lbs) Max.

Lead Free: For RoHS / Lead Free Version,

Add “-LF” Suffix to Part Number, See Page 4

PIN 1 -

Case, PIN 2

PIN 3 -

Maximum Ratings and Electrical Characteristics

Single Phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

H30D

05C

=25°C unless otherwise specified

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectified Output Current

= 100°C

Symbol

RRM

RWM

R(RMS)

H30D

10C

100

H30D

15C

150

105

H30D

20C

200

140

H30D

30C

300

210

H30D

40C

400

280

H30D

50C

500

350

H30D

60C

600

420

Unit

Non-Repetitive Peak Forward Surge Current 8.3ms

Single half sine-wave superimposed on rated load

(JEDEC Method)

Forward Voltage

Peak Reverse Current

At Rated DC Blocking Voltage

Reverse Recovery Time (Note 1)

Typical Junction Capacitance (Note 2)

Operating and Storage Temperature Range

= 15A

= 25°C

= 125°C

FSM

, T

STG

175

1.0

300

1.3

500

145

-55 to +150

100

1.7

µA

°C

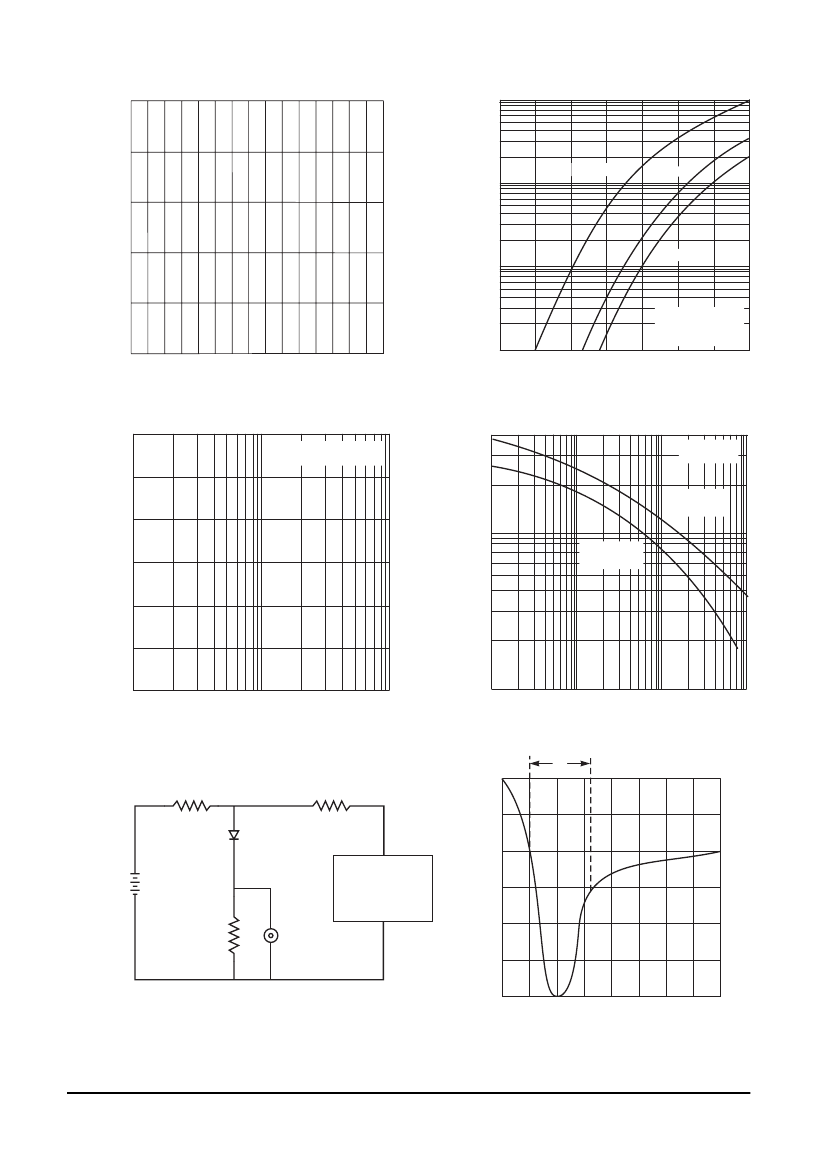

Note: 1. Measured with IF = 0.5A, IR = 1.0A, IRR = 0.25A. See figure 5.

2. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.

H30D05C – H30D60C

1 of 4
