531838-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 531838-4

531838-4: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,60 CONTACTS,SKT,0.1 PITCH,WRAP POST TERMINAL,#2-56; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

531838-4 Overview

HEADER CONNECTOR,PCB MNT,PLUG,60 CONTACTS,SKT,0.1 PITCH,WRAP POST TERMINAL,#2-56

531838-4 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	POST STABILIZER
body width	0.248 inch
subject depth	0.4 inch
body length	3.855 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Manufacturer's serial number	531838
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	#2-56
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	ENDS
reliability	COMMERCIAL
Terminal length	0.725 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	60
Base Number Matches	1

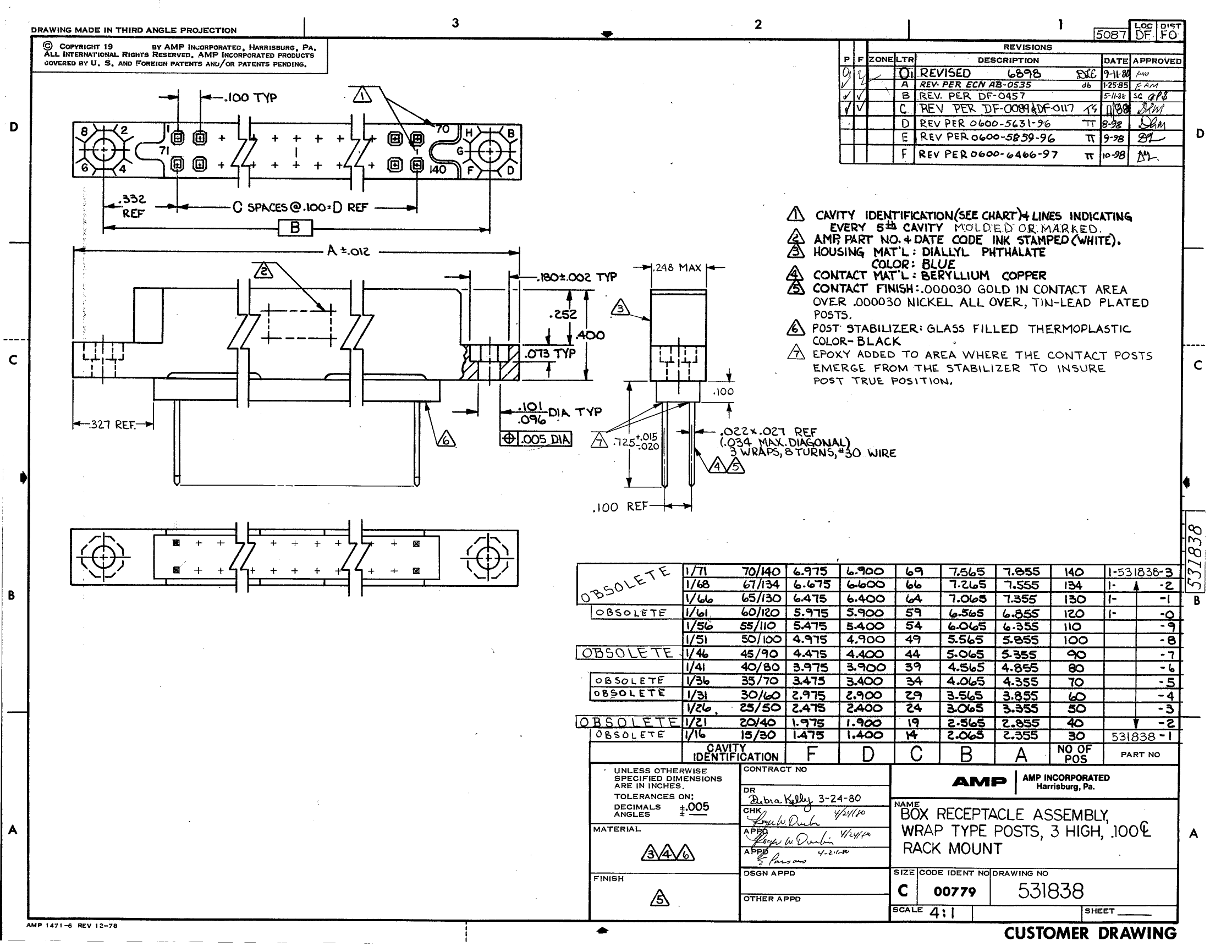

Preview

Download Datasheet

View All

531838-4 Related Products

	531838-4	1-531838-0	1-531838-1	1-531838-2	1-531838-3	531838-2	531838-7	531838-5	531838-1
Description	HEADER CONNECTOR,PCB MNT,PLUG,60 CONTACTS,SKT,0.1 PITCH,WRAP POST TERMINAL,#2-56	HEADER CONNECTOR,PCB MNT,PLUG,120 CONTACTS,SKT,0.1 PITCH,WRAP POST TERMINAL,#2-56	130 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	CONNECTOR, 134 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	CONNECTOR, 140 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	CONNECTOR, 40 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	90 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	70 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	HEADER CONNECTOR,PCB MNT,PLUG,30 CONTACTS,SKT,0.1 PITCH,WRAP POST TERMINAL,#2-56
Reach Compliance Code	unknown	unknow	unknown	unknown	unknow	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	60	120	130	134	140	40	90	70	30
Manufacturer's serial number	531838	531838	-	531838	531838	-	-	-	531838
Objectid	-	-	2094429863	2094429864	-	2094430337	2094430338	1417701859	-
DIN compliance	-	-	NO	NO	NO	NO	NO	NO	-
Filter function	-	-	NO	NO	NO	NO	NO	NO	-
IEC compliance	-	-	NO	NO	NO	NO	NO	NO	-
MIL compliance	-	-	NO	NO	NO	NO	NO	NO	-
Mixed contacts	-	-	NO	NO	NO	NO	NO	NO	-
Options	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
