583599-2 datasheet, PDF - EEWORLD Datasheet

583599-2: DescriptionEDGE CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,0.156 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

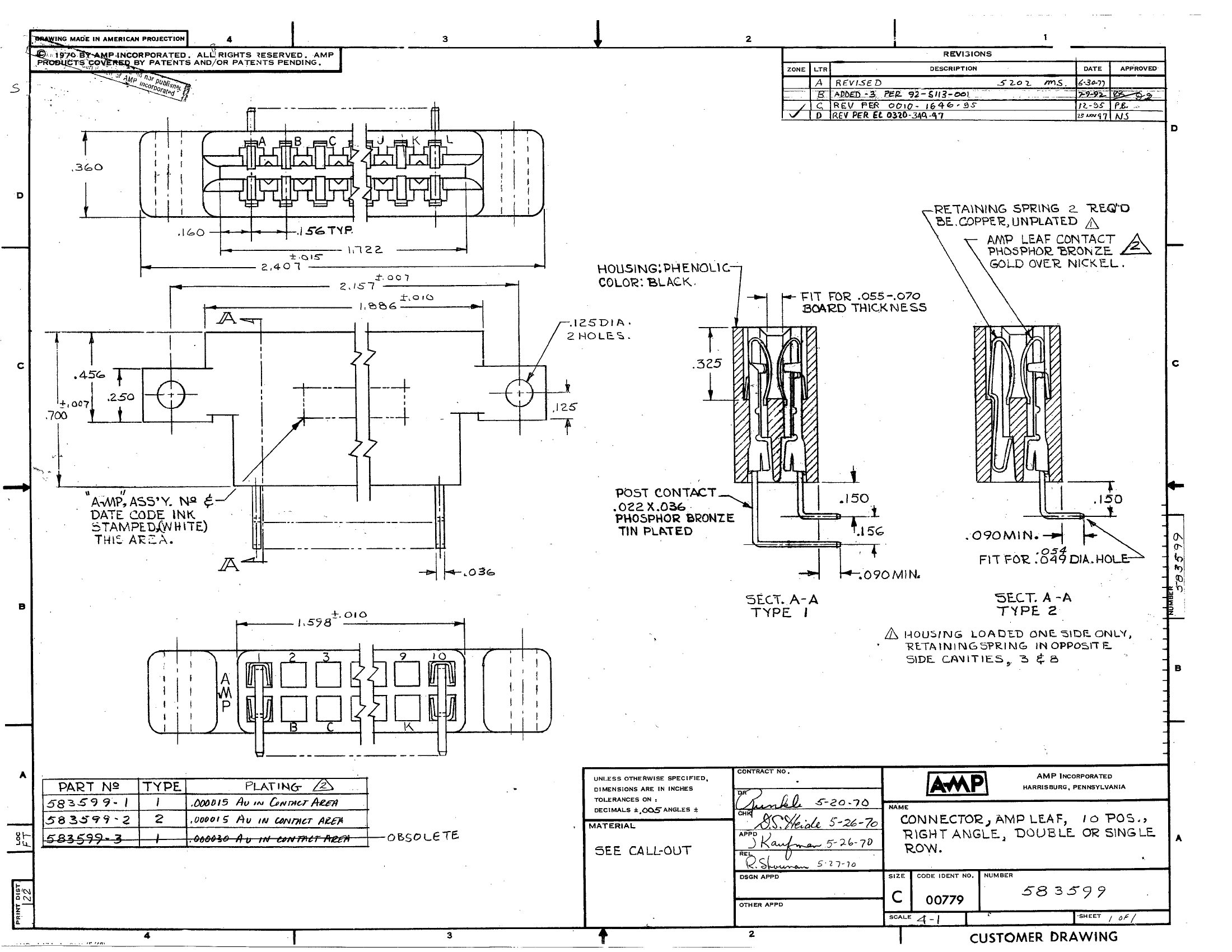

583599-2 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,0.156 PITCH,PC TAIL TERMINAL

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Other features	NONE
Board mount options	MOUNTING FLANGE
body width	0.36 inch
subject depth	0.861 inch
body length	2.407 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
maximum insertion force	4.448 N
insulator material	GLASS FILLED PHENOLIC
Plug contact pitch	0.156 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	10
Evacuation force-minimum value	.556 N
Base Number Matches	1

	583599-2	583599-1	583599-3
Description	EDGE CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,0.156 PITCH,PC TAIL TERMINAL	EDGE CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,0.156 PITCH,PC TAIL TERMINAL	CONNECTOR, 20 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER
Maker	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	compliant	unknown
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	1	2	2
Terminal pitch	3.9624 mm	3.9624 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	10	10	20
Base Number Matches	1	1	1
Is it Rohs certified?	conform to	conform to	-
Other features	NONE	NONE	-
Board mount options	MOUNTING FLANGE	MOUNTING FLANGE	-
body width	0.36 inch	0.36 inch	-
subject depth	0.861 inch	1.017 inch	-
body length	2.407 inch	2.407 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	-
contact mode	RECTANGULAR	RECTANGULAR	-
Contact style	BELLOWED TYPE	BELLOWED TYPE	-
maximum insertion force	4.448 N	4.448 N	-
insulator material	GLASS FILLED PHENOLIC	GLASS FILLED PHENOLIC	-
Plug contact pitch	0.156 inch	0.156 inch	-
Number of connectors	ONE	ONE	-
PCB row number	1	2	-
Maximum operating temperature	105 °C	105 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-
Plating thickness	15u inch	15u inch	-
Rated current (signal)	5 A	5 A	-
Guideline	UL, CSA	UL, CSA	-
reliability	COMMERCIAL	COMMERCIAL	-
Terminal length	0.09 inch	0.09 inch	-
Evacuation force-minimum value	.556 N	.556 N	-
