54F269/BLA

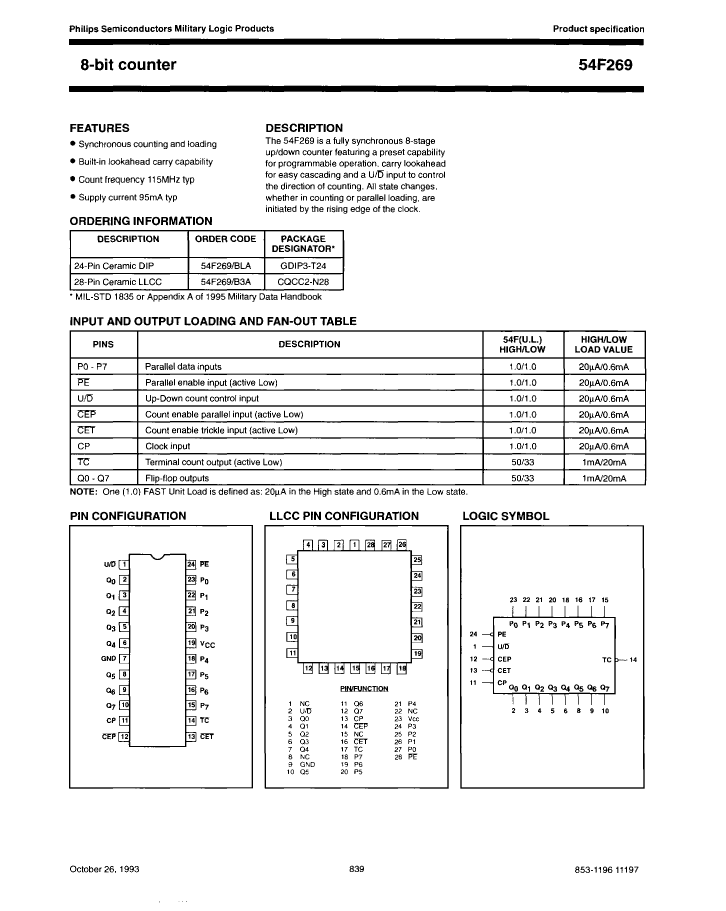

Description
IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT BIDIRECTIONAL BINARY COUNTER, CDIP24, CERAMIC, DIP-24, Counter
Categorylogic    logic
File Size169KB,8 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

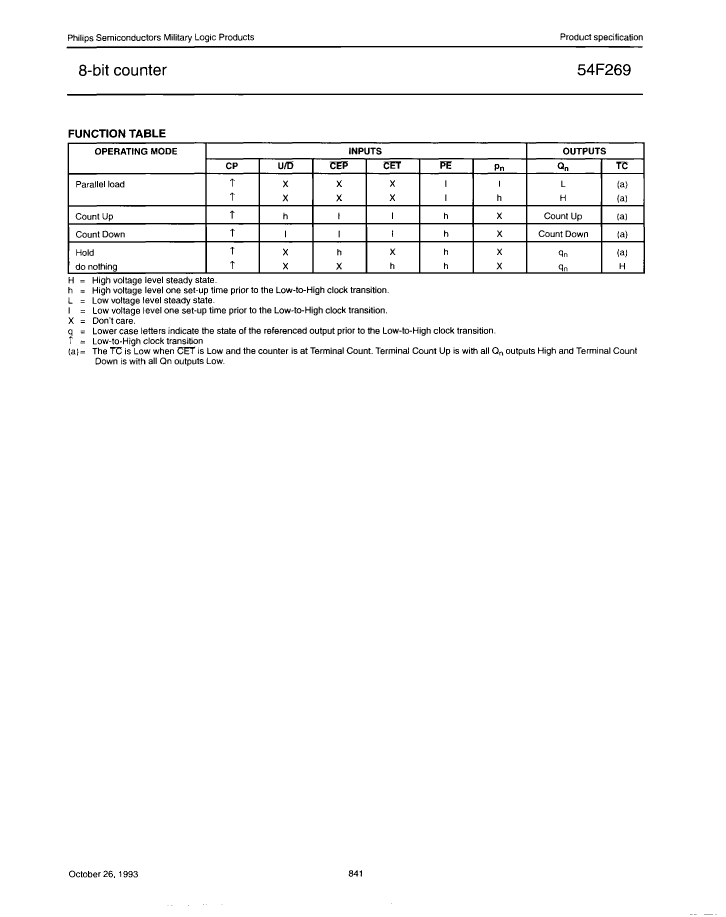

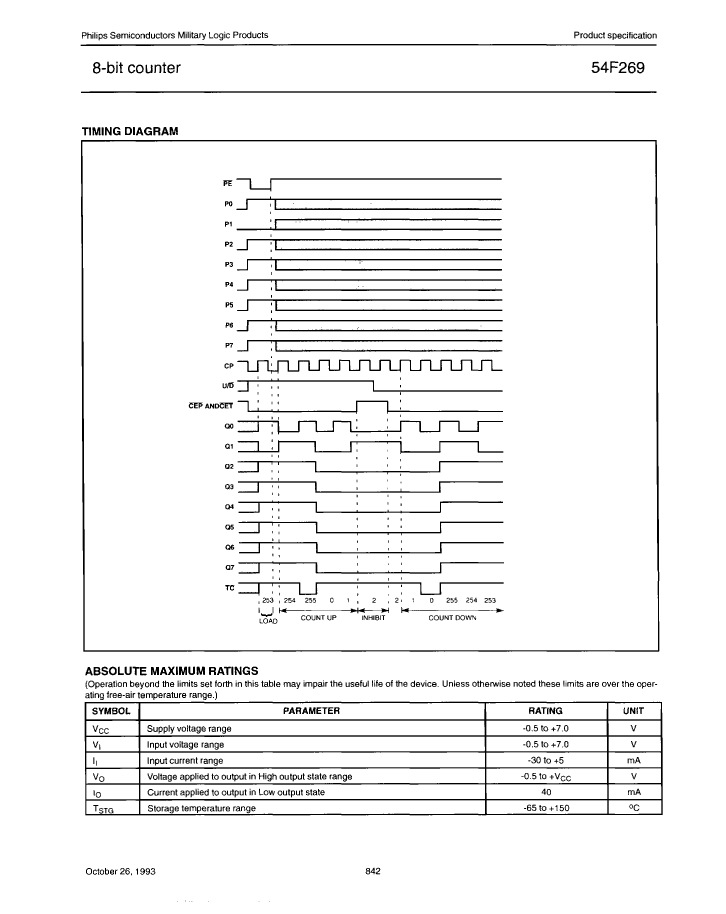

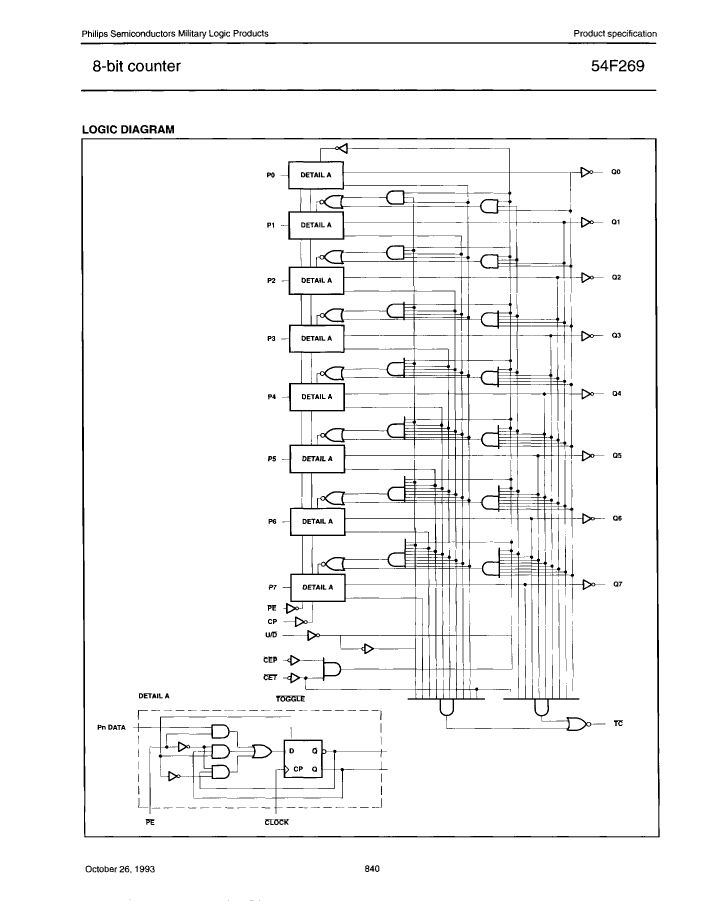

54F269/BLA Overview

IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT BIDIRECTIONAL BINARY COUNTER, CDIP24, CERAMIC, DIP-24, Counter

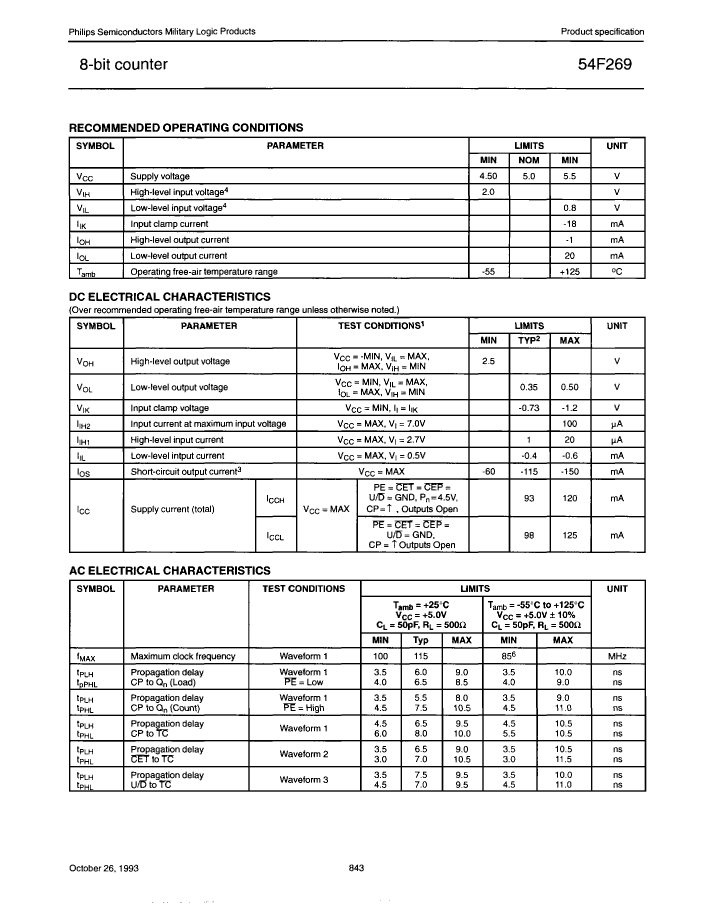

54F269/BLA Parametric

Parameter NameAttribute value
MakerNXP
Parts packaging codeDIP
package instructionDIP,
Contacts24
Reach Compliance Codeunknown
Other featuresTCO OUTPUT
Counting directionBIDIRECTIONAL
seriesF/FAST
JESD-30 codeR-GDIP-T24
Load capacitance (CL)50 pF
Load/preset inputYES
Logic integrated circuit typeBINARY COUNTER
Operating modeSYNCHRONOUS
Number of digits8
Number of functions1
Number of terminals24
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Maximum supply current (ICC)125 mA
propagation delay (tpd)11 ns
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Trigger typePOSITIVE EDGE
width7.62 mm
minfmax85 MHz
Base Number Matches1

54F269/BLA Related Products

54F269/BLA 54F269/B3A N54F269/B3A
Description IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT BIDIRECTIONAL BINARY COUNTER, CDIP24, CERAMIC, DIP-24, Counter IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT BIDIRECTIONAL BINARY COUNTER, CQCC28, CERAMIC, LCC-28, Counter IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT BIDIRECTIONAL BINARY COUNTER, CQCC28, CERAMIC, LLCC-28, Counter
Maker NXP NXP NXP
Parts packaging code DIP QLCC QLCC
package instruction DIP, QCCN, QCCN,
Contacts 24 28 28
Reach Compliance Code unknown unknown unknown
Other features TCO OUTPUT TCO OUTPUT TCO OUTPUT
Counting direction BIDIRECTIONAL BIDIRECTIONAL BIDIRECTIONAL
series F/FAST F/FAST F/FAST
JESD-30 code R-GDIP-T24 S-CQCC-N28 S-CQCC-N28
Load capacitance (CL) 50 pF 50 pF 50 pF
Load/preset input YES YES YES
Logic integrated circuit type BINARY COUNTER BINARY COUNTER BINARY COUNTER
Operating mode SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS
Number of digits 8 8 8
Number of functions 1 1 1
Number of terminals 24 28 28
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Package body material CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
encapsulated code DIP QCCN QCCN
Package shape RECTANGULAR SQUARE SQUARE
Package form IN-LINE CHIP CARRIER CHIP CARRIER
Maximum supply current (ICC) 125 mA 125 mA 125 mA
propagation delay (tpd) 11 ns 11 ns 11 ns
Certification status Not Qualified Not Qualified Not Qualified
Maximum seat height 5.08 mm 1.905 mm 1.905 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount NO YES YES
technology TTL TTL TTL
Temperature level MILITARY MILITARY MILITARY
Terminal form THROUGH-HOLE NO LEAD NO LEAD
Terminal pitch 2.54 mm 1.27 mm 1.27 mm
Terminal location DUAL QUAD QUAD
Trigger type POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE
width 7.62 mm 11.4554 mm 11.4554 mm
minfmax 85 MHz 85 MHz 85 MHz
Base Number Matches 1 1 1
length - 11.4554 mm 11.4554 mm
