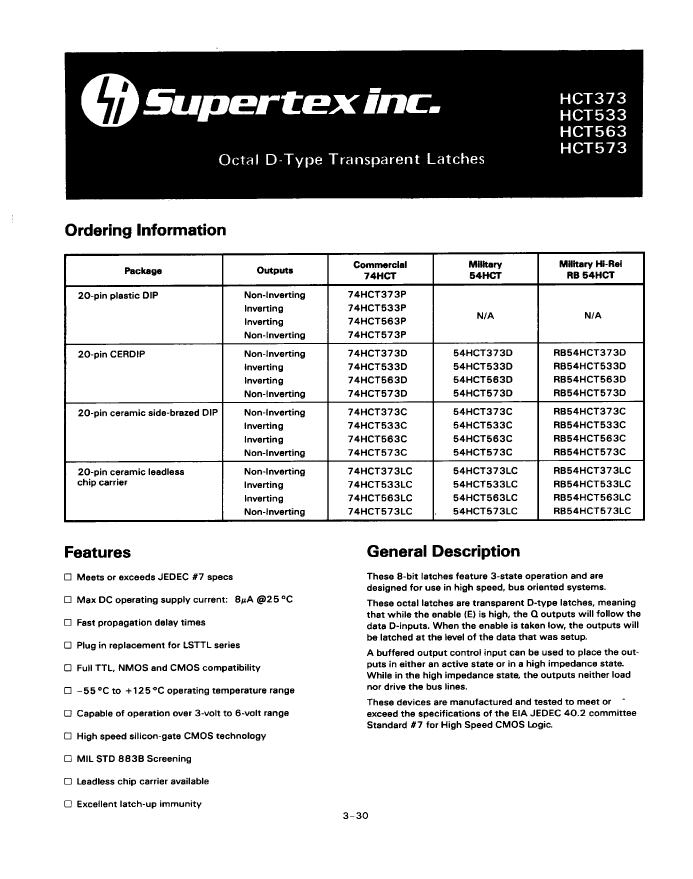

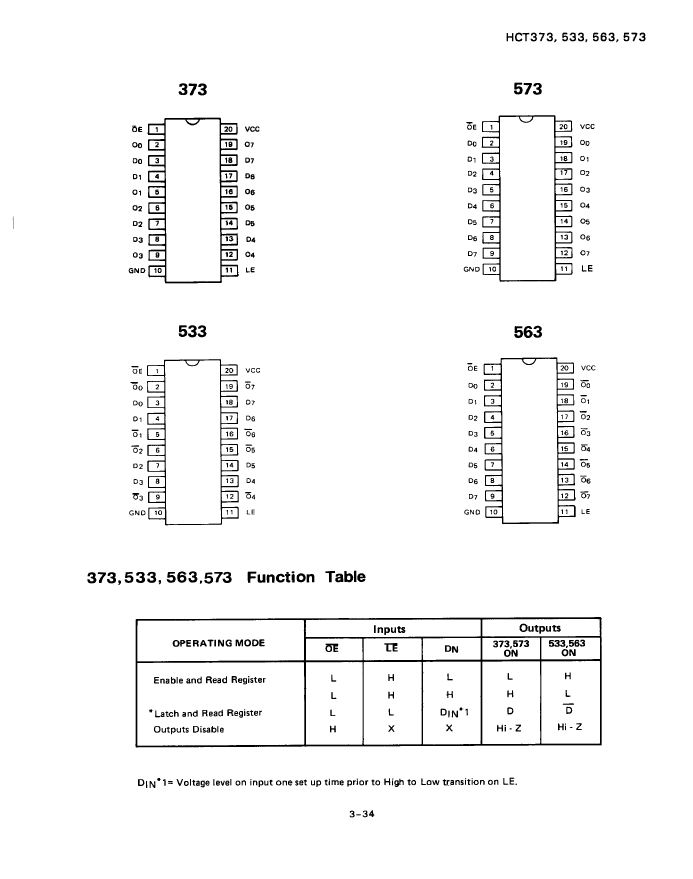

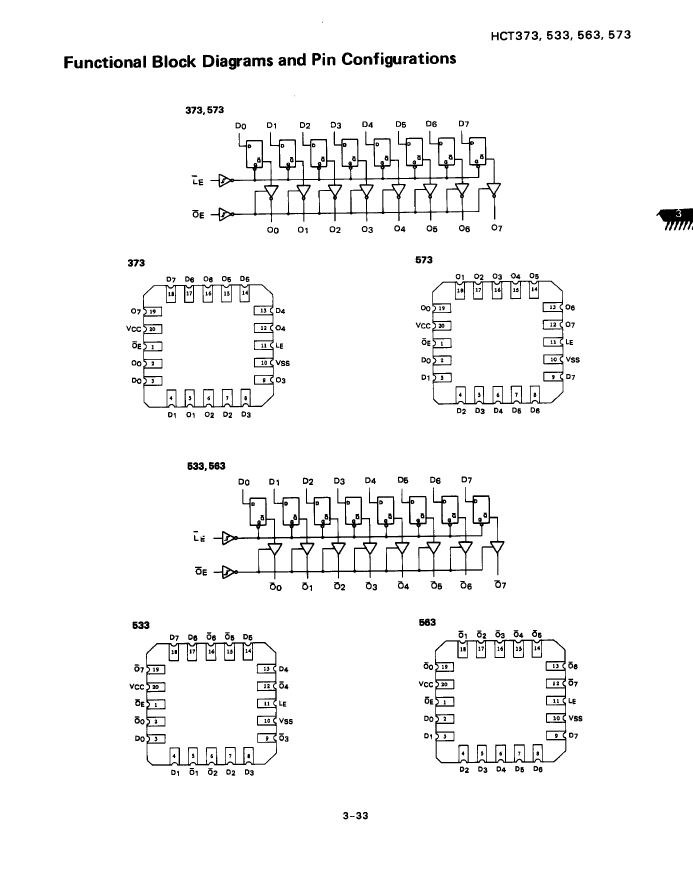

Bus Driver, HCT Series, 1-Func, 1-Bit, Inverted Output, CMOS, CDIP20, CERAMIC, DIP-20

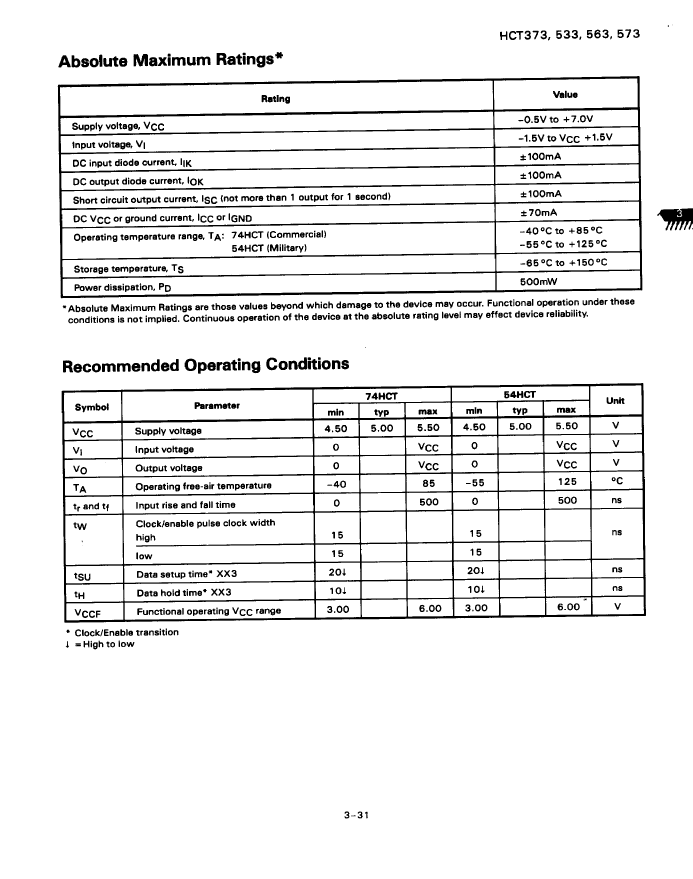

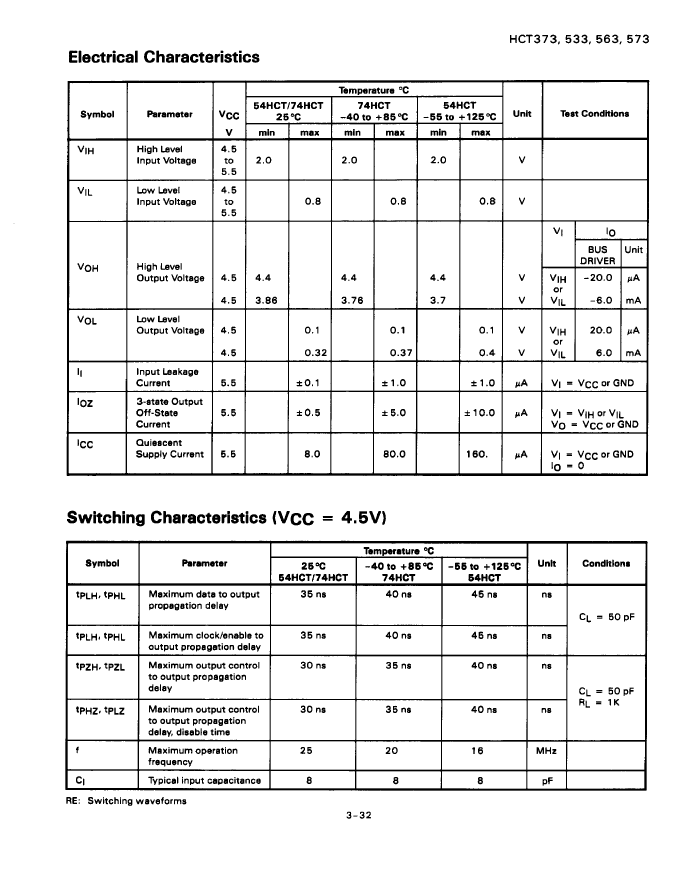

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Supertex |
| Parts packaging code | DIP |
| package instruction | DIP, DIP20,.3 |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| series | HCT |
| JESD-30 code | R-CDIP-T20 |
| JESD-609 code | e0 |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 1 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP20,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| propagation delay (tpd) | 40 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| 54HCT533D | RB54HCT533D | 74HCT533P | 74HCT533D | 74HCT573LC | 74HCT373LC | 74HCT533LC | MBA0204BD2803DRP00 | RB54HCT563D | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Bus Driver, HCT Series, 1-Func, 1-Bit, Inverted Output, CMOS, CDIP20, CERAMIC, DIP-20 | Bus Driver, HCT Series, 1-Func, 1-Bit, Inverted Output, CMOS, CDIP20, CERAMIC, DIP-20 | Bus Driver, HCT Series, 1-Func, 1-Bit, Inverted Output, CMOS, PDIP20, PLASTIC, DIP-20 | Bus Driver, HCT Series, 1-Func, 1-Bit, Inverted Output, CMOS, CDIP20, CERAMIC, DIP-20 | Bus Driver, HCT Series, 1-Func, 1-Bit, True Output, CMOS, CQCC20, CERAMIC, LCC-20 | Bus Driver, HCT Series, 1-Func, 1-Bit, True Output, CMOS, CQCC20, CERAMIC, LCC-20 | Bus Driver, HCT Series, 1-Func, 1-Bit, Inverted Output, CMOS, CQCC20, CERAMIC, LCC-20 | Fixed Resistor, Metal Film, 0.25W, 280000ohm, 200V, 0.5% +/-Tol, 25ppm/Cel, Through Hole Mount, AXIAL LEADED | Bus Driver, HCT Series, 1-Func, 1-Bit, Inverted Output, CMOS, CDIP20, CERAMIC, DIP-20 |
| package instruction | DIP, DIP20,.3 | DIP, | DIP, DIP20,.3 | DIP, DIP20,.3 | QCCN, | QCCN, | CERAMIC, LCC-20 | AXIAL LEADED | CERAMIC, DIP-20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | compliant | unknown |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 2 | 20 |
| Maximum operating temperature | 85 °C | 125 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | -55 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -55 °C | -55 °C |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | Axial | IN-LINE |
| surface mount | NO | NO | NO | NO | YES | YES | YES | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | METAL FILM | CMOS |
| Is it Rohs certified? | incompatible | - | incompatible | incompatible | - | - | incompatible | conform to | incompatible |
| Maker | Supertex | Supertex | Supertex | Supertex | Supertex | Supertex | Supertex | - | Supertex |
| Parts packaging code | DIP | DIP | DIP | DIP | QLCC | QLCC | QLCC | - | DIP |
| Contacts | 20 | 20 | 20 | 20 | 20 | 20 | 20 | - | 20 |
| series | HCT | HCT | HCT | HCT | HCT | HCT | HCT | - | HCT |
| JESD-30 code | R-CDIP-T20 | R-CDIP-T20 | R-PDIP-T20 | R-CDIP-T20 | X-CQCC-N20 | X-CQCC-N20 | X-CQCC-N20 | - | R-CDIP-T20 |
| JESD-609 code | e0 | - | e0 | e0 | - | - | e0 | e3 | e0 |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | - | BUS DRIVER |
| Number of digits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 |
| Number of ports | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | 2 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | - | 3-STATE |
| Output polarity | INVERTED | INVERTED | INVERTED | INVERTED | TRUE | TRUE | INVERTED | - | INVERTED |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | - | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DIP | DIP | DIP | QCCN | QCCN | QCCN | - | DIP |
| Encapsulate equivalent code | DIP20,.3 | - | DIP20,.3 | DIP20,.3 | - | - | LCC20,.35SQ | - | DIP20,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | - | RECTANGULAR |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | - | - | NOT SPECIFIED | - | NOT SPECIFIED |
| power supply | 5 V | - | 5 V | 5 V | - | - | 5 V | - | 5 V |
| propagation delay (tpd) | 40 ns | 45 ns | 40 ns | 40 ns | 40 ns | 40 ns | 40 ns | - | 45 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | - | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | - | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | - | 5 V |
| Temperature level | INDUSTRIAL | MILITARY | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | - | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | - | Tin/Lead (Sn/Pb) | Matte Tin (Sn) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | NO LEAD | NO LEAD | - | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | - | 2.54 mm | 2.54 mm | - | - | 1.27 mm | - | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | QUAD | QUAD | QUAD | - | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | - | - | NOT SPECIFIED | - | NOT SPECIFIED |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 |
