2N5006 datasheet, PDF - EEWORLD Datasheet

2N5006: Description10 AMP HIGH SPEED NPN TRANSISTOR 100 VOLTS; CategoryDiscrete semiconductor The transistor; File Size65KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

2N5006 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N5006	-	-	View	Buy Now

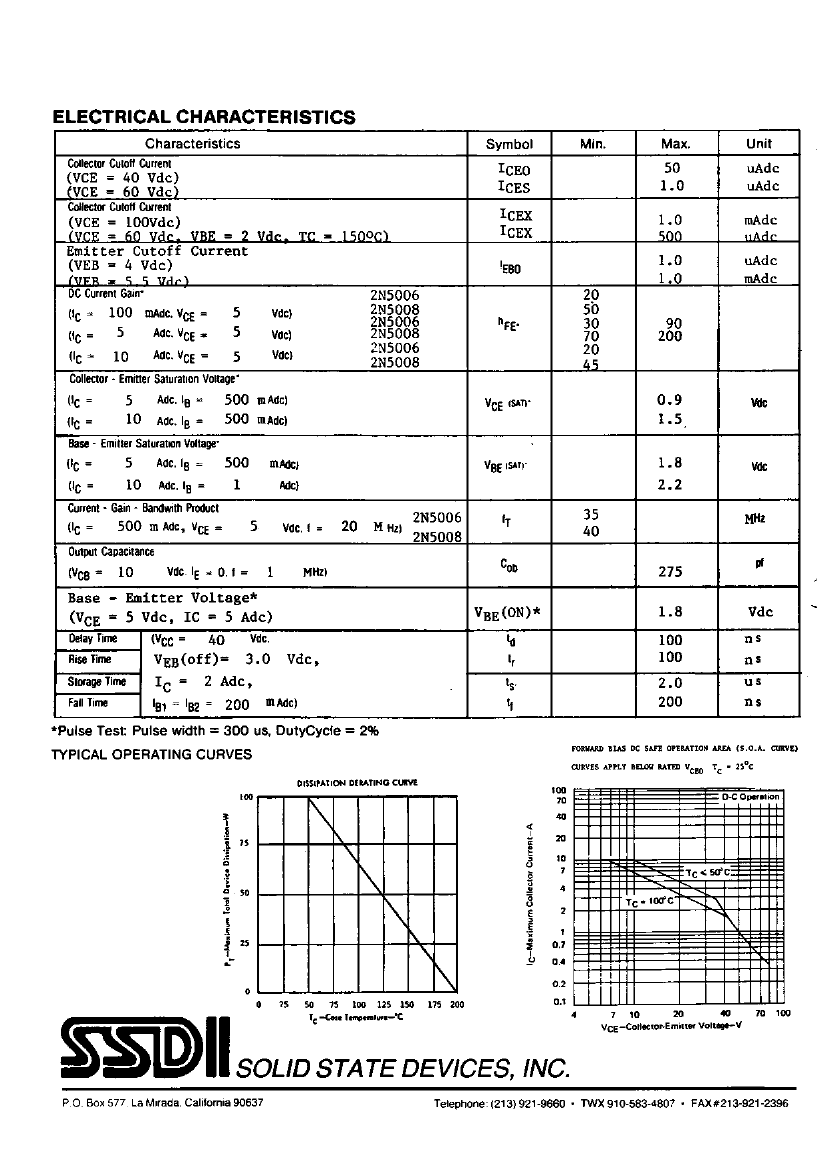

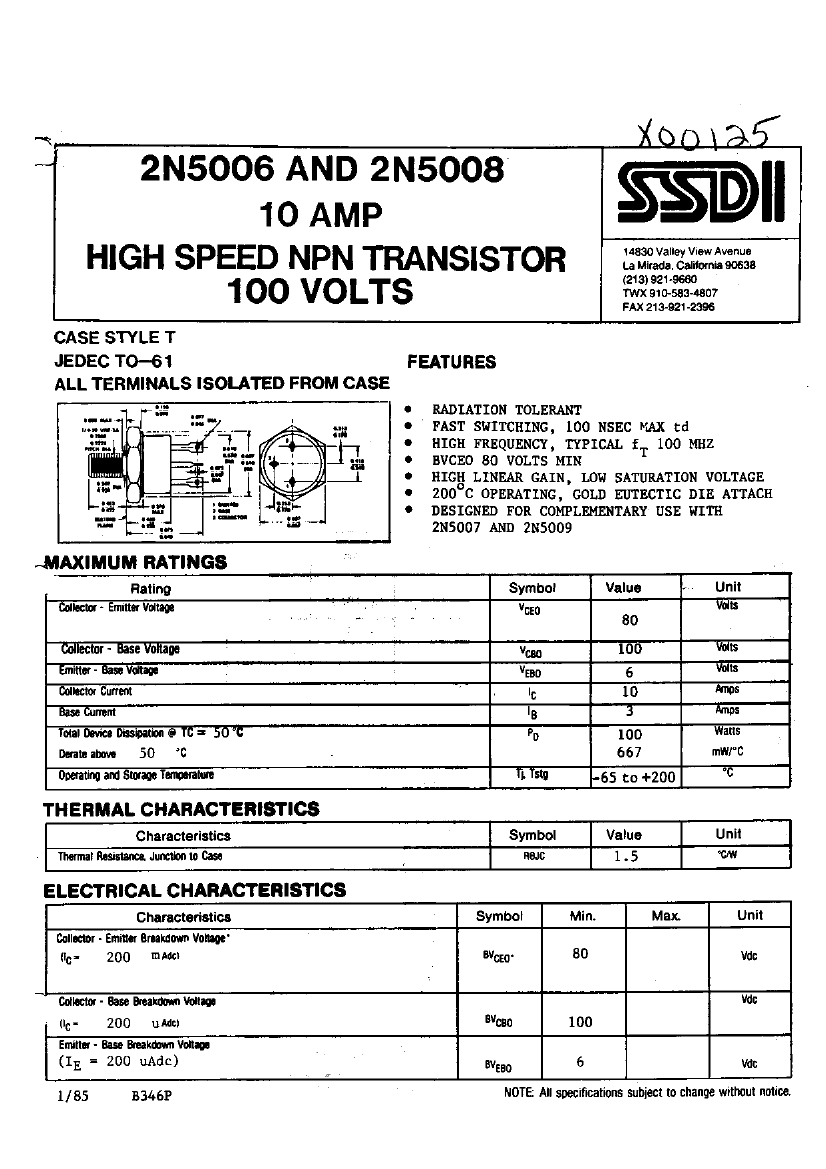

10 AMP HIGH SPEED NPN TRANSISTOR 100 VOLTS

Parameter Name	Attribute value
package instruction	POST/STUD MOUNT, O-MUPM-D3
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	ISOLATED
Maximum collector current (IC)	10 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	20
JEDEC-95 code	TO-61
JESD-30 code	O-MUPM-D3
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Polarity/channel type	NPN
Maximum power dissipation(Abs)	100 W
Certification status	Not Qualified
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	35 MHz
Base Number Matches	1

	2N5006	2N5008
Description	10 AMP HIGH SPEED NPN TRANSISTOR 100 VOLTS	10 AMP HIGH SPEED NPN TRANSISTOR 100 VOLTS
package instruction	POST/STUD MOUNT, O-MUPM-D3	POST/STUD MOUNT, O-MUPM-D3
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED
Maximum collector current (IC)	10 A	10 A
Collector-emitter maximum voltage	80 V	80 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	20	45
JEDEC-95 code	TO-61	TO-61
JESD-30 code	O-MUPM-D3	O-MUPM-D3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	200 °C	200 °C
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT
Polarity/channel type	NPN	NPN
Maximum power dissipation(Abs)	100 W	100 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	35 MHz	40 MHz
Base Number Matches	1	1
