Part Number

Search

5R8S

Description
40 AMP 40-150 VOLTS 50 nsec RECTIFIER
CategoryDiscrete semiconductor    diode
File Size140KB,2 Pages
ManufacturerSSDI
Websitehttp://www.ssdi-power.com/
Download Datasheet Parametric Compare View All

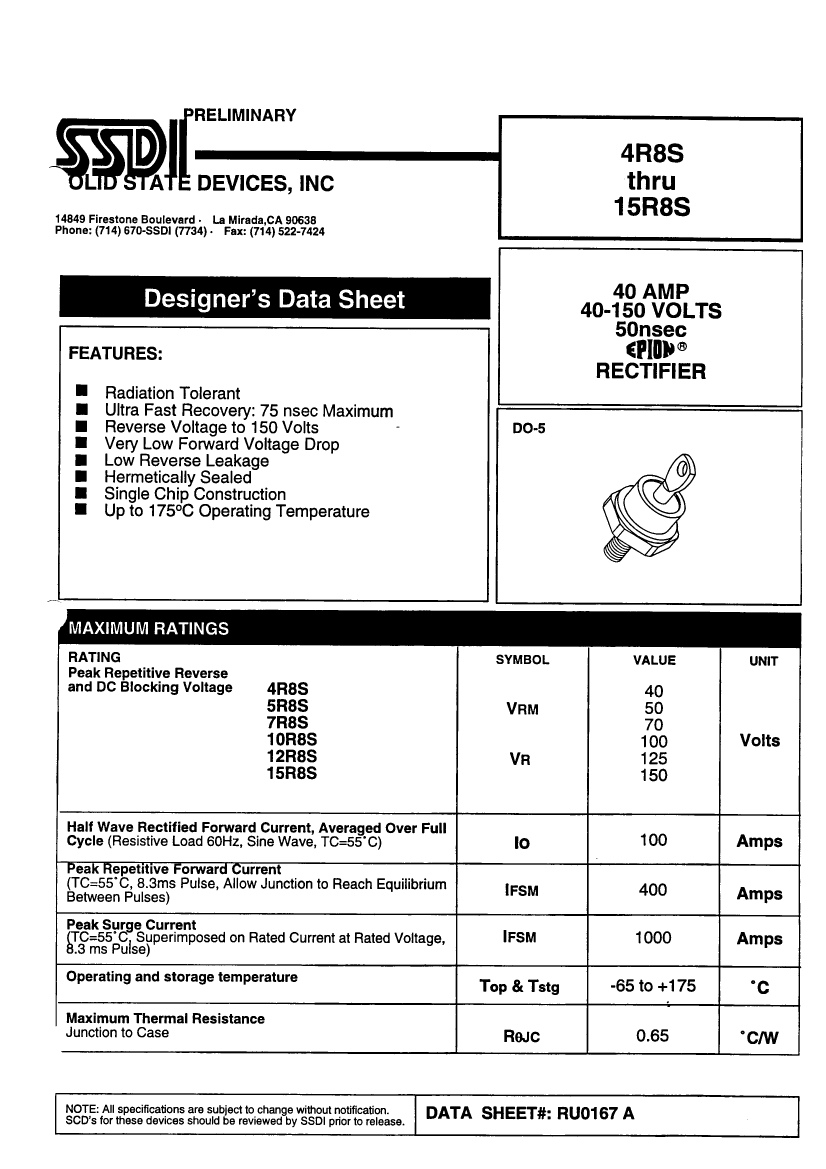

5R8S Overview

40 AMP 40-150 VOLTS 50 nsec RECTIFIER

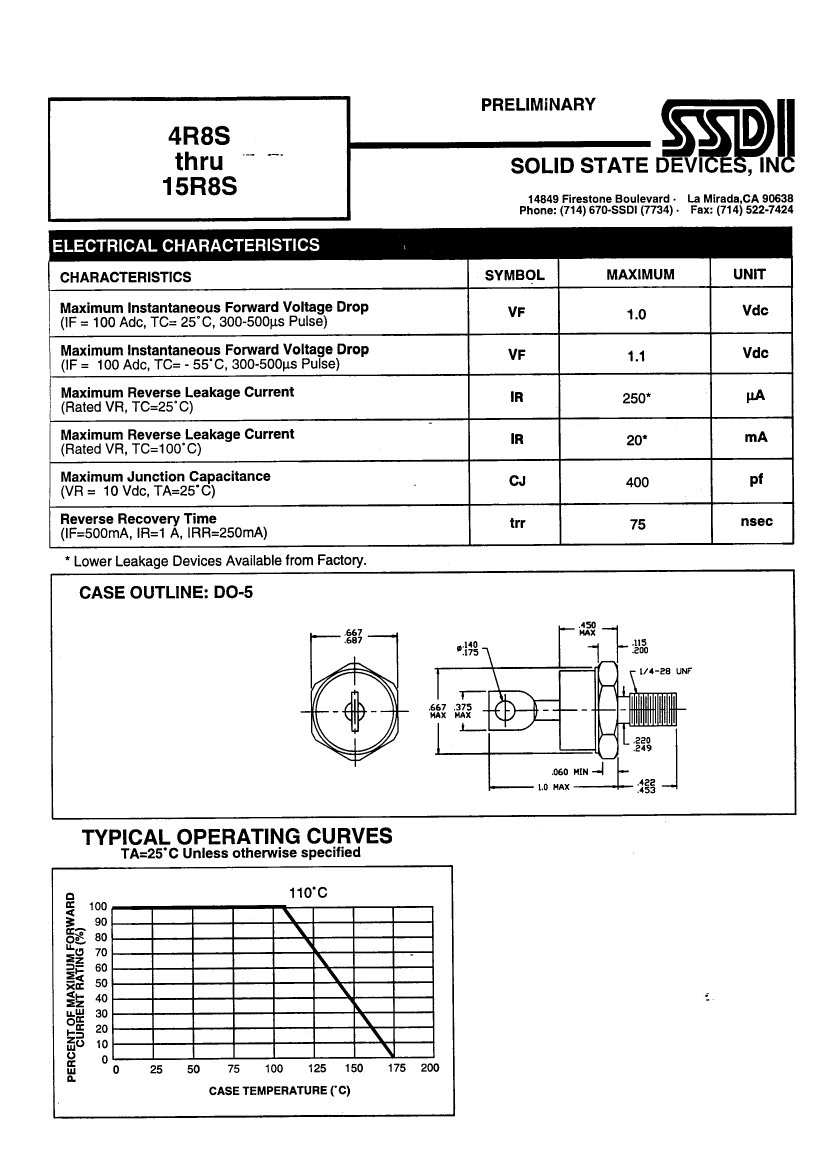

5R8S Parametric

Parameter NameAttribute value
MakerSSDI
package instructionO-MUPM-D1
Reach Compliance Codecompli
ECCN codeEAR99
applicationULTRA FAST RECOVERY
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.9 V
JEDEC-95 codeDO-5
JESD-30 codeO-MUPM-D1
Maximum non-repetitive peak forward current1000 A
Number of components1
Phase1
Number of terminals1
Maximum operating temperature175 °C
Maximum output current100 A
Package body materialMETAL
Package shapeROUND
Package formPOST/STUD MOUNT
Certification statusNot Qualified
Maximum repetitive peak reverse voltage50 V
Maximum reverse recovery time0.075 µs
surface mountNO
Terminal formSOLDER LUG
Terminal locationUPPER

5R8S Related Products

5R8S 10R8S 4R8S 7R8S 15R8S TPS259822L
Description 40 AMP 40-150 VOLTS 50 nsec RECTIFIER 40 AMP 40-150 VOLTS 50 nsec RECTIFIER 40 AMP 40-150 VOLTS 50 nsec RECTIFIER 40 AMP 40-150 VOLTS 50 nsec RECTIFIER 40 AMP 40-150 VOLTS 50 nsec RECTIFIER 2.7 V to 24 V, 15-A, 3-mΩ Smart eFuse With Accurate Load Monitoring and Adjustable Transient Fault Management
Reach Compliance Code compli compliant - compli compliant -
ECCN code EAR99 EAR99 - EAR99 EAR99 -
application ULTRA FAST RECOVERY ULTRA FAST RECOVERY - ULTRA FAST RECOVERY ULTRA FAST RECOVERY -
Configuration SINGLE SINGLE - SINGLE SINGLE -
Diode component materials SILICON SILICON - SILICON SILICON -
Diode type RECTIFIER DIODE RECTIFIER DIODE - RECTIFIER DIODE RECTIFIER DIODE -
Maximum forward voltage (VF) 0.9 V 0.9 V - 0.9 V 0.9 V -
JEDEC-95 code DO-5 DO-5 - DO-5 DO-5 -
JESD-30 code O-MUPM-D1 O-MUPM-D1 - O-MUPM-D1 O-MUPM-D1 -
Maximum non-repetitive peak forward current 1000 A 1000 A - 1000 A 1000 A -
Number of components 1 1 - 1 1 -
Phase 1 1 - 1 1 -
Number of terminals 1 1 - 1 1 -
Maximum operating temperature 175 °C 175 °C - 175 °C 175 °C -
Maximum output current 100 A 100 A - 100 A 100 A -
Package body material METAL METAL - METAL METAL -
Package shape ROUND ROUND - ROUND ROUND -
Package form POST/STUD MOUNT POST/STUD MOUNT - POST/STUD MOUNT POST/STUD MOUNT -
Certification status Not Qualified Not Qualified - Not Qualified Not Qualified -
Maximum repetitive peak reverse voltage 50 V 100 V - 70 V 150 V -
Maximum reverse recovery time 0.075 µs 0.075 µs - 0.075 µs 0.075 µs -
surface mount NO NO - NO NO -
Terminal form SOLDER LUG SOLDER LUG - SOLDER LUG SOLDER LUG -
Terminal location UPPER UPPER - UPPER UPPER -
