74F539SJX

Description
Decoder/Driver, F/FAST Series, Configurable Output, TTL, PDSO20, 0.300 INCH, EIAJ, PLASTIC, SOP-20
Categorylogic    logic
File Size105KB,8 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

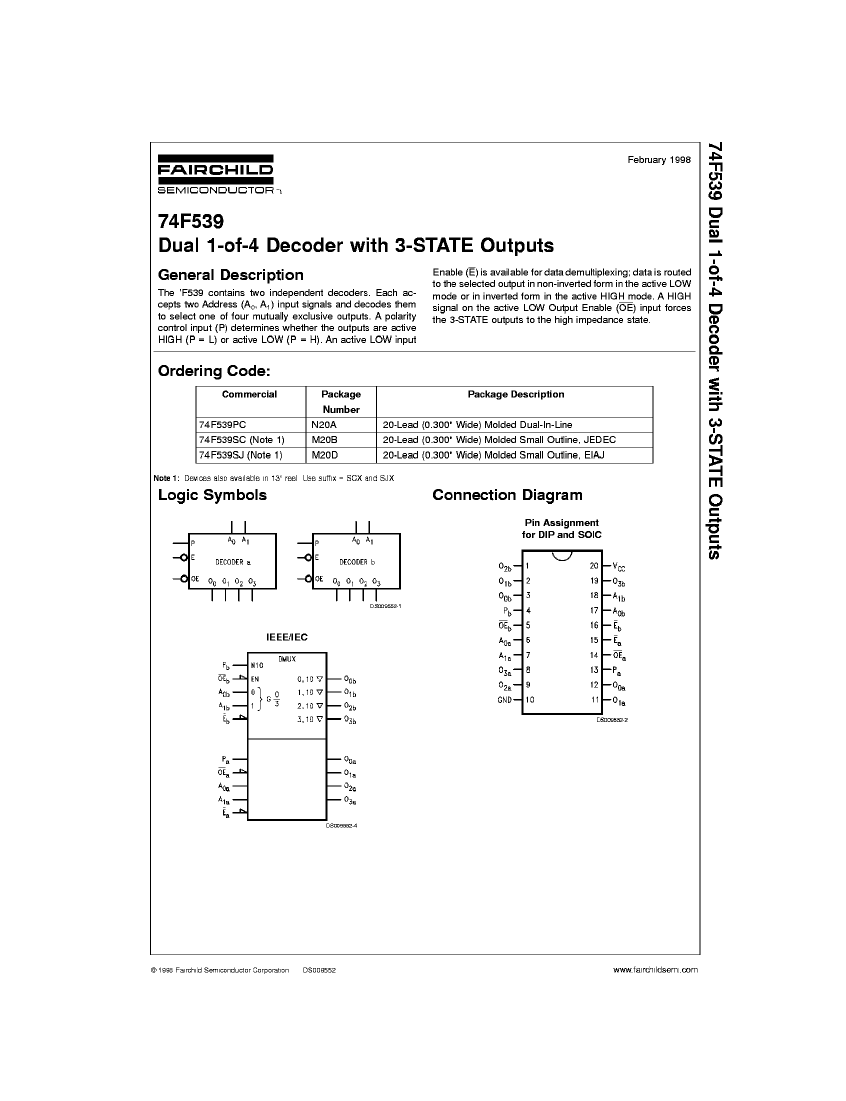

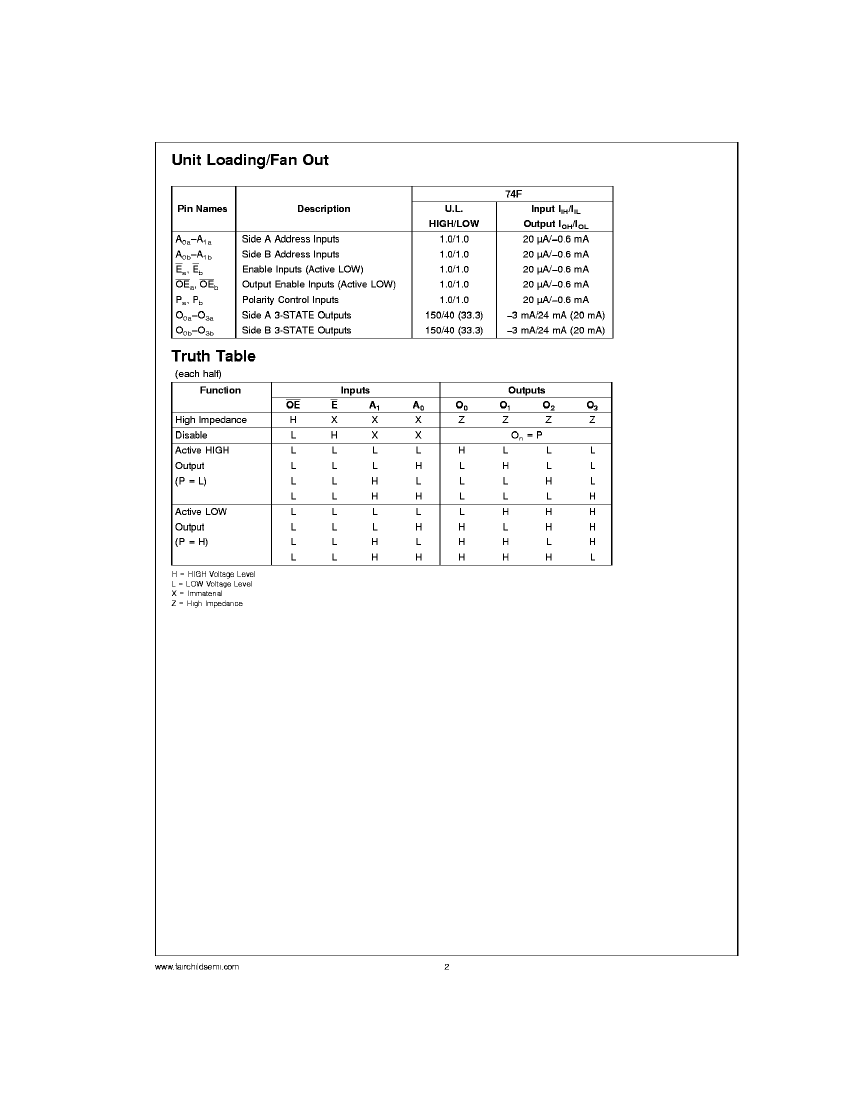

74F539SJX Overview

Decoder/Driver, F/FAST Series, Configurable Output, TTL, PDSO20, 0.300 INCH, EIAJ, PLASTIC, SOP-20

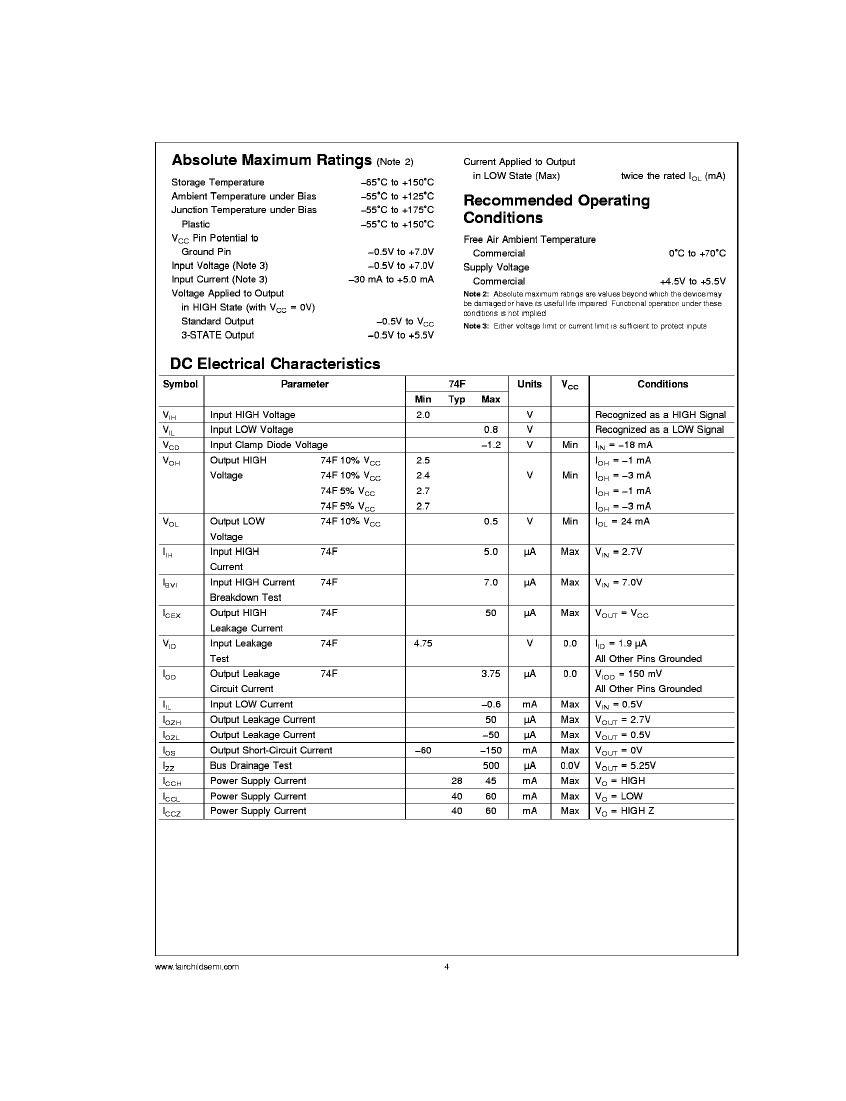

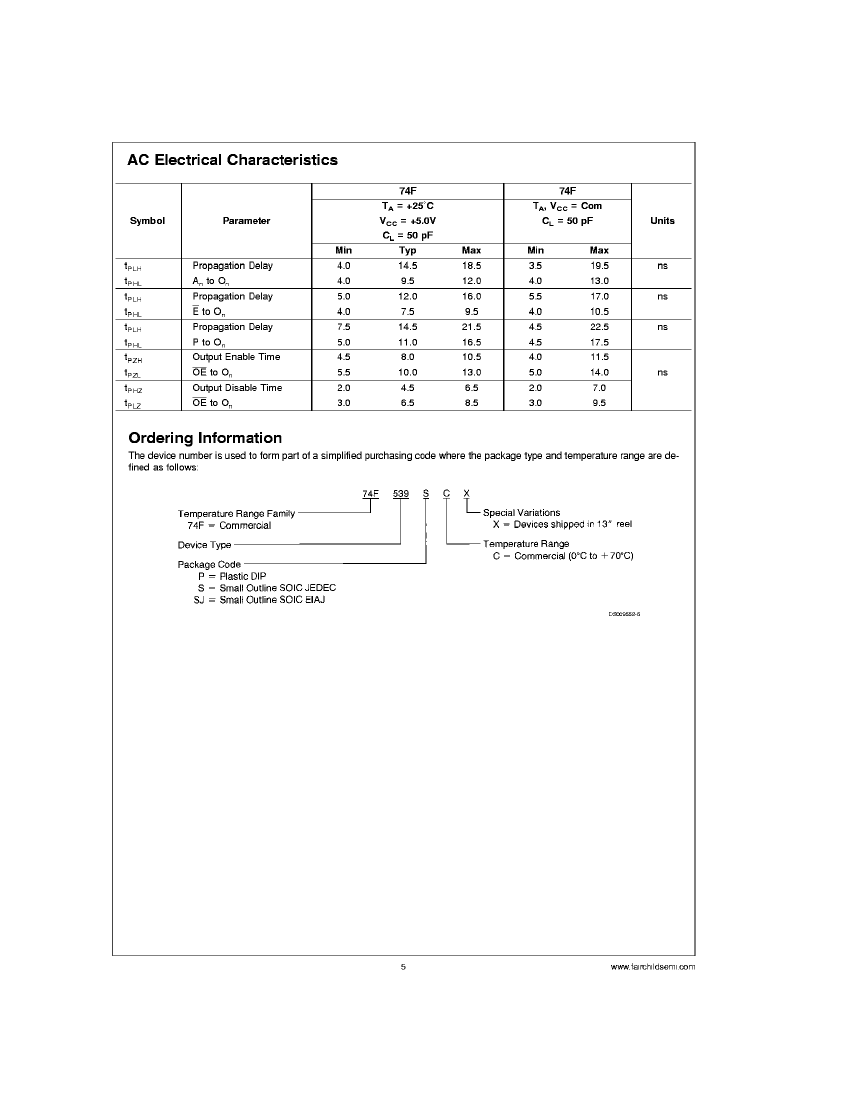

74F539SJX Parametric

Parameter NameAttribute value
MakerFairchild
Parts packaging codeSOIC
package instructionSOP,
Contacts20
Reach Compliance Codeunknown
ECCN codeEAR99
seriesF/FAST
JESD-30 codeR-PDSO-G20
length12.6 mm
Number of functions2
Number of terminals20
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristics3-STATE
Output polarityCONFIGURABLE
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
propagation delay (tpd)13 ns
Certification statusNot Qualified
Maximum seat height2.1 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelCOMMERCIAL
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
width5.3 mm
Base Number Matches1

74F539SJX Related Products

74F539SJX 74F539SJ
Description Decoder/Driver, F/FAST Series, Configurable Output, TTL, PDSO20, 0.300 INCH, EIAJ, PLASTIC, SOP-20 Decoder/Driver, F/FAST Series, Configurable Output, TTL, PDSO20, 0.300 INCH, EIAJ, PLASTIC, SOP-20
Maker Fairchild Fairchild
Parts packaging code SOIC SOIC
package instruction SOP, SOP, SOP20,.3
Contacts 20 20
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
series F/FAST F/FAST
JESD-30 code R-PDSO-G20 R-PDSO-G20
length 12.6 mm 12.6 mm
Number of functions 2 2
Number of terminals 20 20
Maximum operating temperature 70 °C 70 °C
Output characteristics 3-STATE 3-STATE
Output polarity CONFIGURABLE CONFIGURABLE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
propagation delay (tpd) 13 ns 13 ns
Certification status Not Qualified Not Qualified
Maximum seat height 2.1 mm 2.1 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V
surface mount YES YES
technology TTL TTL
Temperature level COMMERCIAL COMMERCIAL
Terminal form GULL WING GULL WING
Terminal pitch 1.27 mm 1.27 mm
Terminal location DUAL DUAL
width 5.3 mm 5.3 mm
Base Number Matches 1 1
