74F160APCQR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74F160APCQR

74F160APCQR: DescriptionDecade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size328KB，7 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

74F160APCQR Overview

Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDIP16, PLASTIC, DIP-16

74F160APCQR Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	F/FAST
JESD-30 code	R-PDIP-T16
length	19.18 mm
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	11 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	120 MHz
Base Number Matches	1

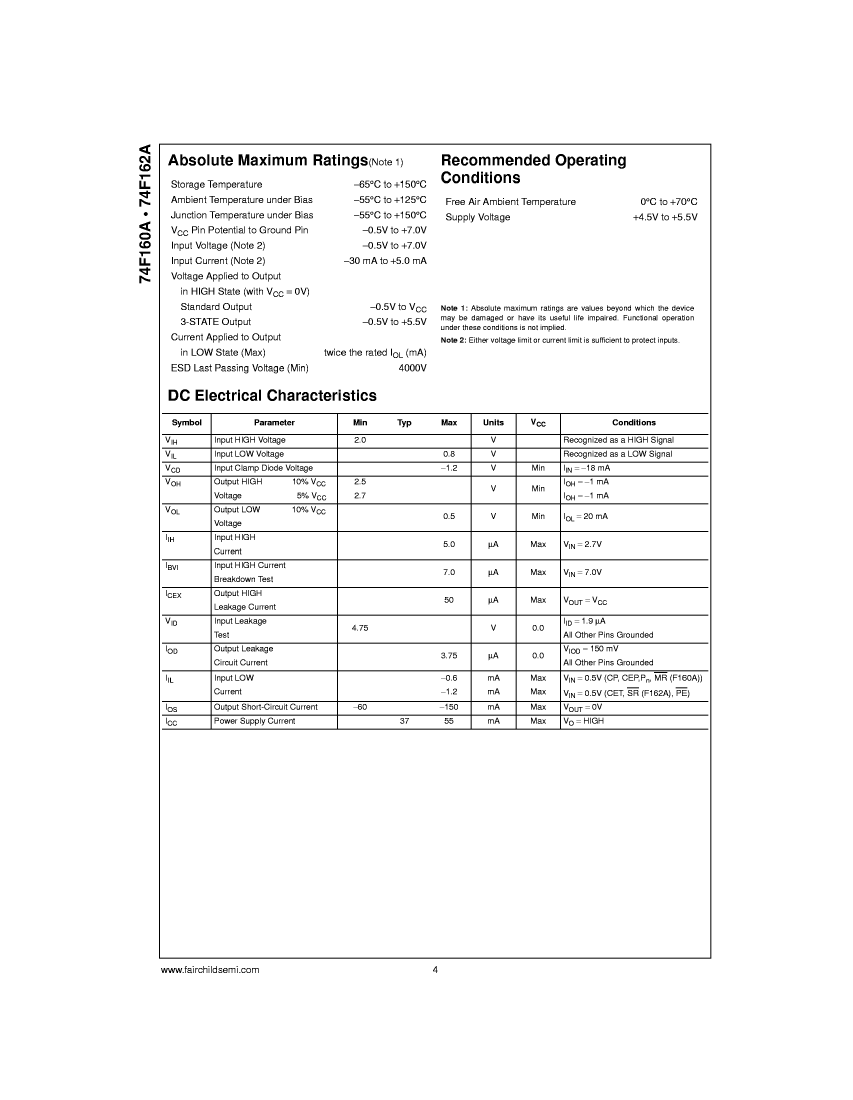

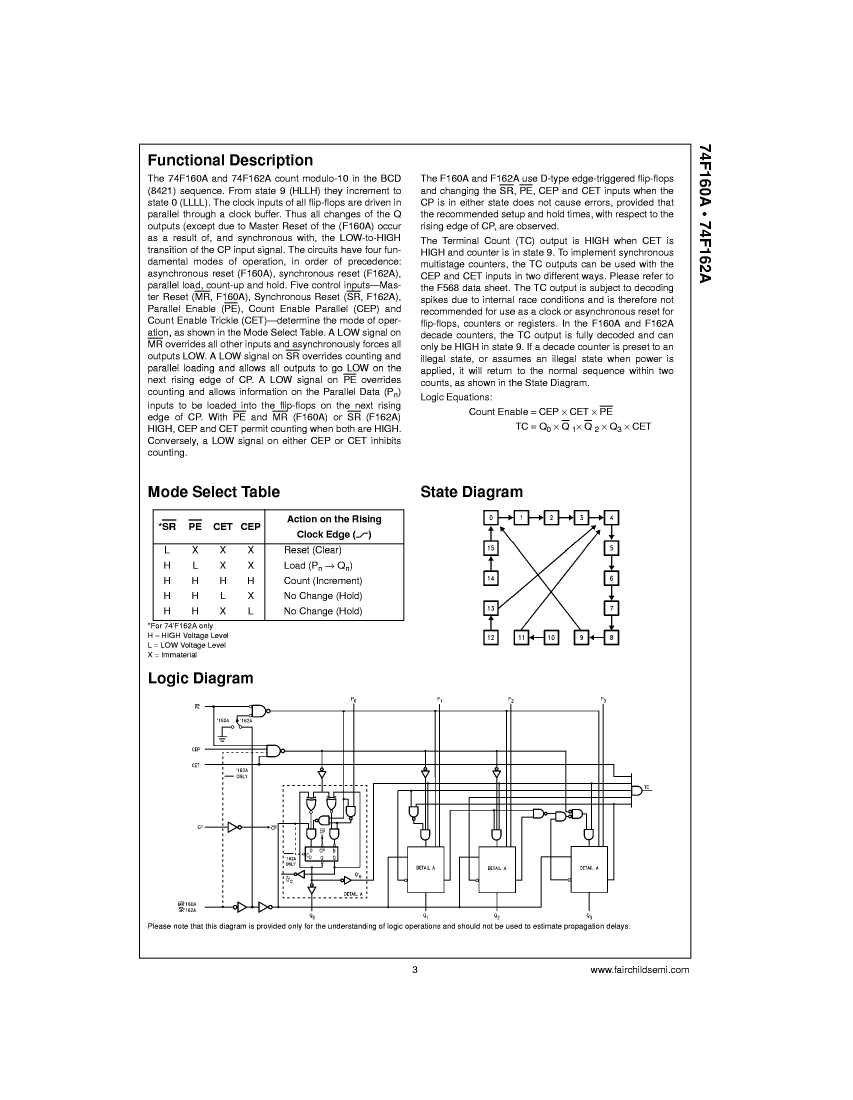

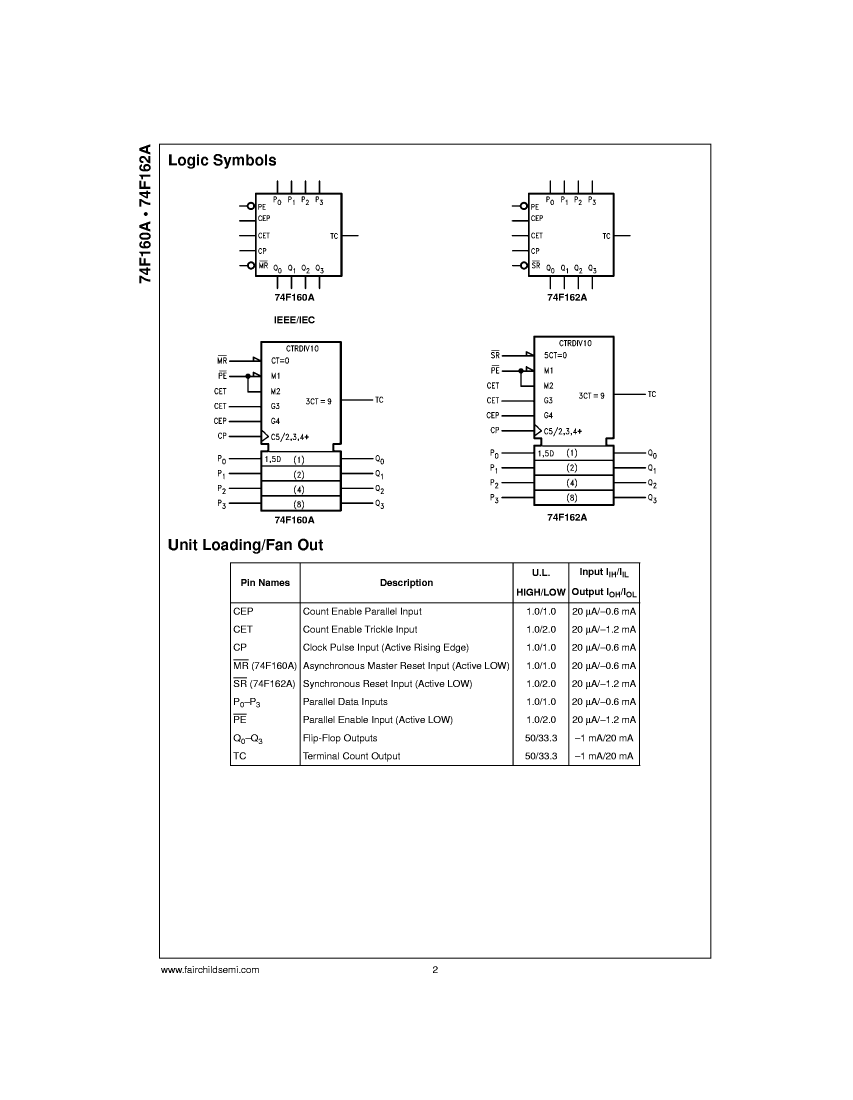

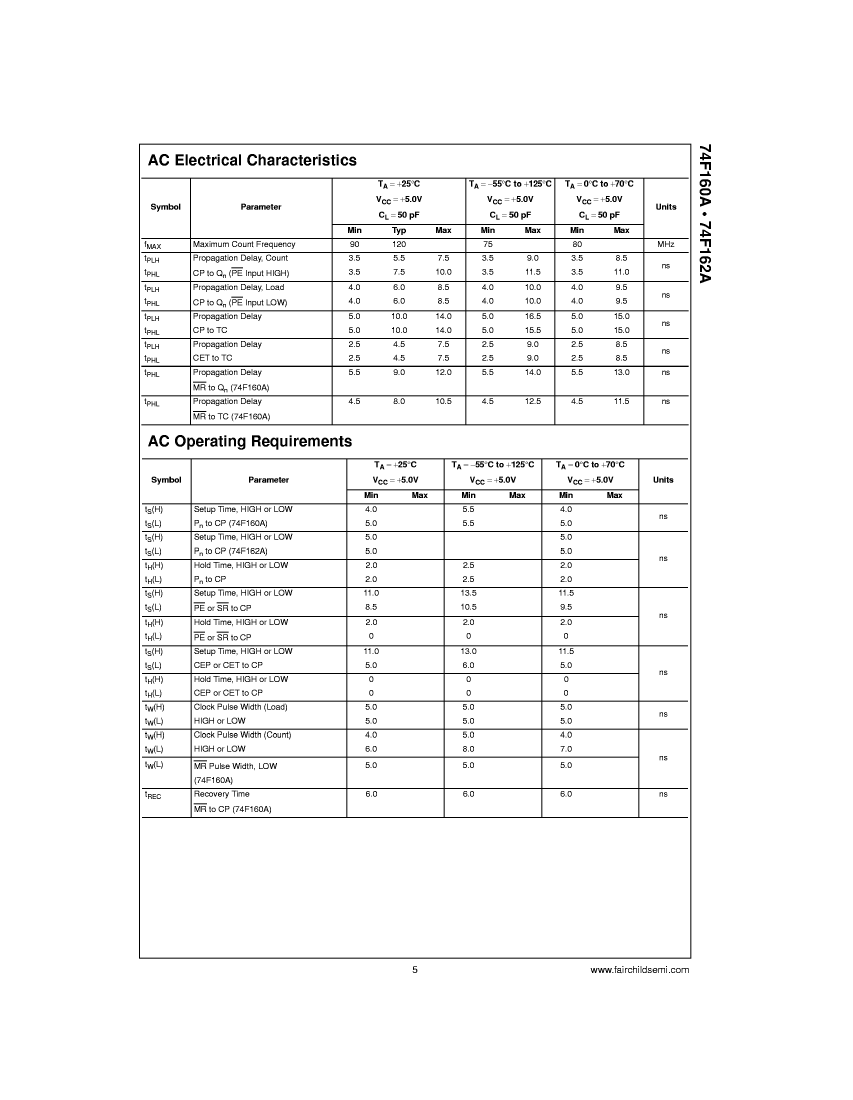

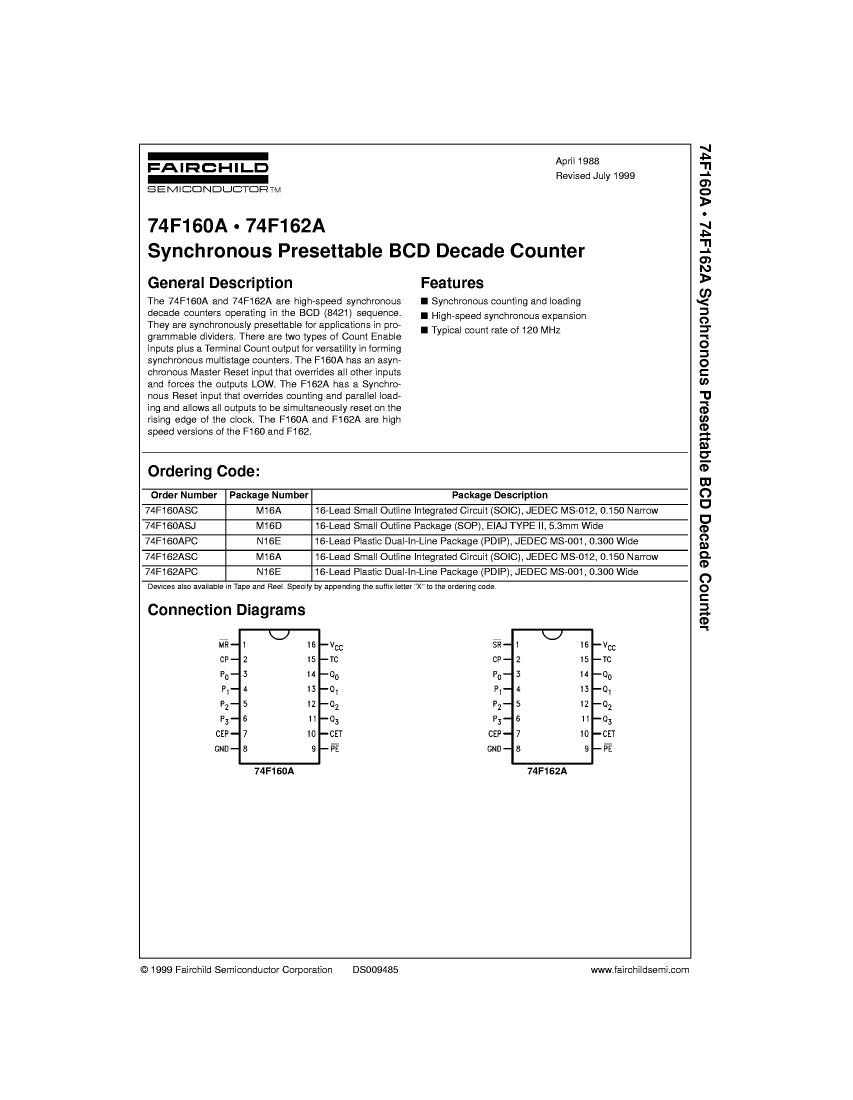

Preview

Download Datasheet

View All

74F160APCQR Related Products

	74F160APCQR	74F162ADCQR	74F162APCQR	74F160APCQM	74F162ADC
Description	Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDIP16, PLASTIC, DIP-16	Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERAMIC, DIP-16	Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDIP16, PLASTIC, DIP-16	Decade Counter,	Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERAMIC, DIP-16
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	DIP,	DIP,	DIP,	,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER
Base Number Matches	1	1	1	1	1
Other features	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	-	TCO OUTPUT
Counting direction	UP	UP	UP	-	UP
series	F/FAST	F/FAST	F/FAST	-	F/FAST
JESD-30 code	R-PDIP-T16	R-GDIP-T16	R-PDIP-T16	-	R-GDIP-T16
length	19.18 mm	19.43 mm	19.18 mm	-	19.43 mm
Load/preset input	YES	YES	YES	-	YES
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	-	SYNCHRONOUS
Number of digits	4	4	4	-	4
Number of functions	1	1	1	-	1
Number of terminals	16	16	16	-	16
Maximum operating temperature	70 °C	70 °C	70 °C	-	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	-	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	-	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE
propagation delay (tpd)	11 ns	11 ns	11 ns	-	11 ns
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	-	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	-	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	-	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V
surface mount	NO	NO	NO	-	NO
technology	TTL	TTL	TTL	-	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	-	POSITIVE EDGE
width	7.62 mm	7.62 mm	7.62 mm	-	7.62 mm
minfmax	120 MHz	120 MHz	120 MHz	-	120 MHz
