74LS27N datasheet, PDF - EEWORLD Datasheet

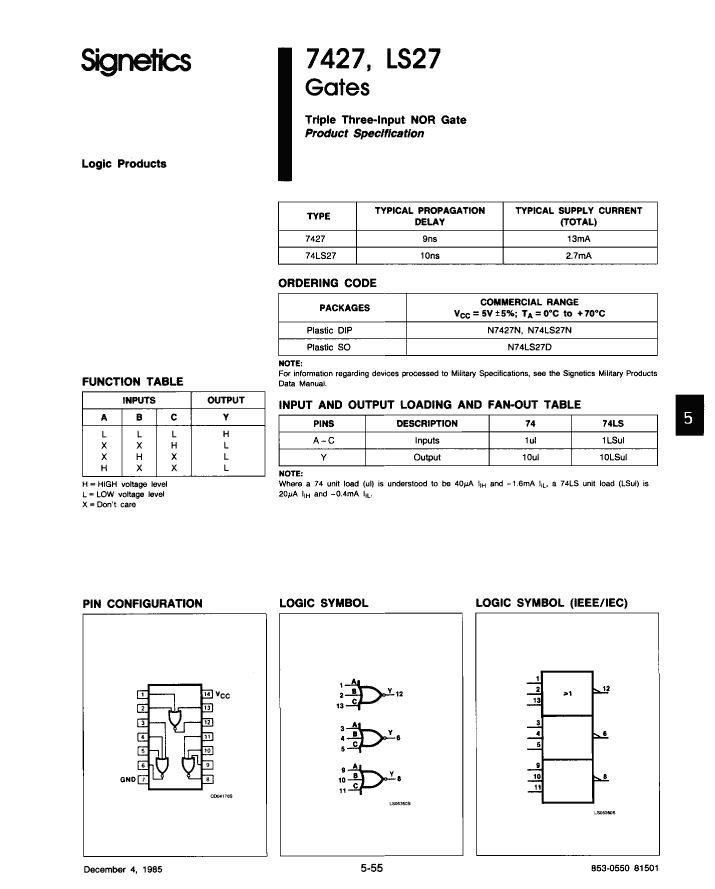

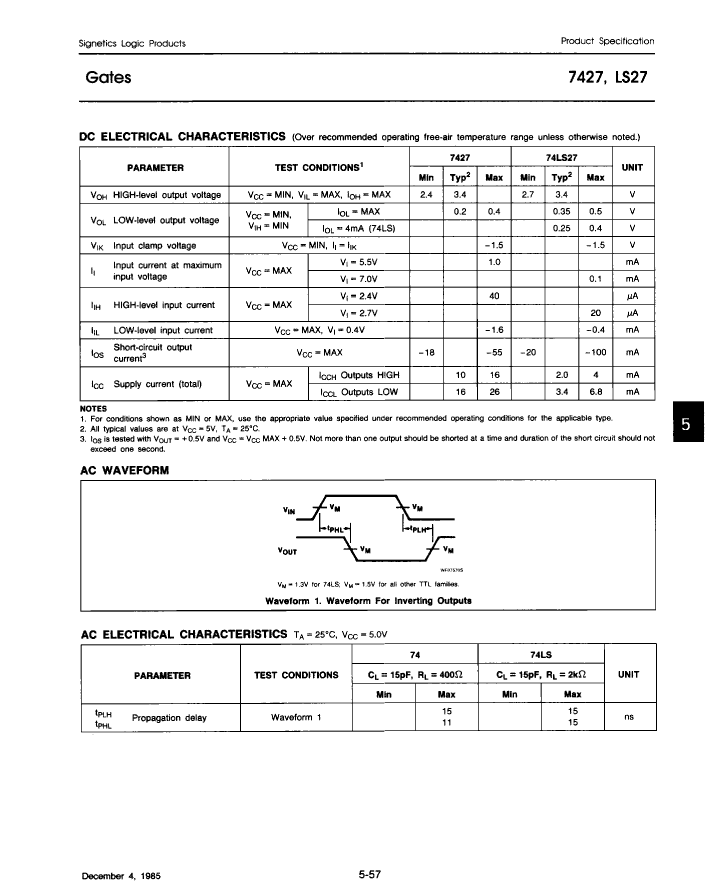

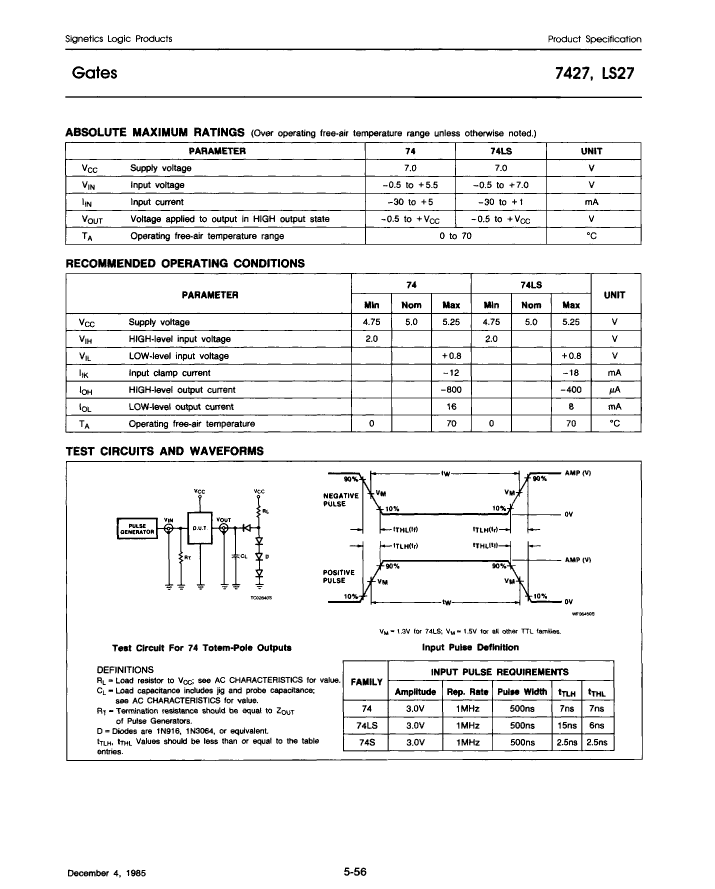

74LS27N: DescriptionNOR Gate, LS Series, 3-Func, 3-Input, TTL, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size77KB，3 Pages; ManufacturerSignetics

Download Datasheet Parametric Compare View All

74LS27N Overview

NOR Gate, LS Series, 3-Func, 3-Input, TTL, PDIP14, PLASTIC, DIP-14

Parameter Name	Attribute value
Maker	Signetics
package instruction	DIP,
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T14
Logic integrated circuit type	NOR GATE
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	74LS27N	7427N
Description	NOR Gate, LS Series, 3-Func, 3-Input, TTL, PDIP14, PLASTIC, DIP-14	NOR Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDIP14, PLASTIC, DIP-14
Maker	Signetics	Signetics
package instruction	DIP,	DIP,
Reach Compliance Code	unknown	unknown
series	LS	TTL/H/L
JESD-30 code	R-PDIP-T14	R-PDIP-T14
Logic integrated circuit type	NOR GATE	NOR GATE
Number of functions	3	3
Number of entries	3	3
Number of terminals	14	14
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
propagation delay (tpd)	15 ns	11 ns
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
Base Number Matches	1	1
