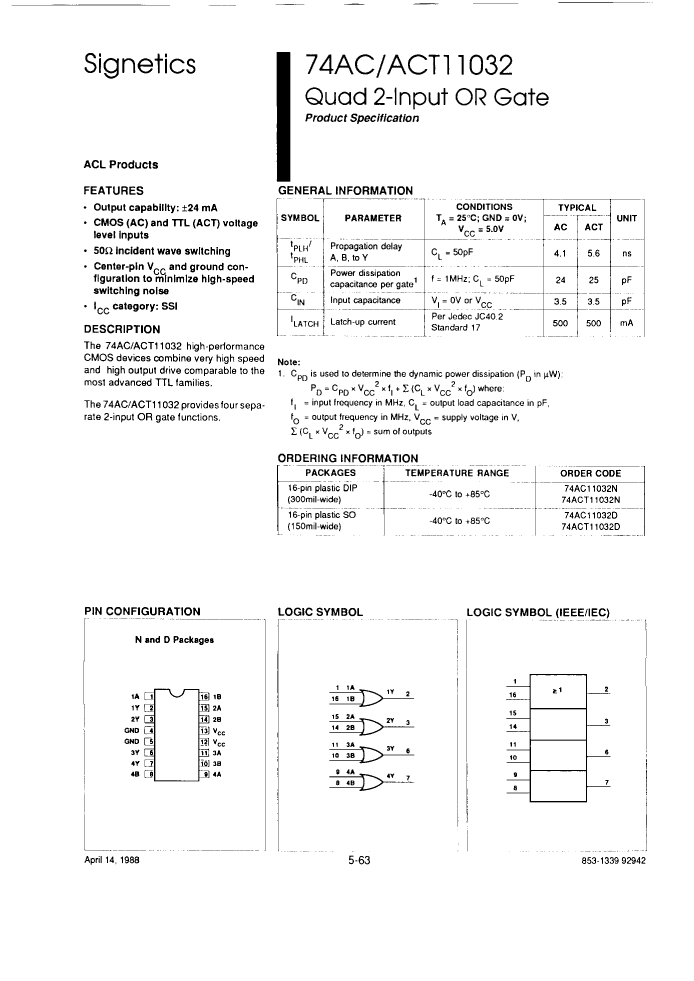

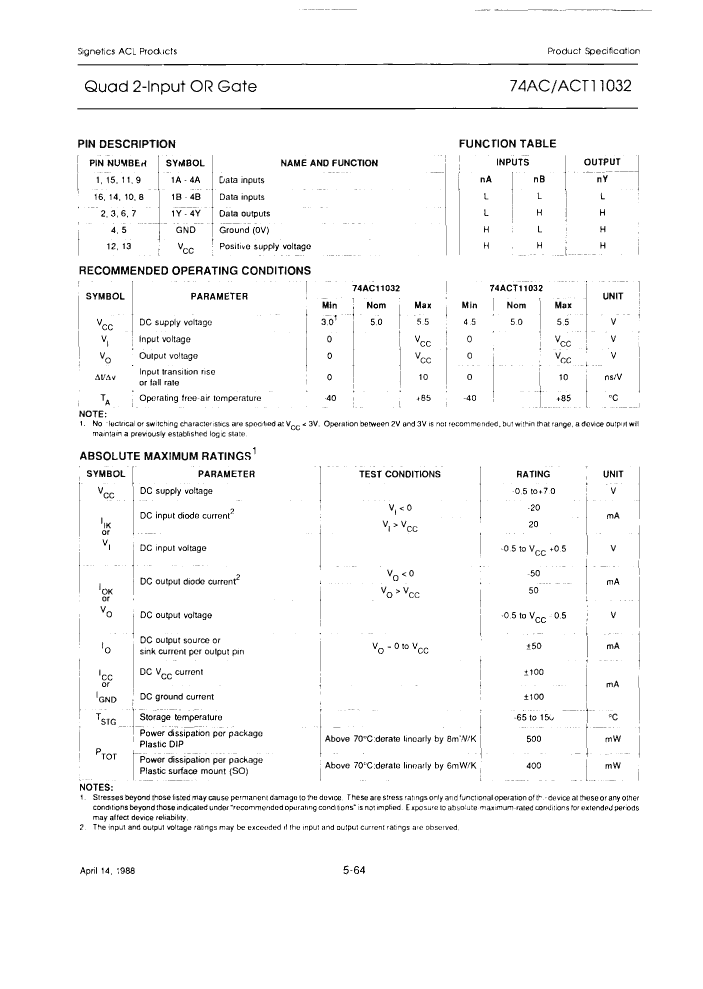

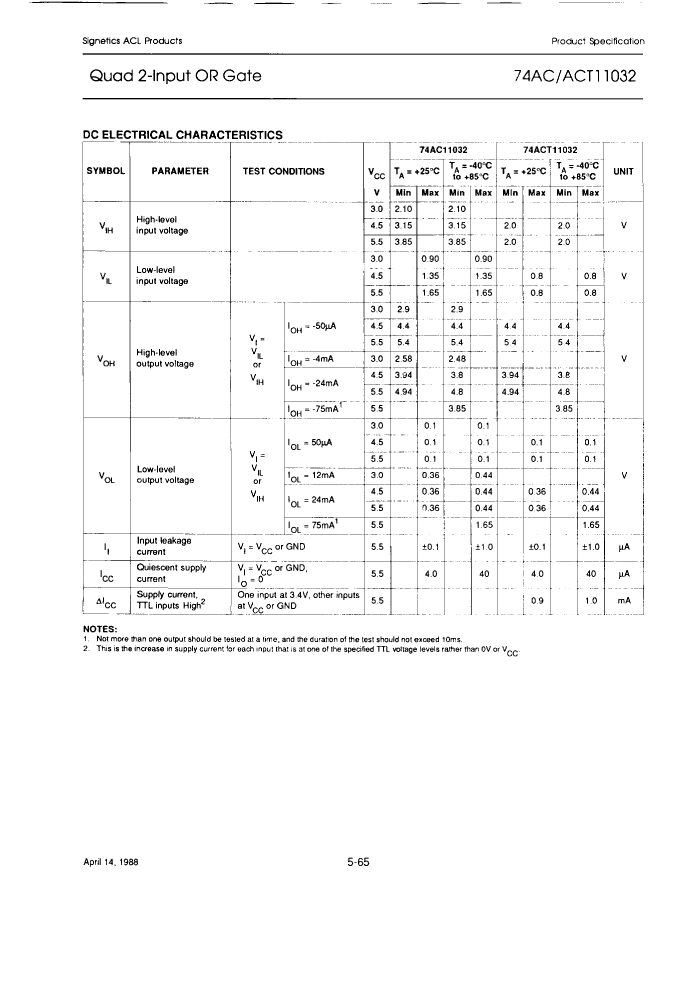

OR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP16

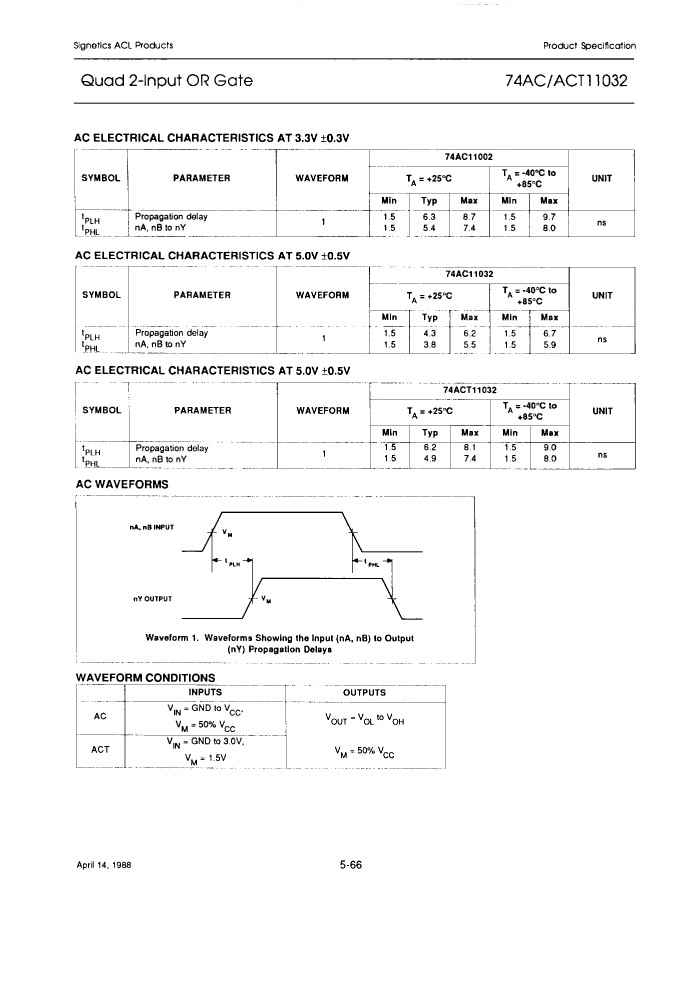

| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | , |
| Reach Compliance Code | unknown |
| series | ACT |
| JESD-30 code | R-PDIP-T16 |
| Logic integrated circuit type | OR GATE |
| Number of functions | 4 |
| Number of entries | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 8 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 74ACT11032N | 74ACT11032D | 74ACT11032D-T | 74AC11032D | 74AC11032D-T | 74AC11032N | |
|---|---|---|---|---|---|---|
| Description | OR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP16 | OR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO16 | OR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO16 | OR Gate, AC Series, 4-Func, 2-Input, CMOS, PDSO16 | OR Gate, AC Series, 4-Func, 2-Input, CMOS, PDSO16 | OR Gate, AC Series, 4-Func, 2-Input, CMOS, PDIP16 |
| Maker | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| series | ACT | ACT | ACT | AC | AC | AC |
| JESD-30 code | R-PDIP-T16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDIP-T16 |
| Logic integrated circuit type | OR GATE | OR GATE | OR GATE | OR GATE | OR GATE | OR GATE |
| Number of functions | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of entries | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| propagation delay (tpd) | 8 ns | 8 ns | 8 ns | 8 ns | 8 ns | 8 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 3 V | 3 V | 3 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
