Bulletin I2151 rev. C 12/02
SAFE
IR
Series
70EPS..
INPUT RECTIFIER DIODE
I
F(RMS)
= 135A
V
F
< 1.15V @ 70A
I
FSM
= 900A
V
RRM
800 to 1200V
Major Ratings and Characteristics
Characteristics
I
F(AV)
Sine waveform
@ T
C
= 103° C
I
F(RMS)
V
RRM
range(*)
I
FSM
V
F
T
J
@ 70A, T
J
= 25°C
range
Description/ Features
Units
A
A
V
A
V
°C
The 70EPS.. rectifier
SAFE
IR
series has been
optimized for very low forward voltage drop, with
moderate leakage.
The glass passivation technology used has reliable
operation up to 150° C junction temperature.
Available in the new
Pow
IR
tab
TM
package, this new
series is suitable for a large range of applications
combining excellent die to footprint ratio and sturdeness
connectivity for use in high current environments.
70EPS..
70
135
800 to 1200
900
1.12
- 40 to 150
Case Styles
70EPS..
70EPS..J
(*)
for higher voltage up to 1600V contact factory
www.irf.com
1
70EPS..
SAFE
IR
Series
Bulletin I2151 rev. C 12/02
Voltage Ratings
V
RRM
, maximum
Part Number
peak reverse voltage
V
70EPS08
70EPS12
800
1200
V
RSM
, maximum non repetitive
peak reverse voltage
V
900
1300
I
RRM
150°C
mA
5
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward Current
I
F(RMS)
I
FSM
Max. Peak One Cycle Non-Repetitive
Surge Current
I t
2
70EPS..
70
135
800
950
3200
4500
Units
A
A
A
2
Conditions
@ T
C
= 103° C, 180° conduction half sine wave
10ms Sine pulse, rated V
RRM
applied
10ms Sine pulse, no voltage reapplied
10ms Sine pulse, rated V
RRM
applied
10ms Sine pulse, no voltage reapplied
Max. I t for fusing
2
A s
I
2
√t
Max. I
2
√t
for fusing
32000
A
2
√s
t = 0.1 to 10ms, no voltage reapplied
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
r
t
Forward slope resistance
70EPS..
1.12
3.075
0.829
0.1
5.0
Units
V
mΩ
V
mA
Conditions
@ 70A, T
J
= 25°C
T
J
= 150°C
V
F(TO)
Threshold voltage
I
RM
Max. Reverse Leakage Current
T
J
= 25 °C
T
J
= 150 °C
V
R
= rated V
RRM
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
70EPS..
- 40 to 150
- 40 to 150
0.35
40
0.2
6 (0.21)
Min.
Max.
6 (5)
12 (12)
Units
°C
°C
°C/W
°C/W
°C/W
g (oz.)
Kg-cm
(Ibf-in)
Conditions
R
thJC
Max. Thermal Resistance Junction
to Case
R
thJA
Max. Thermal Resistance Junction
to Ambient
R
thCS
Typical Thermal Resistance, Case to
Heatsink
wt
T
Approximate Weight
MountingTorque
Case Style
DCoperation
Mounting surface , smooth and greased
PowIRtab
TM
2
www.irf.com
70EPS..
SAFE
IR
Series
Bulletin I2151 rev. C 12/02
Maximum Allowable Case Temperature (°C)
Maximum Allowable Case Temperature (°C)
150
140
130
120
110
30˚
70EPS.. Series
R thJC (DC) = 0.35 K/W
160
70EPS.. Series
R thJC (DC) = 0.35 K/W
140
120
100
30˚
100
90
Conduction Angle
60˚
90˚
120˚
180˚
60˚
90˚
80
120˚
180˚
Conduction Period
DC
80
0
10 20 30 40 50 60 70
Average Forward Current (A)
Fig. 1 - Current Rating Characteristics
60
80
0
20
40
60
80
100
Average Forward Current (A)
120
Fig. 2 - Current Rating Characteristics
Maximum Average Forward Power Loss (W)
Maximum Average Forward Power Loss (W)
100
80
180˚
120˚
90˚
60˚
30˚
RMS Limit
140
120
100
80
60
DC
180˚
120˚
90˚
60˚
30˚
RMS Limit
40
Conduction Angle
60
Conduction Period
40
20
0
0
30
60
90
Average Forward Current (A)
120
70EPS.. Series
T
J
= 150˚C
20
70EPS.. Series
T
J
= 150˚C
0
0
20
40
60
Average Forward Current (A)
80
Fig. 3 - Forward Power Loss Characteristics
Fig. 4 - Forward Power Loss Characteristics
1000
Instantaneous Forward Current (A)
100
TJ = 25˚C
10
TJ = 150˚C
70EPS.. Series
1
0
1
2
3
Instantaneous Forward Voltage (V)
4
Fig. 5 - Forward Voltage Drop Characteristics
www.irf.com
3
70EPS..
SAFE
IR
Series
Bulletin I2151 rev. C 12/02
900
Peak Half Wave Forward Current (A)
Peak Half Wave Forward Current (A)
800
700
600
500
400
300
200
At Any Rated Load Condition And With
Rated Vrrm Applied Following Surge.
Initial T j = 150˚C
J
@ 60 Hz 0.0083 s
@ 50 Hz 0.0100 s
1000
900
800
700
600
500
400
300
200
100
0.01
Maximum Non Repetitive Surge Current
Versus Pulse Train Duration.
Initial Tj = 150˚C
No Voltage Reapplied
Rated Vrrm Reapplied
70EPS.. Series
70EPS.. Series
1
10
100
Number of Equal Amplitude Half Cycle Current Pulses (n)
Fig. 5 - Maximum Non-Repetitive Surge Current
Transient Thermal Impedance Z
thJC
(°C/W)
1
0.1
1
Pulse Train Duration (s)
10
Fig. 6 - Maximum Non-Repetitive Surge Current
Steady State Value
(DC Operation)
0.1
D = 0.50
D = 0.33
D = 0.25
D = 0.17
D = 0.08
Single Pulse
70EPS.. Series
0.01
0.0001
0.001
0.01
Square Wave Pulse Duration (s)
0.1
1
Fig. 8 - Thermal Impedance Z
thJC
Characteristics
4
www.irf.com
70EPS..
SAFE
IR
Series
Bulletin I2151 rev. C 12/02

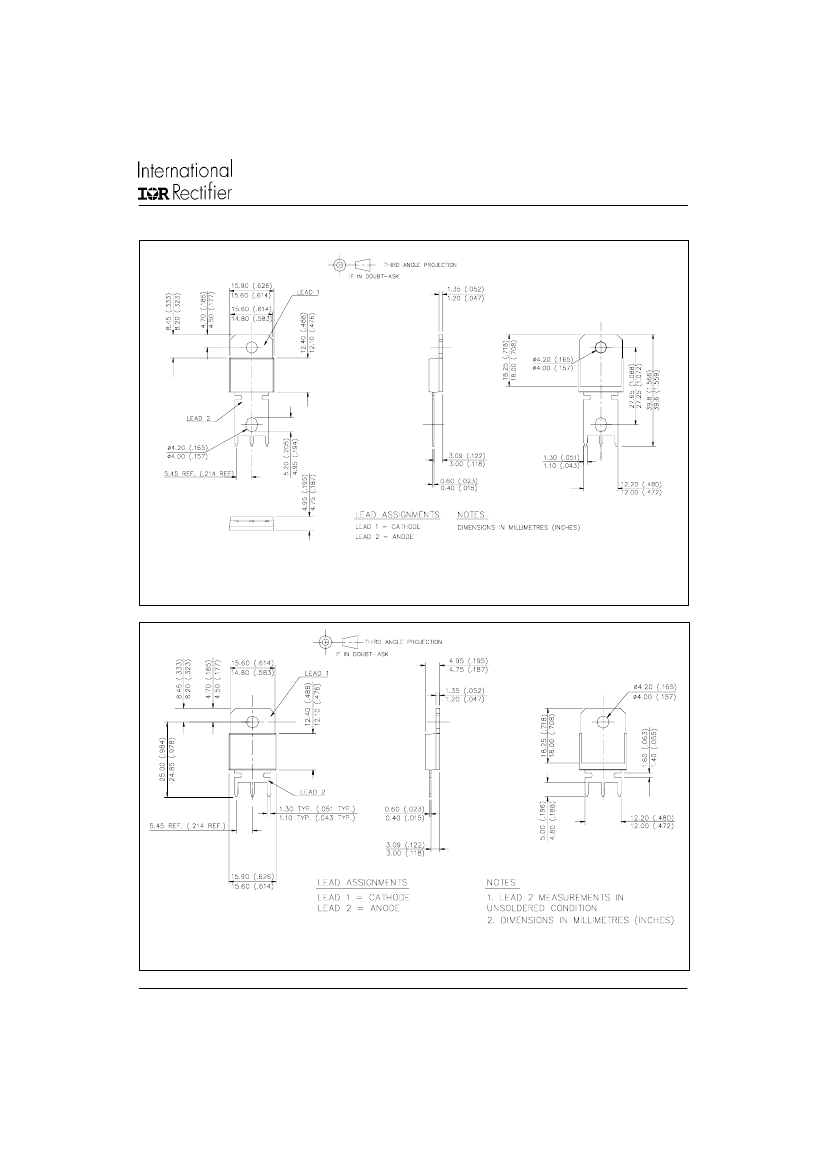

Outline Table
Case Style
PowIRtab
TM
Dimensions in millimeters and (inches)
Case Style
PowIRtab
TM
"J" version
Dimensions in millimeters and (inches)
www.irf.com
5
