536275-3 datasheet, PDF - EEWORLD Datasheet

536275-3: Description200 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG; CategoryThe connector The connector; File Size144KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

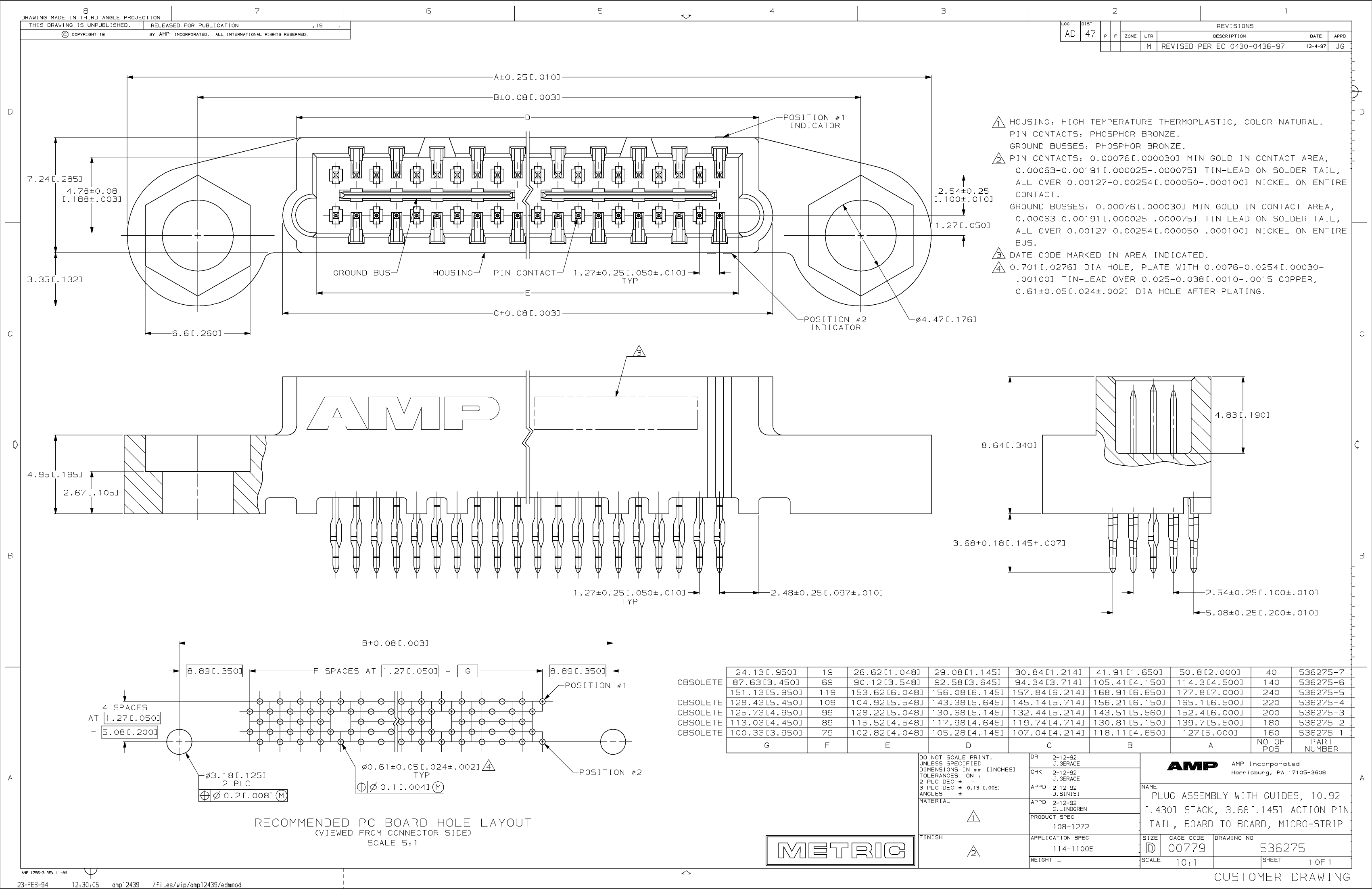

536275-3 Overview

200 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ACTION PIN
Board mount options	HOLE .125-.137
body width	0.417 inch
subject depth	0.34 inch
body length	6 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	536275
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.145 inch
Terminal pitch	1.27 mm
Termination type	PRESS FIT
Total number of contacts	200
Base Number Matches	1

	536275-3	536275-6
Description	200 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG	140 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
Other features	ACTION PIN	ACTION PIN
Board mount options	HOLE .125-.137	HOLE .125-.137
body width	0.417 inch	0.417 inch
subject depth	0.34 inch	0.34 inch
body length	6 inch	4.5 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	THERMOPLASTIC	THERMOPLASTIC
MIL compliance	NO	NO
Manufacturer's serial number	536275	536275
Plug contact pitch	0.05 inch	0.05 inch
Match contact row spacing	0.1 inch	0.1 inch
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	5	5
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED
PCB contact row spacing	1.27 mm	1.27 mm
Plating thickness	30u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.145 inch	0.145 inch
Terminal pitch	1.27 mm	1.27 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	200	140
