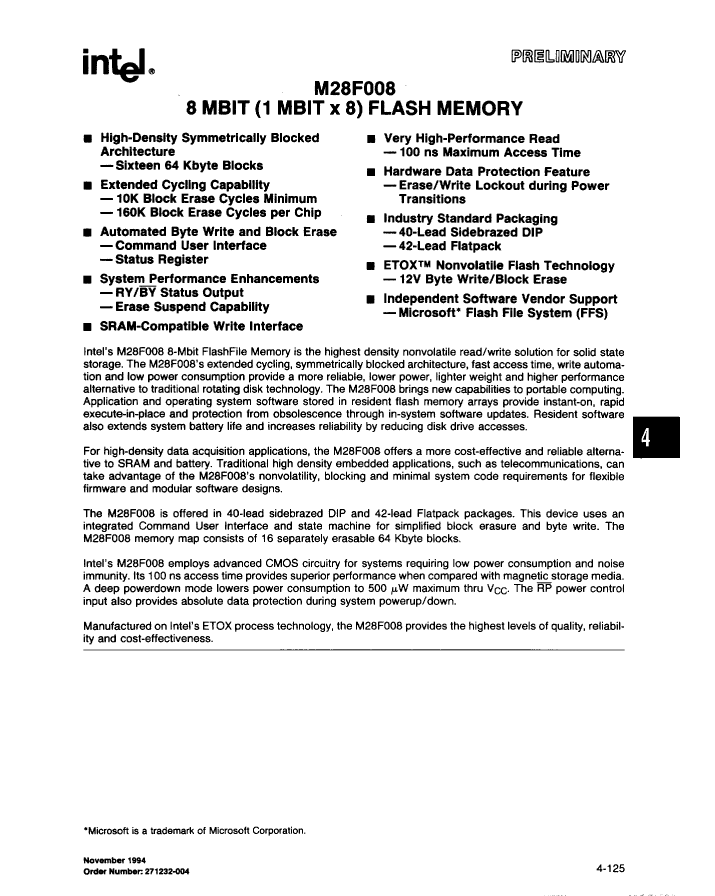

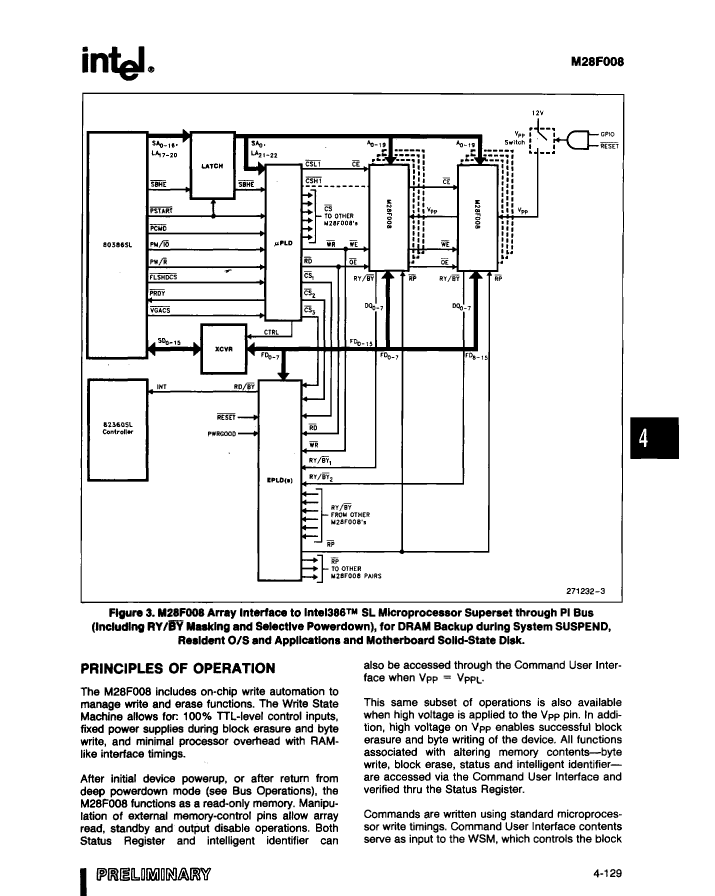

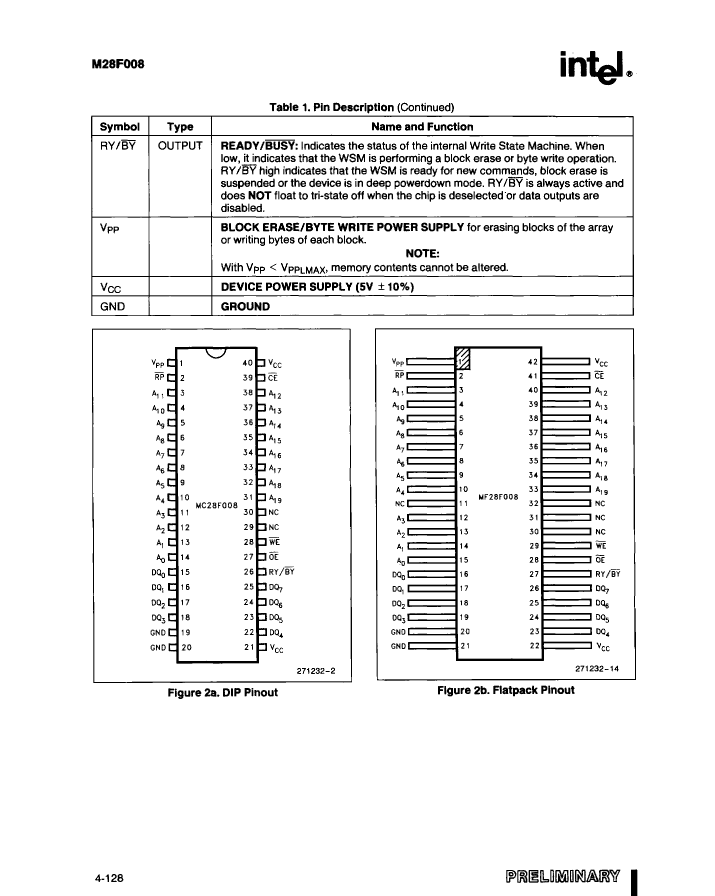

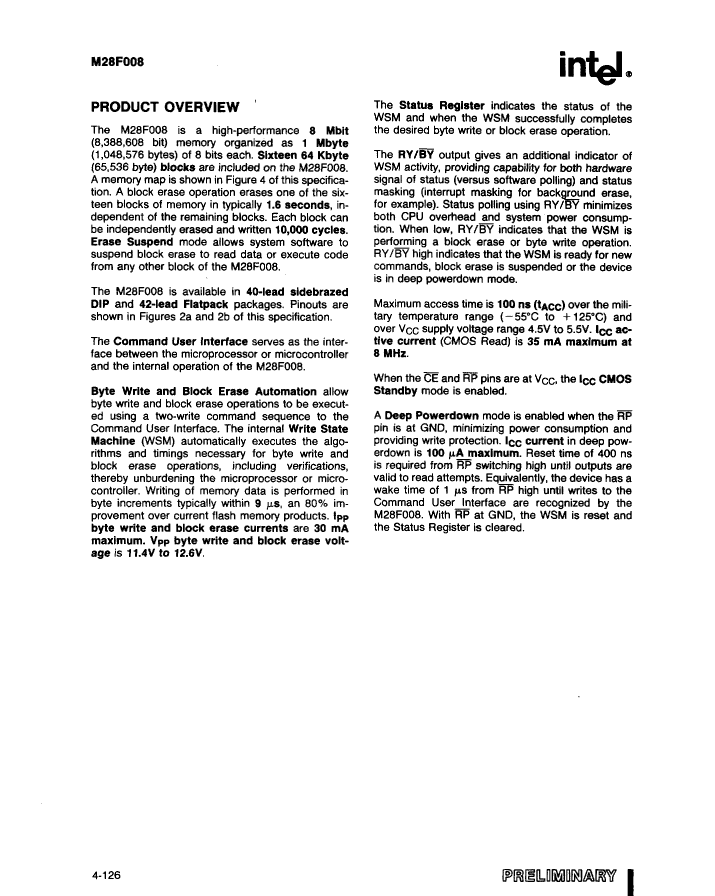

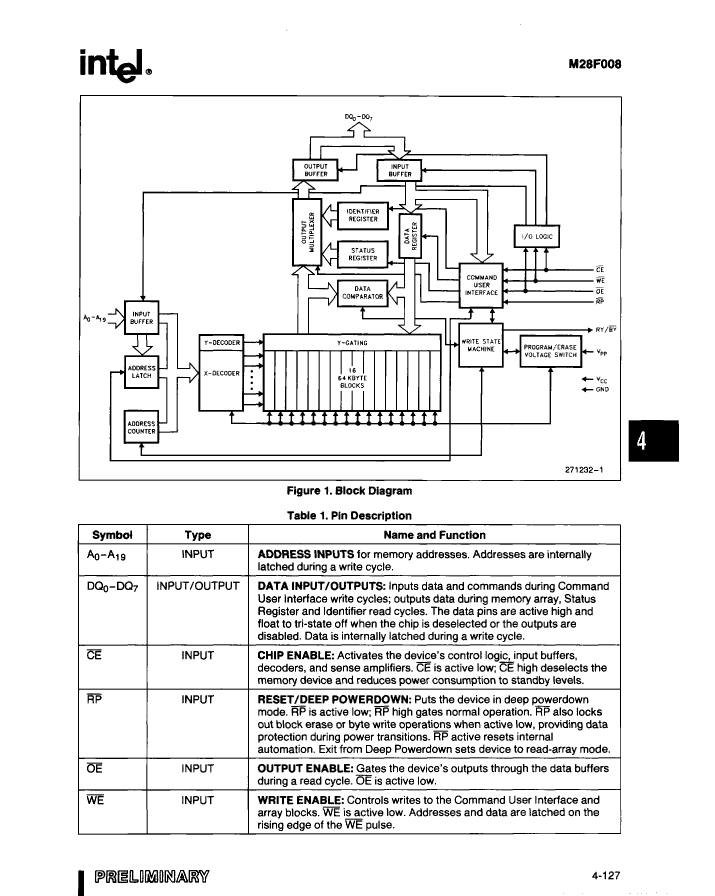

Flash, 1MX8, 120ns, CERAMIC, DFP-42
| Parameter Name | Attribute value |
| Maker | Intel |
| Parts packaging code | DFP |
| package instruction | CERAMIC, DFP-42 |
| Contacts | 42 |
| Reach Compliance Code | unknown |
| ECCN code | 3A001.A.2.C |
| Maximum access time | 120 ns |
| JESD-609 code | e0 |
| length | 26.925 mm |
| memory density | 8388608 bit |
| Memory IC Type | FLASH |
| memory width | 8 |
| Number of functions | 1 |
| word count | 1048576 words |
| character code | 1000000 |
| Operating mode | ASYNCHRONOUS |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| organize | 1MX8 |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DFP |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Parallel/Serial | PARALLEL |
| Programming voltage | 12 V |
| Certification status | Not Qualified |
| Filter level | MIL-PRF-38535 Class Q |
| Maximum seat height | 2.17 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| type | NOR TYPE |
| width | 16.256 mm |
| Base Number Matches | 1 |
| 5962-9455701QXX | 5962-9455702QXA | 5962-9455701QQX | 5962-9455702QQX | 5962-9455702QXX | 5962-9455701QQA | 5962-9455702QQA | 5962-9455701QXA | |
|---|---|---|---|---|---|---|---|---|
| Description | Flash, 1MX8, 120ns, CERAMIC, DFP-42 | Flash, 1MX8, 100ns, CDFP42, CERAMIC, DFP-42 | Flash, 1MX8, 120ns, SIDE BRAZED, CERAMIC, DIP-40 | Flash, 1MX8, 100ns, SIDE BRAZED, CERAMIC, DIP-40 | Flash, 1MX8, 100ns, CDFP42 | Flash, 1MX8, 120ns, CDIP40, SIDE BRAZED, CERAMIC, DIP-40 | Flash, 1MX8, 100ns, CDIP40, SIDE BRAZED, CERAMIC, DIP-40 | Flash, 1MX8, 120ns, CDFP42, CERAMIC, DFP-42 |
| Maker | Intel | Intel | Intel | Intel | Intel | Intel | Intel | Intel |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C |
| Maximum access time | 120 ns | 100 ns | 120 ns | 100 ns | 100 ns | 120 ns | 100 ns | 120 ns |
| length | 26.925 mm | 26.925 mm | 50.8 mm | 50.8 mm | 26.925 mm | 50.8 mm | 50.8 mm | 26.925 mm |
| memory density | 8388608 bit | 8388608 bit | 8388608 bit | 8388608 bit | 8388608 bit | 8388608 bit | 8388608 bit | 8388608 bit |
| Memory IC Type | FLASH | FLASH | FLASH | FLASH | FLASH | FLASH | FLASH | FLASH |
| memory width | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| word count | 1048576 words | 1048576 words | 1048576 words | 1048576 words | 1048576 words | 1048576 words | 1048576 words | 1048576 words |
| character code | 1000000 | 1000000 | 1000000 | 1000000 | 1000000 | 1000000 | 1000000 | 1000000 |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| organize | 1MX8 | 1MX8 | 1MX8 | 1MX8 | 1MX8 | 1MX8 | 1MX8 | 1MX8 |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DFP | DFP | DIP | DIP | DFP | DIP | DIP | DFP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLATPACK | FLATPACK | IN-LINE | IN-LINE | FLATPACK | IN-LINE | IN-LINE | FLATPACK |
| Parallel/Serial | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL |
| Programming voltage | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.17 mm | 2.17 mm | 5.51 mm | 5.51 mm | 2.17 mm | 5.51 mm | 5.51 mm | 2.17 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | NO | YES | NO | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | FLAT | FLAT | THROUGH-HOLE | THROUGH-HOLE | FLAT | THROUGH-HOLE | THROUGH-HOLE | FLAT |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| type | NOR TYPE | NOR TYPE | NOR TYPE | NOR TYPE | NOR TYPE | NOR TYPE | NOR TYPE | NOR TYPE |
| width | 16.256 mm | 16.256 mm | 15.24 mm | 15.24 mm | 16.256 mm | 15.24 mm | 15.24 mm | 16.256 mm |
| Parts packaging code | DFP | DFP | DIP | DIP | - | DIP | DIP | DFP |
| package instruction | CERAMIC, DFP-42 | CERAMIC, DFP-42 | SIDE BRAZED, CERAMIC, DIP-40 | SIDE BRAZED, CERAMIC, DIP-40 | - | SIDE BRAZED, CERAMIC, DIP-40 | SIDE BRAZED, CERAMIC, DIP-40 | CERAMIC, DFP-42 |
| Contacts | 42 | 42 | 40 | 40 | - | 40 | 40 | 42 |
| JESD-609 code | e0 | e0 | e0 | e0 | - | e0 | e0 | e0 |
| Filter level | MIL-PRF-38535 Class Q | MIL-PRF-38535 Class Q | MIL-PRF-38535 Class Q | MIL-PRF-38535 Class Q | - | MIL-PRF-38535 Class Q | MIL-PRF-38535 Class Q | MIL-PRF-38535 Class Q |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | - | TIN LEAD | TIN LEAD | TIN LEAD |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
| JESD-30 code | - | R-CDFP-F42 | - | - | R-CDFP-F42 | R-CDIP-T40 | R-CDIP-T40 | R-CDFP-F42 |
| Number of terminals | - | 42 | - | - | 42 | 40 | 40 | 42 |
