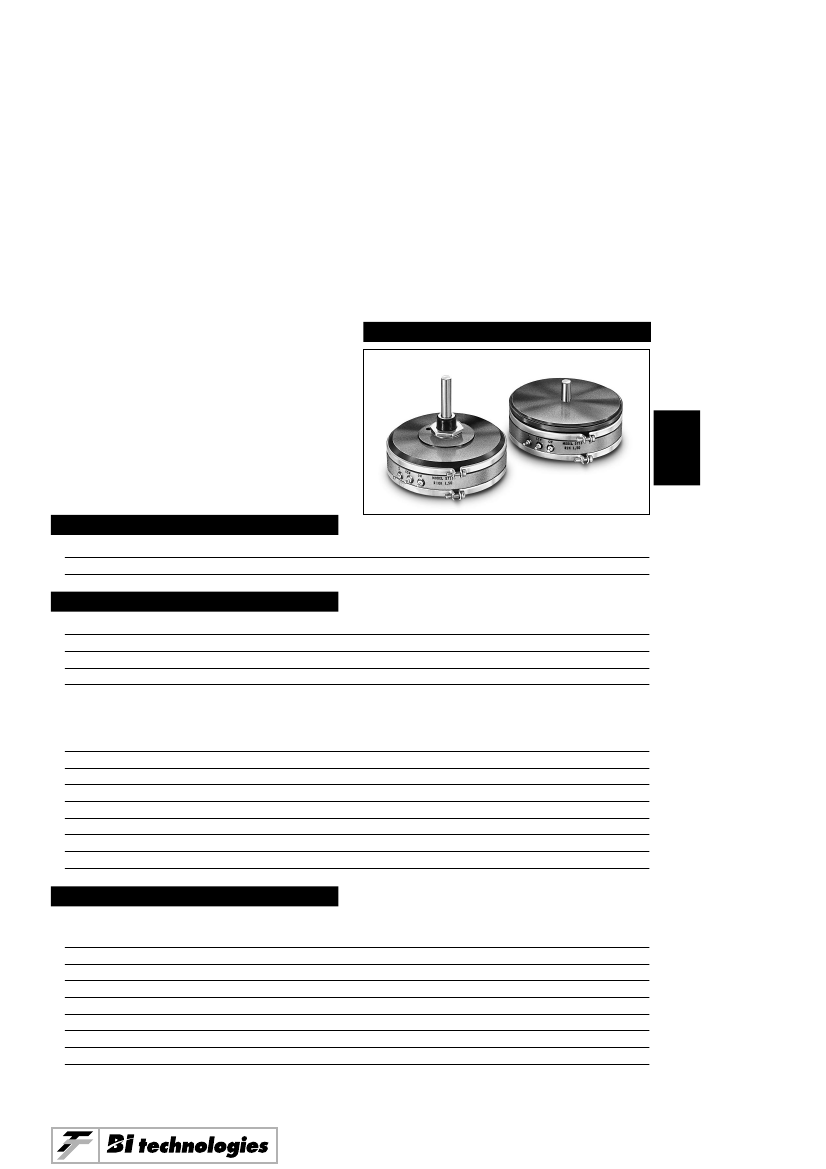

MODEL SERIES 5710
3” Diameter
Single Turn
Wirewound
Precision Potentiometer
MODEL STYLES
2
5711
5713
ELECTRICAL
1/4" Shaft, 1/2" Bushing
1/4" Shaft, Servo
Resistance Range, Ohms
Standard Resistance Tolerance
Minimum Practical Resistance Tolerance
Independent Linearity
Minimum Practical Independent Linearity
Power Rating, Watts
Dielectric Strength
Insulation Resistance, Minimum
Noise, Maximum
Actual Electrical Travel
Tap Tolerance
End Voltage, Maximum
ENVIRONMENTAL (MIL-R-12934)
25 to 145K
±5%
±1%
±0.5%
±0.5%, <75 Ohms
±0.25%, 75-249 Ohms
±0.15%, 250-6,999 Ohms
±0.075%,
≥7K
Ohms
5.0 at 40°C derating to 0 at 105°C
1,000V rms
1,000 Megohms
100 Ohms
358° ±1°
±1°
Within Std. Linearity Tolerance
Operating Temperature Range
Temperature Cycling
Shock, 6ms Half Sine
Vibration
Moisture
High Temperature Exposure
Rotational Life
Rotational Load Life
Specifications subject to change without notice.
Static: –65°C to +105°C
Dynamic: -40°C to +125°C
5 cycles, –65°C to +105°C
100G’s
5G’s, 10 to 500 Hz
Ten 24 hour cycles
1,000 hours at 105°C
1 Mil. Shaft Rev.
1 mil. shaft rev. plus 900 hrs. at rated wattage at 40°C
2-55
Model 5710 Series
MECHANICAL
Total Mechanical Travel
Number of Cups, Maximum
Weight, Nominal
Backlash, Maximum
Shaft End Play, Maximum
Shaft Runout, T.I.R., Maximum
Pilot Diameter Runout, T.I.R., Maximum
Lateral Runout, T.I.R., Maximum
Shaft Radial Play, Maximum
Starting Torque, Maximum
Running Torque, Maximum
STANDARD RESISTANCE VALUES, OHMS
360° Continuous
4
5.8 oz. Single Cup
1.3 oz. Each Added Cup
1°
.005”
5711
5713
.0005”
.001”
.002”
.0015”
.004”
.101”
.004”
.002”
1.5 oz.-in.
1.3 oz.-in.
1.2 oz.-in.
0.7 oz.-in.
Total
Resistance
1K
2K
5K
10K
20K
50K
100K
Theoretical
Resolution
(% Nominal)
0.062
0.050
0.038
0.031
0.027
0.024
0.022
Tempco
of Wire
±130 ppm/°C
±130 ppm/°C
±130 ppm/°C
±130 ppm/°C
±130 ppm/°C
± 20 ppm/°C
± 20 ppm/°C
METRIC CONVERSIONS
1 in.
1 oz.
25.4 mm
28.4 gm
1 oz.-in.
1 lb.-in.
0,007 N-m
0,113 N-m
2-56
Model 5710 Series

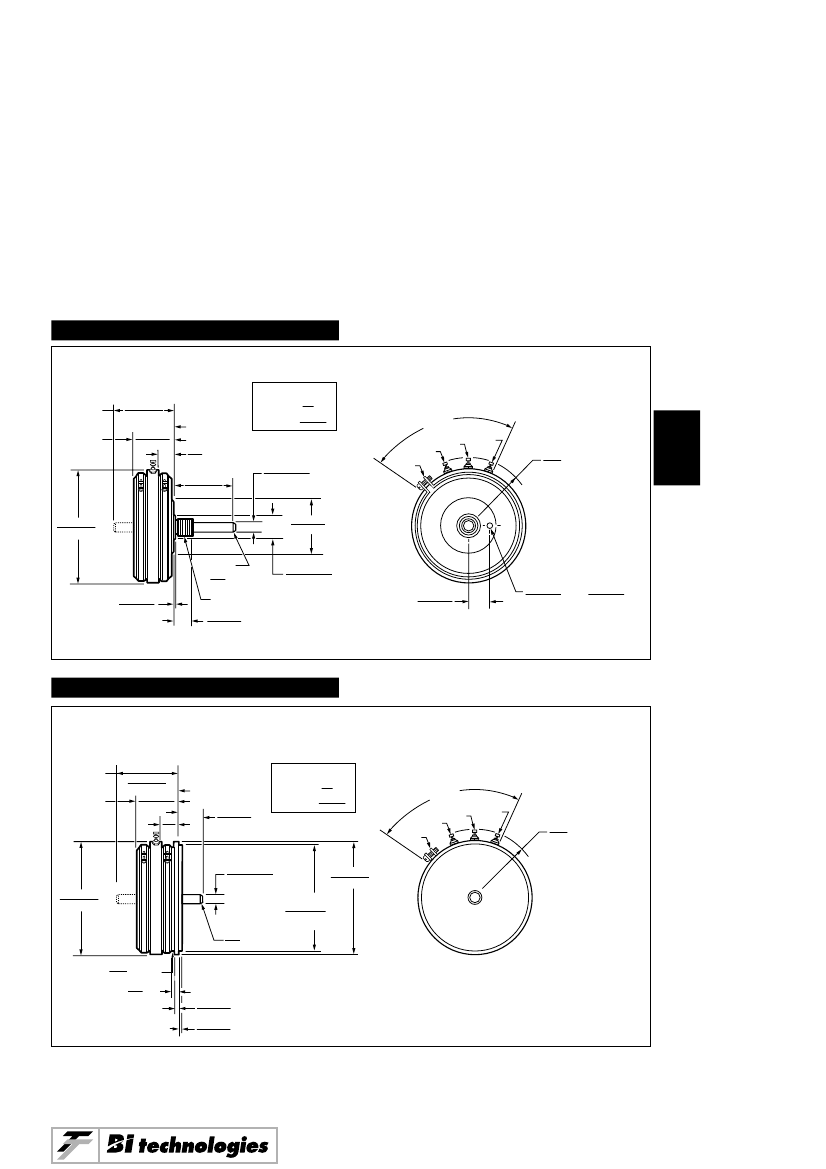

OUTLINE DIMENSIONS (Inch/mm)
Model 5711 - Bushing Mount
Dimensions shown are with
1 cup, for each additional cup:
increase “RS” by .562
14.3
.562±.002
increase “L” by
14.3± 0.05
“RS”
“L”
1.482±.031
37.64± 0.79
Mounting Surface
.982±.020
24.9± 0.51
.469 Min.
11.9
1.500±.031
38.10± 0.79
90
˚
Max.
Clamp CW
Ears
CCW
Slider
1.750
R. Max.
44.45
2
.2497 + .0000
– .0003
Dia.
6.342 + 0.000
– 0.008
3.000± .016 Dia.
76.20± 0.41
1.375±.016
Dia.
34.93± 0.41
+
+
.062 + .000
– .010
1.58 + 0.00
– 0.25
Chamfer
.016 Max. x 45
˚
0.41
1/2-32 NS Thread
.500±.016
12.7± 0.41
.5937 + .0000
– .0020
Dia.
15.08 + 0.000
– 0.051
.531± .016
13.5± 0.41
Locating Hole
.129
±
.005 Dia. x .062± .016 Deep
1.58
±
0.41
3.28± 0.13
Positioned as shown
±
5
˚
OUTLINE DIMENSIONS (Inch/mm)
Model 5713 - Servo Mount
“RS”
“L”
1.520±.031
38.61± 0.79
1.020±.015
25.91± 0.38
.500
12.7
Min.
Mounting Surface
.625±.031
15.9± 0.79
Dimensions shown are with
1 cup, for each additional cup:
increase “RS” by .562
14.3
.562±.002
increase “L” by
14.3± 0.05
90
˚
Max.
Clamp CW
Ears
CCW
Slider
1.750
R. Max.
44.45
3.000± .016 Dia.
76.20± 0.41
.2497 + .0000
– .0003
Dia.
6.342 + 0.000
– 0.008
3.000±.005 Dia.
76.20± 0.13
+
Chamfer
.016 Max. x 45
˚
0.41
2.785
73.03 Dia. Max.
.073 Min.
1.85
2.875 + .000
– .001
Dia.
73.03 + 0.00
– 0.03
.093± .005
2.36
±
0.13
.062± .005
1.58± 0.13
2-57
Model 5710 Series
SPECIAL FEATURES
Center Tap
Linearity Tape
Rear Shaft Extension
Flatted Shaft
Slotted Shaft
Anti-Fungus Treatment
ORDERING INFORMATION
CT
LT
RS
FS
SS
AF
5711 R 10K L.50 XX
Model Series
Resistance Prefix
Resistance Value
Linearity
Optional Special
Feature Code
CIRCUIT DIAGRAM
NOTES
Metric equivalents, based on 1 inch = 25.4mm are rounded to
the same number of significant figures as in the original
English units and are provided for general information only.
Tolerances unless otherwise specified:
Linear = ± .01 inches
(.25mm)
Angular = ± 2 degrees
(S)
(CCW)
(CW)
INCH
mm
2-58
Model 5710 Series
