MODEL BHV SERIES
High Voltage/High Value
Thick Film SIP
Epoxy Coated Resistors
APPPLICATIONS
•
•
•
•
Photomultiplier power supplies
Voltage sense in high voltage power supplies
High Voltage bleeder resistors
Deflection circuitry in display systems and monitors
ELECTRICAL
Resistance Range
Tolerance
Temperature Coefficient of Resistance
Voltage Coefficient
ENVIRONMENTAL
(Per MIL – PRF – 83401)
Operating Temperature Range
Thermal Shock
Terminal Strength
Moisture Resistance
Mechanical Shock
Vibration
Low Temperature Storage
High Temperature Exposure
Load Life, 1000 Hours
Resistance to Solder Heat
Dielectric Withstanding Voltage
Marking Permanency
Lead Solderability
Flammability
Storage Temperature Range
-55°C to +125°C
∆R: ±0.50%
∆R: ±0.25%
∆R: ±0.50%
∆R: ±0.25%
∆R: ±0.25%
∆R: ±0.25%
∆R: ±0.25%
∆R: ±1.00%
∆R: ±0.25%
5000 V Minimum
MIL – STD – 202, Method 215
MIL – STD – 202, Method 208
UL 94V- 0 Rated
-55°C to +125°C
1 Giga Ohm maximum
Standard:
±
5%,
±
10%
Custom:
±
1%,
±
2%
±
150 ppm/°C Maximum
2 ppm/V Maximum
Consult factory for Voltage dividers and application specific devices
Specifications subject to change without notice
Model BHV

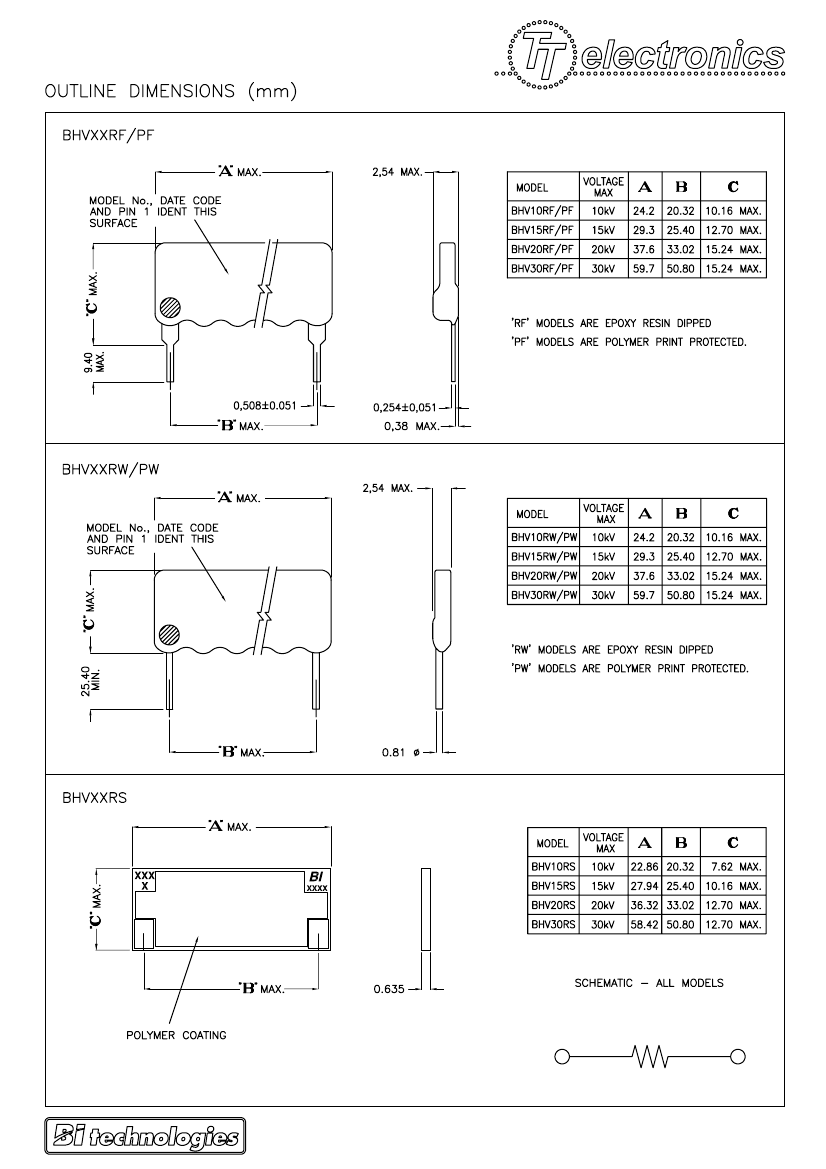

MECHANICAL
Cover Coat
Substrate
Resistor
POWER (WATTS) DISSIPATION AT 70°C
Model
BHV 10
BHV 15
BHV 20
BHV 30
Power (Max)
1.0
1.5
2.0
3.0
100
80
% of Rated
60
Power
40
20
0
0
70
125
Style RS, PW & PF: Polymer Cover Coat
Styles RF & RW: Epoxy
Alumina
Cermet
POWER DERATING CURVE
Degrees C
ORDERING INFORMATION
BHV
Model
Voltage Rating KV
Style
RS = Polymer coated substrate
with solder pads
RW = Epoxy coated package
with round wire
RF = Epoxy coated package with flat leads
PF = Polymer coated substrate with flat leads
PW = Polymer coated substrate with round wire
10
RS
XXX
J
Tolerance
F =
±
1%
G =
±
2%
J =
±
5%
K =
±
10%
Resistance Code
First 2 digits are significant
Last digit denotes number
of trailing zeros
PACKAGING
Standard:
Box
Capacity
100 units
Consult factory for Voltage dividers and application specific devices
Model BHV
Power technology
