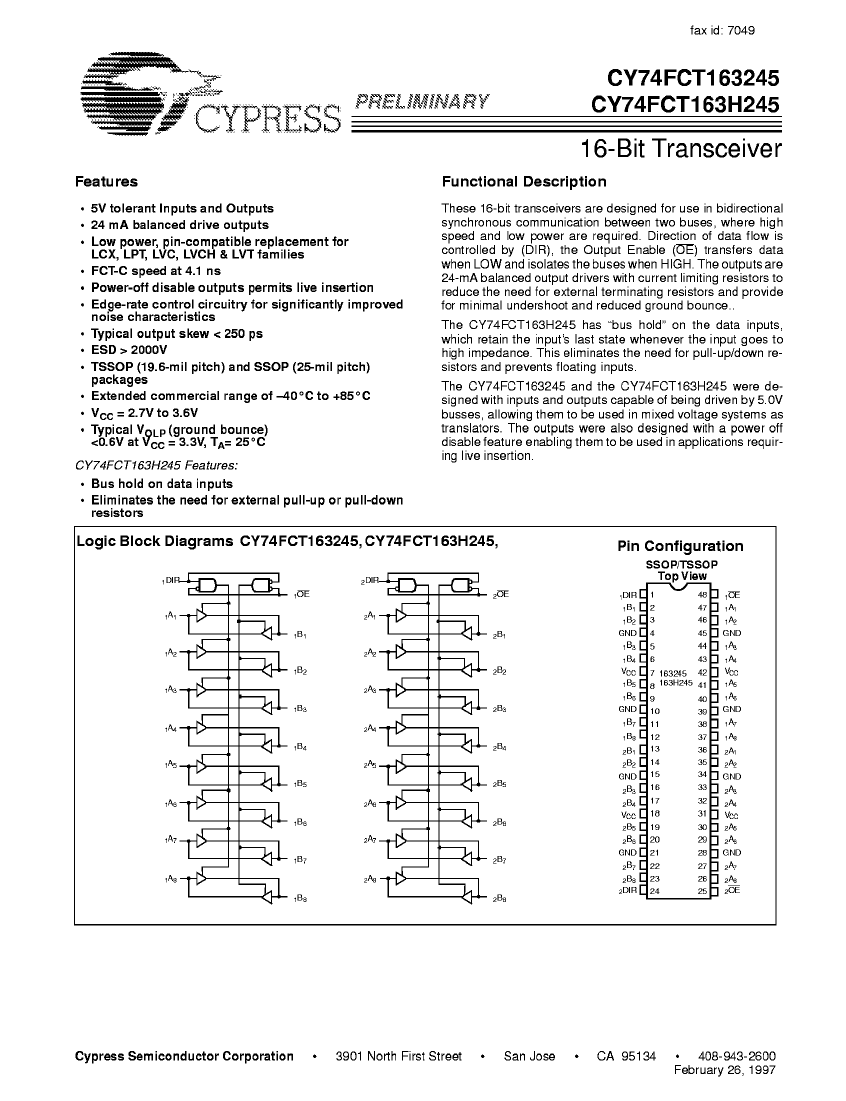

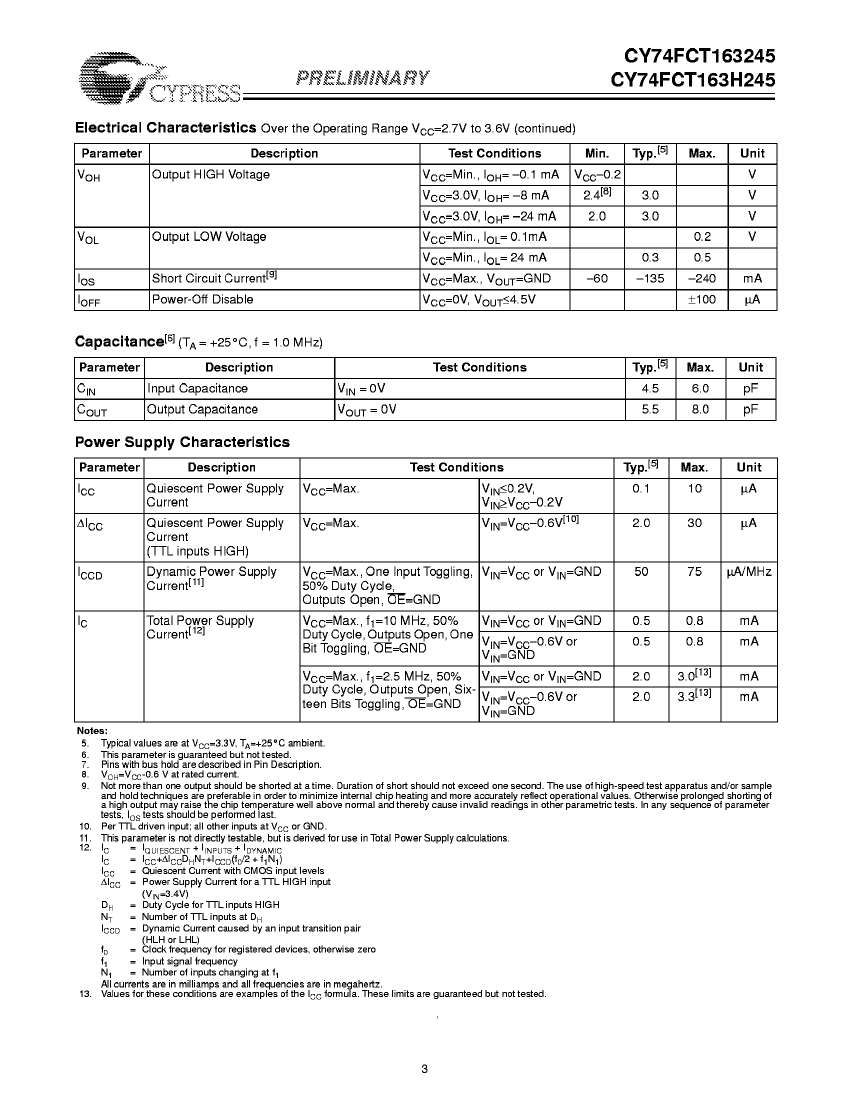

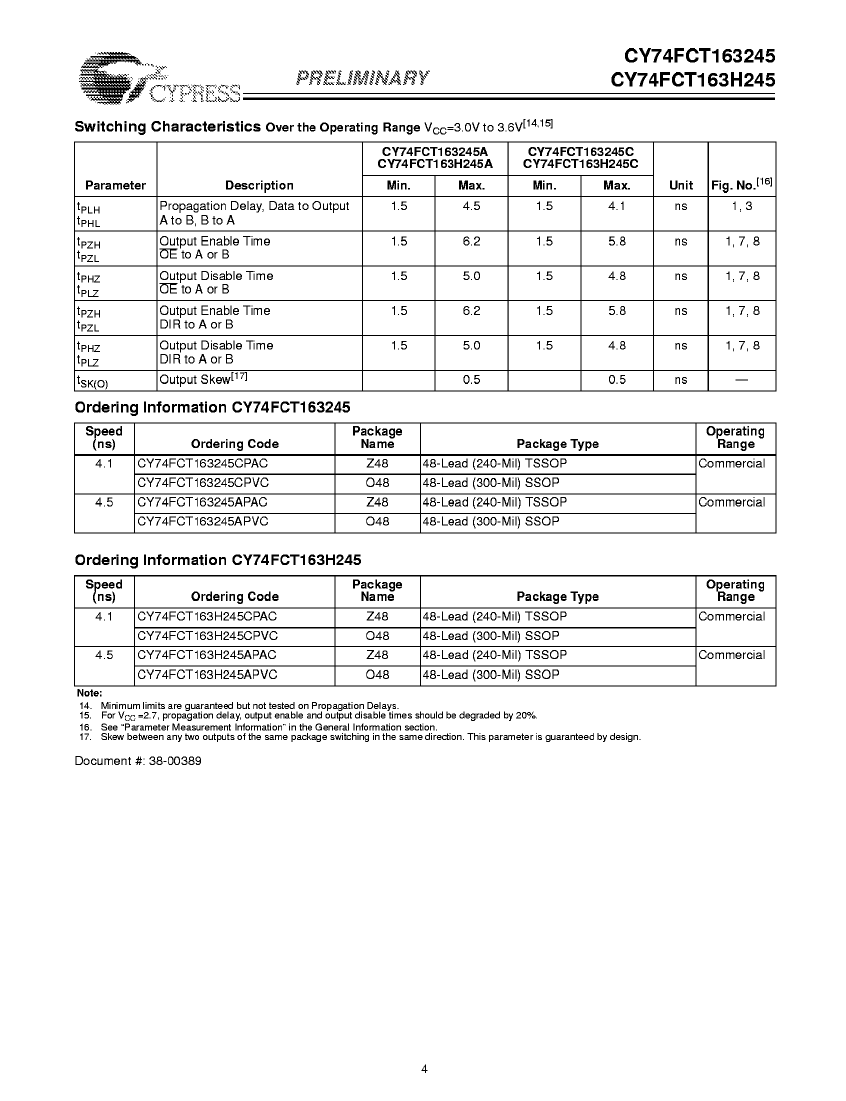

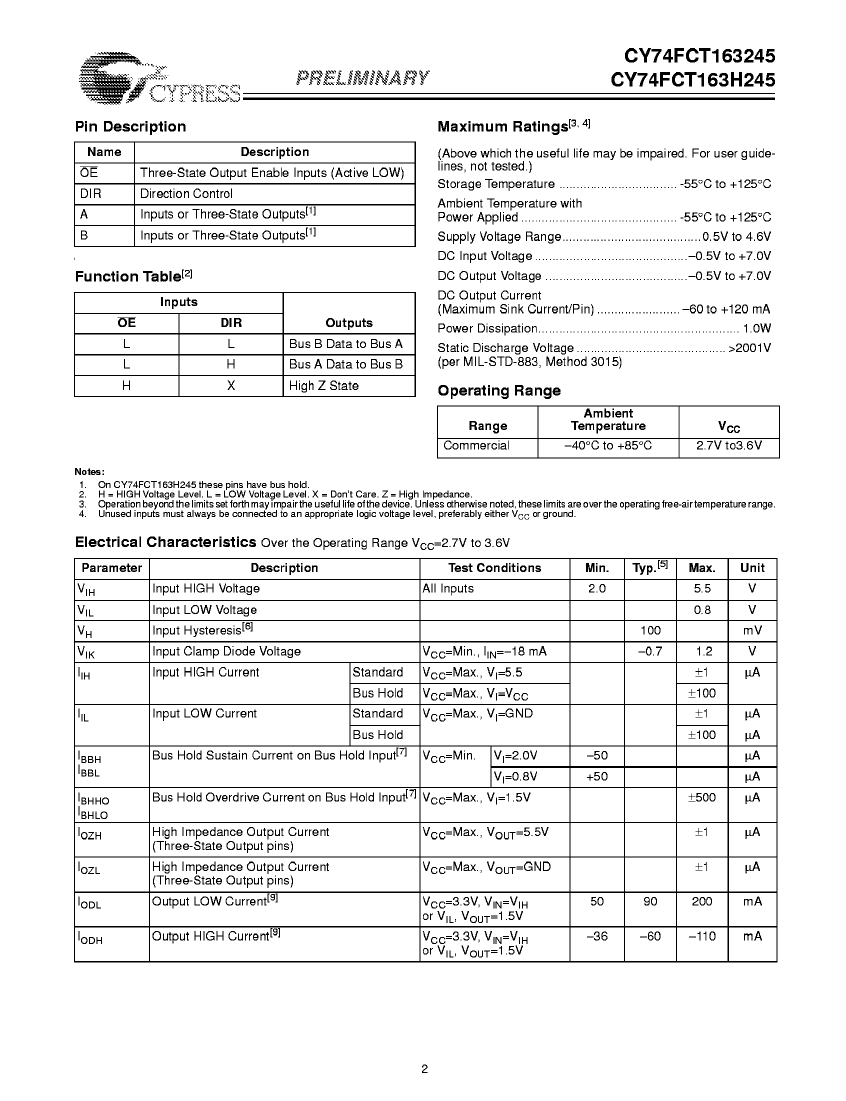

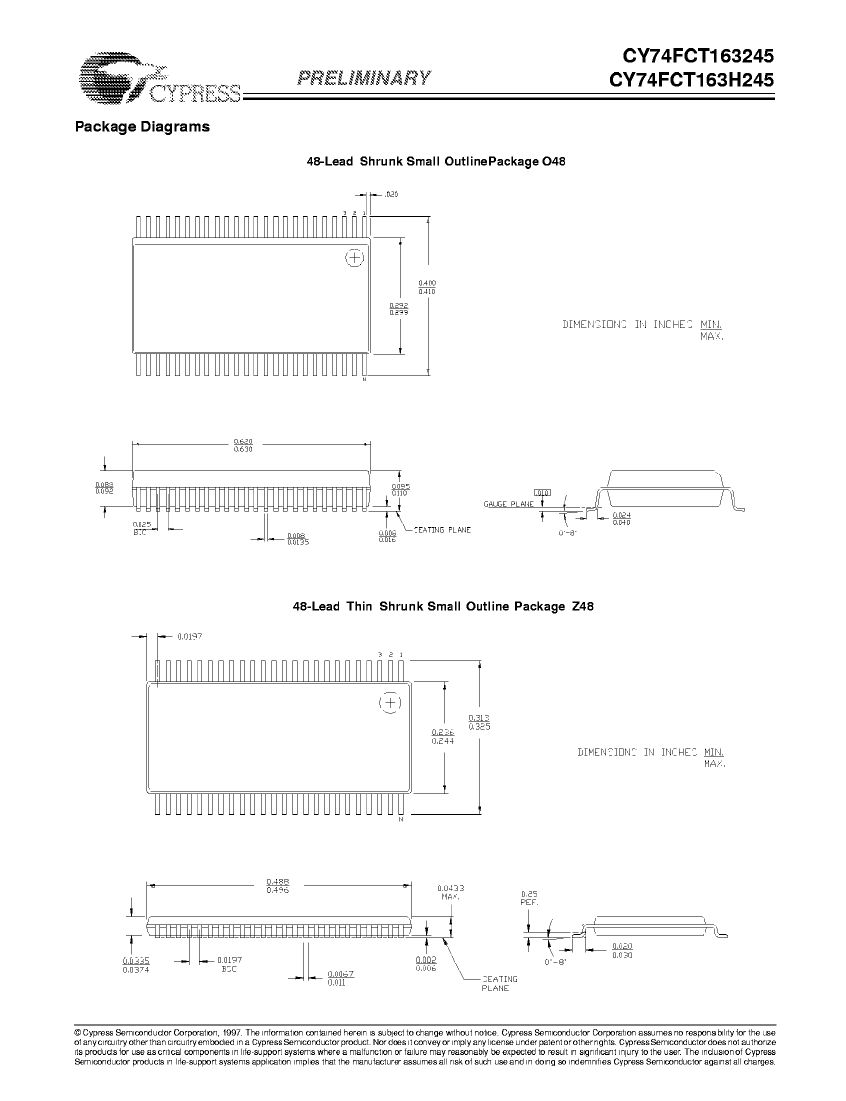

CY74FCT163H245APVCT: DescriptionBus Transceiver, FCT Series, 1-Func, 16-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48; Categorylogic; File Size142KB，5 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY74FCT163H245APVCT Overview

Bus Transceiver, FCT Series, 1-Func, 16-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48

CY74FCT163H245APVCT Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	48
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL; BUS HOLD I/P\'S
series	FCT
JESD-30 code	R-PDSO-G48
length	15.875 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	16
Number of functions	1
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	4.8 ns
Certification status	Not Qualified
Maximum seat height	2.794 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

CY74FCT163H245APVCT Related Products

	CY74FCT163H245APVCT	CY74FCT163H245APACT	CY74FCT163H245CPACT	CY74FCT163H245CPVCT	CY74FCT163245CPVCT	CY74FCT163245APVCT	CY74FCT163245APACT
Description	Bus Transceiver, FCT Series, 1-Func, 16-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48	Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48	Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48	Bus Transceiver, FCT Series, 1-Func, 16-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48	Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48	Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48	Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-48
Parts packaging code	SSOP	TSSOP	TSSOP	SSOP	SSOP	SSOP	TSSOP
package instruction	SSOP,	TSSOP,	TSSOP,	SSOP,	SSOP,	SSOP,	TSSOP,
Contacts	48	48	48	48	48	48	48
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH DIRECTION CONTROL; BUS HOLD I/P\'S	WITH DIRECTION CONTROL; BUS HOLD I/P\'S	WITH DIRECTION CONTROL; BUS HOLD I/P\'S	WITH DIRECTION CONTROL; BUS HOLD I/P\'S	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
length	15.875 mm	12.5 mm	12.5 mm	15.875 mm	15.875 mm	15.875 mm	12.5 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	16	8	8	16	8	8	8
Number of functions	1	2	2	1	2	2	2
Number of ports	2	2	2	2	2	2	2
Number of terminals	48	48	48	48	48	48	48
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP	TSSOP	SSOP	SSOP	SSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	4.8 ns	4.8 ns	4.1 ns	4.1 ns	4.1 ns	4.8 ns	4.8 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.794 mm	1.1 mm	1.1 mm	2.794 mm	2.794 mm	2.794 mm	1.1 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.5 mm	0.5 mm	0.635 mm	0.635 mm	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	6.1 mm	6.1 mm	7.5 mm	7.5 mm	7.5 mm	6.1 mm
Maker	Cypress Semiconductor	-	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	-	Cypress Semiconductor
Base Number Matches	1	1	1	1	1	1	-
