732-AG4D-ES datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > socket> 732-AG4D-ES

732-AG4D-ES: DescriptionIC Socket, DIP32, 32 Contact(s); Categorysocket; File Size60KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

732-AG4D-ES Overview

IC Socket, DIP32, 32 Contact(s)

732-AG4D-ES Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Device slot type	IC SOCKET
Type of equipment used	DIP32
Manufacturer's serial number	700
Number of contacts	32
Base Number Matches	1

Preview

Download Datasheet

View All

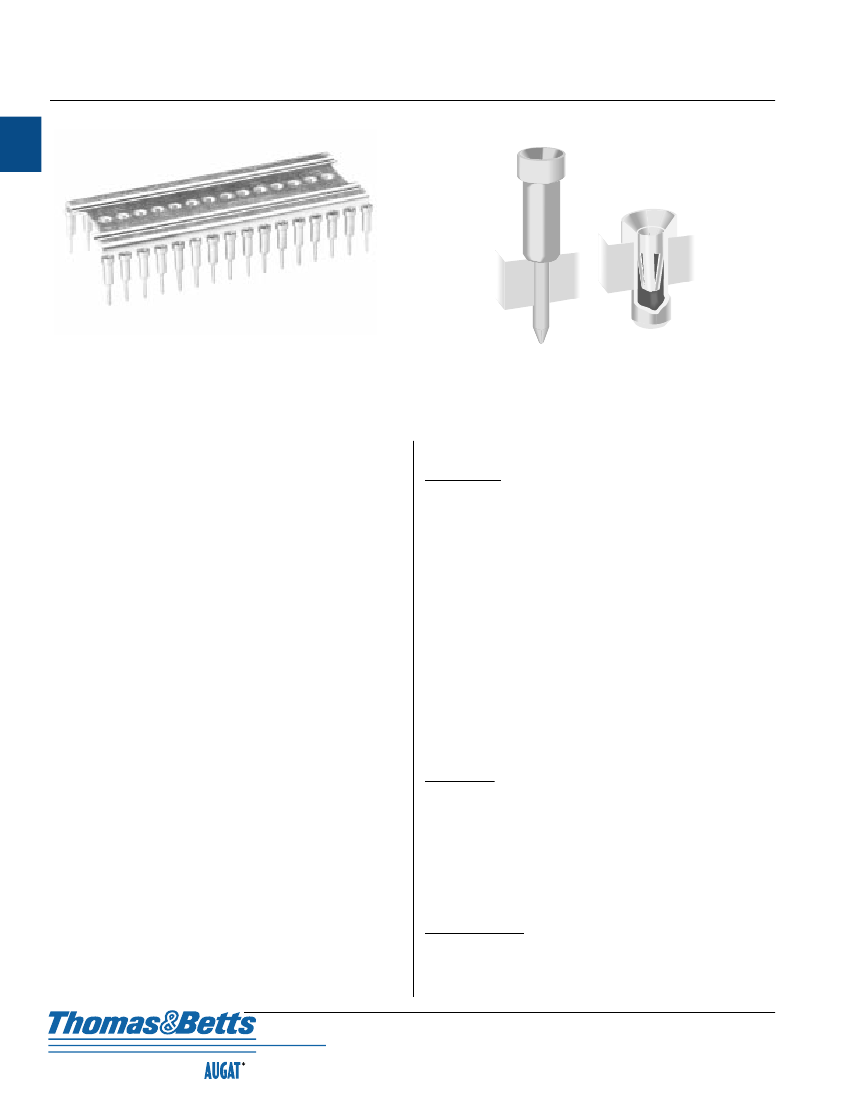

700 Series

Four-Fingered Contacts Disposable Carriers

732-AG4D-ES

FEATURES:

A disposable aluminum carrier forms the backbone of the 700 Series

socket, an innovative extension of the Augat precision four-fingered, inner

contact concept. Conceived for IC applications requiring maximum air

flow for cooling, the 700 Series eliminates heat entrapment associated with

an insulator. Additional benefits are:

• Easy solder joint inspection-easy cleaning-easy repair

• “X” & “Y” stackability for circuit flexibility and optimum use of PCB

real estate

• Gang insertion of socket pins into PC boards

• 100% non-wicking of flux and solder

• Standard or low profile PC board mounting

• Availability in 6 to 40 positions on .100"(2,54) centers and a wide

variety of row spacing

• Machined (Premium Series) and stamped (Economy Series) contacts

are available

PERFORMANCE SPECIFICATIONS:

MECHANICAL

Vibration ........................ Passed MIL-STD-1344, Method 2005.1,

Condition II, 10 G’s

Shock .............................. Passed MIL-STD-1344, Method 2004.1,

Condition C, 100 G’s

Durability ...................... Passed MIL-STD-1344, Method 2016

Normal Force ................ 125 Grams average with .018" (0,46) dia.

polished steel pin (Premium Series)

200 Grams average with .018" (0,46) dia.

polished steel pin (Economy Series)

Inner Contact Retention

in Sleeve .................... 7.5 Lbs. per line average

Sleeve Retention

in Plastic ..................... 3.0 Lbs. per line minimum

Solderability .................. Passed MIL-STD-202F, Method 208

Insertion Force .............. Premium - 134 Grams (4.7 oz.) average with a

.018" (0,46) dia. polished steel pin

Economy - 179 Grams (6.3 oz.) average with a

.018" (0,46) dia. polished steel pin

Withdrawal Force .......... 63 Grams (2.2 oz.) average with a

(Premium and Economy) .018" (0,46) dia. polished steel pin

ELECTRICAL

Contact Resistance ........ 10 Milliohms max.

Contact Rating .............. 3 Amps

Capacitance .................... 1.0 pF per MIL-STD-202, Method 305

(contact to contact)

Insulation Resistance .... 5,000 Megohms min. @ 500 VDC

per MIL-STD-1344, Method 3003.1

Dielectric Withstanding

Voltage ...................... 1,000 Volts RMS per MIL-STD-1344,

Method 3001.1

ENVIRONMENTAL

Humidity ........................ Passed MIL-STD-1344, Method 1002.2, Cond. II

Thermal Shock .............. Passed MIL-STD-1344, Method 1003.1, Cond. A

Operation Temperature .. Gold inner contact -55°C to +125°C,

Tin/lead inner contact -55°C to +105°C

APPLICATION DIMENSIONS:

• PCB Thickness Range: Standard .062" and .092" (1,57 and 2,34)

• IC Pin Dimension Range:.016" to .021" (0,41 to 0,53) dia.,

.105" (2,67) min. length

• PCB Hole Size Range: .035"

.003" (0,89

0,08) standard mount,

.055

.001" (1,40

0,03) low profile mount

MATERIAL SPECIFICATIONS:

Carrier ............................ Aluminum

Sleeve ............................ Machined brass

Contact .......................... Beryllium copper

Sleeve Plating ................ Tin/lead or gold

Contact Plating .............. Premium or Economy Series (ES) - gold or

tin/lead

Economy Series (ESL) - low gold

Quality & Innovation From The

Product Group

A12

Thomas & Betts

1555 Lynnfield Road

Memphis, TN 38119

(901) 682-8221 FAX (901) 537-8805
