875FU-272M=P3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > inductor> Fixed inductance> 875FU-272M=P3

875FU-272M=P3: DescriptionGeneral Purpose Inductor, 2700uH, 20%, 1 Element, SMD; Categoryinductor Fixed inductance; File Size65KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

875FU-272M=P3 Overview

General Purpose Inductor, 2700uH, 20%, 1 Element, SMD

875FU-272M=P3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TOKO, INC.
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	45 Ω
Nominal inductance(L)	2700 µH
Inductor Applications	IC INVERTER EL LAMP DRIVER
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	D52FU
Number of functions	1
Number of terminals	2
Maximum rated current	0.061 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	FLAT
Tolerance	20%
Base Number Matches	1

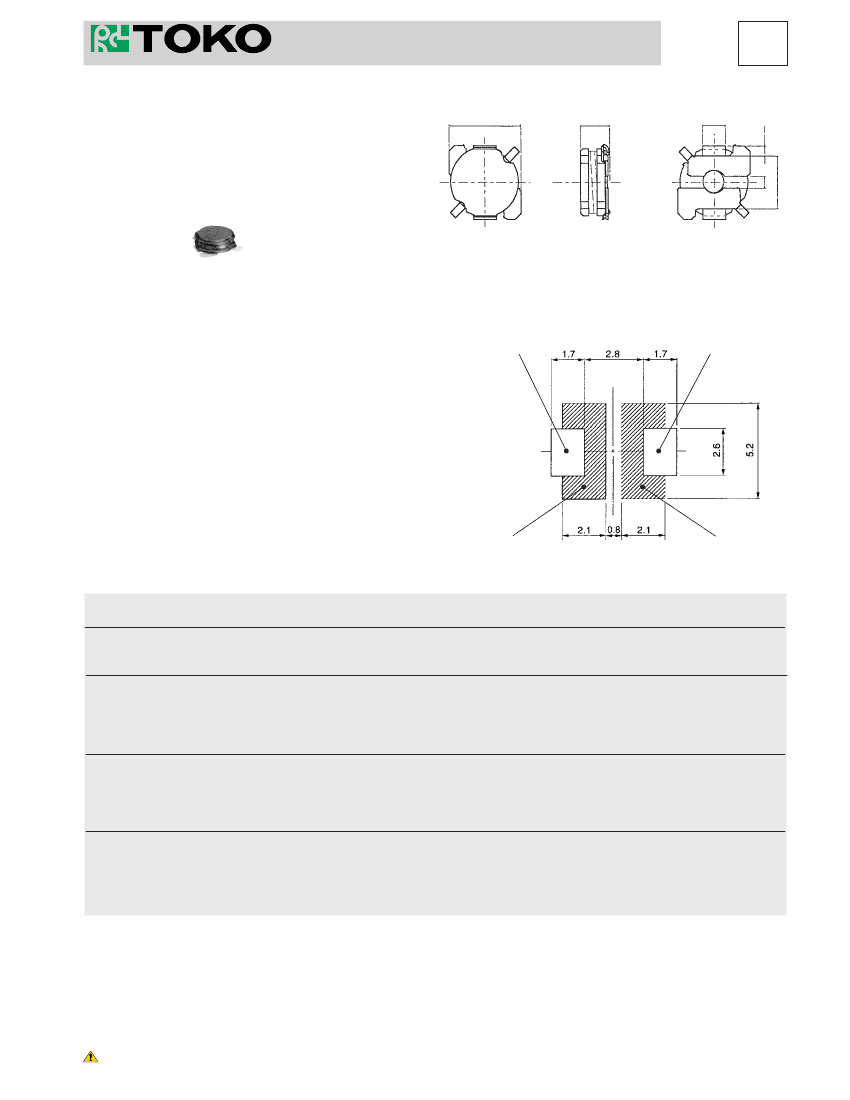

Preview

Download Datasheet

View All

Meeting Your Needs

Fixed Inductors for Surface Mounting

D52FU

TYPE

Frequency Range:

10kHz - 1MHz

Inductance Range:

470µH - 6.8mH

0.7

TYPE D52FU

5.2

Max.

2.2 max.

1.6

Tolerance:

±0.2

Unit: mm

Features

•

Low profile (2.2mm max. height) and 5.2mm square

Ideal for IC inverter EL lamp driver applications

Available on tape and reel for auto-insertion

Suitable for reflow soldering

Recommended patterns:

Solder Pad

STANDARD PARTS SELECTION GUIDE

(1) Inductance is measured by LCR-meter 4284A (HP) or equivalent.

(2) DC Resistance is measured by Digital Multimeter TR6871

(Advantest) or equivalent.

(3) Maximum allowable DC current is that which causes a 10% inductance

reduction from the initial value, or coil temperature to rise by 40°C,

whichever is smaller. (Reference ambient temperature 20°C).

No Paste

Unit: mm

TYPE D52FU

TOKO

Part

Number

875FU-471M=P3

875FU-561M=P3

875FU-681M=P3

875FU-821M=P3

875FU-102M=P3

875FU-122M=P3

875FU-152M=P3

875FU-182M=P3

875FU-222M=P3

875FU-272M=P3

875FU-332M=P3

875FU-392M=P3

875FU-472M=P3

875FU-562M=P3

875FU-682M=P3

Inductance

(1)

(µH)

±20%

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

Rated DC

(2)

Resistance

(

Ω

) max.

8.1

110

130

Rated

(3)

DC Current

(mA) max.

140

125

115

105

Note:

=P3

is added to each part number to indicate tape and reel packaging.

Please read PRECAUTIONS and NOTES sections of this catalog for safe operation. This catalog contains consumer grade specifications only. Detailed technical specifications are available upon request.

R-LOG0203A

1.800.PIK.TOKO

www.tokoam.com

1.847.297.0070

1.6

3.6
