1304-2-16-2-4: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector; File Size171KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

1304-2-16-2-4 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle

1304-2-16-2-4 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
Other features	REEL & FILM PACKING
Board mount options	LOCATING POSTS
body width	0.222 inch
subject depth	0.24 inch
body length	0.526 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Manufacturer's serial number	1304
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.3942 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

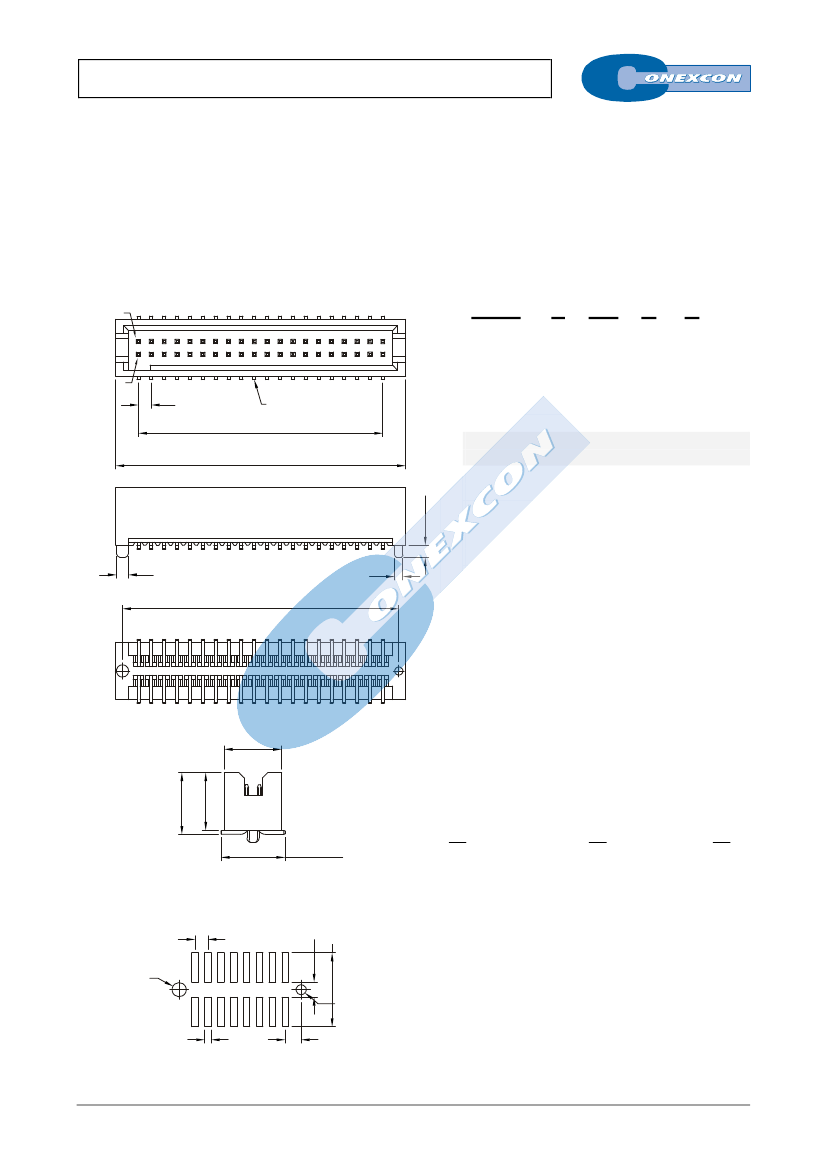

MALE STRAIGHT POLARISED SMT

1304 SERIE

Features

Available in 10 through 120 circuits

Mates with female header 1301 and 1302 serie

Completely polarized and protected

Insulator material: Polyester / Nylon 6-T UL 94V-0

With or withour fixation PCB

Dimensional information:

Ordering and dimensional information:

Height over PCB 6.10

0.40 mm square pin

Available in different lenght

For other options consult the Sales Office

1.27 x 1.27 mm. (0.050 x 0.050”). For PCB solder

1304 - T- XX- P- E

1. CONECTOR SERIE

1.27±0.10

Pin 0.30x0.40

2. CONTACT PLATING

T =

Tin-plated.

T =

Gold flash over 1.27 µ Ni.

RECOMMENDED FINISH

T =

0.25 µ Gold over 1.27 µ Ni.

T =

0.38 µ Gold over 1.27 µ Ni.

T =

0.75 µ Gold over 1.27 µ Ni.

3. NUMBER OF CONTACT

Available in 6 through 120 circuits

1.20

ø1.20

ø0.80

4. FIXING POST

P =

Without fixing post

P =

With fixing post

5. CONECTOR PACKAGING

E =

1.Tube

+ Plastic Pad

E =

Reel + Plastic Pad

E =

Tube + Film

E =

Reel + Film

5.65

E =

Tube + Metalic Pad

E =

Ree + Metalic Pad

6.10±0.20

5.70

DIMENSIONS:

⎛

⎞

1.27

⎜

−

⎟

⎝

⎠

6.30±0.30

⎛

⎞

3.20

1.27

⎜

⎟

⎝

⎠

⎛

⎞

1.88

1.27

⎜

⎟

⎝

⎠

Number of circuits

MECANIZADO RECOMENDADO

1.50

1.575

1.27

ø1.40

ø1.00

0.65

7.30

B-26

FULL LINE CATALOGUE

1304-2-16-2-4 Related Products

	1304-2-16-2-4	1304-3-18-2-4	1304-3-10-2-4	1304-3-12-2-4	1304-3-16-2-4
Description	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	REEL & FILM PACKING	REEL & FILM PACKING	REEL & FILM PACKING	REEL & FILM PACKING	REEL & FILM PACKING
Board mount options	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS
body width	0.222 inch	0.222 inch	0.222 inch	0.222 inch	0.222 inch
subject depth	0.24 inch	0.24 inch	0.24 inch	0.24 inch	0.24 inch
body length	0.526 inch	0.576 inch	0.376 inch	0.426 inch	0.526 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Manufacturer's serial number	1304	1304	1304	1304	1304
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
