54F432/B3A datasheet, PDF - EEWORLD Datasheet

54F432/B3A: DescriptionBus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28; Categorylogic; File Size246KB，7 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

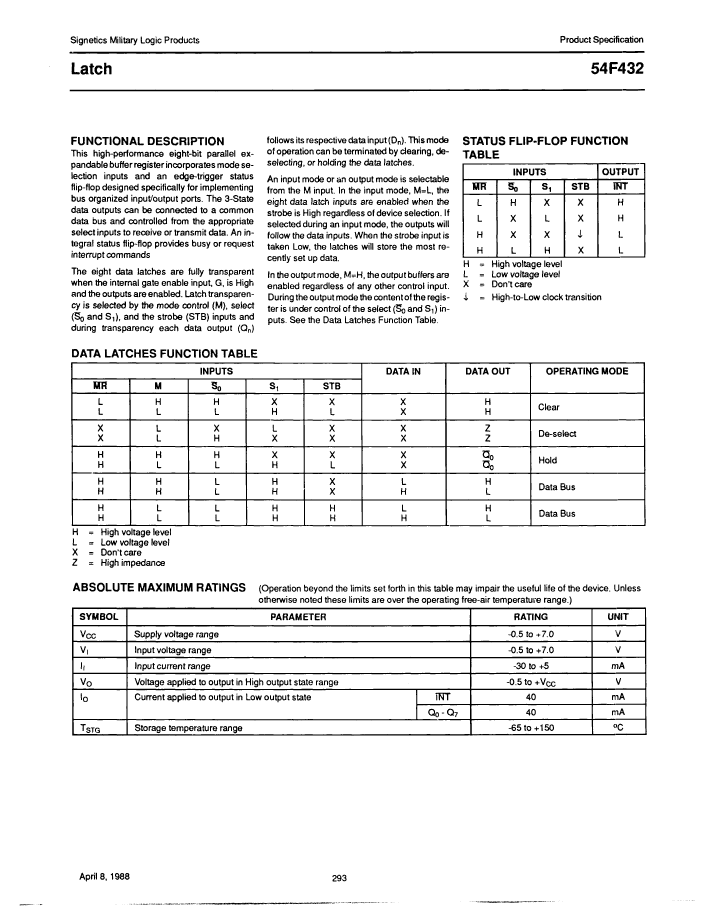

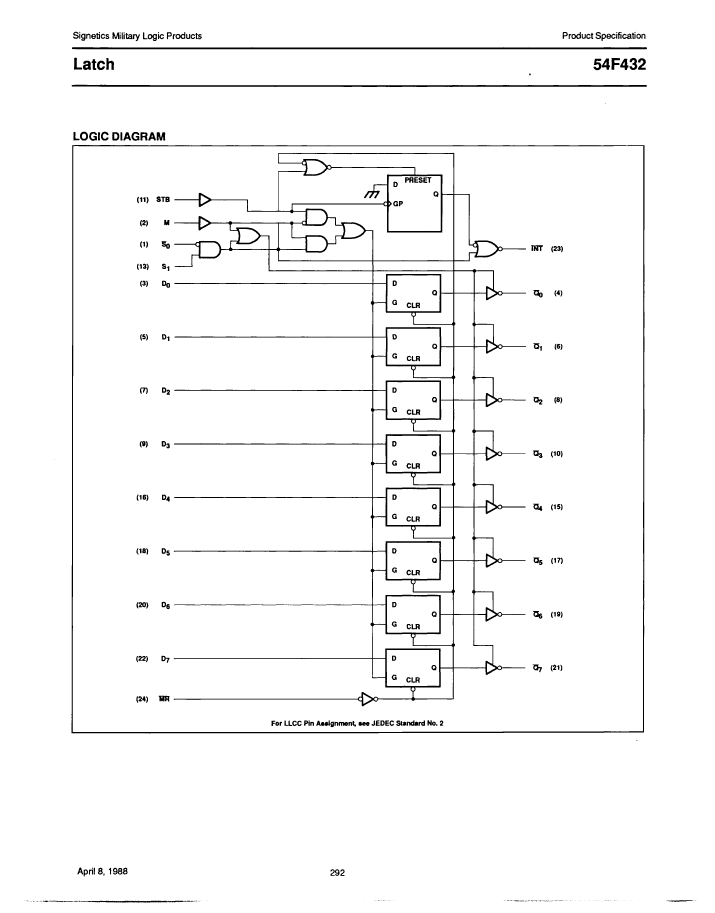

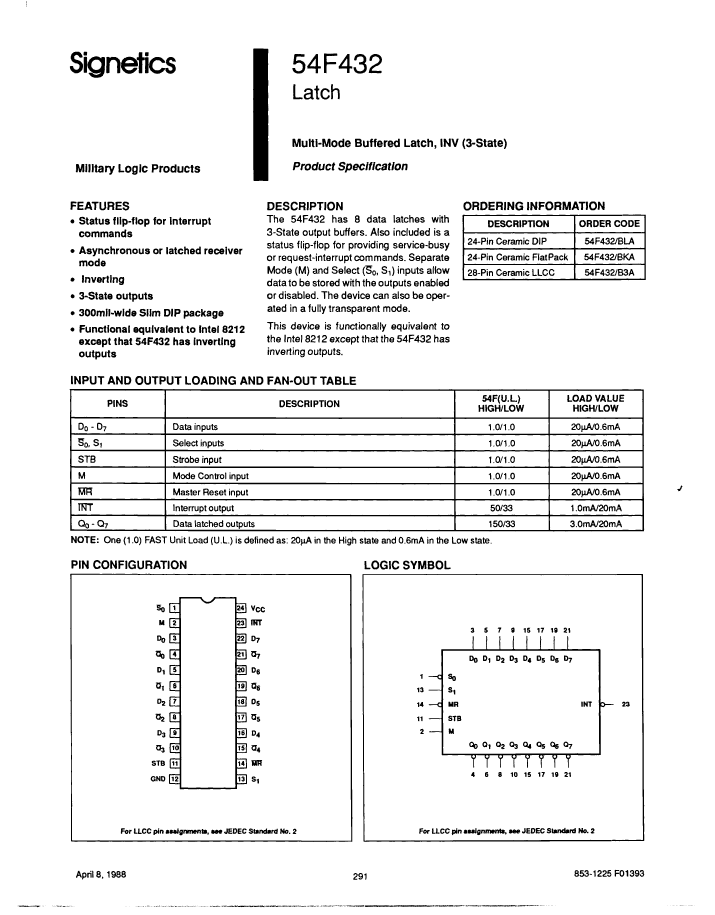

54F432/B3A Overview

Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28

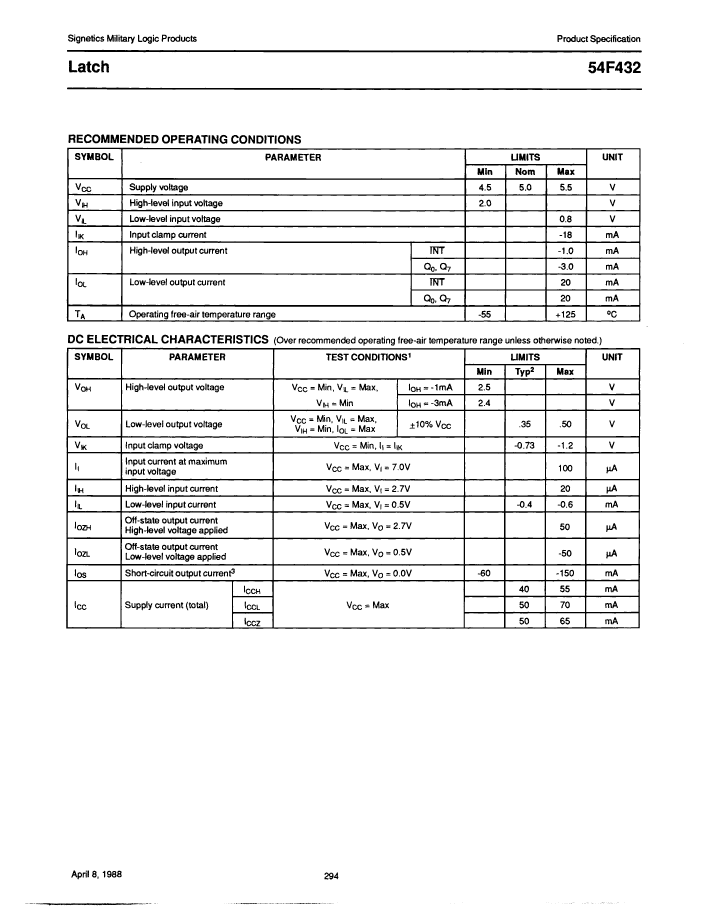

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Other features	WITH STATUS FLIP-FLOP FOR INTERRUPT COMMANDS
series	F/FAST
JESD-30 code	S-CQCC-N28
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	70 mA

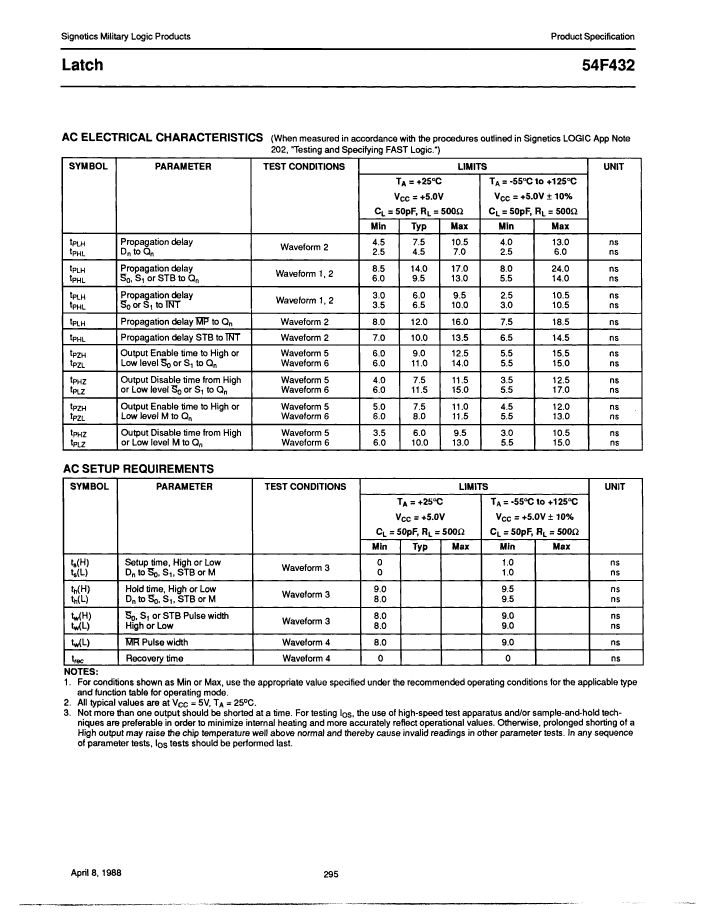

propagation delay (tpd)	14 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

	54F432/B3A	54F432/BLA	54F432/BKA
Description	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP24	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDFP24
Reach Compliance Code	unknown	unknown	unknown
Other features	WITH STATUS FLIP-FLOP FOR INTERRUPT COMMANDS	WITH STATUS FLIP-FLOP FOR INTERRUPT COMMANDS	WITH STATUS FLIP-FLOP FOR INTERRUPT COMMANDS
series	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N28	R-CDIP-T24	R-CDFP-F24
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	28	24	24
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	FLATPACK
Maximum supply current (ICC)	70 mA	70 mA	70 mA
propagation delay (tpd)	14 ns	14 ns	14 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	FLAT
Terminal location	QUAD	DUAL	DUAL
Base Number Matches	1	1	1
