54F257A/BFA datasheet, PDF - EEWORLD Datasheet

54F257A/BFA: DescriptionMultiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDFP16,; Categorylogic; File Size175KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

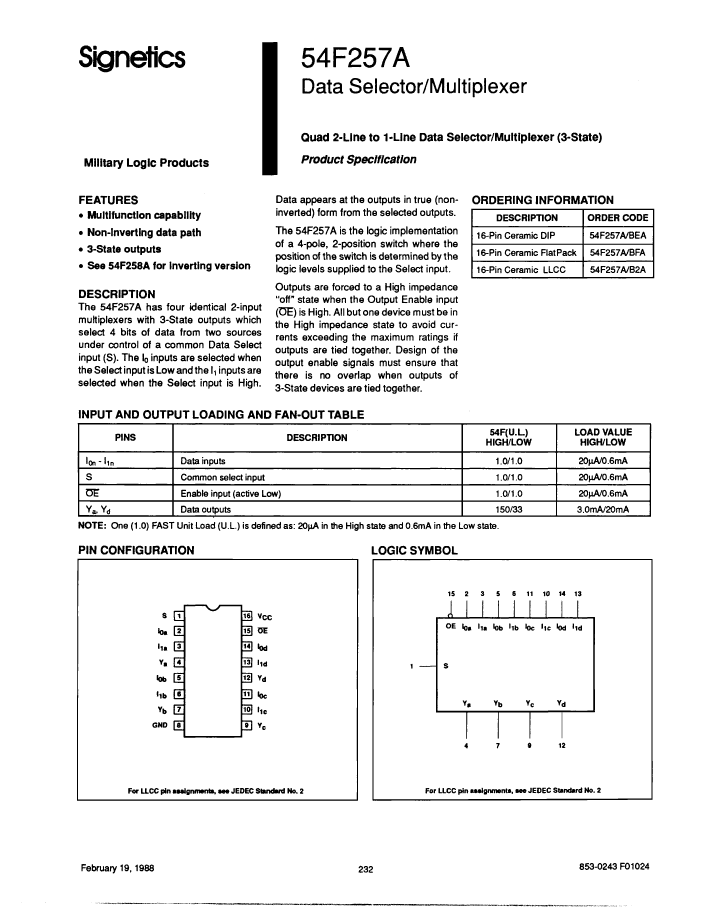

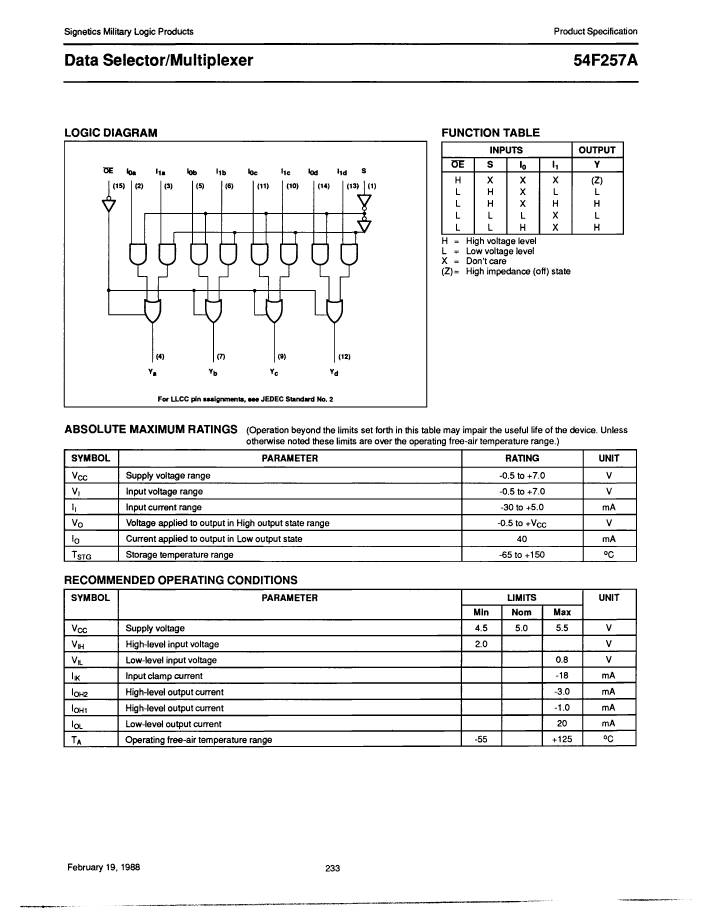

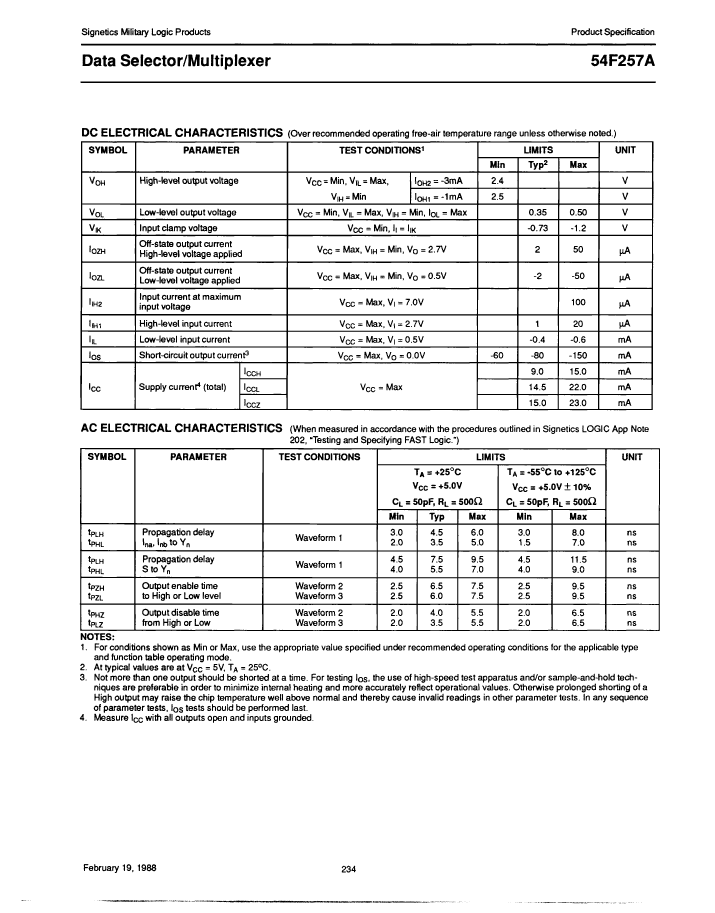

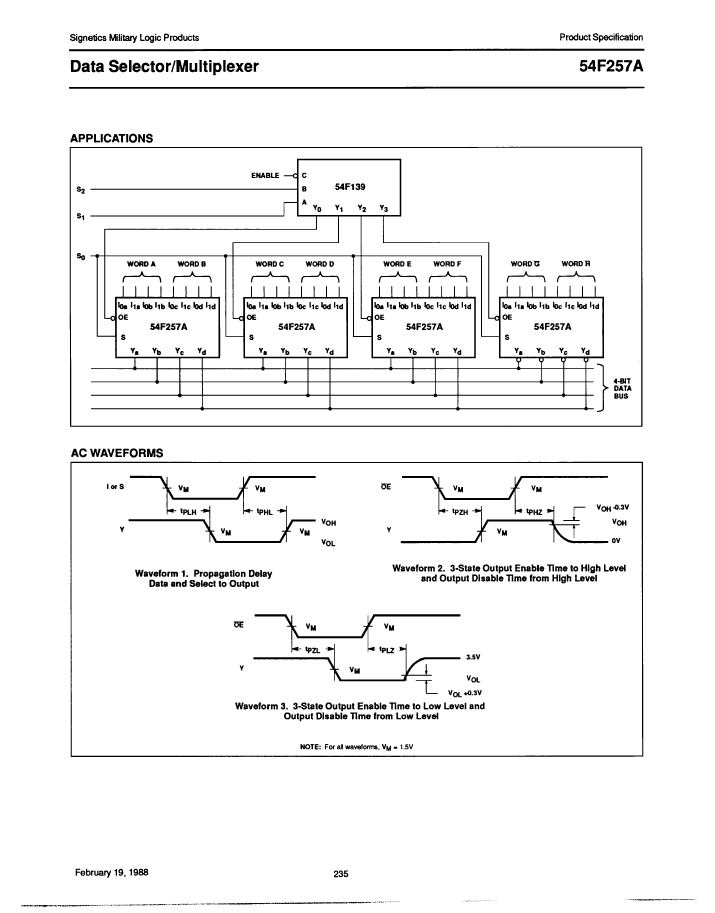

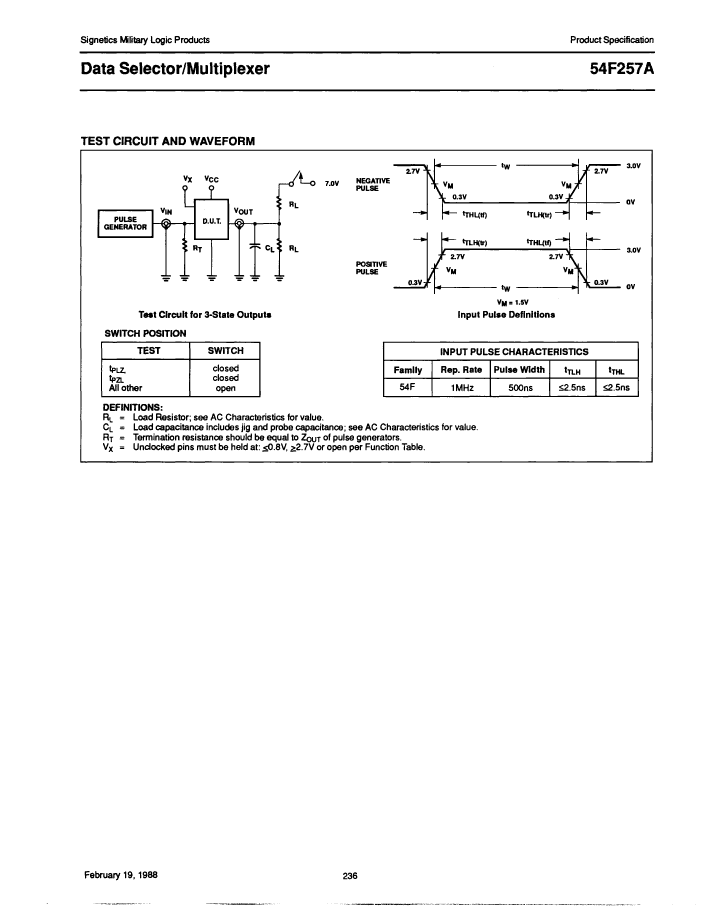

54F257A/BFA Overview

Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDFP16,

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-CDFP-F16
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	22 mA
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

	54F257A/BFA	54F257A/BEA	54F257A/B2A
Description	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDFP16,	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16,	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CQCC20,
Maker	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDFP-F16	R-CDIP-T16	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4
Number of entries	2	2	2
Output times	1	1	1
Number of terminals	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER
Maximum supply current (ICC)	22 mA	22 mA	22 mA
propagation delay (tpd)	9 ns	9 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	QUAD
