54F367/BFA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 54F367/BFA

54F367/BFA: DescriptionIC F/FAST SERIES, 6-BIT DRIVER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16, Bus Driver/Transceiver; Categorylogic; File Size91KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F367/BFA Overview

IC F/FAST SERIES, 6-BIT DRIVER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16, Bus Driver/Transceiver

54F367/BFA Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	unknown
Other features	ONE FUNCTION WITH TWO BITS
series	F/FAST
JESD-30 code	R-CDFP-F16
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	62 mA
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum seat height	2.159 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.731 mm
Base Number Matches	1

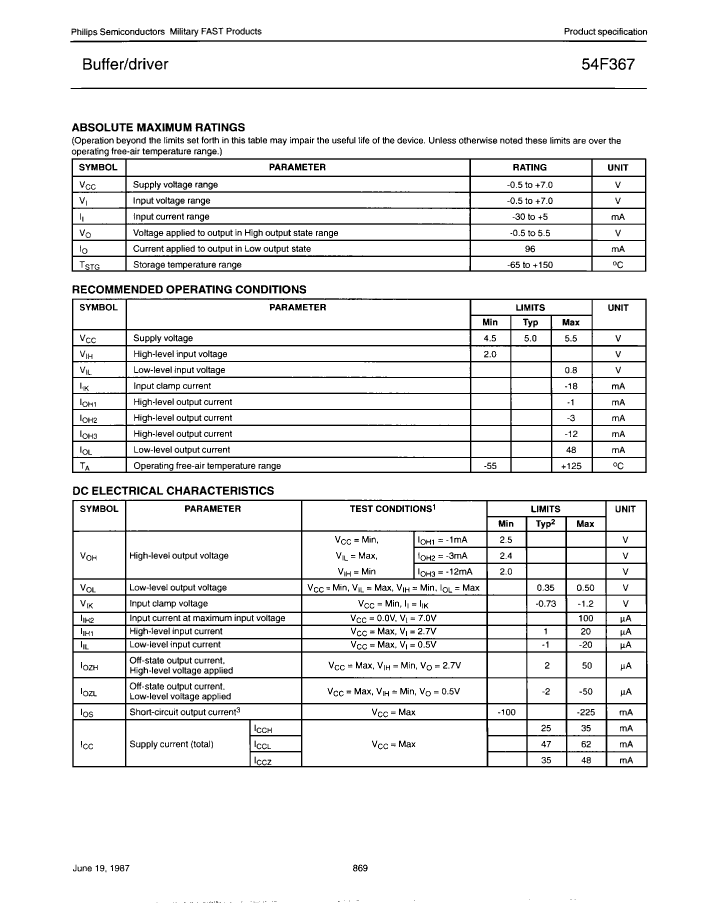

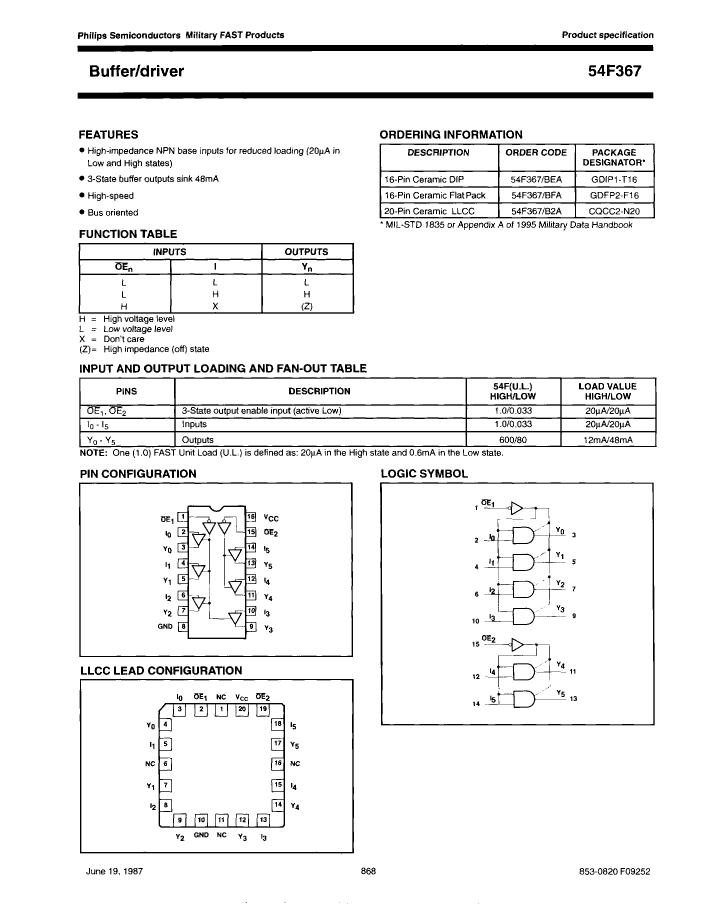

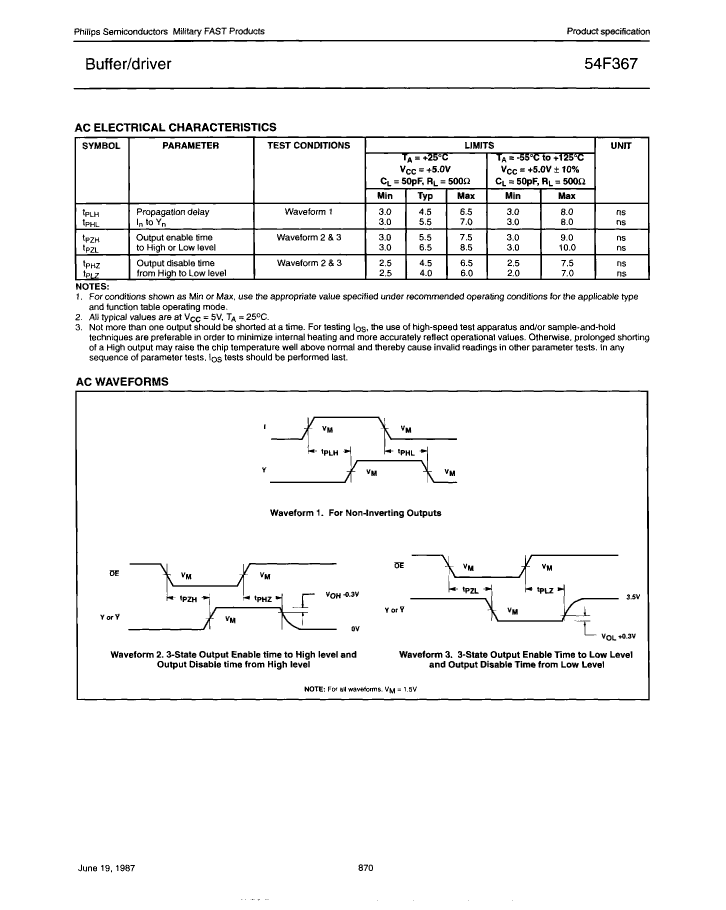

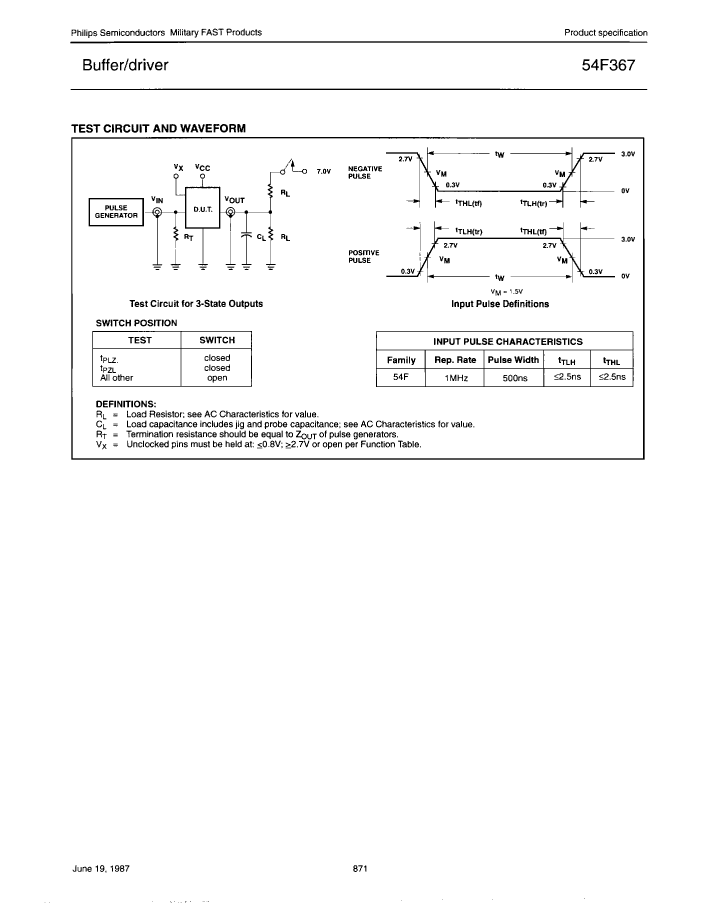

Preview

Download Datasheet

View All

54F367/BFA Related Products

	54F367/BFA	54F367/BEA	N54F367/BFA	N54F367/B2A	54F367/B2A
Description	IC F/FAST SERIES, 6-BIT DRIVER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16, Bus Driver/Transceiver	IC F/FAST SERIES, 6-BIT DRIVER, TRUE OUTPUT, CDIP16, Bus Driver/Transceiver	IC F/FAST SERIES, 6-BIT DRIVER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16, Bus Driver/Transceiver	IC F/FAST SERIES, 6-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Bus Driver/Transceiver	IC F/FAST SERIES, 6-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Bus Driver/Transceiver
package instruction	DFP,	DIP,	DFP,	QCCN,	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDFP-F16	R-GDIP-T16	R-CDFP-F16	S-CQCC-N20	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	6	6	6	6	6
Number of functions	1	1	1	1	1
Number of ports	2	2	2	2	2
Number of terminals	16	16	16	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DFP	QCCN	QCCN
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	FLATPACK	IN-LINE	FLATPACK	CHIP CARRIER	CHIP CARRIER
Maximum supply current (ICC)	62 mA	62 mA	62 mA	62 mA	62 mA
propagation delay (tpd)	8 ns	8 ns	8 ns	8 ns	8 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.159 mm	5.08 mm	2.159 mm	1.905 mm	1.905 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	FLAT	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	QUAD
width	6.731 mm	7.62 mm	6.731 mm	8.89 mm	8.89 mm
Maker	NXP	NXP	NXP	-	NXP
Parts packaging code	DFP	-	DFP	QLCC	QLCC
Contacts	16	-	16	20	20
Base Number Matches	1	1	1	1	-
