54LS253/B2AJC datasheet, PDF - EEWORLD Datasheet

54LS253/B2AJC: DescriptionIC,LOGIC MUX,DUAL,4-INPUT,LS-TTL,LLCC,20PIN,CERAMIC; Categorylogic; File Size226KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

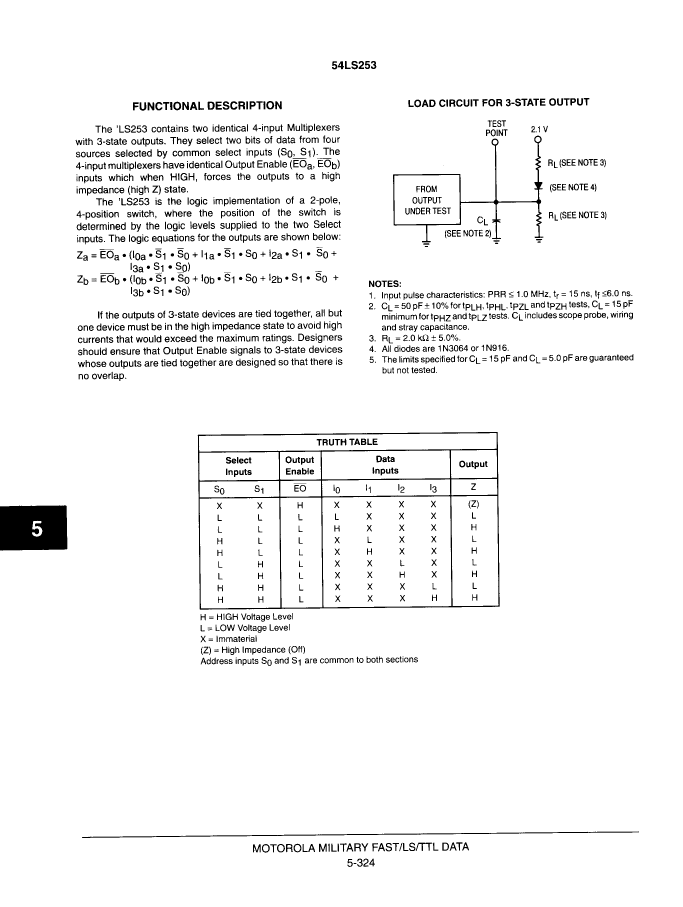

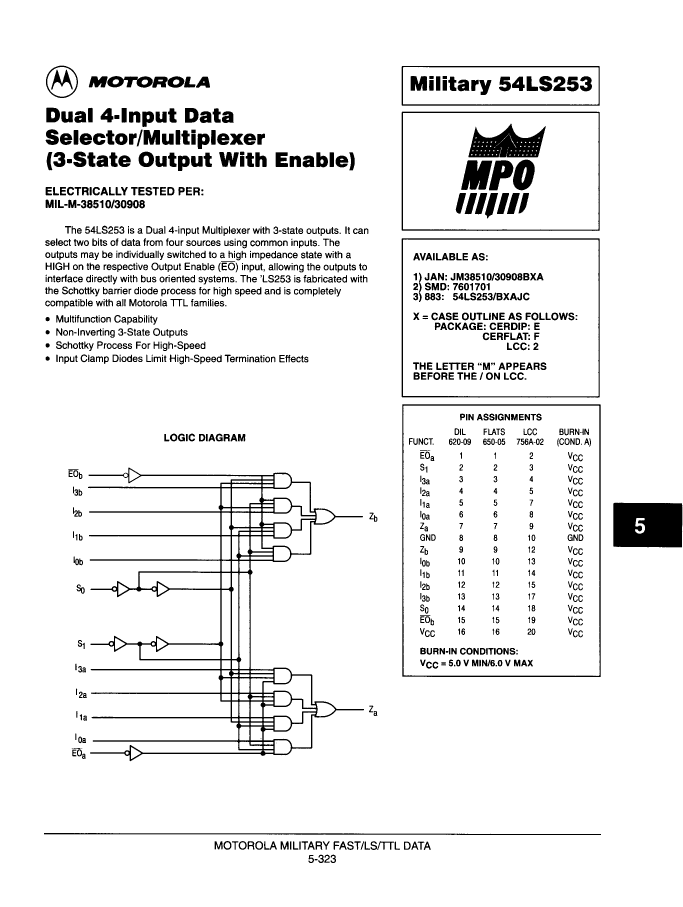

54LS253/B2AJC Overview

IC,LOGIC MUX,DUAL,4-INPUT,LS-TTL,LLCC,20PIN,CERAMIC

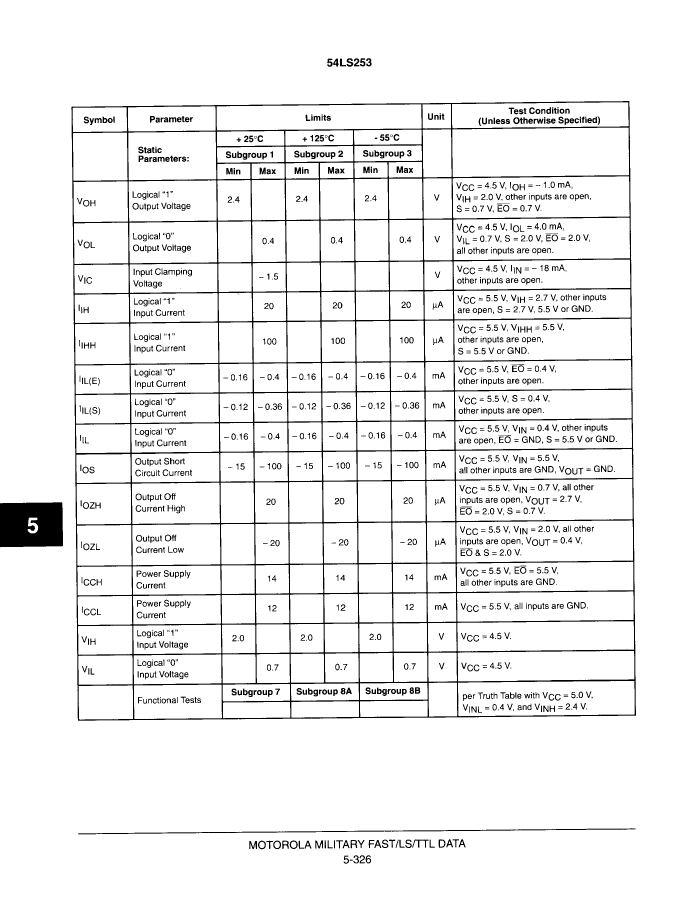

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
series	LS
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
length	8.89 mm
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.012 A
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	14 mA

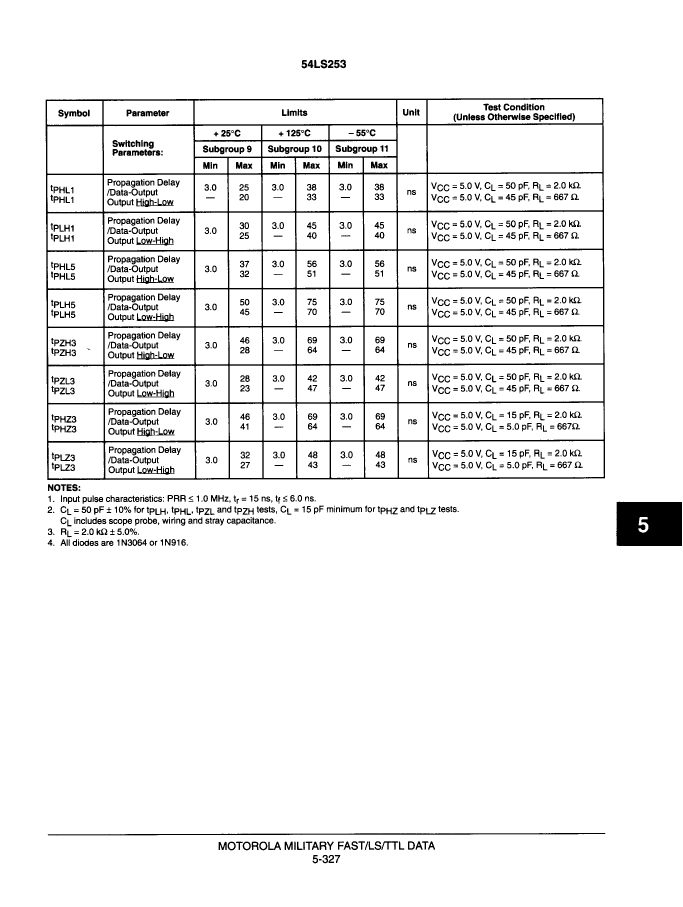

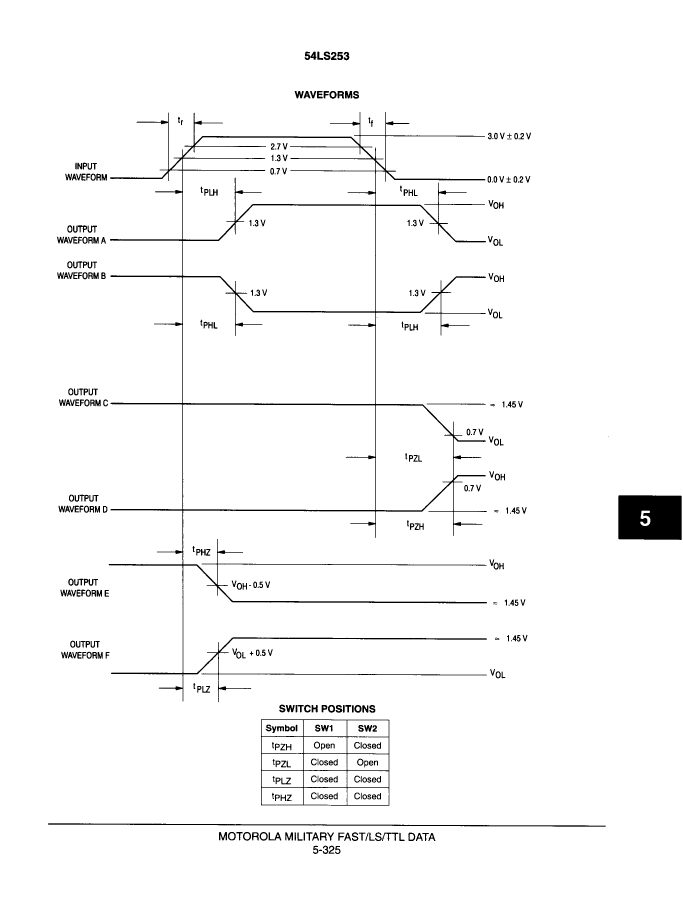

Prop。Delay @ Nom-Sup	45 ns
propagation delay (tpd)	56 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
Base Number Matches	1

	54LS253/B2AJC	SN74LS253D
Description	IC,LOGIC MUX,DUAL,4-INPUT,LS-TTL,LLCC,20PIN,CERAMIC	IC,LOGIC MUX,DUAL,4-INPUT,LS-TTL,SOP,16PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible
Maker	NXP	NXP
package instruction	QCCN, LCC20,.35SQ	SOP, SOP16,.25
Reach Compliance Code	unknown	unknown
JESD-30 code	S-XQCC-N20	R-PDSO-G16
JESD-609 code	e0	e0
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER
MaximumI(ol)	0.012 A	0.024 A
Number of functions	2	2
Number of entries	4	4
Number of terminals	20	16
Maximum operating temperature	125 °C	70 °C
Output characteristics	3-STATE	3-STATE
Package body material	CERAMIC	PLASTIC/EPOXY
encapsulated code	QCCN	SOP
Encapsulate equivalent code	LCC20,.35SQ	SOP16,.25
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	SMALL OUTLINE
power supply	5 V	5 V
Maximum supply current (ICC)	14 mA	14 mA
Prop。Delay @ Nom-Sup	45 ns	45 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL
Base Number Matches	1	1
