59000T-G-75JC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 59000T-G-75JC

59000T-G-75JC: DescriptionMIL Series Connector, 4 Contact(s), Titanium Alloy, Female, Crimp Terminal, Plug; CategoryThe connector; File Size66KB，1 Pages; ManufacturerHiRel Connectors Inc; Websitehttps://hirelco.net

Download Datasheet Parametric View All

59000T-G-75JC Overview

MIL Series Connector, 4 Contact(s), Titanium Alloy, Female, Crimp Terminal, Plug

59000T-G-75JC Parametric

Parameter Name	Attribute value
Maker	HiRel Connectors Inc
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-38999
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	59000
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	TITANIUM
Housing size	G
Termination type	CRIMP
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

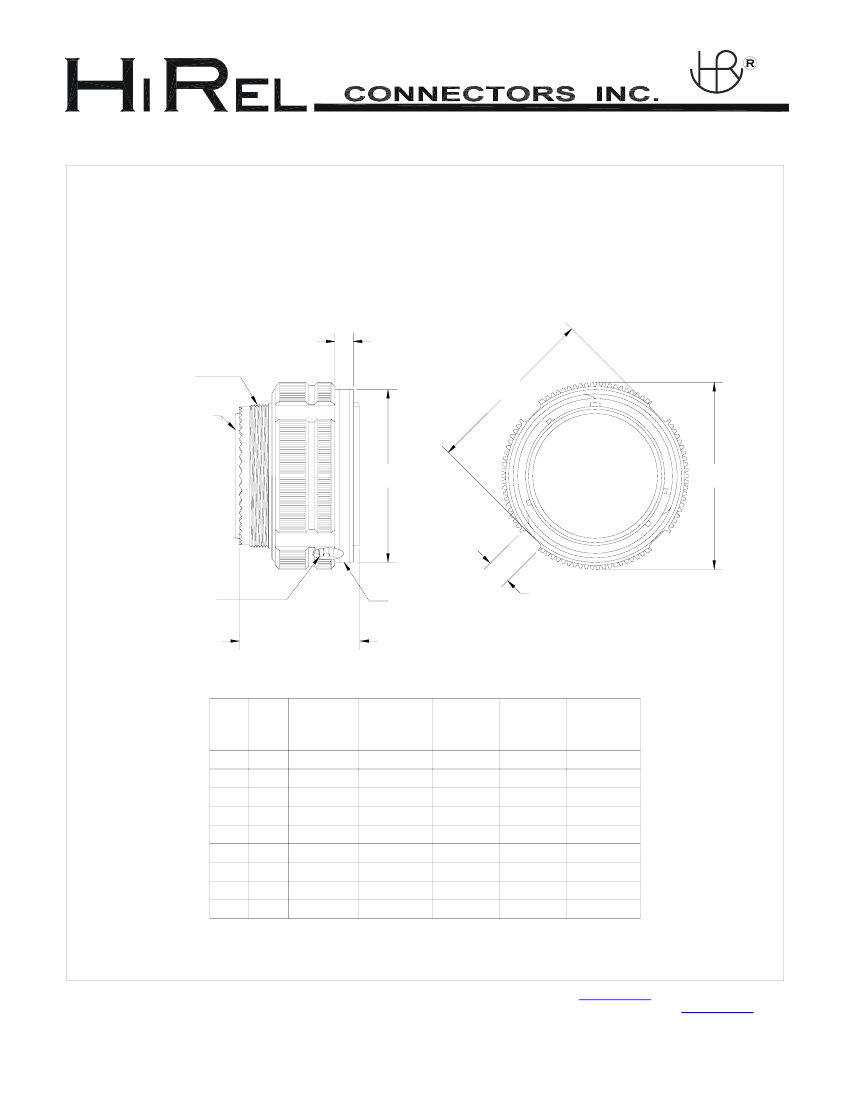

D38999/26

EMI/RFI Environment Resistant Plug

MIL-DTL-38999

Series III – Threaded Coupling

.200/.169 [5.1/4.3]

VV Thd

SEE CONTACT

STYLE

DESIGNATOR

ON ORDERING

INFORMATION

PAGE

ØB

ØS

DD Thd*

1.220 [31.0] MAX

.256/.244 [6.5/6.2]

BLUE BAND

4 PL MIN

(LOCATION OPTIONAL)

SHELL SHELL

SIZE

SIZE CODE

+.008/-.000

[+0.2/-0.0]

.724 [18.4]

.831 [21.1]

1.000 [25.4]

1.130 [28.7]

1.268 [32.2]

1.374 [34.9]

1.500 [38.1]

1.618 [41.1]

1.744 [44.3]

ØB

DD Thd

CLASS 2B

0.1P-0.3L-TS

.6250

.7500

.8750

1.0000

1.1875

1.2500

1.3750

1.5000

1.6250

MAX

.748 [19.0]

.862 [21.9]

ØS

MAX

.858 [21.8]

.984 [25.0]

VV Thd

-6g 0.100R

M12 x 1.0

M15 x 1.0

M18 x 1.0

M22 x 1.0

M25 x 1.0

M28 x 1.0

M31 x 1.0

M34 x 1.0

M37 x 1.0

1.028 [26.1] 1.157 [29.4]

1.134 [29.3] 1.280 [32.5]

1.291 [32.8] 1.406 [35.7]

1.398 [35.5] 1.516 [38.5]

1.524 [38.7] 1.642 [41.7]

1.642 [41.7] 1.768 [44.9]

1.768 [44.9] 1.890 [48.0]

* - HIRELCO HAS INCORPORATED A PATENTED SELF-LOCKING MECHANISM INTO OUR

PLUGS THAT HAVE PROVEN TO STAY LOCKED UNDER EXTREME VIBRATION

DIMENSIONS ARE IN INCHES [MILLIMETERS]

United States

– 760 W. Wharton Drive, Claremont CA. 91711

▪

Ph: 909-626-1820

▪

FAX: 909-399-0626

▪

Web:

www.HIRELCO.com

Europe

– 5 Rue Des Longues Raies, Z.I. Des Garennes, 78440; Gargenville, France

▪

Ph: 33(0) 1-309-38999 or U.K. 44(0)1-980-843887

▪

FAX 33(0) 1-309-38913

▪

Web:

www.HIRELCO.com

C-18
