54F242SDM

Description
Bus Transceiver, F/FAST Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP14, SLIM, CERAMIC, DIP-14
Categorylogic
File Size59KB,3 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

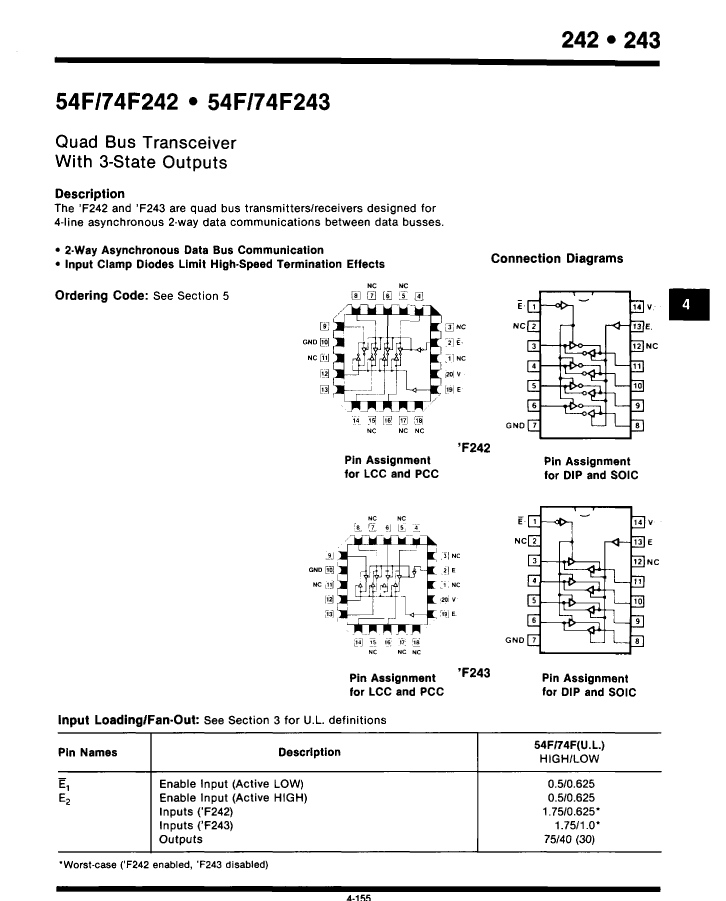

54F242SDM Overview

Bus Transceiver, F/FAST Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP14, SLIM, CERAMIC, DIP-14

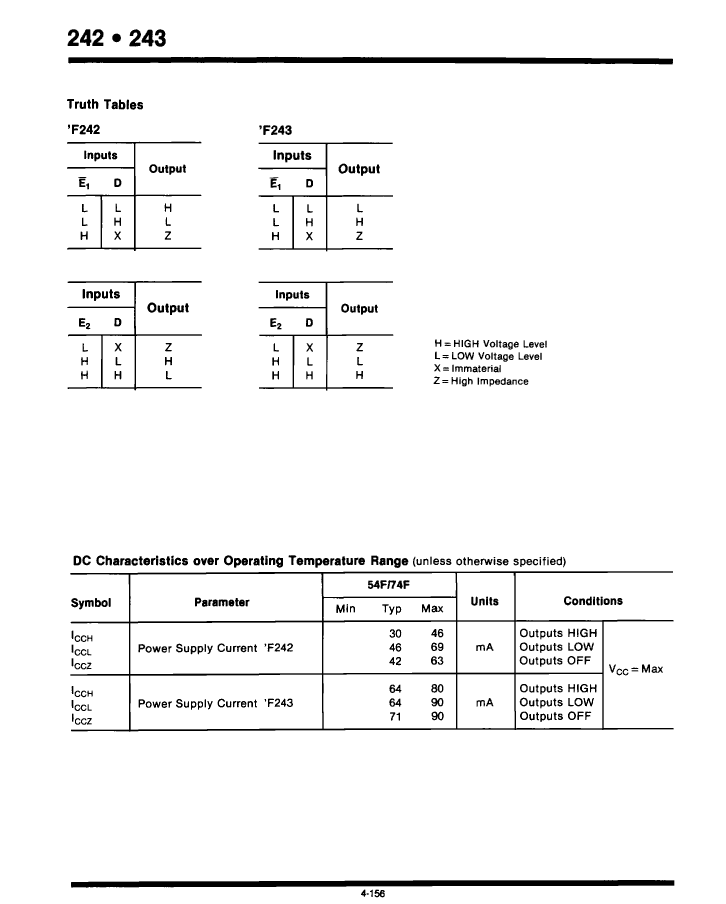

54F242SDM Parametric

Parameter NameAttribute value
MakerFairchild
Parts packaging codeDIP
package instructionDIP,
Contacts14
Reach Compliance Codeunknown
ECCN code3A001.A.2.C
Other featuresWITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
seriesF/FAST
JESD-30 codeR-CDIP-T14
Logic integrated circuit typeBUS TRANSCEIVER
Number of digits4
Number of functions1
Number of ports2
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityINVERTED
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE

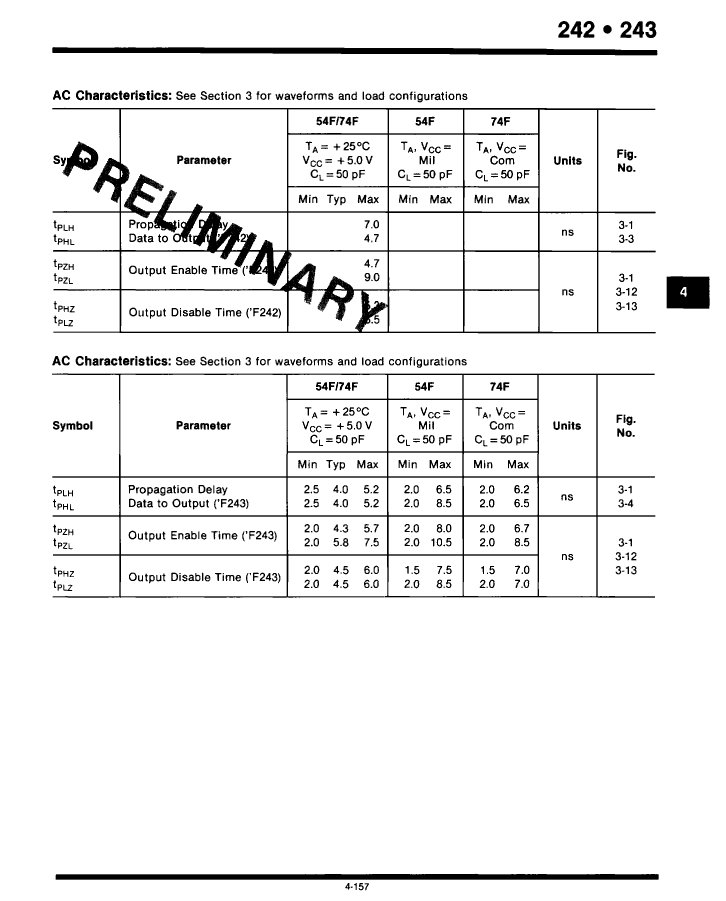

propagation delay (tpd)4.7 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Base Number Matches1
