Bulletin I2169 10/04
QUIET
IR
Series
30EPF06PbF, 30CPF06PbF
FAST SOFT RECOVERY
RECTIFIER DIODE
Lead-Free ("PbF" suffix)
V
F
t
rr
< 1.2V @ 10A
= 60ns
V
RRM
= 600V
Description/ Features
The 30EPF06PbF & 30CPF06PbF soft recovery
QUIET
IR
rectifier series has been optimized for
combined short reverse recovery time and low forward
voltage drop.
The glass passivation ensures stable reliable operation
in the most severe temperature and power cycling
conditions.
Typical applications are:
Output rectification and freewheeling in
inverters, choppers and converters
and input rectifications where severe
restrictions on conducted EMI should be met.
30CPF series is a drop in replacement
for 25CPF Series (parallel connection only)
Major Ratings and Characteristics
Characteristics
I
F(AV)
Sinusoidal waveform
V
RRM
I
FSM
V
F
trr
T
J
@ 10 A, T
J
= 25°C
@ 1A, 100A/µs
Package Outline
Units
A
V
A
V
ns
°C
Values
30
600
350
1.2
60
- 40 to 150
30EPF..
30CPF..
TO-247AC (Modified)
www.irf.com
1

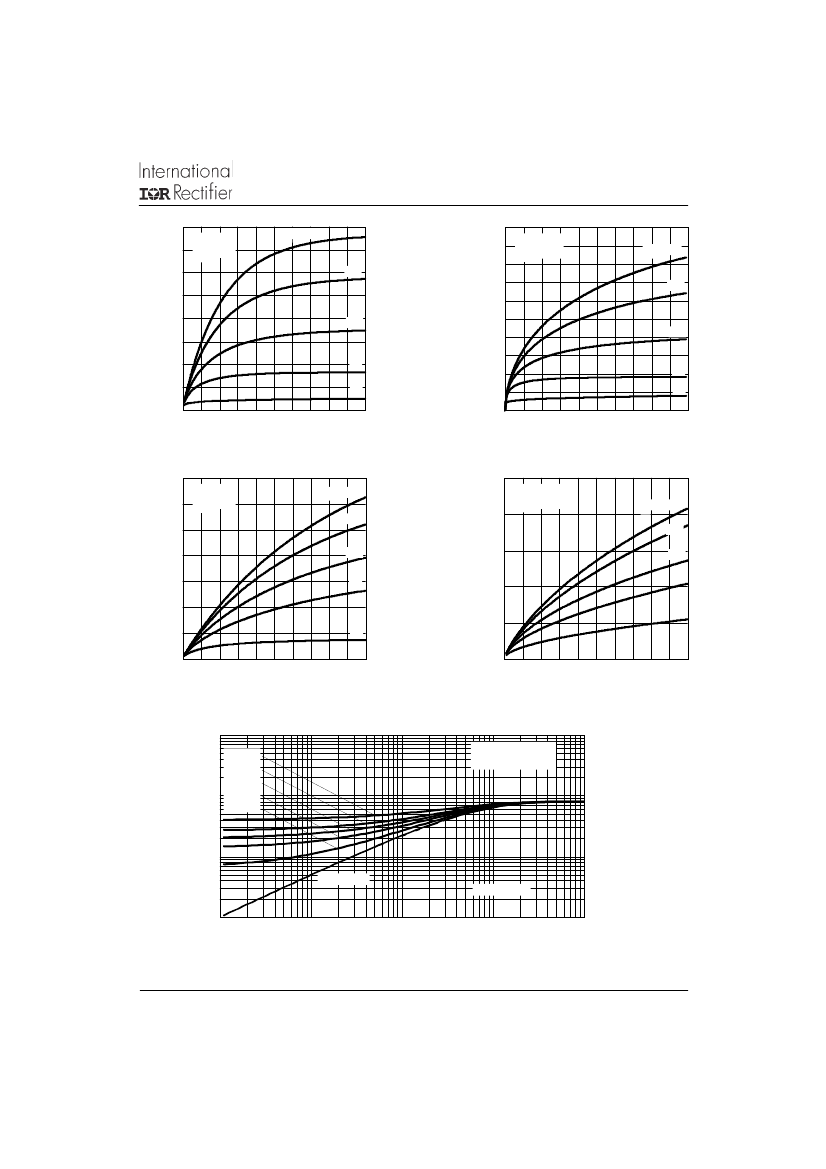

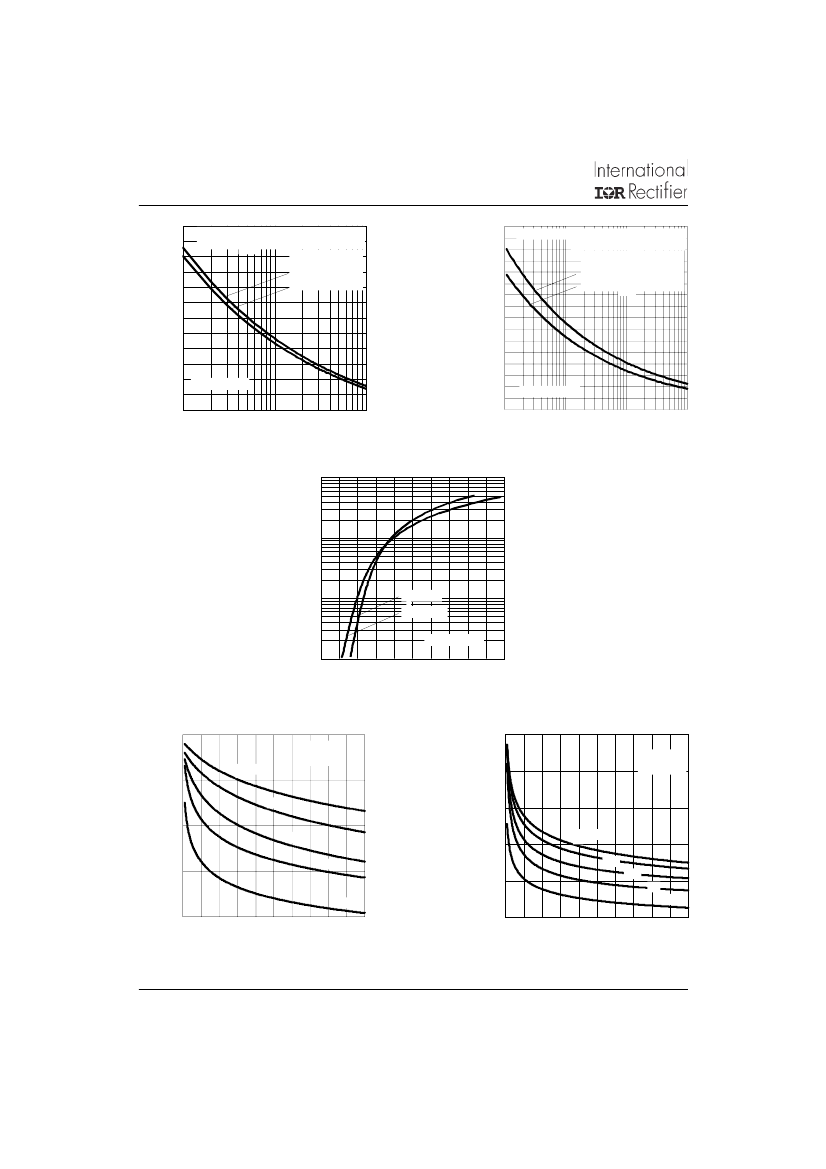

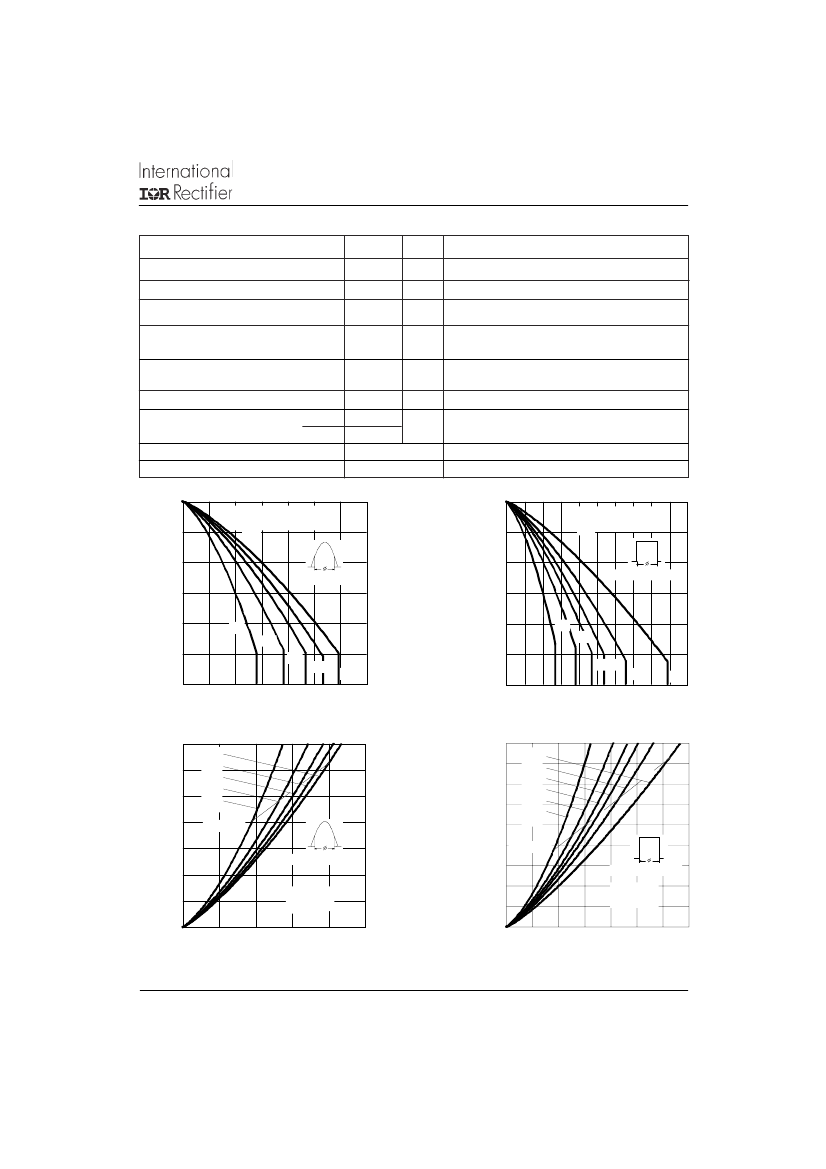

30EPF06PbF, 30CPF06PbF
QUIET
IR
Series
Bulletin I2169 10/04
Voltage Ratings
Part Number
V
RRM
, maximum
peak reverse voltage
V
30EPF06PbF, 30CPF06PbF
600
V
RSM
, maximum non repetitive
peak reverse voltage
V
700
I
RRM
150°C
mA
2
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward Current
I
FSM
I
2
t
Max. Peak One Cycle Non-Repetitive
Surge Current
Max. I
2
t for fusing
30.PF..
30
300
350
450
636
Units
A
A
A
2
s
A
2
√s
Conditions
@ T
C
= 98° C, 180° conduction half sine wave
10ms Sine pulse, rated V
RRM
applied
10ms Sine pulse, no voltage reapplied
10ms Sine pulse, rated V
RRM
applied
10ms Sine pulse, no voltage reapplied
t = 0.1 to 10ms, no voltage reapplied
I
2
√t
Max. I
2
√t
for fusing
6360
Electrical Specifications
Parameters
V
FM
r
t
Max. Forward Voltage Drop
Forward slope resistance
30.PF..
1.41
12.5
0.9
0.1
2.0
Units
V
mΩ
V
mA
Conditions
@ 30A, T
J
= 25°C
T
J
= 150°C
T
J
= 25 °C
T
J
= 150 °C
V
F(TO)
Threshold voltage
I
RM
Max. Reverse Leakage Current
V
R
= rated V
RRM
Typical Recovery Characteristics
Parameters
t
rr
I
rr
Q
rr
S
Reverse Recovery Time
Reverse Recovery Current
Reverse Recovery Charge
Snap Factor
tb/ta
30.PF..
160
10
1.25
0.6
Units
ns
A
µC
typical
Conditions
I
F
@ 20Apk
@ 100A/ µs
@ 25°C
dir
dt
Ifm
trr
ta
tb
Qrr
Irm (REC)
t
2
www.irf.com
30EPF06PbF, 30CPF06PbF
QUIET
IR
Series
Bulletin I2169 10/04
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
30.PF..
- 40 to 150
- 40 to 150
0.8
40
0.2
6 (0.21)
Min.
Max.
6 (5)
12 (10)
Units
°C
°C
°C/W
°C/W
°C/W
g (oz.)
Kg-cm
(Ibf-in)
Conditions
R
thJC
Max. Thermal Resistance Junction
to Case
R
thJA
Max. Thermal Resistance Junction
to Ambient
R
thCS
Typical Thermal Resistance, Case to
Heatsink
wt
T
Approximate Weight
Mounting Torque
Case Style
Marking Device
Maximum Allowable Case T
emperature (°C)
150
140
130
Conduction Angle
DC operation
Mounting surface , smooth and greased
TO-247AC
30EPF06/ 30CPF06
JEDEC (Modified)
Maximum Allowa ble Case T
emperature (°C)
150
140
130
Conduction Period
30EPF.. S
eries
R
thJC
(DC) = 0.8 K/ W
30EPF.. S
eries
R
thJC
(DC) = 0.8 K/ W
120
110
100
90
0
5
10
15
20
25
30
35
Average Forward Current (A)
120
30°
110
100
120°
180°
90
0
5
Average Forward Current (A)
DC
10 15 20 25 30 35 40 45 50
60°
90°
30°
60°
90°
120°
180°
Fig. 1 - Current Rating Characteristics
Maximum Avera ge Forwa rd Power Loss (W)
180°
120°
90°
60°
30°
RMSLimit
Fig. 2 - Current Rating Characteristics
Maximum Avera ge Forwa rd Power Loss (W)
45
40
35
30
25
DC
180°
120°
90°
60°
30°
35
30
25
20
15
Conduction Angle
20 RMSLimit
15
10
5
0
0
5
10
15
20
25
30
35
Average Forward Current (A)
Conduction Period
10
5
0
0
5
10
15
20
25
Average Forward Current (A)
30EPF..
T
J
= 150°C
30EPF..
T
J
= 150°C
Fig. 3 - Forward Power Loss Characteristics
Fig. 4 - Forward Power Loss Characteristics
www.irf.com
3
30EPF06PbF, 30CPF06PbF
QUIET
IR
Series
Bulletin I2169 10/04
Peak Half Sine Wave Forwa rd Current (A)
Peak Half S Wa ve Forwa rd Current (A)
ine
350
300
250
200
150
100
50
1
At Any Ra te d Loa d Cond ition And With
Ra ted V
Ap p lied Following Surg e.
RRM
400
350
300
250
200
150
100
50
0
0.01
Maximum Non Repetitive S
urge Current
Versus Pulse Tra in Dura tion.
Initial T = 150°C
J
Initial T = 150°C
J
No Voltag e Reapplied
Rated V
RRM
Reapplied
@60 Hz 0.0083 s
@50 Hz 0.0100 s
30EPF..Series
30E
PF.. S
eries
10
100
0.1
1
10
Number Of E
qual Amplitude Half Cycle Current P es(N)
uls
Pulse T
rain Duration (s)
Fig. 5 - Maximum Non-Repetitive Surge Current
1000
InstantaneousF
orward Current (A)
Fig. 6 - Maximum Non-Repetitive Surge Current
100
10
T
J
= 25°C
T
J
= 150°C
30EPF.. S
eries
1
0
1
2
3
4
5
Instanta neous Forwa rd Voltag e (V)
Fig. 7 - Forward Voltage Drop Characteristics
Maximum Reverse Recovery T
ime - T (µs)
rr
Maximum Reverse Recovery T
ime - Trr (µs)
0.2
30E
PF..
T
J
= 25 °C
0.5
30EPF..
T
J
= 150 °C
I
T
= 30 A
M
0.4
0.15
20 A
0.3
I
TM
= 30 A
20 A
0.1
10 A
5A
0.2
0.05
0.1
10 A
5A
1A
1A
0
0
200
400
600
800
1000
Rate Of Fall Of Forward Current - di/ dt (A/ µs)
0
0
200
400
600
800
1000
Rate Of Fall Of Forward Current - di/ dt (A/ µs)
Fig. 8 - Recovery Time Characteristics, T
J
= 25°C
Fig. 9 - Recovery Time Characteristics, T
J
= 150°C
4
www.irf.com
30EPF06PbF, 30CPF06PbF
QUIET
IR
Series
Bulletin I2169 10/04
Maximum Reverse Recovery Charge - Qrr (µC)
4
3.5
3
2.5
2
1.5
1
0.5
0
0
200
400
600
800
1000
Rate Of Fall Of Forward Current - di/ dt (A/ µs)
5A
1A
10 A
Maximum R
everse Recovery Charge - Qrr (µC)
30EPF..
T
J
= 25 °C
I
T
= 30 A
M
10
9
8
7
6
5
4
3
2
1
0
0
200
400
600
800
1000
Rate Of Fall Of Forward Current - di/ dt (A/ µs)
5A
1A
10 A
30EPF..
T
J
= 150 °C
I
T
= 30 A
M
20 A
20 A
Fig. 10 - Recovery Charge Characteristics, T
J
= 25°C
Maximum Reverse Recovery Current - Irr (A)
70
60
50
40
30
20
10
0
0
200
400
600
800
1000
Rate Of Fall Of Forward Current - di/ dt (A/ µs)
1A
10 A
Fig. 11 - Recovery Charge Characteristics, T
J
= 150°C
Maximum R
everse Recovery Current - Irr (A)
100
30EPF..
T
J
= 150 °C
I
= 30 A
20 A
30EPF..
T
J
= 25 °C
I
T
= 30 A
M
20 A
80
T
M
60
10 A
5A
5A
40
1A
20
0
0
200
400
600
800
1000
Rate Of Fall Of Forward Current - di/ dt (A/ µs)
Fig. 12 - Recovery Current Characteristics, T
J
= 25°C
(K/ W)
10
D = 0.50
D = 0.33
D = 0.25
1 D = 0.17
D = 0.08
Fig. 13 - Recovery Current Characteristics, T
J
= 150°C
S
teady S te Value
ta
(DC Operation)
T
ransient T
hermal Impeda nce Z
thJC
0.1
S
ingle Pulse
30EPF.. S
eries
0.01
0.0001
0.001
0.01
S
qua re Wa ve Pulse Duration (s)
0.1
1
Fig. 14 - Thermal Impedance Z
thJC
Characteristics
www.irf.com
5
