74VHC86MX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74VHC86MX

74VHC86MX: DescriptionAHC/VHC/H/U/V SERIES, QUAD 2-INPUT XOR GATE, PDSO14, 0.150 INCH, MS-012, SOIC-14; Categorylogic; File Size978KB，11 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

74VHC86MX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74VHC86MX	-	-	View	Buy Now

74VHC86MX Overview

AHC/VHC/H/U/V SERIES, QUAD 2-INPUT XOR GATE, PDSO14, 0.150 INCH, MS-012, SOIC-14

74VHC86MX Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
series	AHC/VHC/H/U/V
JESD-30 code	R-PDSO-G14
JESD-609 code	e3
length	8.6235 mm
Logic integrated circuit type	XOR GATE
Humidity sensitivity level	1
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	16.5 ns
Maximum seat height	1.753 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm
Base Number Matches	1

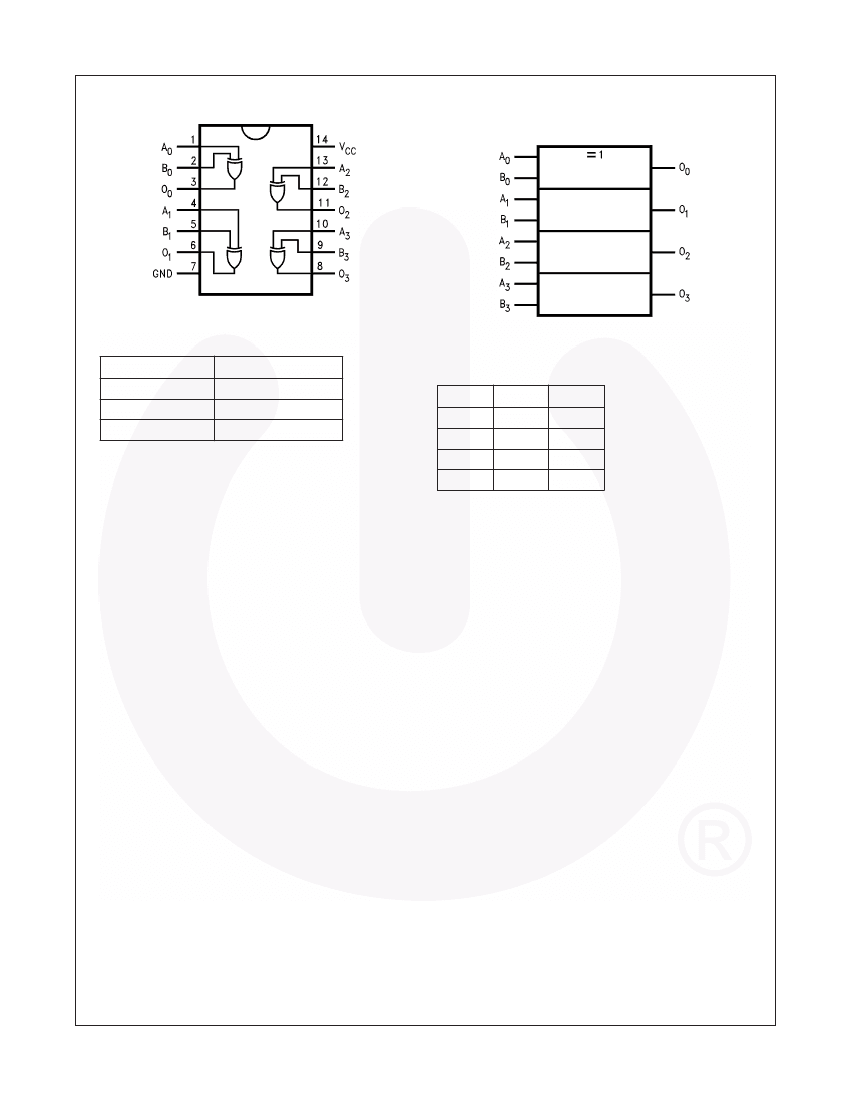

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

74VHC86MX Related Products

	74VHC86MX	74VHC86MTCX	74VHC86M	74VHC86SJ	74VHC86N	74VHC86SJX	74VHC86MTC
Description	AHC/VHC/H/U/V SERIES, QUAD 2-INPUT XOR GATE, PDSO14, 0.150 INCH, MS-012, SOIC-14	AHC/VHC/H/U/V SERIES, QUAD 2-INPUT XOR GATE, PDSO14, 4.40 MM, MO-153AB, TSSOP-14	AHC/VHC/H/U/V SERIES, QUAD 2-INPUT XOR GATE, PDSO14, 0.150 INCH, MS-012, SOIC-14	AHC/VHC/H/U/V SERIES, QUAD 2-INPUT XOR GATE, PDSO14, 5.30 MM, LEAD FREE, EIAJ TYPE2, SOP-14	AHC/VHC/H/U/V SERIES, QUAD 2-INPUT XOR GATE, PDIP14, 0.300 INCH, PLASTIC, MS-001, DIP-14	AHC/VHC/H/U/V SERIES, QUAD 2-INPUT XOR GATE, PDSO14, 5.30 MM, LEAD FREE, EIAJ TYPE2, SOP-14	AHC/VHC/H/U/V SERIES, QUAD 2-INPUT XOR GATE, PDSO14, 4.40 MM, MO-153AB, TSSOP-14
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
Parts packaging code	SOIC	TSSOP	SOIC	SOIC	DIP	SOIC	TSSOP
package instruction	SOP,	TSSOP,	SOP,	SOP,	DIP,	SOP,	TSSOP,
Contacts	14	14	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
series	AHC/VHC/H/U/V	AHC/VHC/H/U/V	AHC/VHC/H/U/V	AHC/VHC/H/U/V	AHC/VHC/H/U/V	AHC/VHC/H/U/V	AHC/VHC/H/U/V
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e3	e4	e3	e3	e3	e3	e4
length	8.6235 mm	5 mm	8.6235 mm	10.2 mm	19.18 mm	10.2 mm	5 mm
Logic integrated circuit type	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE
Humidity sensitivity level	1	1	1	1	NOT APPLICABLE	1	1
Number of functions	4	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSSOP	SOP	SOP	DIP	SOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260	260	260	NOT APPLICABLE	260	260
propagation delay (tpd)	16.5 ns	16.5 ns	16.5 ns	16.5 ns	16.5 ns	16.5 ns	16.5 ns
Maximum seat height	1.753 mm	1.2 mm	1.753 mm	2.1 mm	5.08 mm	2.1 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	MATTE TIN	NICKEL PALLADIUM GOLD	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	NICKEL PALLADIUM GOLD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	NOT SPECIFIED	NOT APPLICABLE	NOT SPECIFIED	30
width	3.9 mm	4.4 mm	3.9 mm	5.3 mm	7.62 mm	5.3 mm	4.4 mm
Base Number Matches	1	1	1	1	1	1	-
