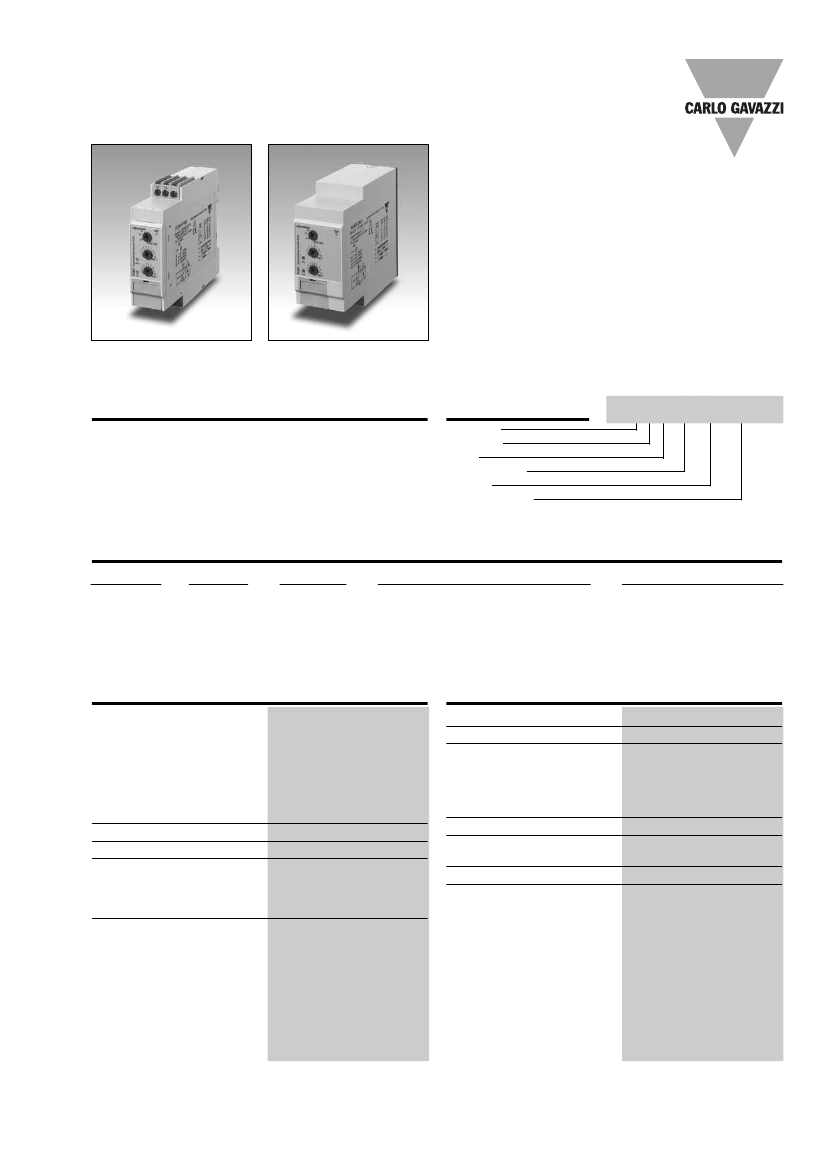

Timers
Asymmetrical Recycler
Types DCB01, PCB01
• Time range 0.1 s to 100h
• 4 knob selectable functions
Aa - Asymmetrical recycler ON first
Ab - Asymmetrical recycler OFF first
Sh - One shot time function
Dt - Two state delay on operate (2 relays ver-
sions only)
• Selection of time range by DIP switches
• Knob adjustable time setting Automatic start
• Output: 1 or 2 x SPDT relay
• For mounting on DIN rail in accordance with DIN/EN
50 022 or Plug-in
• 22.5 mm Euronorm or 36 mm plug-in module housing
• Combined AC and DC power supply voltage
• LED indication for relay status and power supply ON
DCB01
PCB01
Product Description
Combined function timer with
asymmetrical recycler, one
shot time and two state delay
on operate functions. Individ-
ual selection of the time
ranges from 0.1 s to 100 h.
For mounting on DIN-rail
(DCB01) or Plug-in (PCB01).
Ordering key
Housing
Function
Type
Item number
Output
Power Supply
DCB 01 C M24
Type Selection
Mounting
For DIN-rail
Plug-in
Output
1 x SPDT
2 x SPDT
1 x SPDT
2 x SPDT
Housing
D-Housing
P-Housing
Supply: 24 VDC and 24 to 240 VAC
DCB 01 C M24
DCB 01 D M24
PCB 01 C M24
PCB 01 D M24
Supply: 24 to 240 VAC/DC
Time Specifications
Time ranges
Selectable by DIP switches
0.1 to 1 s
1 to 10 s
6 to 60 s
60 to 600 s
0.1 to 1 h
1 to 10 h
10 to 100 h
≤
5%
≤
0.2%
(with respect to full scale
value)
≤
0.2% - whole range
≤
500 ppm/°C
≥
200 ms
Output Specifications
Output
Rated insulation voltage
Contact Ratings
(AgSnO
2
)
Resistive Loads
AC 1
DC 12
Small inductive loads AC 15
DC 13
Mechanical life
Electrical life
Operating frequency
Dielectric strength
Dielectric voltage
Rated impulse
withstand voltage
1 or 2 x SPDT relay
250 VAC (RMS)
µ
8 A @ 250 VAC
5 A @ 24 VDC
2.5 A @ 250 VAC
2.5 A @ 24 VDC
≥
30 x 10
6
operations
≥
10
5
operations
(at 8 A, 250 V, cos
ϕ
= 1)
< 7200 operations/h
2 kVAC (RMS)
4 kV (1.2/50 µs)
Setting accuracy
Repeatability
Time variation
Within rated power supply
Within ambient temperature
Reset
Power supply interruption
Specifications are subject to change without notice (15.12.05)
1
DCB01, PCB01
Supply Specifications
Power Supply
Rated operational voltage
trough terminals:
(DCB01C)
(PCB01C)
A1, A2:
2, 10:
Overvoltage cat. III
(IEC 60664, IEC 60038)
24 VDC ± 15 % and
24 to 240 VAC +10% -15%
45 to 65 Hz
24 to 240 VAC/DC
+10% -15%, 45 to 65 Hz
≤
10 ms
1.5 W
General Specifications (cont.)
Environment
Degree of protection
Pollution degree
Operating temperature
Storage temperature
Housing dimensions
DIN-rail version
Plug-in version
Weight
Screw terminals
Tightening torque
EMC
Immunity
Emission
Timer Specifications
Approval
CE Marking
(EN 60529)
IP 20
3 (DCB01), 2 (PCB01)
(IEC 60664)
-20 to +60 °C, R:H: < 95%
-30 to +80 °C, R:H: < 95%
22.5 x 80 x 99.5 mm
36 x 80 x 94 mm
Approx 100 g
(DCB01)
Max. 0.5 Nm according to
IEC EN 60947
Electromagnectic Compatibility
According to EN 61000-6-2
According to EN 61000-6-3
According to EN 61812-1
UL, CSA
Yes
(DCB01D)
A1, A2:
(PCB01D)
2, 10:
Voltage interruption
Rated operational power
General Specifications
Power ON delay
Power OFF delay
Indication for
Power supply ON
Output relays ON
≤
100 ms
≤
200 ms
LED, green
LED, yellow (flashing when
timing)

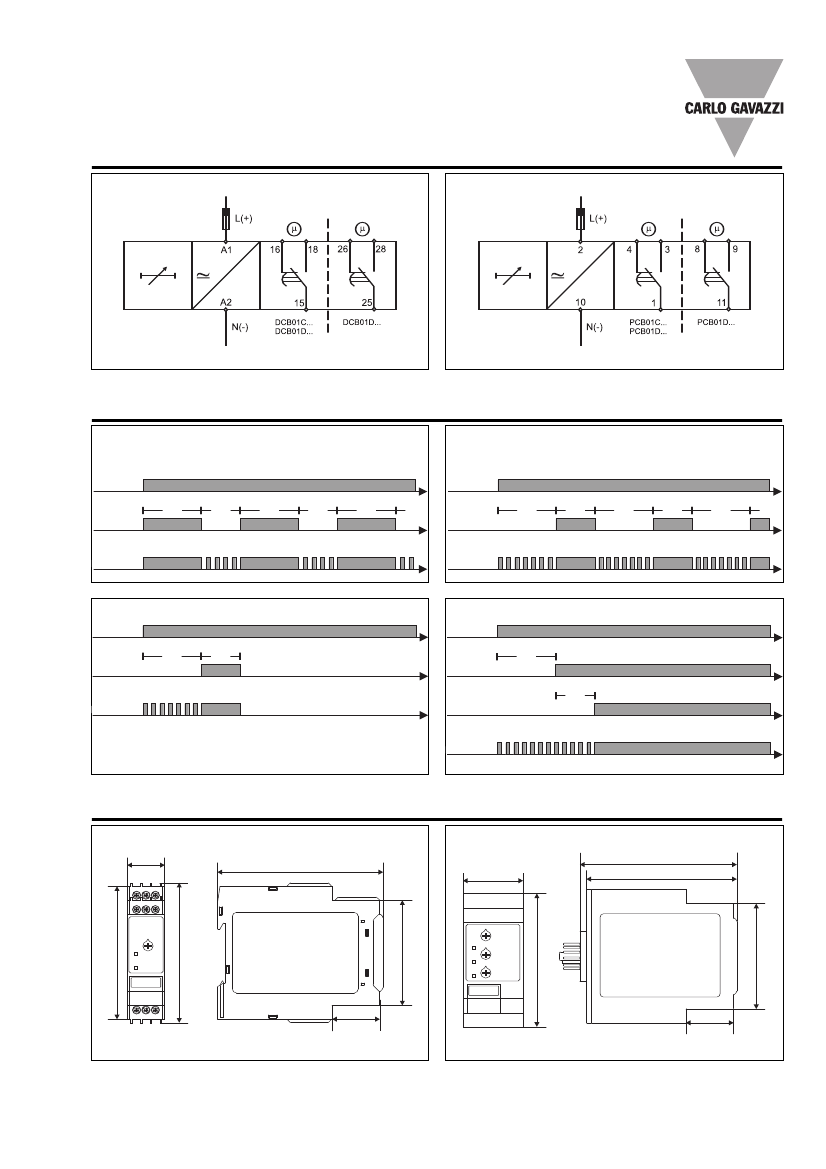

Mode of Operation
Function Aa - Asymmetri-
cal Recycler ON-time peri-
od first
The relay operates and the
ON-time period (T1) begins
as soon as the power supply
is connected. After the ON-
time period the relay releas-
es for the OFF-time period
(T2). This sequence contin-
ues until the power supply is
interrupted for at least 200
ms.
Function Ab - Asymmetri-
cal Recycler OFF-time
period first
The OFF-time period (T1)
begins as soon as the power
supply is connected. After
the OFF-time period the
relay operates for the ON-
time period (T2). This
sequence continues until the
power supply is interrupted
for at least 200 ms.
Function Sh - One shot
time function
The OFF-time period (T1)
begins as soon as the power
supply is connected. After
the OFF-time period the
relay operates for the ON-
time period (T2). After the
ON-time period the relay
releases and does not oper-
ate until the power supply is
interrupted for at least 200
ms and connected again.
Function Dt - Two state
delay on operate (2 x
SPDT versions)
The first time period (T1)
begins as soon as the power
supply is connected. At the
end of the first time period
the first relay operates and
the second time period (T2)
begins. At the end of the
second time period the sec-
ond relay operates. Both
relays release when the pow-
er supply is disconnected.
Function/Range/Time Setting
Upper knob:
Setting of function:
Aa - asymmetrical recy-
cler (ON first)
Ab - asymmetrical recy-
cler (OFF first)
Sh - One shot time func-
tion
Dt - Two-state delay on
operate (2 x SPDT ver-
sions)
Centre knob:
Time T1 setting on relative
scale: 1 to 10 with respect
to the chosen range.
Lower knob:
Time T2 setting on relative
scale: 1 to 10 with respect
to the chosen range.
Selection of time ranges
Adjust the T1 time range
setting the DIP-switches 1
to 3 and the T2 time range
setting the DIP-switches 4
to 6 as shown on the left.
To access the DIP-switches
open the plastic cover using
a screwdriver as shown
below.
T1 time range
ON ON ON:
ON ON OFF:
ON OFF ON:
ON OFF OFF:
OFF ON ON:
OFF ON OFF:
OFF OFF ON:
0.1 to 1 s
1 to 10 s
6 to 60 s
60 to 600 s
0.1 to 1 h
1 to 10 h
10 to 100 h
T2 time range
ON ON ON:
ON ON OFF:
ON OFF ON:
ON OFF OFF:
OFF ON ON:
OFF ON OFF:
OFF OFF ON:
0.1 to 1 s
1 to 10 s
6 to 60 s
60 to 600 s
0.1 to 1 h
1 to 10 h
10 to 100 h
2
Specifications are subject to change without notice (15.12.05)
