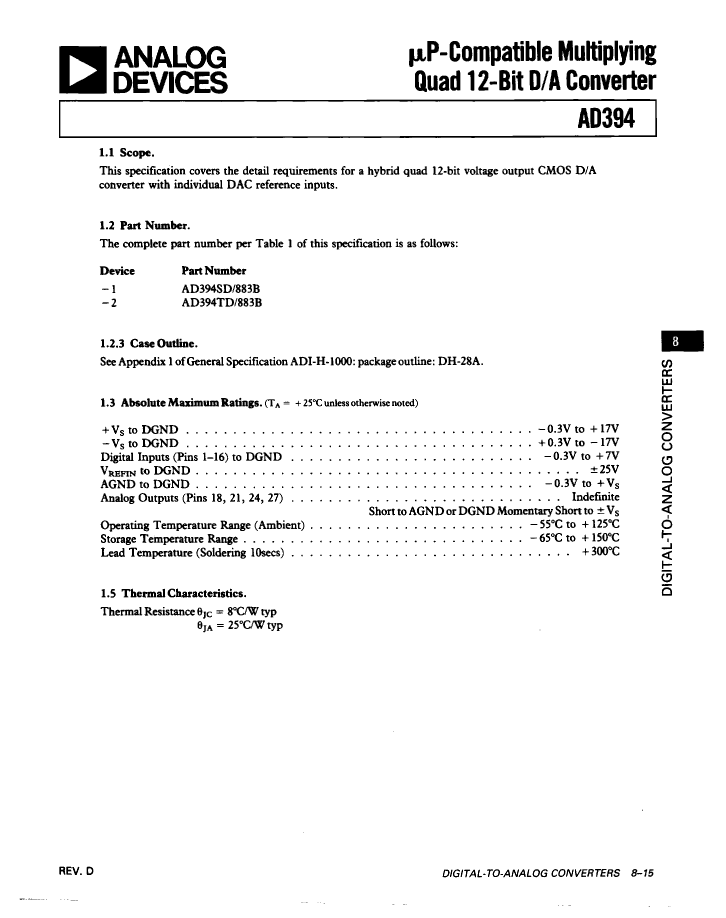

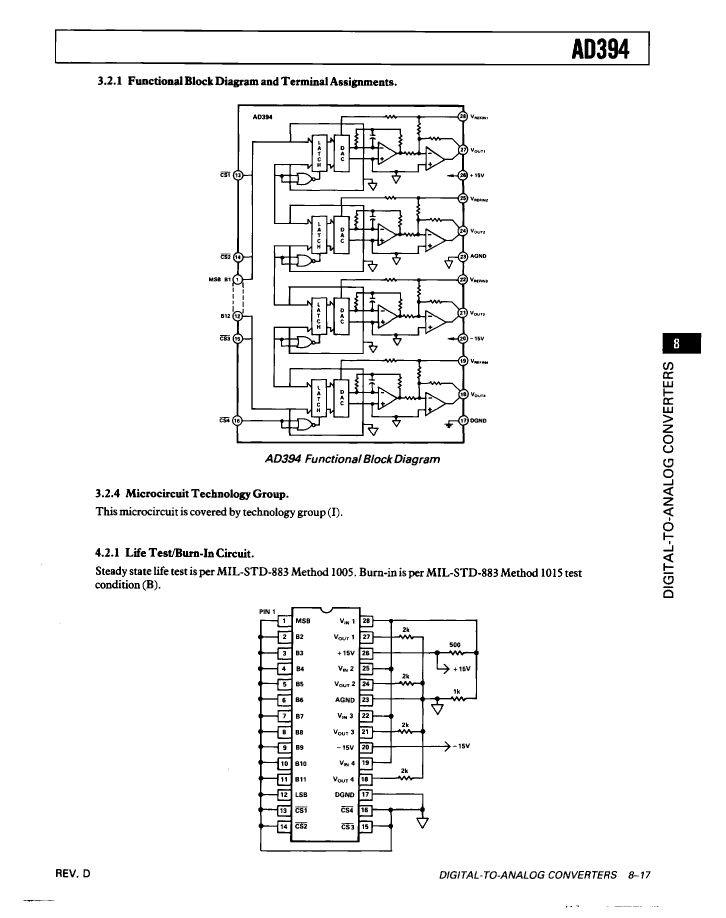

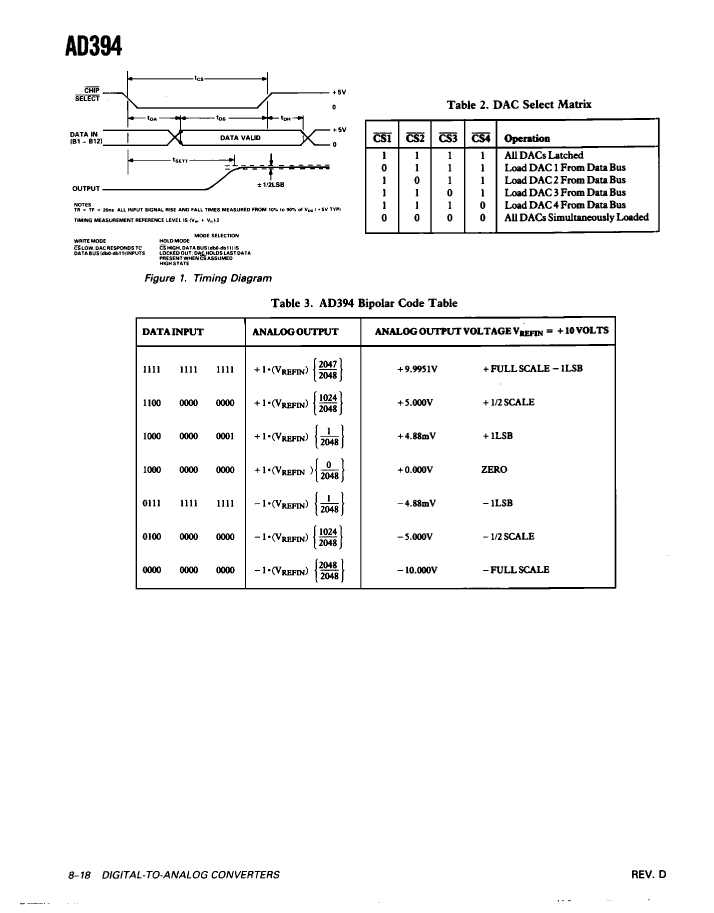

IC QUAD, PARALLEL, WORD INPUT LOADING, 10 us SETTLING TIME, 12-BIT DAC, CDIP28, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28, Digital to Analog Converter

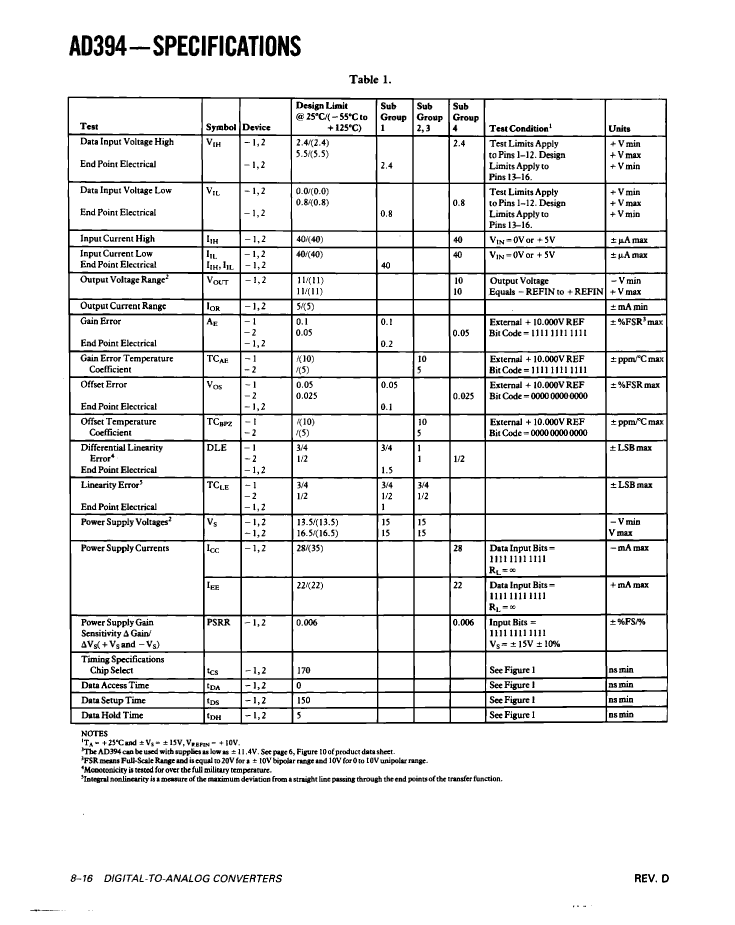

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | ADI |
| Parts packaging code | DIP |
| package instruction | HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28 |
| Contacts | 28 |
| Reach Compliance Code | compliant |
| ECCN code | 3A001.A.2.C |
| Maximum analog output voltage | 11 V |
| Minimum analog output voltage | -11 V |
| Converter type | D/A CONVERTER |
| Enter bit code | BINARY |
| Input format | PARALLEL, WORD |
| JESD-30 code | R-CDIP-T28 |
| JESD-609 code | e0 |
| Maximum linear error (EL) | 0.0122% |
| Nominal negative supply voltage | -15 V |
| Number of digits | 12 |
| Number of functions | 4 |
| Number of terminals | 28 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 5.72 mm |
| Nominal settling time (tstl) | 10 µs |
| Nominal supply voltage | 15 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| Base Number Matches | 1 |
| 5962-8851002XX | 5962-8851002XA | 5962-8851002XC | 5962-8851001XA | 5962-8851001XX | 5962-8851001XC | |
|---|---|---|---|---|---|---|
| Description | IC QUAD, PARALLEL, WORD INPUT LOADING, 10 us SETTLING TIME, 12-BIT DAC, CDIP28, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28, Digital to Analog Converter | IC QUAD, PARALLEL, WORD INPUT LOADING, 10 us SETTLING TIME, 12-BIT DAC, CDIP28, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28, Digital to Analog Converter | IC QUAD, PARALLEL, WORD INPUT LOADING, 10 us SETTLING TIME, 12-BIT DAC, CDIP28, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28, Digital to Analog Converter | IC QUAD, PARALLEL, WORD INPUT LOADING, 10 us SETTLING TIME, 12-BIT DAC, CDIP28, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28, Digital to Analog Converter | IC QUAD, PARALLEL, WORD INPUT LOADING, 10 us SETTLING TIME, 12-BIT DAC, CDIP28, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28, Digital to Analog Converter | IC QUAD, PARALLEL, WORD INPUT LOADING, 10 us SETTLING TIME, 12-BIT DAC, CDIP28, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28, Digital to Analog Converter |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | DIP | DIP | DIP | DIP | DIP |
| package instruction | HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28 | HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28 | HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28 | HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28 | HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28 | HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-28 |
| Contacts | 28 | 28 | 28 | 28 | 28 | 28 |
| Reach Compliance Code | compliant | compliant | compliant | not_compliant | compliant | compliant |
| ECCN code | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C |
| Maximum analog output voltage | 11 V | 11 V | 11 V | 11 V | 11 V | 11 V |
| Minimum analog output voltage | -11 V | -11 V | -11 V | -11 V | -11 V | -11 V |
| Converter type | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER |
| Enter bit code | BINARY | BINARY | BINARY | BINARY | BINARY | BINARY |
| Input format | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD |
| JESD-30 code | R-CDIP-T28 | R-CDIP-T28 | R-CDIP-T28 | R-CDIP-T28 | R-CDIP-T28 | R-CDIP-T28 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Maximum linear error (EL) | 0.0122% | 0.0122% | 0.0122% | 0.0183% | 0.0183% | 0.0183% |
| Nominal negative supply voltage | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of digits | 12 | 12 | 12 | 12 | 12 | 12 |
| Number of functions | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 28 | 28 | 28 | 28 | 28 | 28 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DIP | DIP | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.72 mm | 5.72 mm | 5.72 mm | 5.72 mm | 5.72 mm | 5.72 mm |
| Nominal settling time (tstl) | 10 µs | 10 µs | 10 µs | 10 µs | 10 µs | 10 µs |
| Nominal supply voltage | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | TIN LEAD | TIN LEAD | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) - hot dipped | TIN LEAD | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 15.24 mm | 15.24 mm | 15.24 mm | 15.24 mm | 15.24 mm | 15.24 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| Maker | ADI | ADI | ADI | - | ADI | - |
| Maximum slew rate | - | 35 mA | 35 mA | 35 mA | - | 35 mA |
