589157015000001: DescriptionTelecom and Datacom Connector, 15 Contact(s), Male, Solder Terminal, Plug; File Size80KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

589157015000001 Overview

Telecom and Datacom Connector, 15 Contact(s), Male, Solder Terminal, Plug

589157015000001 Parametric

Parameter Name	Attribute value
Objectid	2094439499
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

9157 MOBO

™

I/O Connector

GENERAL DESCRIPTION:

The 9157 series was specifically designed for portable

equipment.

AVX now offers this two-part system as a standard

product. The fixed SMT socket is designed to be housed

within the confined dimensional constraints of the portable

device.

The plug/cover connector has sprung contacts and is

designed for termination to accessory equipment. The

connector is designed to house fifteen signal contacts on a

1mm pitch rated at 1.5A. There is the option to include a

switching RF coax.

A cradle SMT plug connector for docking applications is

also available as standard and has the option of including a

SMT RF coax.

Whatever your requirements, the 9157 series can also be

customised to suit your application.

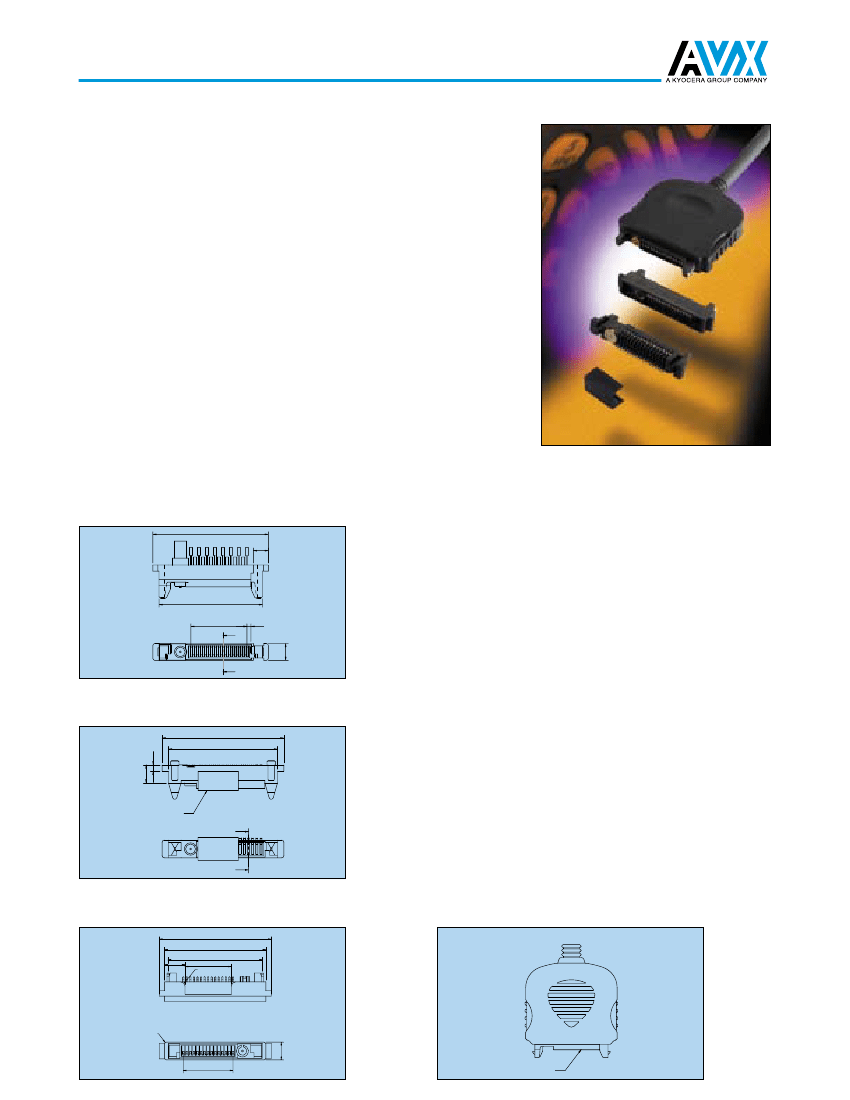

DRAWINGS

PLUG WIRE

28.80

3.72

KEY FEATURES AND BENEFITS

•

Patented 20° angled face on the socket gives

self-cleaning face when mated with plug.

• Metal Latching area integral to socket which saves

PCB real estate.

• Integral to socket is a mechanical 50

Ω

switching coax

for SMT termination.

• Single sprung plug contact design gives ten

thousand mating cycles and cleaning/wiping action.

• Customer has option to terminate own RF coax using

AVX custom tooling (see over).

• SMT plug has unique location pyramids that give

positive alignment to portable device, and assist blind

mating.

• Manufactured on fully automatic machines to support

high volume requirements.

25.80

14 PITCHES @ 1.00 = 14.00

1.00

SMT PLUG

28.80

25.80

1.50

4.25

4.20

APPLICATION

SMT CAP SHOWN ON

2 VIEWS ONLY

Suitable applications include:

• Mobile phones,

• PDA,

• Medical,

• Docking/Charging for any portable device.

SMT SOCKET

31.50

28.50

26.60

5.75

12.90/13.10

R1.20

2 POSN'S

COVER

R0.50

4 POSN'S

14 PITCHES @ 1.00 = 14.00

5.00

PLUG 10-9157-015-XXX-001

589157015000001 Related Products

	589157015000001	109157015000001	109157015000002	109157015001001	109157015001002	589157015000002	589157015001001	589157015001002
Description	Telecom and Datacom Connector, 15 Contact(s), Male, Solder Terminal, Plug	Telecom and Datacom Connector, 15 Contact(s), Male, Solder Terminal, Plug	Telecom and Datacom Connector, 15 Contact(s), Male, Straight, Surface Mount Terminal, Plug	Telecom and Datacom Connector, 15 Contact(s), Male, Solder Terminal, Plug	Telecom and Datacom Connector, 15 Contact(s), Male, Straight, Surface Mount Terminal, Plug	Telecom and Datacom Connector, 15 Contact(s), Male, Straight, Surface Mount Terminal, Plug	Telecom and Datacom Connector, 15 Contact(s), Male, Solder Terminal, Plug	Telecom and Datacom Connector, 15 Contact(s), Male, Straight, Surface Mount Terminal, Plug
Reach Compliance Code	compliant	compliant	compliant	compli	compliant	compliant	compliant	compliant
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	BOARD	CABLE	BOARD	BOARD	CABLE	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SURFACE MOUNT	SOLDER	SURFACE MOUNT	SURFACE MOUNT	SOLDER	SURFACE MOUNT
Total number of contacts	15	15	15	15	15	15	15	15
Objectid	2094439499	2094439455	2094439456	-	2094439458	-	-	2094439502
