55510-1004 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 55510-1004

Preview

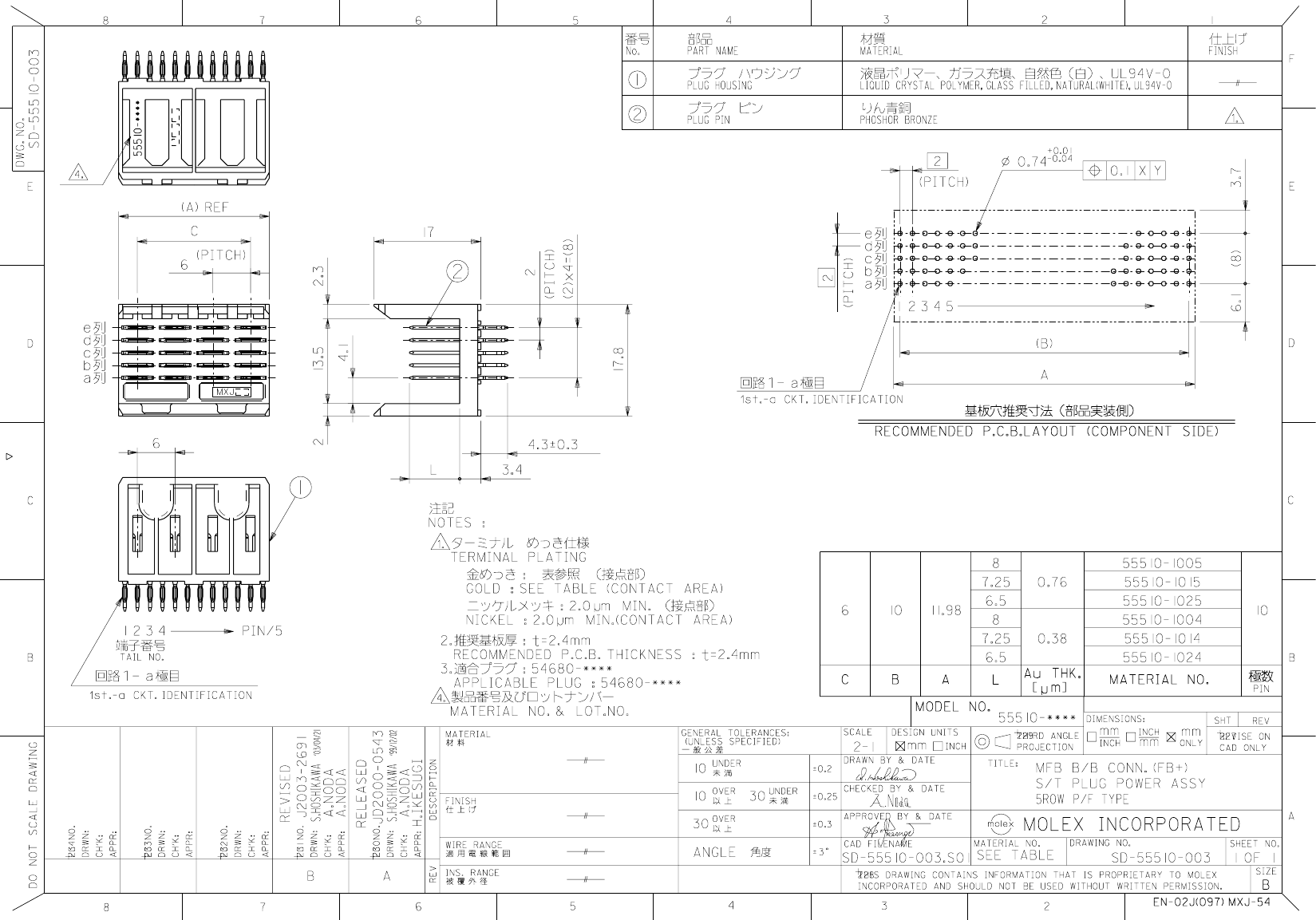

55510-1004: DescriptionBoard Connector, 10 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug; CategoryThe connector; File Size91KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

55510-1004 Overview

Board Connector, 10 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug

55510-1004 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	55510
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

55510-1004 Related Products

	55510-1004	55510-1025	55510-1005	55510-1014	55510-1015	55510-1024
Description	Board Connector, 10 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug	Board Connector, 10 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug	Board Connector, 10 Contact(s), 5 Row(s), Male, Straight, 0.236 inch Pitch, Press Fit Terminal, White Insulator, Plug	Board Connector, 10 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug	Board Connector, 10 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug	Board Connector, 10 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	55510	55510	55510	55510	55510	55510
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	10	10	10	10	10	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Molex	Molex	-	Molex	Molex	Molex
